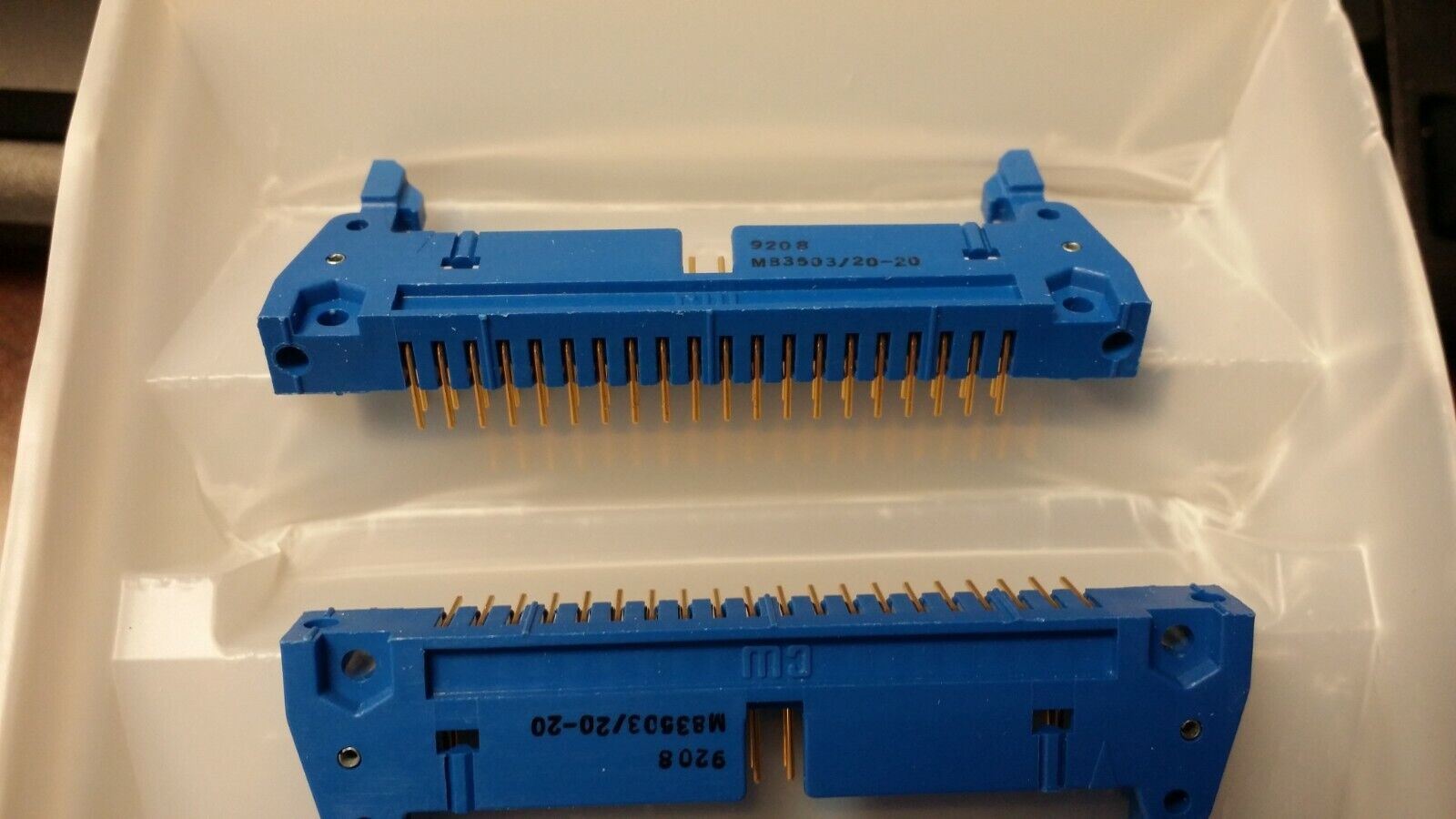

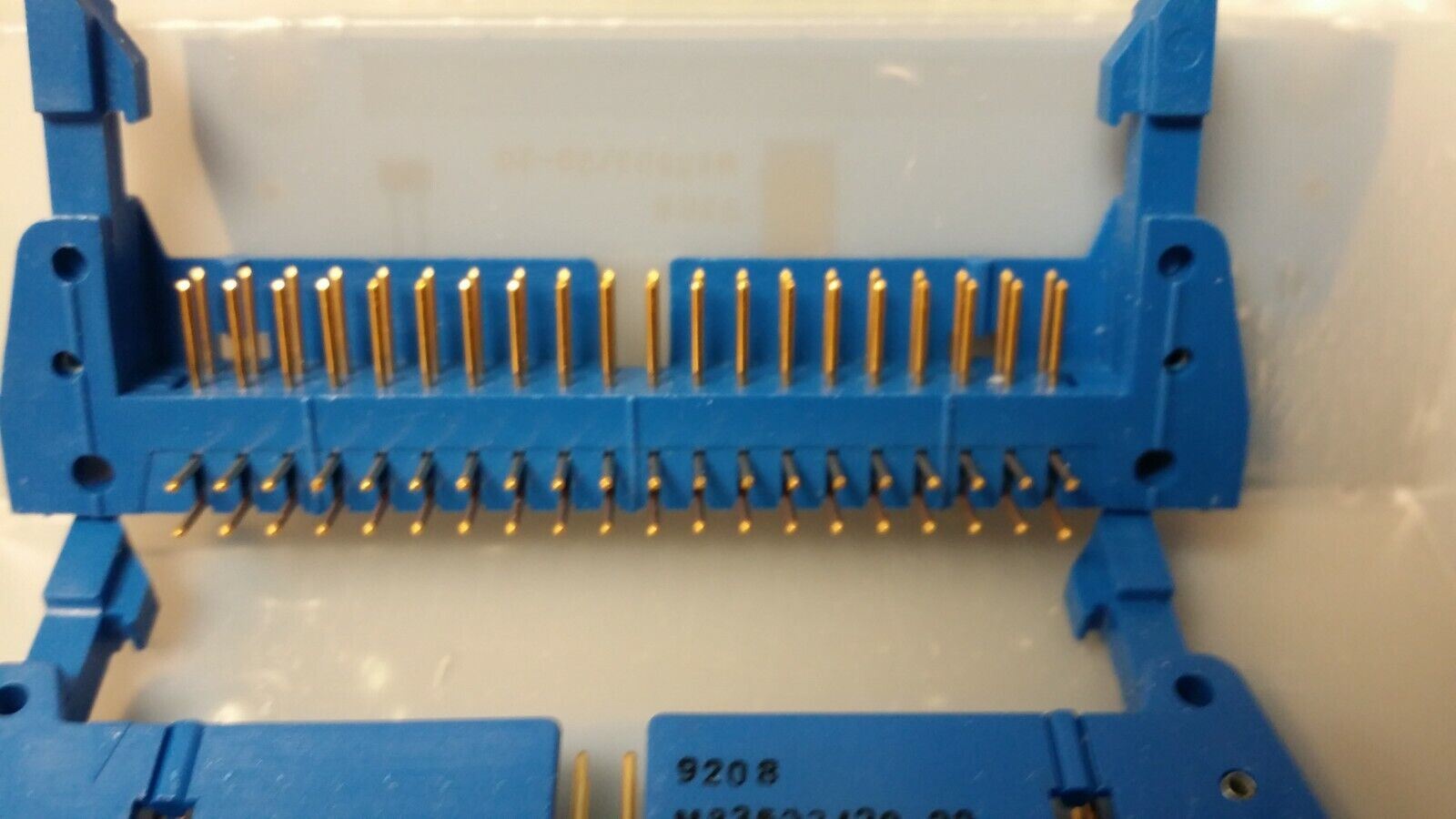

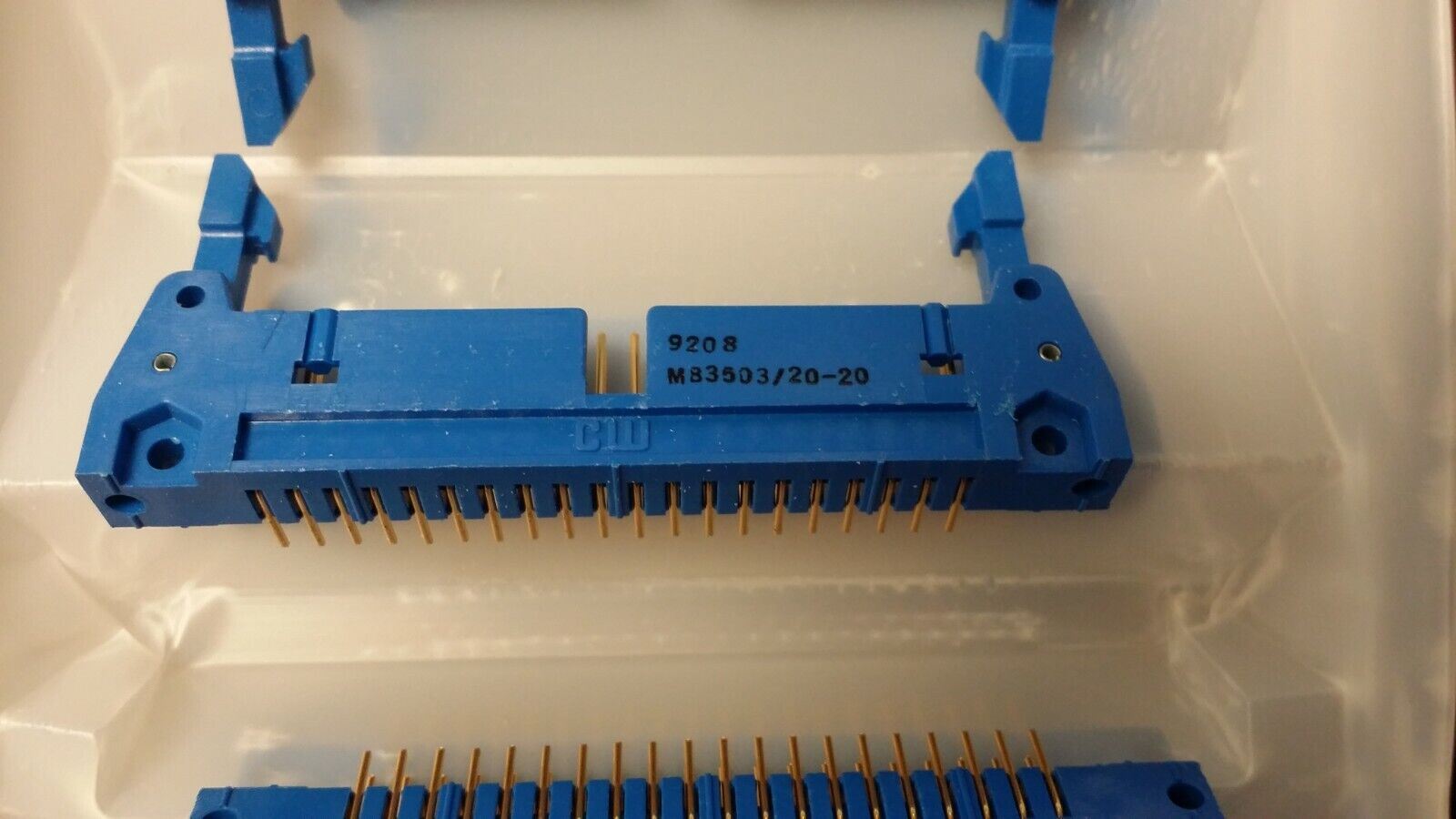

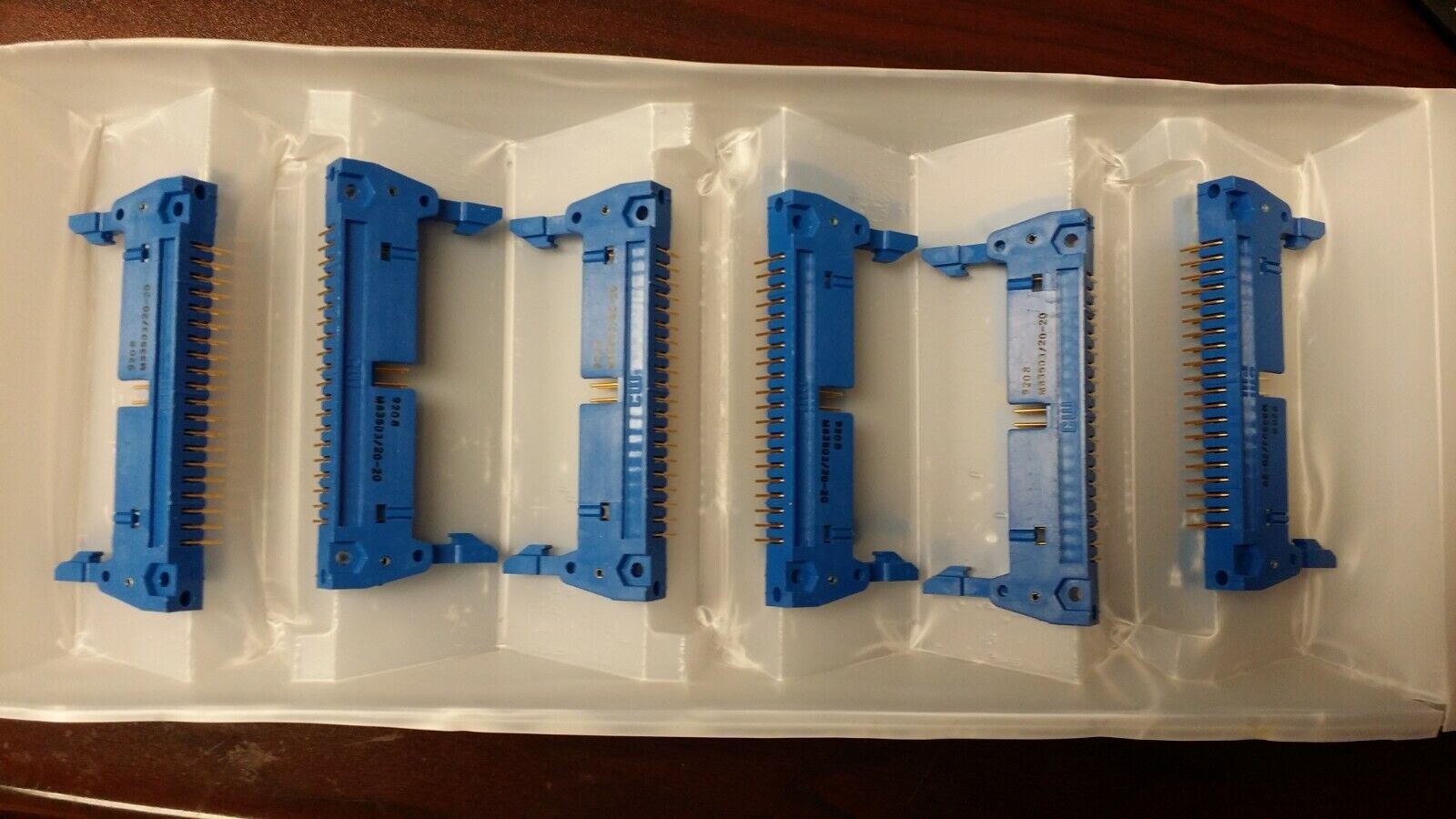

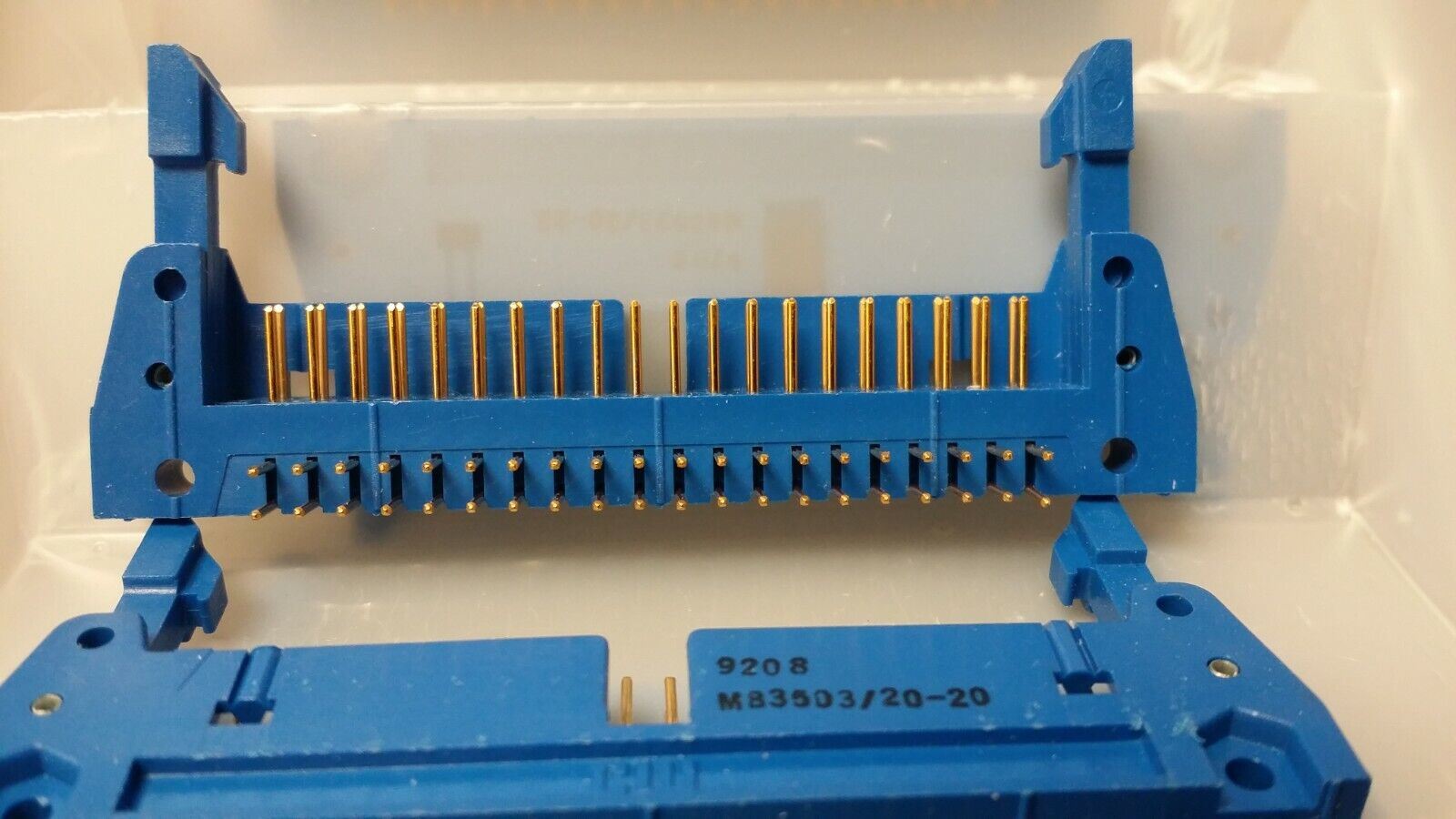

(1 PC) CWN-312-40-0022 CW IND. Board Connector 40 PIN 2 Row Male R/A
Tax included.
THIS IS FOR (1 PC) OF CWN-312-40-0022 BY CW IND.
Board Connector 40 PIN 2 Row Male Straight
Part #: CWN-312-40-0022
Part Category: Connectors
Manufacturer: CW Industries
Description: Board Connector, 40 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Latch & Eject, Blue Insulator, Receptacle
REACH Compliant Yes
Status Active
Connector Type BOARD CONNECTOR
Board Mounting Option HOLE .086-.098
Body/Shell Style RECEPTACLE
Contact Finish - Mating AU ON NI
Contact Gender MALE
Contact Material PHOSPHOR BRONZE
Contact Pattern RECTANGULAR
Contact Resistance 15.0 mohm
Contact Style SQ PIN-SKT
Insulation Resistance 5.0E9 ohm
Insulator Color BLUE
Insulator Material POLYETHYLENE
MIL Conformance YES
Mounting Option 1 LATCH & EJECT
Mounting Option 2 LATCHING
Mounting Style RIGHT ANGLE
Mounting Type BOARD
Number Of Connectors ONE
Number Of PCB Rows 2
Number of Rows Loaded 2
Operating Temperature-Min -55.0 Cel
PCB Contact Pattern RECTANGULAR
Polarization Key MIL TYP & CENTER
Reference Standard UL, CSA
Reliability MIL-C-83503
Sub Category Headers and Edge Type Connectors
Terminal Length 0.155 inch
Terminal Pitch 2.54 mm
