(1 PC) CS5501-AP ADC Delta-Sigma 16-Bit 1 Func 1 Channel Serial Access CMOS PDIP
Tax included.

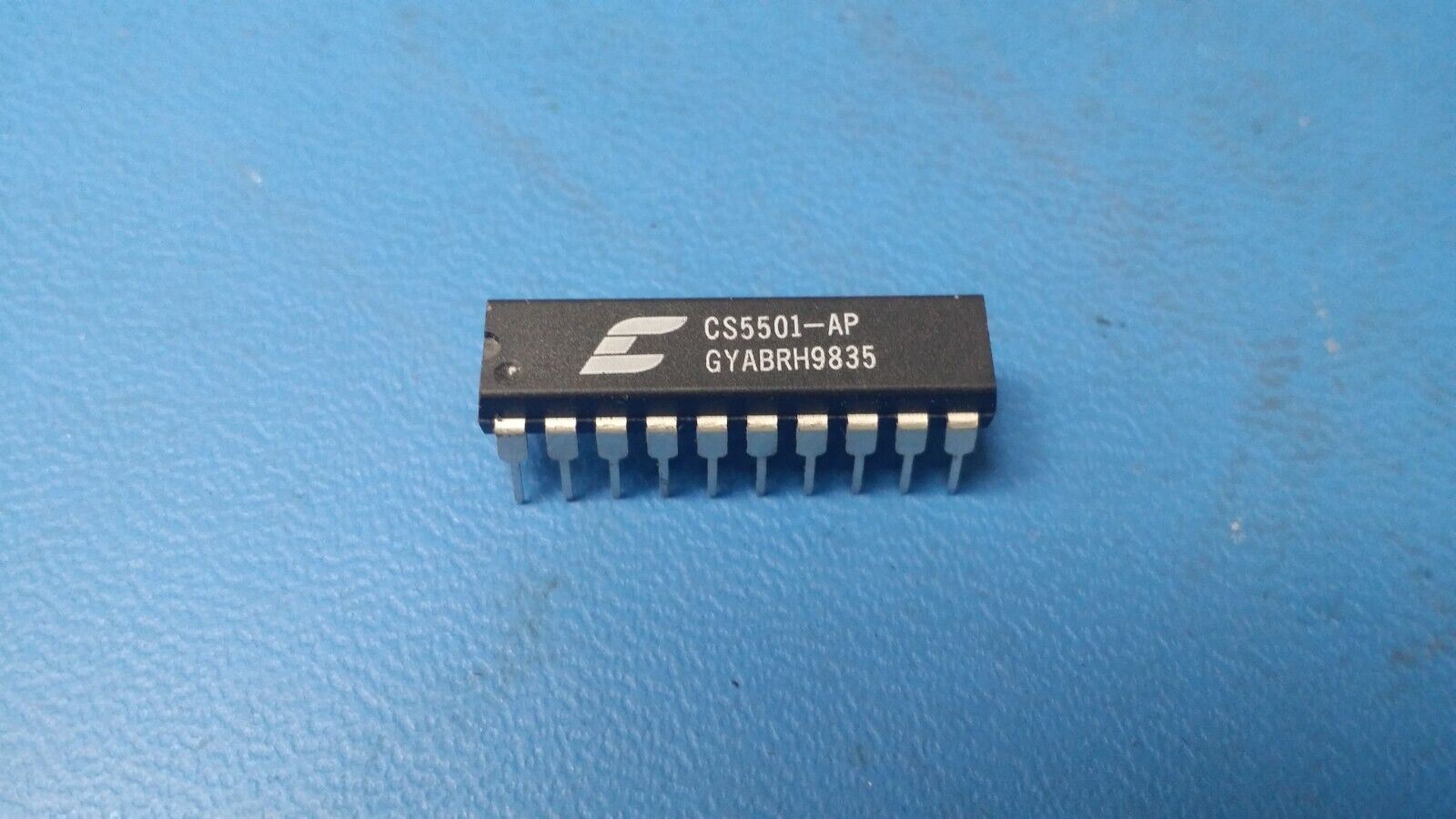

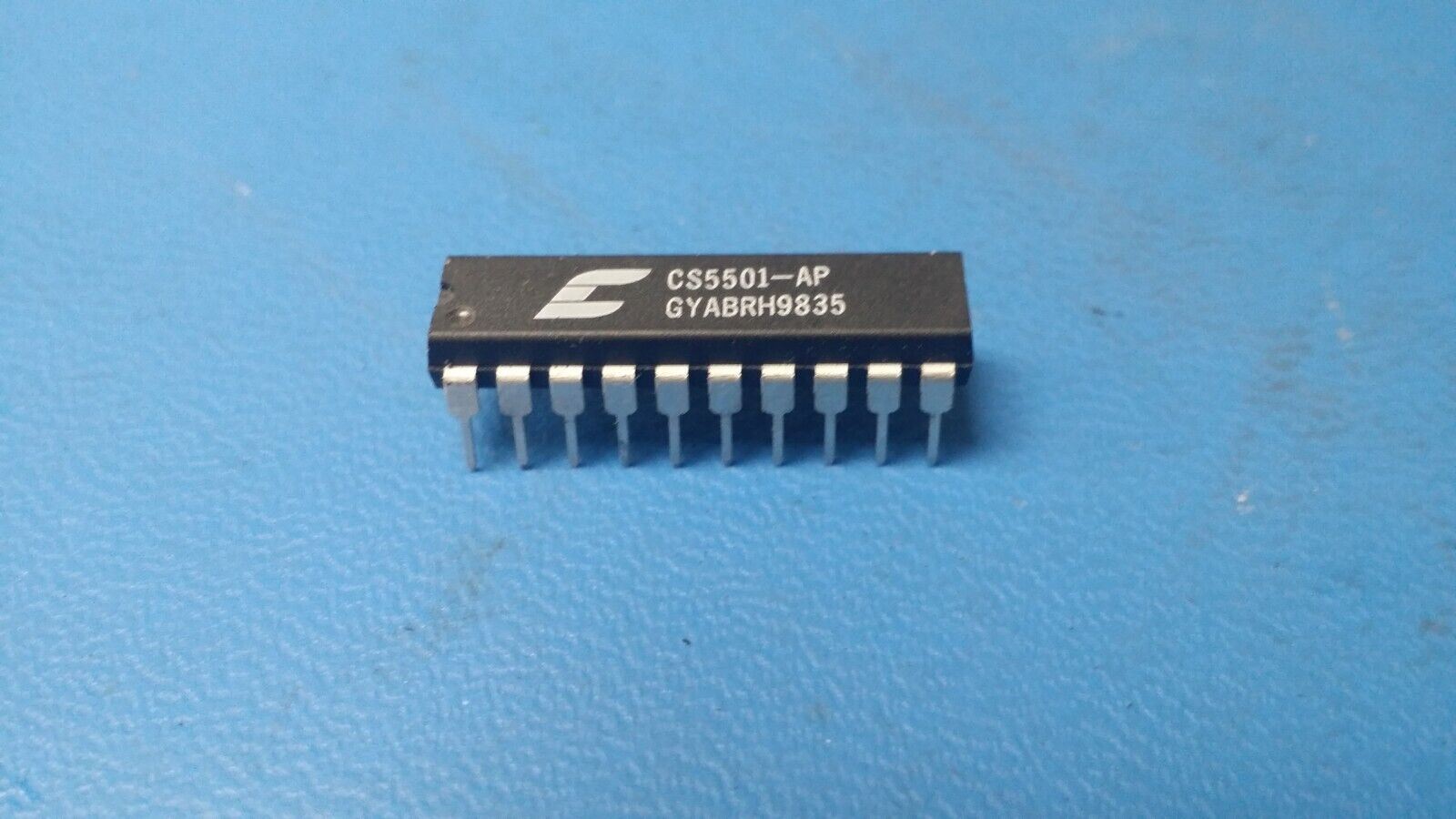

THIS IS FOR (1 PC) OF CS5501-AP BY CRYSTAL SEMI
ADC Delta-Sigma 16-Bit 1 Func 1 Channel Serial Access CMOS PDIP
Mfr Package Description PLASTIC, DIP-20
Status Discontinued
Converter Type ADC, DELTA-SIGMA
Analog Input Voltage-Min -5.5 V
Analog Input Voltage-Max 5.5 V
JESD-30 Code R-PDIP-T20
JESD-609 Code e0
Linearity Error-Max (EL) 0.003 %
Negative Supply Voltage-Nom -5.0 V
Number of Analog In Channels 1.0
Number of Bits 16
Number of Functions 1
Number of Terminals 20
Operating Temperature-Min -40.0 Cel
Operating Temperature-Max 85.0 Cel
Output Bit Code BINARY
Output Format SERIAL
Package Body Material PLASTIC/EPOXY
Package Code DIP
Package Equivalence Code DIP20,.3
Package Shape RECTANGULAR
Package Style IN-LINE
Peak Reflow Temperature (Cel) NOT SPECIFIED
Qualification Status Not Qualified
Sample Rate 0.004 MHz
Sub Category Analog to Digital Converters
Supply Voltage-Nom 5.0 V
Surface Mount NO
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish Tin/Lead (Sn/Pb)
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
