(1 PC) CS5501-AP ADC Delta-Sigma 16-Bit 1 Func 1 Channel Serial Access CMOS PDIP

$12.95
Unit price per

Tax included.

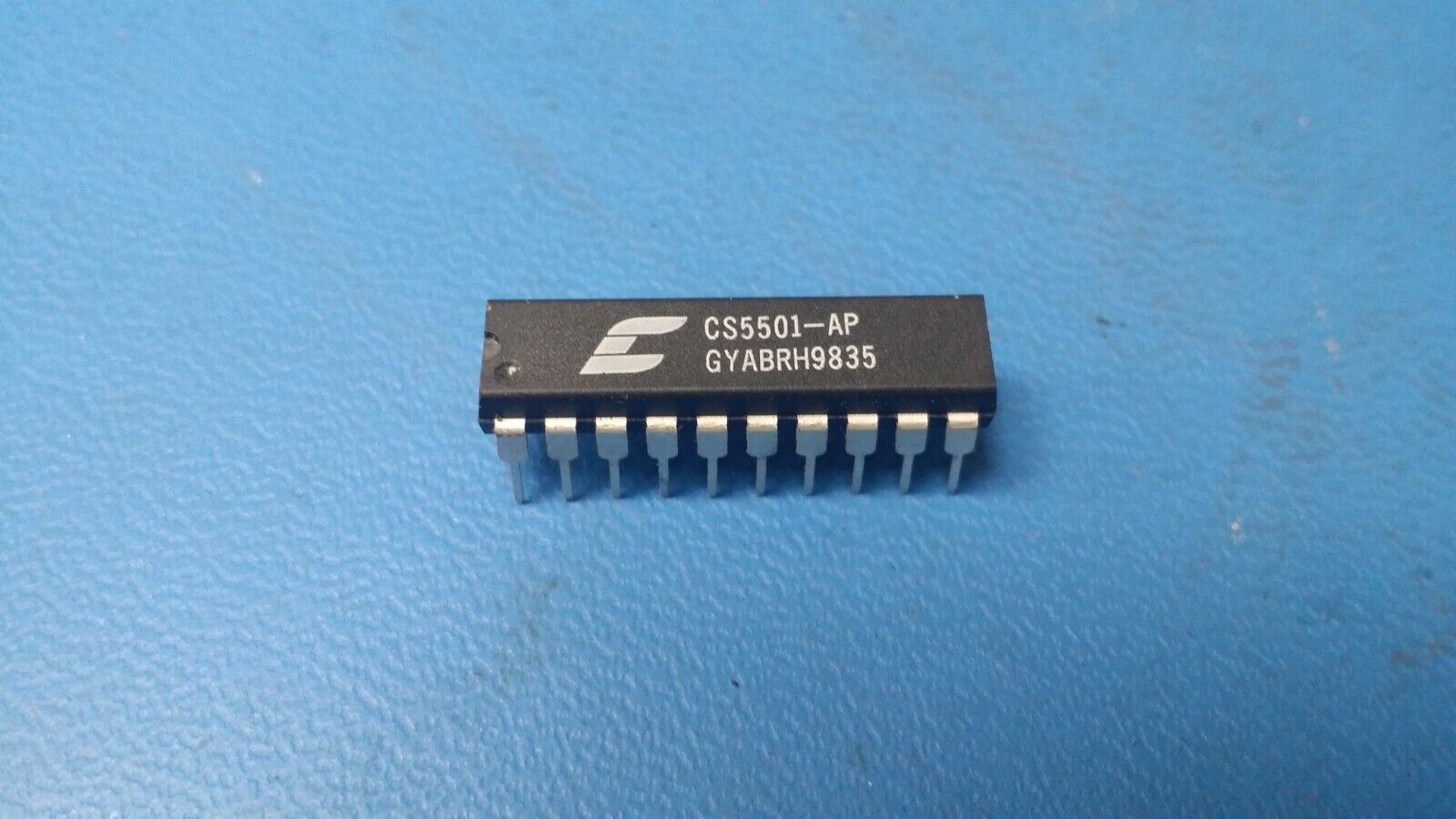

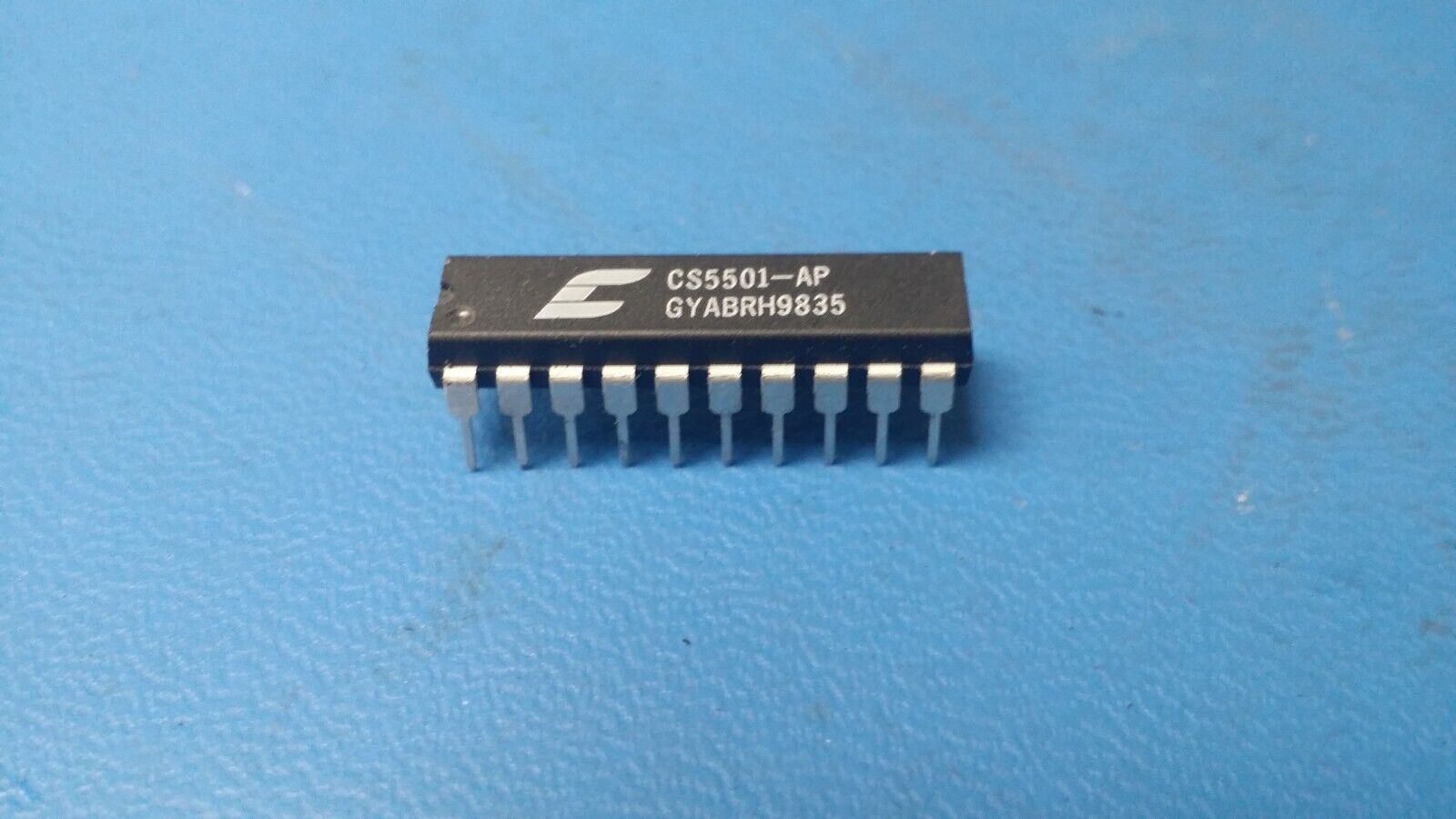

THIS IS FOR (1 PC) OF CS5501-AP BY CRYSTAL SEMI

ADC Delta-Sigma 16-Bit 1 Func 1 Channel Serial Access CMOS PDIP

Mfr Package Description PLASTIC, DIP-20

Status Discontinued

Converter Type ADC, DELTA-SIGMA

Analog Input Voltage-Min -5.5 V

Analog Input Voltage-Max 5.5 V

JESD-30 Code R-PDIP-T20

JESD-609 Code e0

Linearity Error-Max (EL) 0.003 %

Negative Supply Voltage-Nom -5.0 V

Number of Analog In Channels 1.0

Number of Bits 16

Number of Functions 1

Number of Terminals 20

Operating Temperature-Min -40.0 Cel

Operating Temperature-Max 85.0 Cel

Output Bit Code BINARY

Output Format SERIAL

Package Body Material PLASTIC/EPOXY

Package Code DIP

Package Equivalence Code DIP20,.3

Package Shape RECTANGULAR

Package Style IN-LINE

Peak Reflow Temperature (Cel) NOT SPECIFIED

Qualification Status Not Qualified

Sample Rate 0.004 MHz

Sub Category Analog to Digital Converters

Supply Voltage-Nom 5.0 V

Surface Mount NO

Technology CMOS

Temperature Grade INDUSTRIAL

Terminal Finish Tin/Lead (Sn/Pb)

Terminal Form THROUGH-HOLE

Terminal Pitch 2.54 mm

Terminal Position DUAL

Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
