(1 PC) CD74AC646EN RCA 8-BIT REGISTERED TRANSCEIVER, TRUE OUTPUT, PDIP24

  • $5.95
    Unit price per
Tax included.

Only 5 left!

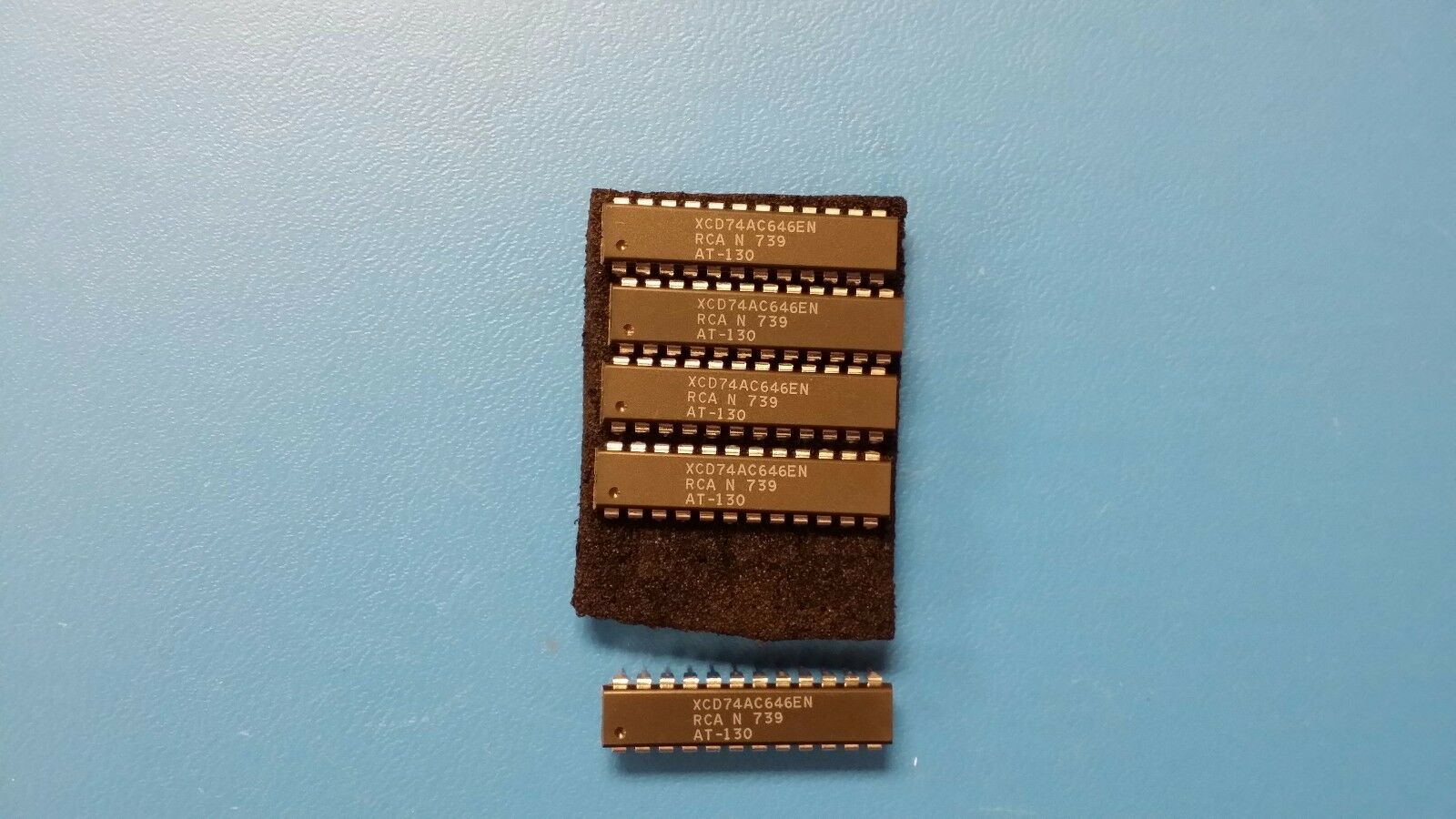

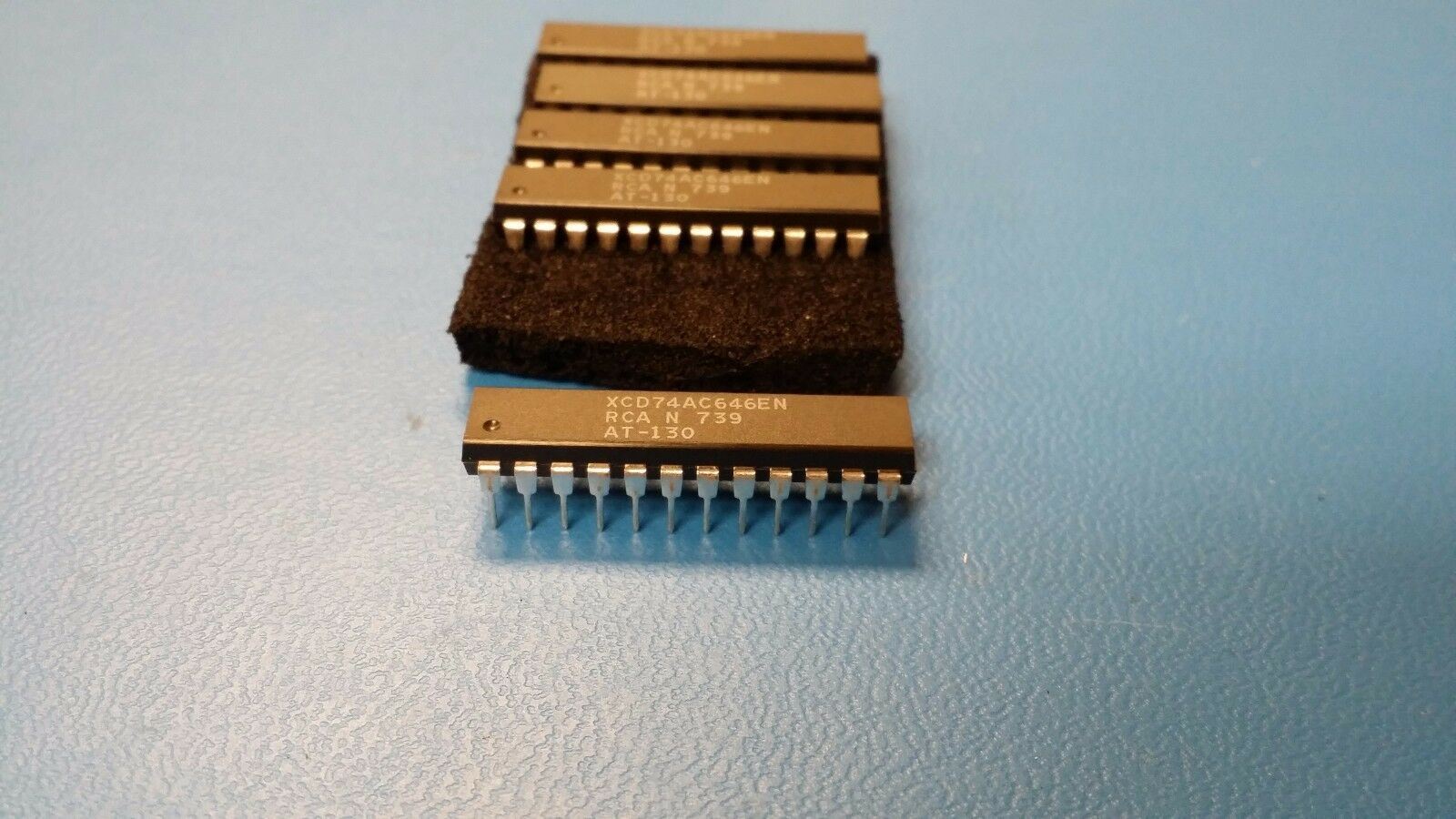

THIS LISTING IS FOR (1 PC) OF CD74AC646EN BY RCA
8-BIT REGISTERED TRANSCEIVER, TRUE OUTPUT, PDIP24
Mfr Package Description PLASTIC, DIP-24
Status Discontinued
Logic IC Type REGISTERED BUS TRANSCEIVER
Family AC
JESD-30 Code R-PDIP-T24
Number of Bits 8
Number of Functions 1
Number of Ports 2
Number of Terminals 24
Operating Temperature-Min -55.0 Cel
Operating Temperature-Max 125.0 Cel
Output Characteristics 3-STATE
Output Polarity TRUE
Package Body Material PLASTIC/EPOXY
Package Code DIP
Package Shape RECTANGULAR
Package Style IN-LINE
Propagation Delay (tpd) 138.0 ns
Qualification Status Not Qualified
Seated Height-Max 5.08 mm
Supply Voltage-Nom (Vsup) 3
Supply Voltage-Min (Vsup) 1.5 V
Supply Voltage-Max (Vsup) 5.5 V
Surface Mount NO
Technology CMOS
Temperature Grade MILITARY
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
Length 31.64 mm
Width 7.62 mm
Additional Feature WITH DIRECTION CONTROL
