(1 PC) BT475KPJ35 BROOKTREE Triple 8-Bit Digital-to-Analog Converter PLCC44
Tax included.

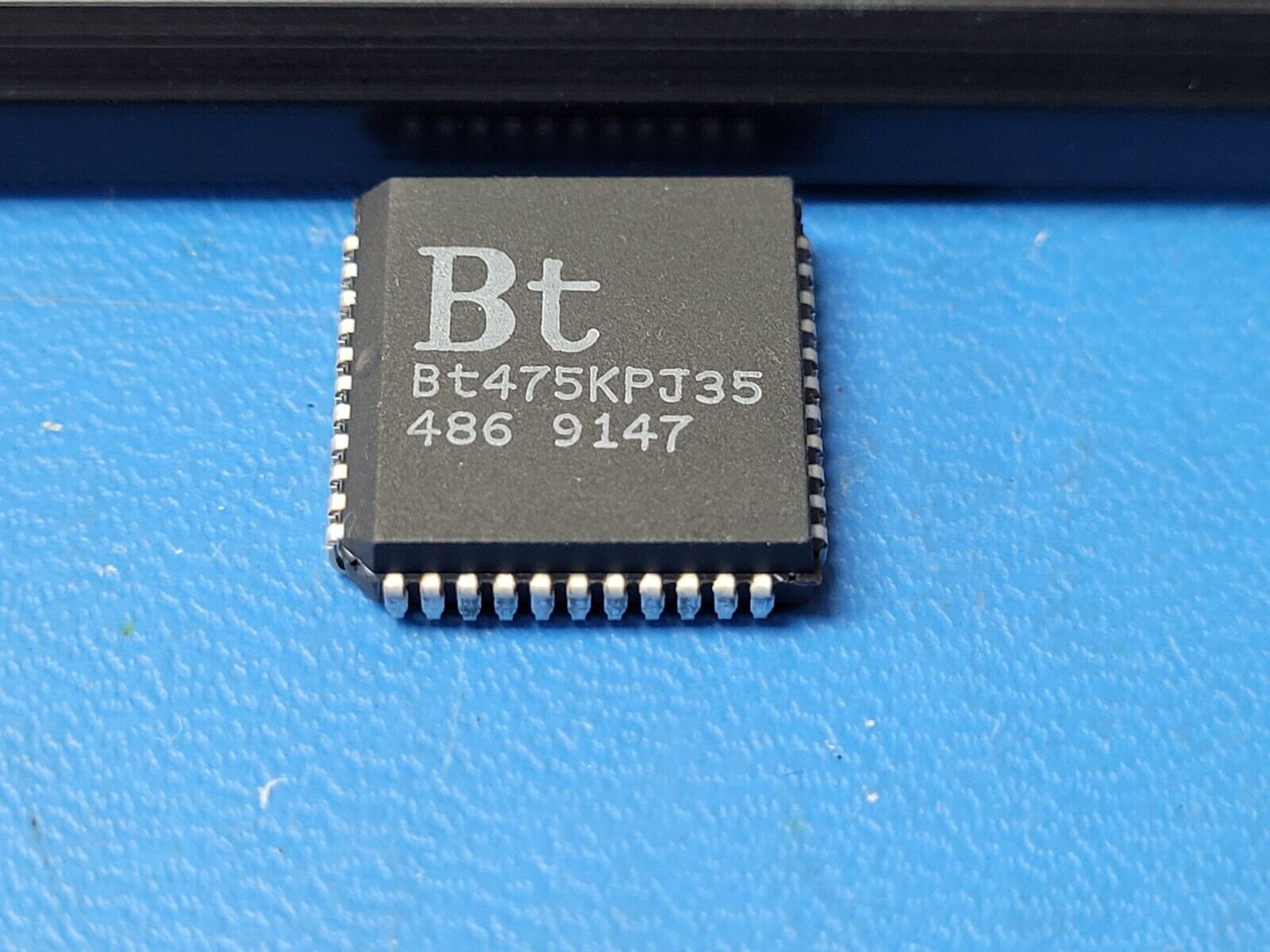

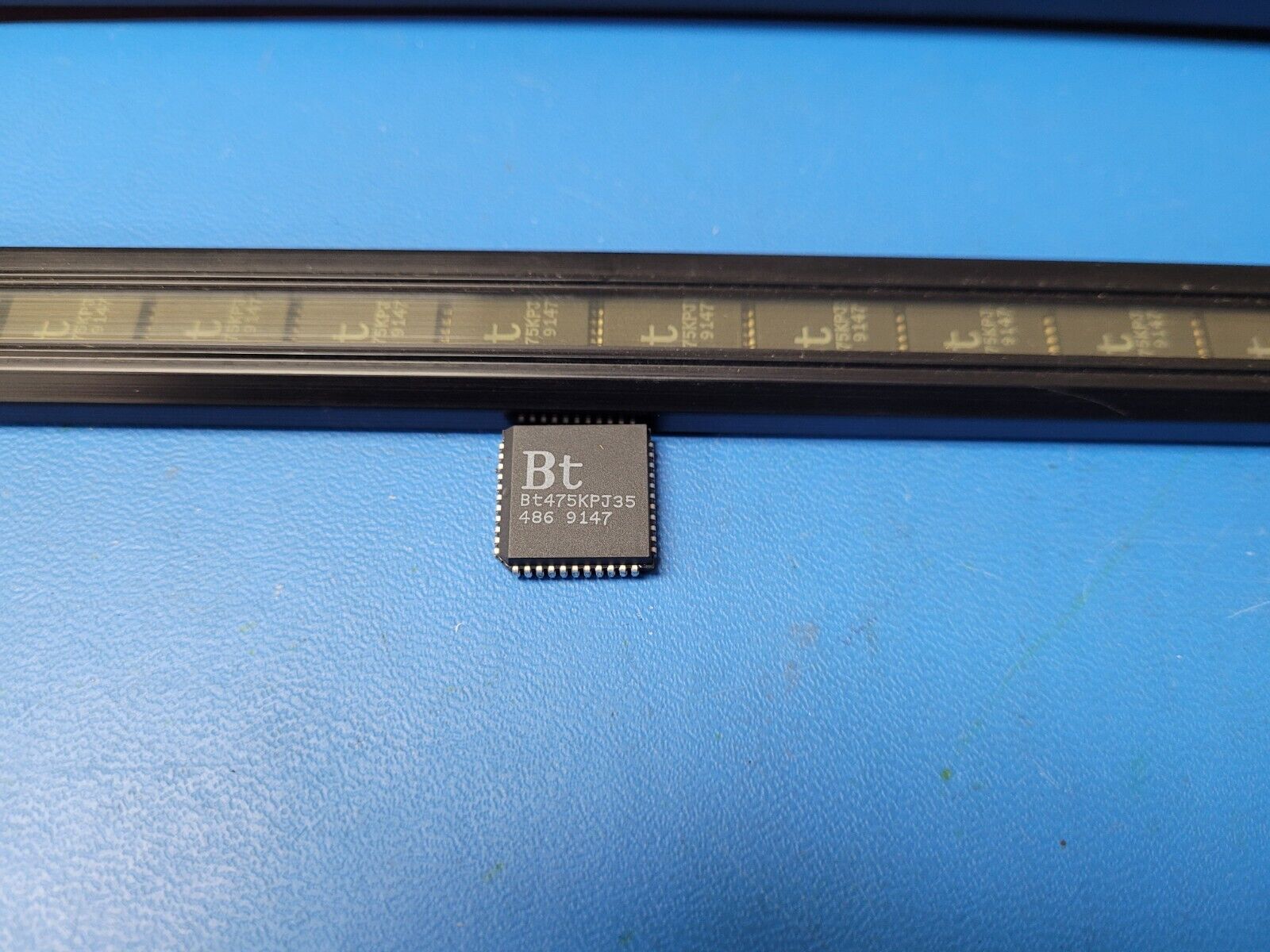

THIS IS FOR (1 PC) OF BT475KPJ35 BY BROOKTREE
Triple 8-Bit Digital-to-Analog Converter PLCC44
Status Discontinued
Converter Type D/A CONVERTER
Input Bit Code BINARY
Input Format PARALLEL, WORD
JESD-30 Code S-PQCC-J44
JESD-609 Code e0
Linearity Error-Max (EL) 0.391 %
Number of Bits 6
Number of Functions 1
Number of Terminals 44
Operating Temperature-Min -55.0 Cel
Operating Temperature-Max 125.0 Cel
Package Body Material PLASTIC/EPOXY
Package Code QCCJ
Package Equivalence Code LDCC44,.7SQ
Package Shape SQUARE
Package Style CHIP CARRIER
Qualification Status Not Qualified
Settling Time-Nom (tstl) 0.028 µs
Sub Category Other Converters
Supply Current-Max 240.0 mA
Supply Voltage-Nom 5.0 V
Surface Mount YES
Technology CMOS
Temperature Grade MILITARY
Terminal Finish TIN LEAD
Terminal Form J BEND
Terminal Pitch 1.27 mm
Terminal Position QUAD
