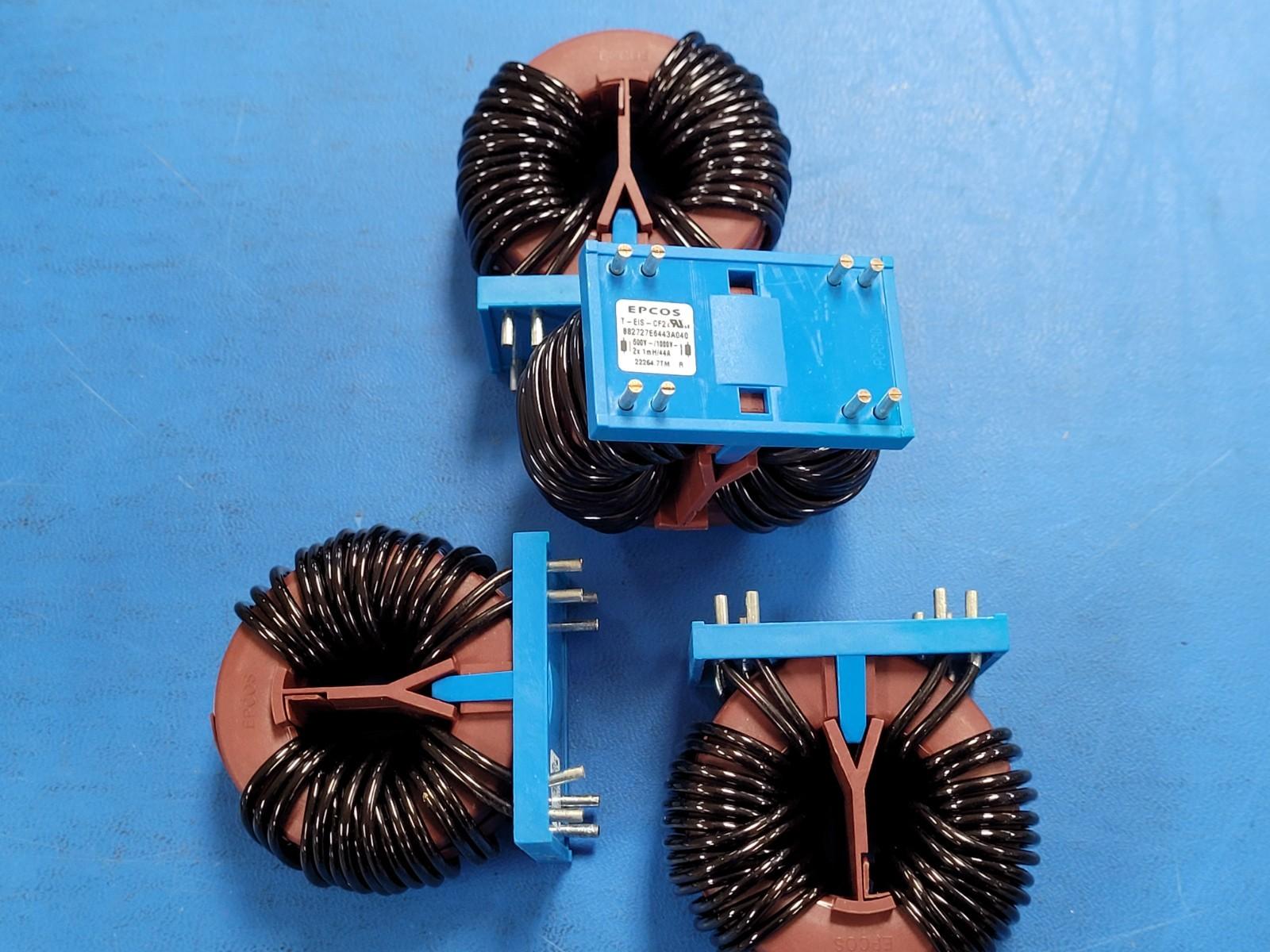

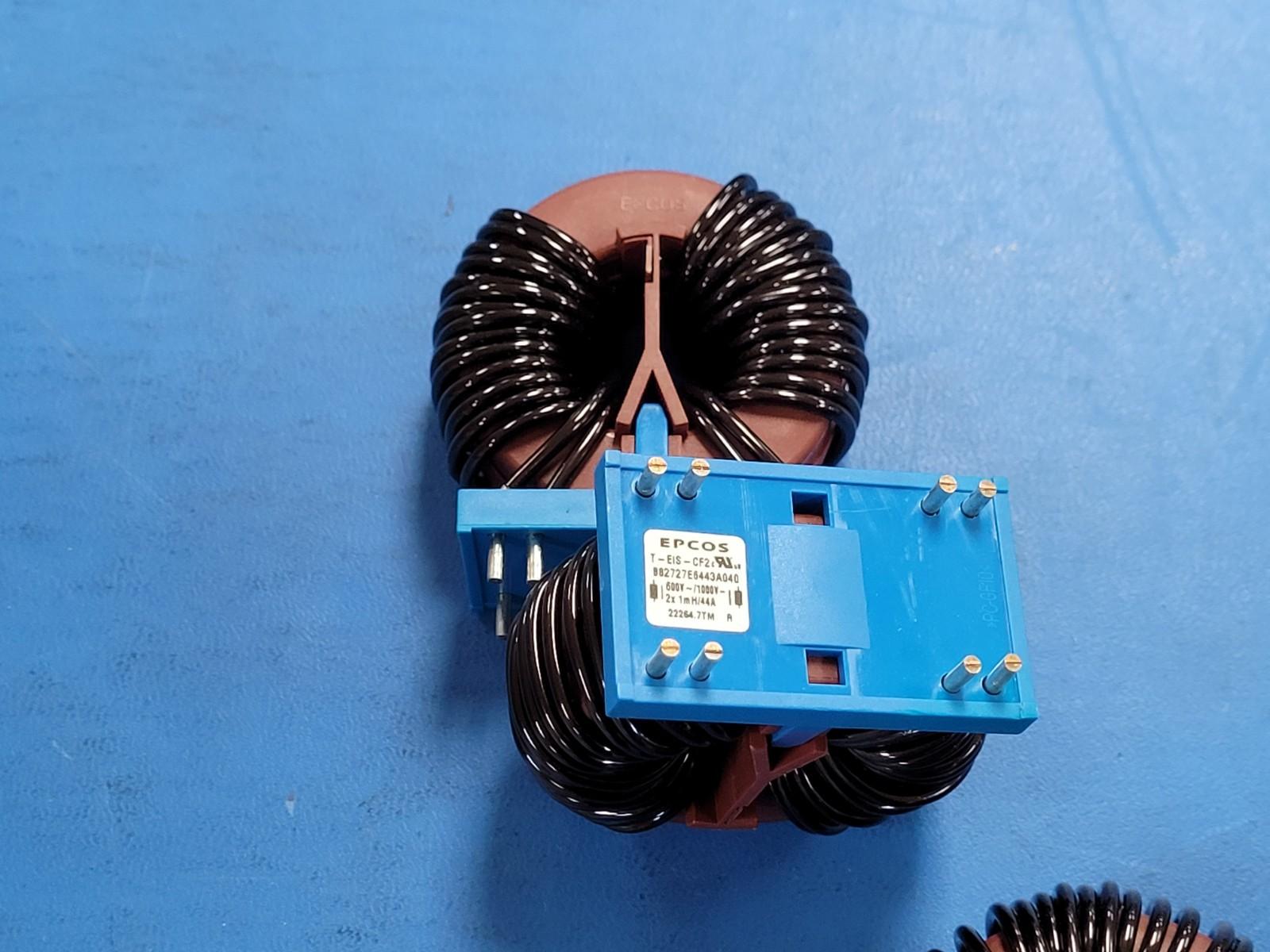

(1 PC) B82727E6443A040 EPCOS 1 mH @ 100 kHz 2 Line Common Mode Choke
Tax included.

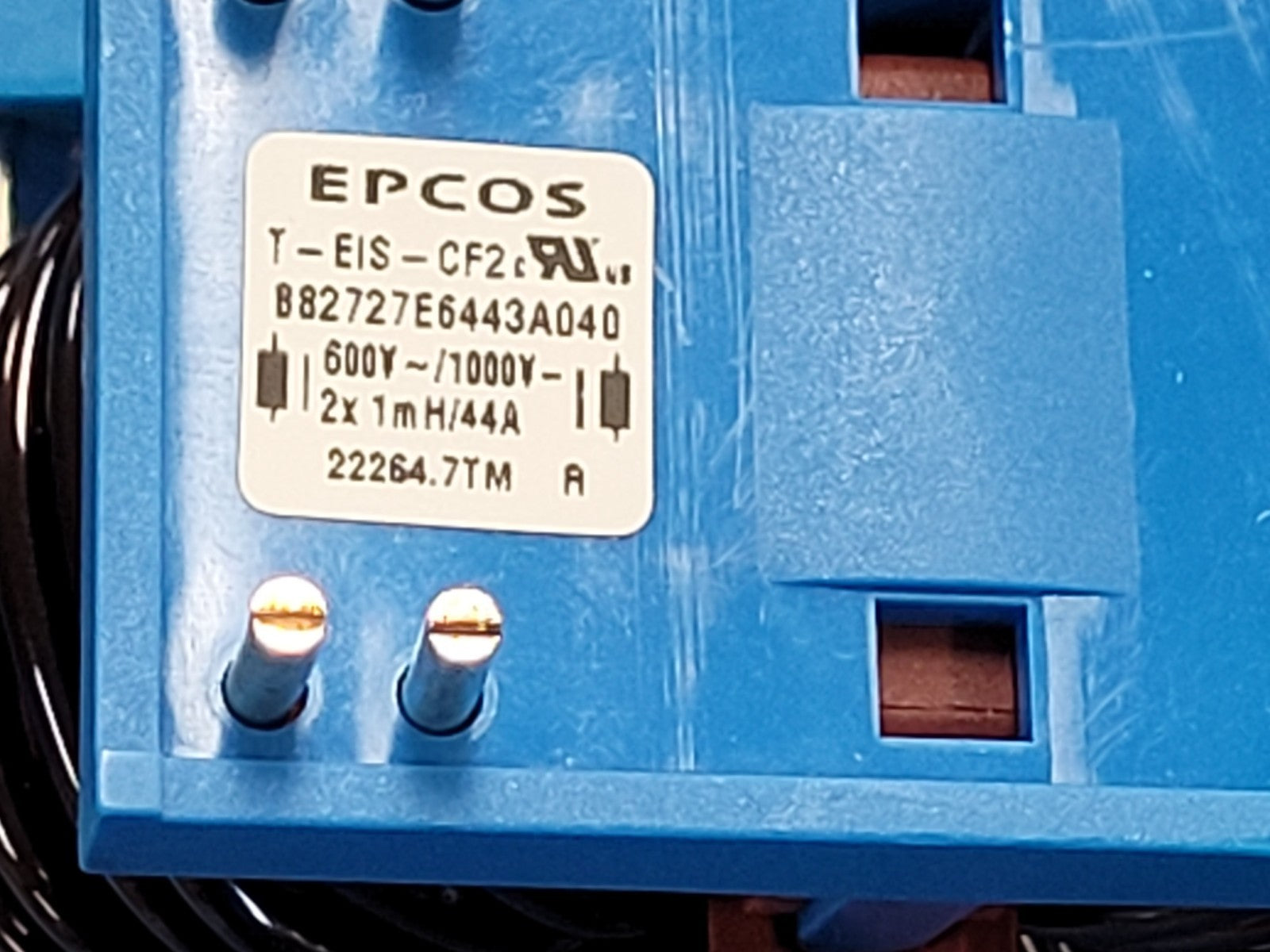

THIS IS FOR (1 PC) OF B82727E6443A040 BY EPCOS
1 mH @ 100 kHz 2 Line Common Mode Choke
Power Line Choke, Ring Core, 1Mh, 44A Rohs Compliant: Yes |EPCOS (TDK)
Status Active
Construction Rectangular
Core Material FERRITE
DC Resistance (ohm) 0.0013500000000000
Inductance-Nom (L) (uH) 1000.0000000000000000
Application POWER INDUCTOR
Inductor Type GENERAL PURPOSE INDUCTOR
J-STD-609 Code e3
Lead Diameter (mm) 2.240000
Lead Length (mm) 5.000000
Number of Functions 4
Number of Terminals 8
Operating Temperature-Max (Cel) 125
Operating Temperature-Min (Cel) -40
Package Height (mm) 61.000000
Package Length (mm) 65.000000
Package Style RECTANGULAR
Package Width (mm) 35.000000
Packing Method Bulk
Rated Current-Max (A) 44.0000000000000000
Screening Level / Reference Standard CUL, UL
Shape/Size Description RECTANGULAR PACKAGE
Shielded NO
Special Feature INDUCTANCE IS MEASURED AT 0.1 MILLI AMPERE
Surface Mount NO
Terminal Finish Tin (Sn)
Terminal Placement RADIAL
Terminal Shape WIRE
Test Frequency (MHz) 0.1000000000000000
Tolerance (%) 50.0000
