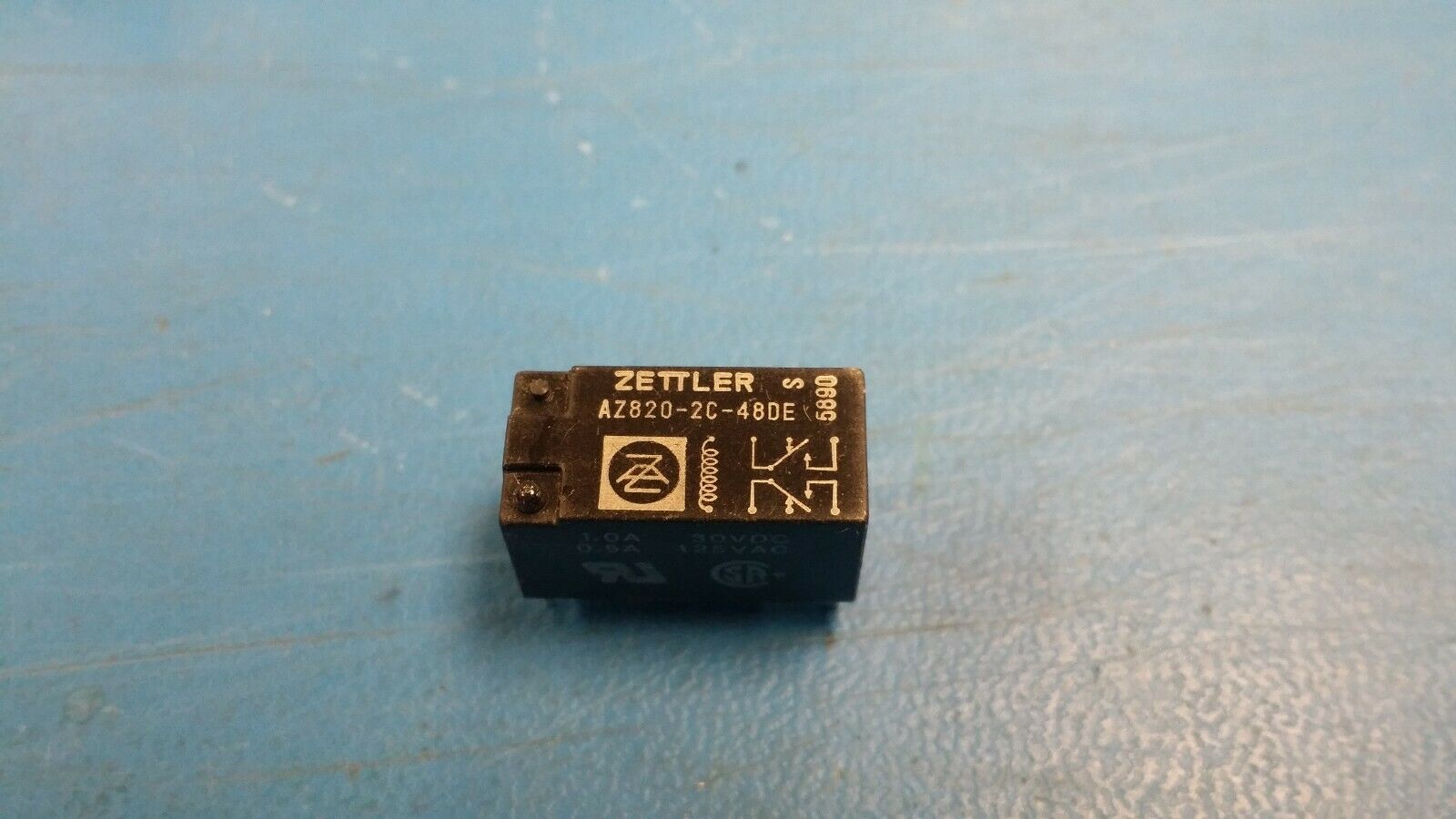

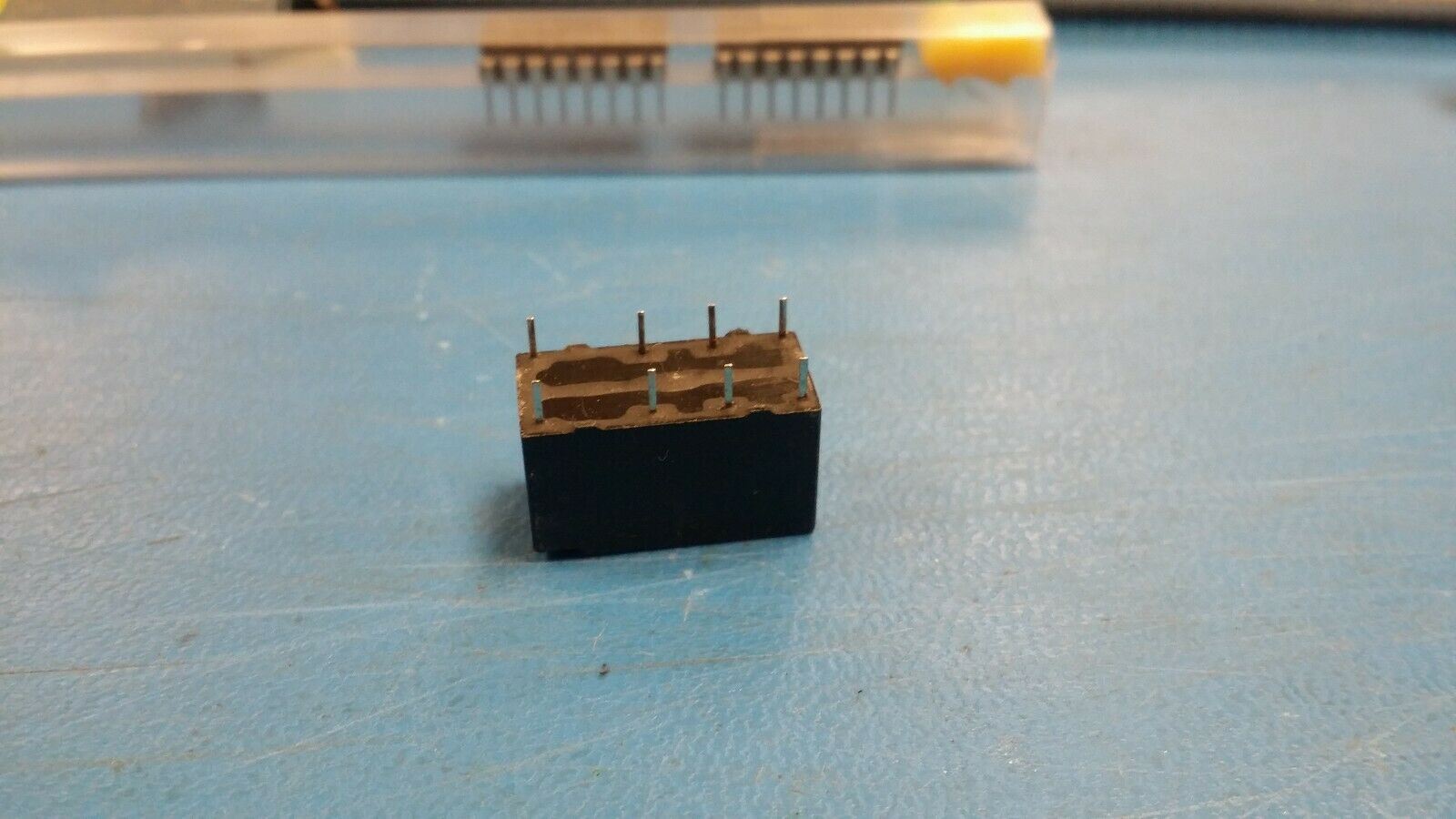

(1 PC) AZ820-2C-48DE Power/Signal Relay DPDT 2A 48VDC 52Ohm Thru-Hole
Tax included.
THIS LISTING IS FOR (1 PC) OF AZ820-2C-48DE BY American Zettler
Electromechanical Relay DPDT 2A 48VDC 52Ohm Thru-Hole
Part #: AZ820-2C-48DE
Part Category: Relays
Manufacturer: American Zettler, Inc.
Description: Power/Signal Relay, 2 Form C, DPDT, Latched, 72VDC (Coil), 2A (Contact), 150VDC (Contact), DC Input, Random, AC/DC Output
Status Discontinued
Relay Type POWER/SIGNAL RELAY
Body Breadth 10.0 mm
Body Height 11.5 mm
Body Length or Diameter 20.2 mm
Coil/Input Supply Type DC
Coil Operate Voltage(DC) 34.6 V
Coil Resistance 4000.0 ohm
Coil Voltage-Nom 48.0 V
Coil Voltage(DC)-Max 72.0 V
Contact AC Max Power Rating R Load 60VA@300VAC
Contact AC Max Rating R Load 2A@300VAC
Contact Current(AC)-Max 2.0 A
Contact Current(DC)-Max 2.0 A
Contact DC Max Power Rating R Load 30W@150VDC
Contact DC Max Rating R Load 2A@150VDC
Contact/Output Supply Type AC/DC
Contact Resistance 50.0 mohm
Contact Voltage(AC)-Max 300.0 V
Contact Voltage(DC)-Max 150.0 V
Dielectric Strength Between Coil and Contacts 1000.0 Vrms
Dielectric Strength Between Open Contacts 1000.0 Vrms
End Contact Material Silver Palladium
End Contact Plating GOLD
Input Switching Control Type Random
Insulation Resistance 1.0E9 ohm
Manufacturer Series AZ820
Number of Terminals 8
Operate Time 5.0 ms
Operating Temperature-Min -55.0 Cel
Operating Temperature-Max 75.0 Cel
PCB Hole Count 8.0
Physical Dimension 20.2mm x 10mm x 11.5mm
Reference Standard CSA; UL
Relay Action LATCHED
Relay Form 2 FORM C
Relay Function DPDT
Release Time 2.0 ms
Sealing EPOXY
Terminal Finish Tin
