(1 PC) AY2661A/P, SY2661P Serial I/O Controller, 1 Channel(s), CMOS, PDIP28
Tax included.

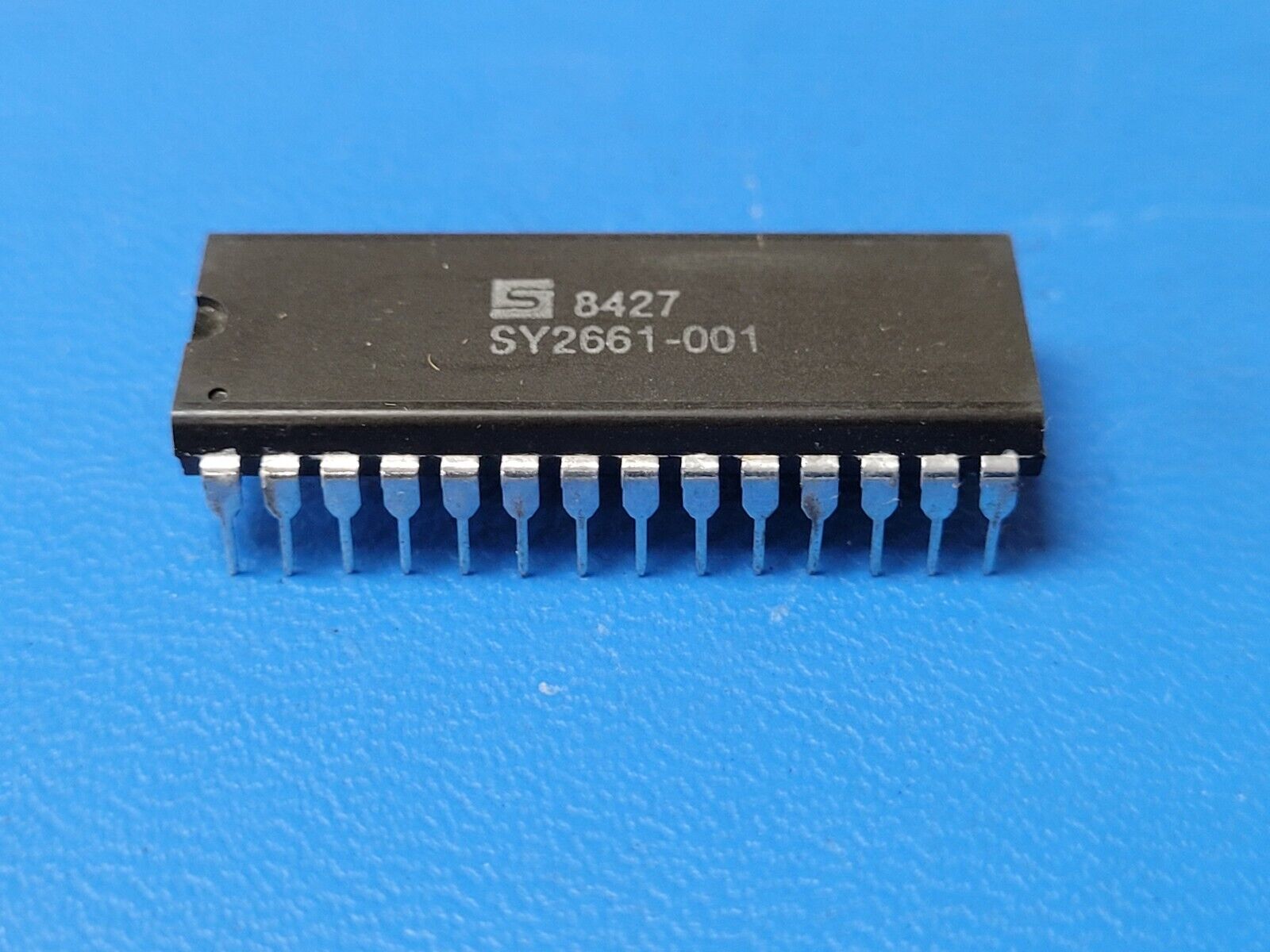

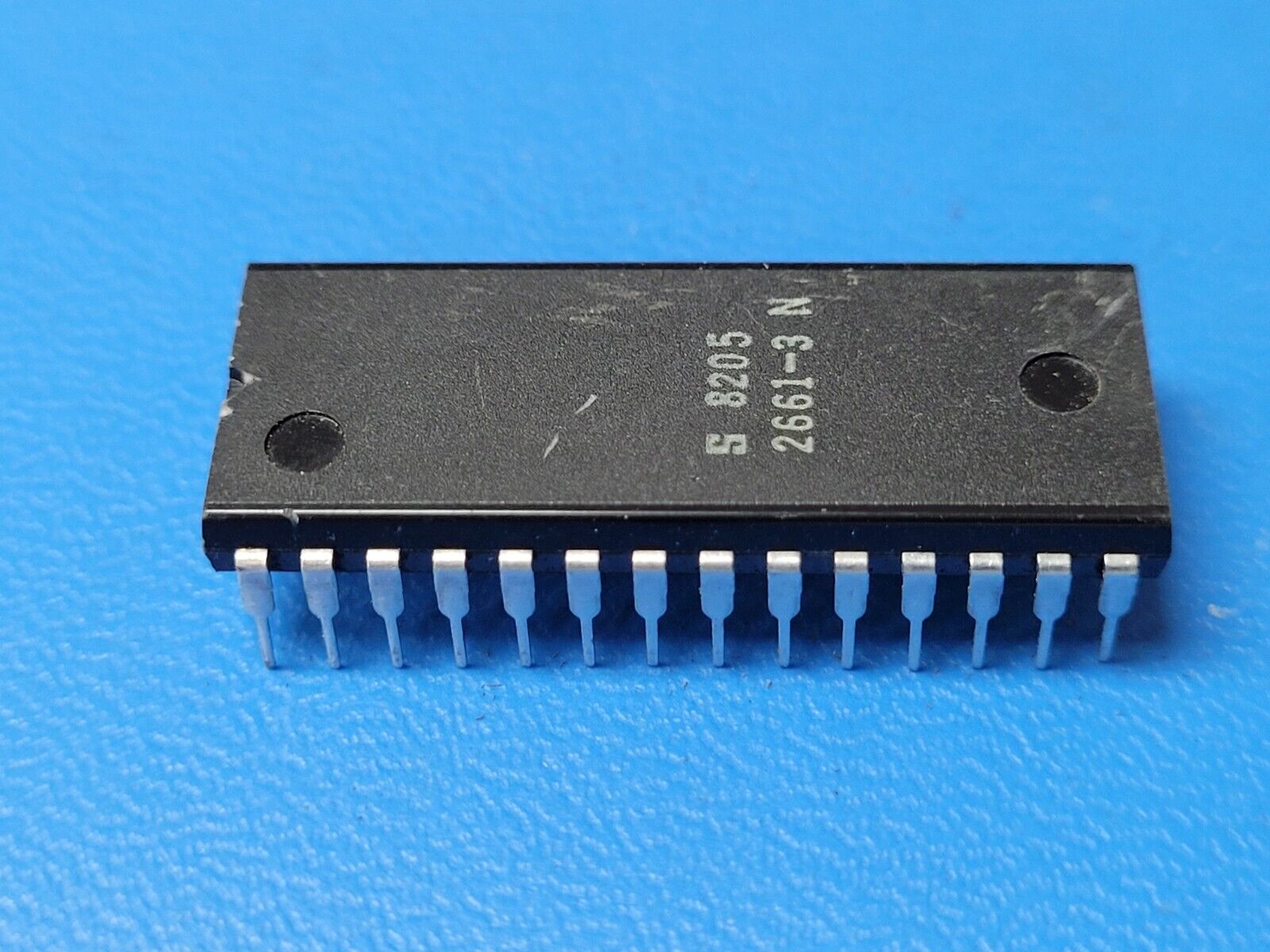

THIS IS FOR (1 PC) OF AY2661A/P, OR SY2661P
Serial I/O Controller, 1 Channel(s), CMOS, PDIP28
Mfr Package Description 0.600 INCH, PLASTIC, DIP-28
Status Discontinued
Address Bus Width 2.0
Communication Protocol BISYNC
Data Encoding/Decoding Method NRZ
External Data Bus Width 8.0
JESD-30 Code R-PDIP-T28
JESD-609 Code e0
Number of Serial I/Os 1.0
Number of Terminals 28
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Package Body Material PLASTIC/EPOXY
Package Code DIP
Package Equivalence Code DIP28,.6
Package Shape RECTANGULAR
Package Style IN-LINE
Power Supplies 5
Qualification Status Not Qualified
Seated Height-Max 5.08 mm
Sub Category Serial IO/Communication Controllers
Supply Voltage-Nom 5.0 V
Supply Voltage-Min 4.75 V
Supply Voltage-Max 5.25 V
Surface Mount NO
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Finish TIN LEAD
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
Length 36.322 mm
Width 15.24 mm
