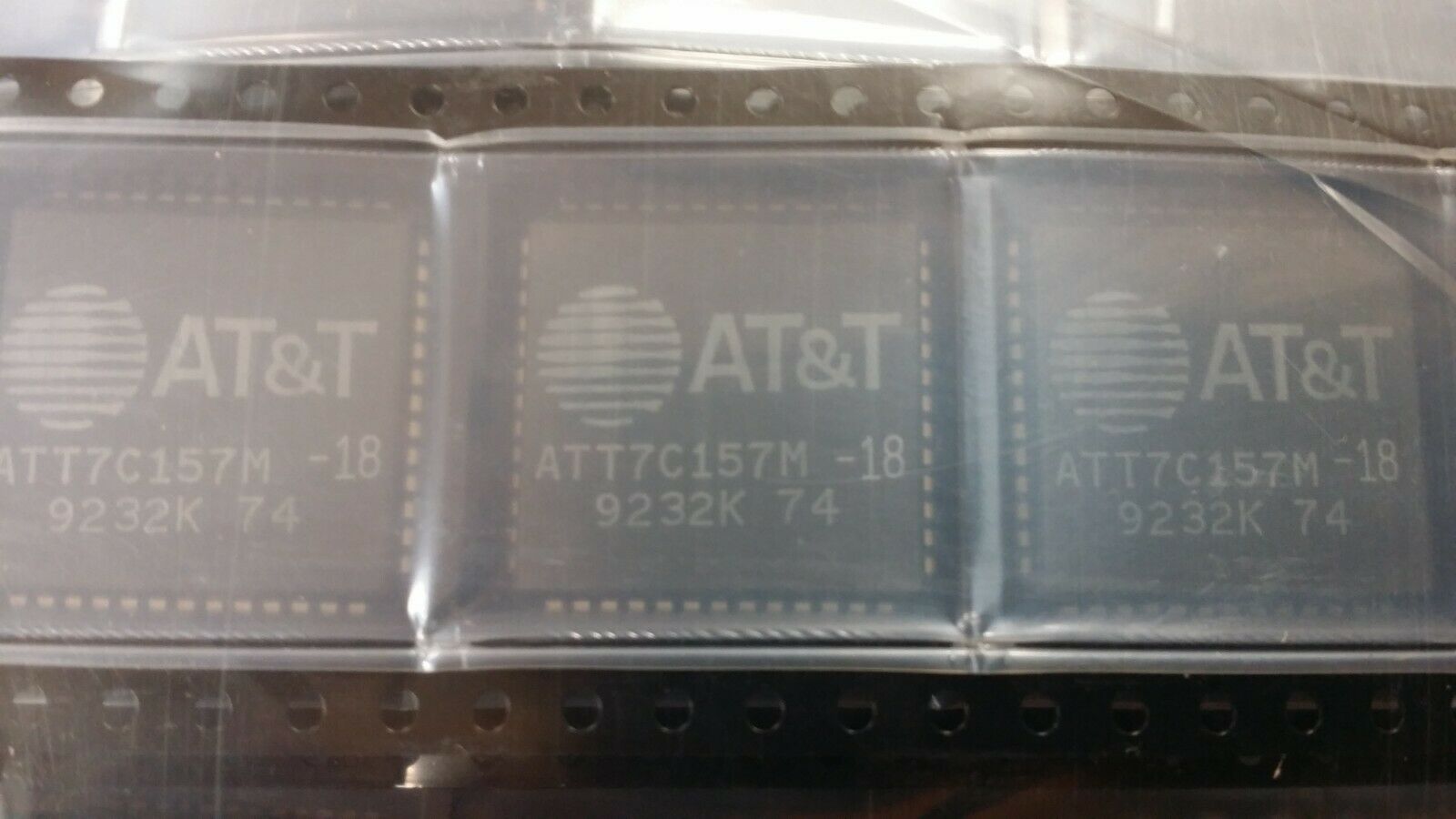

(1 PC) ATT7C157M-18 Standard SRAM, 16KX16, 18ns, CMOS, PLCC52
Tax included.
THIS LISTING IS FOR (1 PC) OF ATT7C157M-18 BY AT&T MicroelectronicsStandard
SRAM, 16KX16, 18ns, CMOS, PLCC52
Status Discontinued
Sub Category SRAMs
Access Time-Max 18.0 ns
I/O Type COMMON
JESD-30 Code S-PQCC-J52
JESD-609 Code e0
Memory Density 262144.0 bit
Memory IC Type STANDARD SRAM
Memory Width 16
Number of Terminals 52
Number of Words 16384.0 words
Number of Words Code 16K
Operating Mode SYNCHRONOUS
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Organization 16KX16
Output Characteristics 3-STATE
Package Body Material PLASTIC/EPOXY
Package Code QCCJ
Package Equivalence Code LDCC52,.8SQ
Package Shape SQUARE
Package Style CHIP CARRIER
Parallel/Serial PARALLEL
Qualification Status Not Qualified
Standby Current-Max 0.275 Amp
Standby Voltage-Min 4.5 V
Supply Current-Max 0.275 Amp
Supply Voltage-Nom (Vsup) 5.0 V
Surface Mount YES
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Finish Tin/Lead (Sn/Pb)
Terminal Form J BEND
Terminal Pitch 1.27 mm
Terminal Position QUAD
