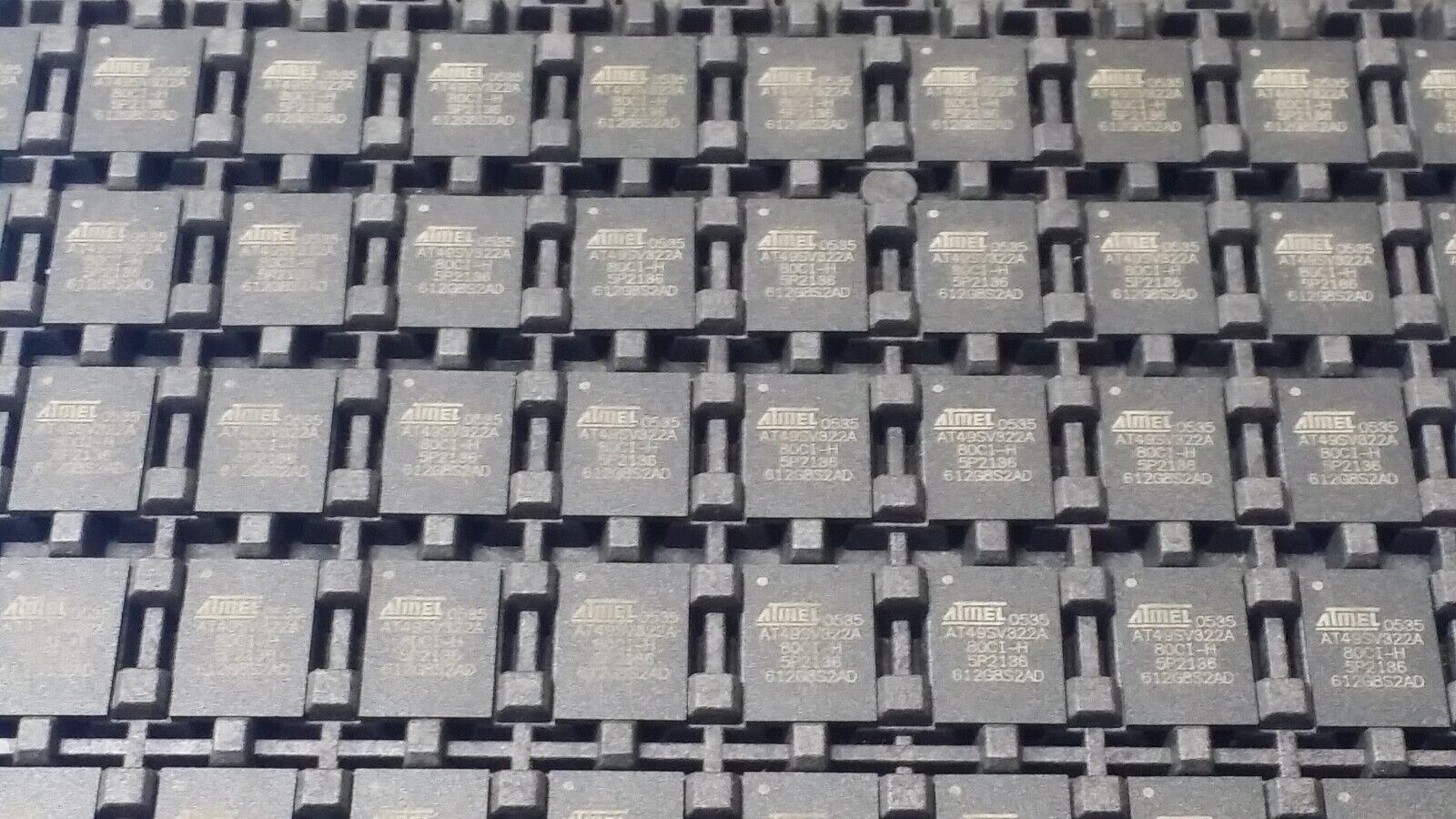

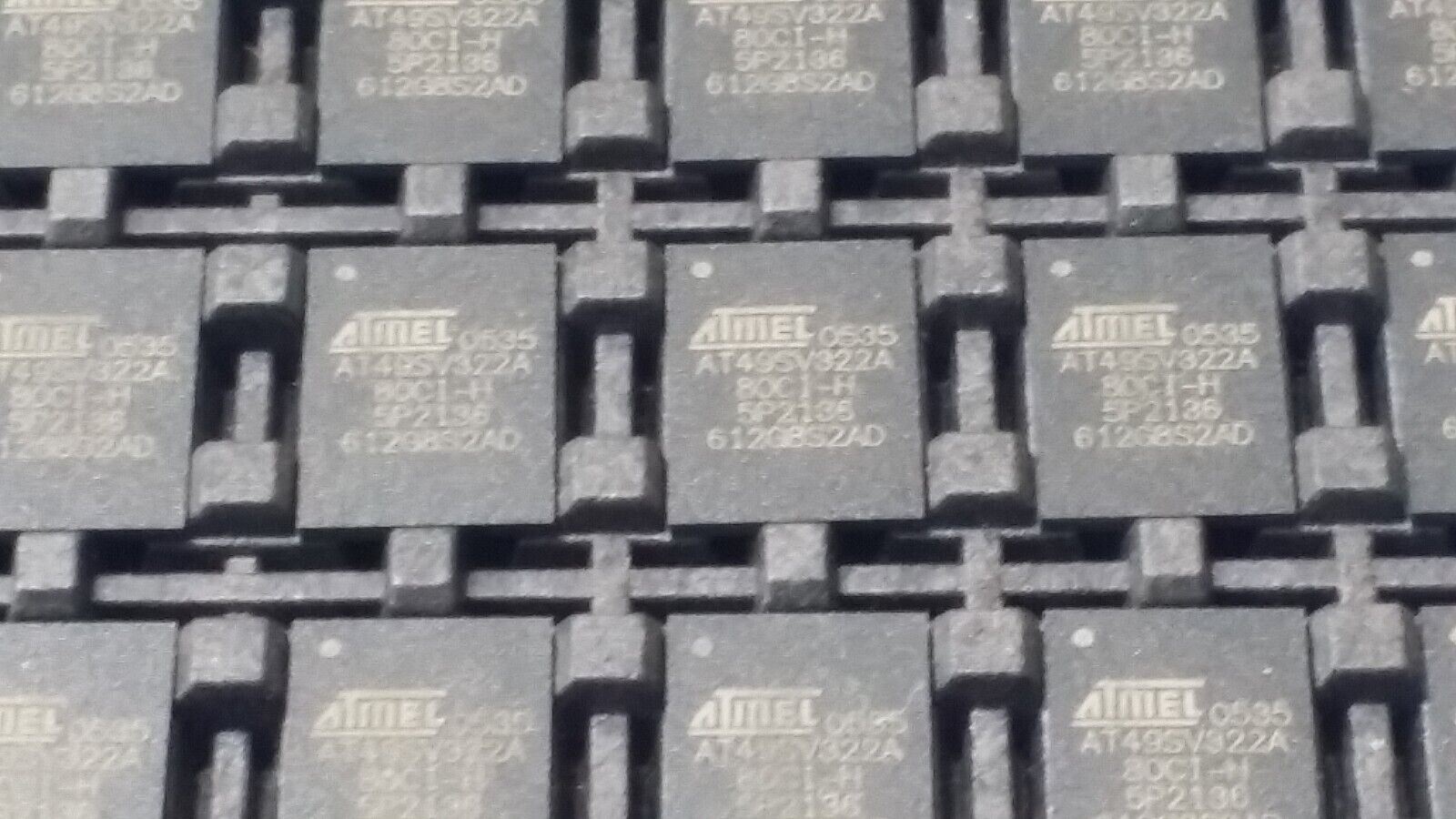

(1 PC) AT49SV322A-80CI ATMEL Flash, 2MX16, 80ns, PBGA48
Tax included.
THIS IS FOR (1 PC) OF AT49SV322A-80CI BY ATMEL
Part #: AT49SV322A-80CI
Part Category: Memory ICs
Manufacturer: Atmel Corporation
Description: Flash, 2MX16, 80ns, PBGA48
Status Discontinued
Type NOR TYPE
Sub Category Flash Memories
Access Time-Max 80.0 ns
Boot Block BOTTOM
Command User Interface YES
Common Flash Interface YES
Data Polling YES
JESD-30 Code R-PBGA-B48
JESD-609 Code e0
Memory Density 3.3554432E7 bit
Memory IC Type FLASH
Memory Width 16
Alternate Memory Width 8.0
Moisture Sensitivity Level 3
Number of Functions 1
Number of Sectors/Size 8,63
Number of Terminals 48
Number of Words 2097152.0 words
Number of Words Code 2M
Operating Mode ASYNCHRONOUS
Operating Temperature-Min -40.0 Cel
Operating Temperature-Max 85.0 Cel
Organization 2MX16
Package Body Material PLASTIC/EPOXY
Package Code VFBGA
Package Equivalence Code BGA48,6X8,32
Package Shape RECTANGULAR
Package Style GRID ARRAY, VERY THIN PROFILE, FINE PITCH
Parallel/Serial PARALLEL
Peak Reflow Temperature (Cel) 240
Qualification Status Not Qualified
Ready/Busy YES
Seated Height-Max 1.0 mm
Standby Current-Max 2.5E-5 Amp
Supply Current-Max 0.045 Amp
Supply Voltage-Nom (Vsup) 1.8 V
Supply Voltage-Min (Vsup) 1.65 V
Supply Voltage-Max (Vsup) 1.95 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish Tin/Lead (Sn/Pb)
Terminal Form BALL
Terminal Pitch 0.8 mm
Terminal Position BOTTOM
Time@Peak Reflow Temperature-Max (s) 30
Toggle Bit YES
Length 10.0 mm
Width 7.0 mm
