(1 PC) ASF22R Slide Switch, 2 Positions, DPDT, Latched, 0.3A, 115VDC DIP-6
Tax included.

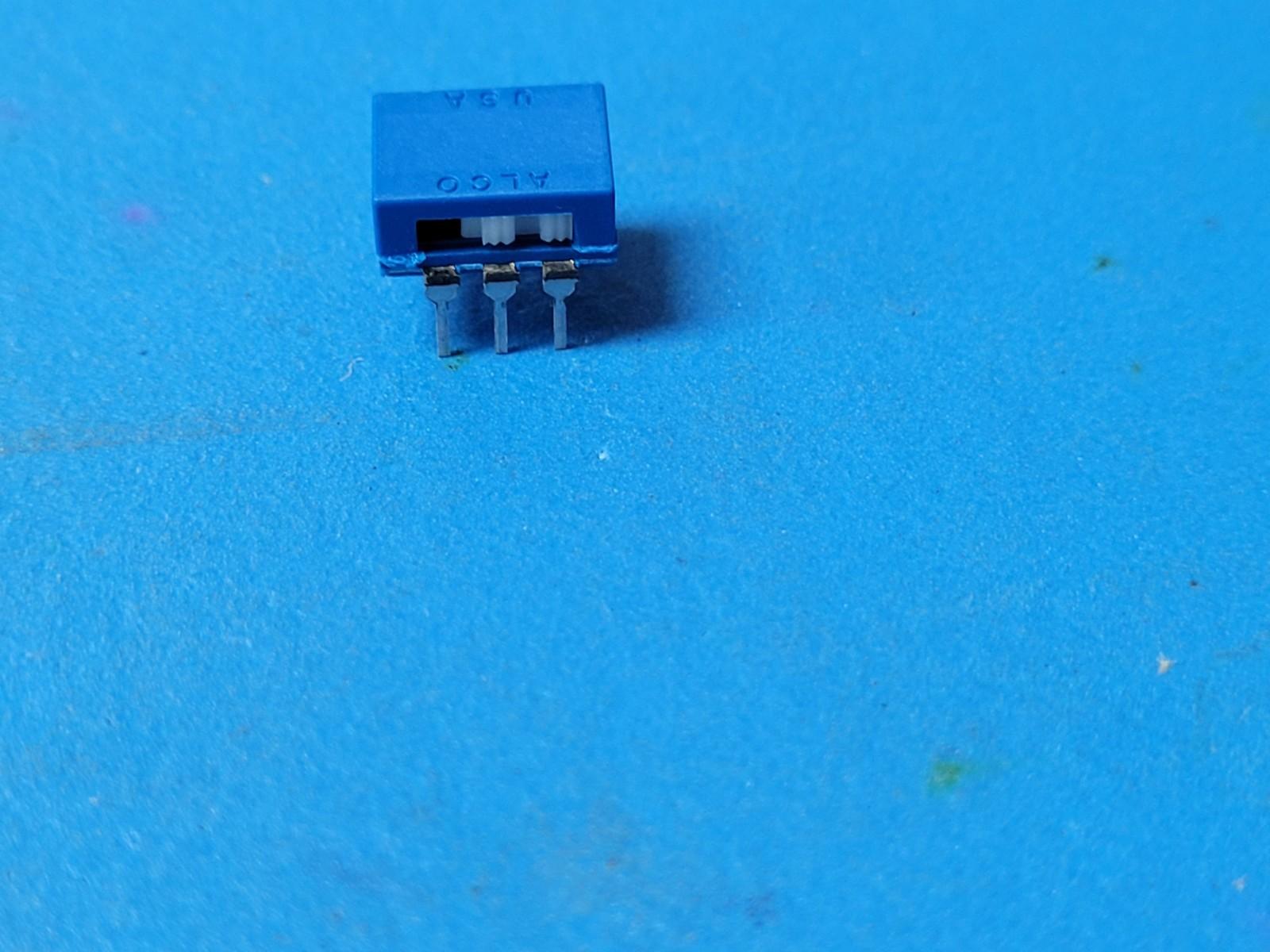

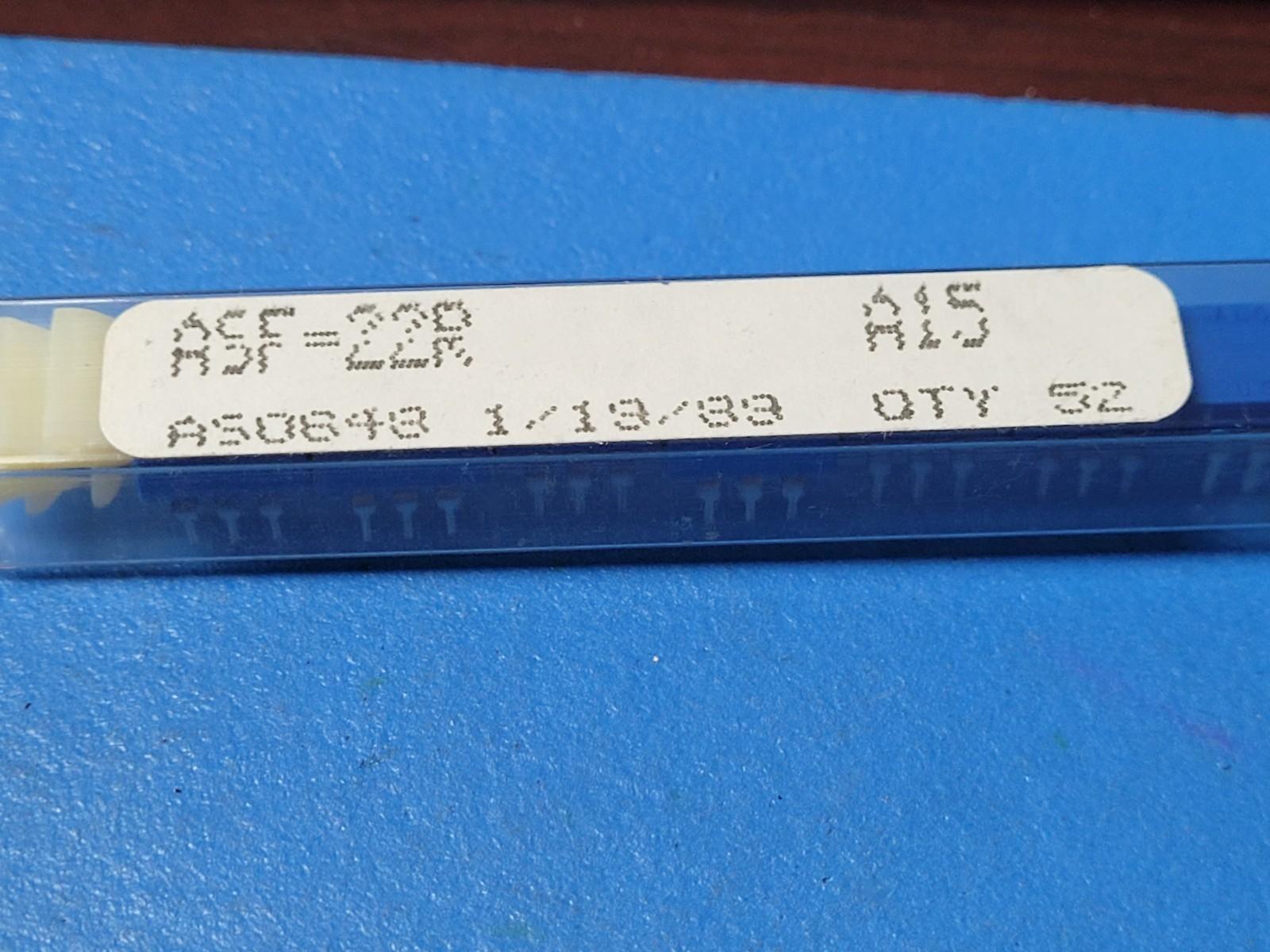

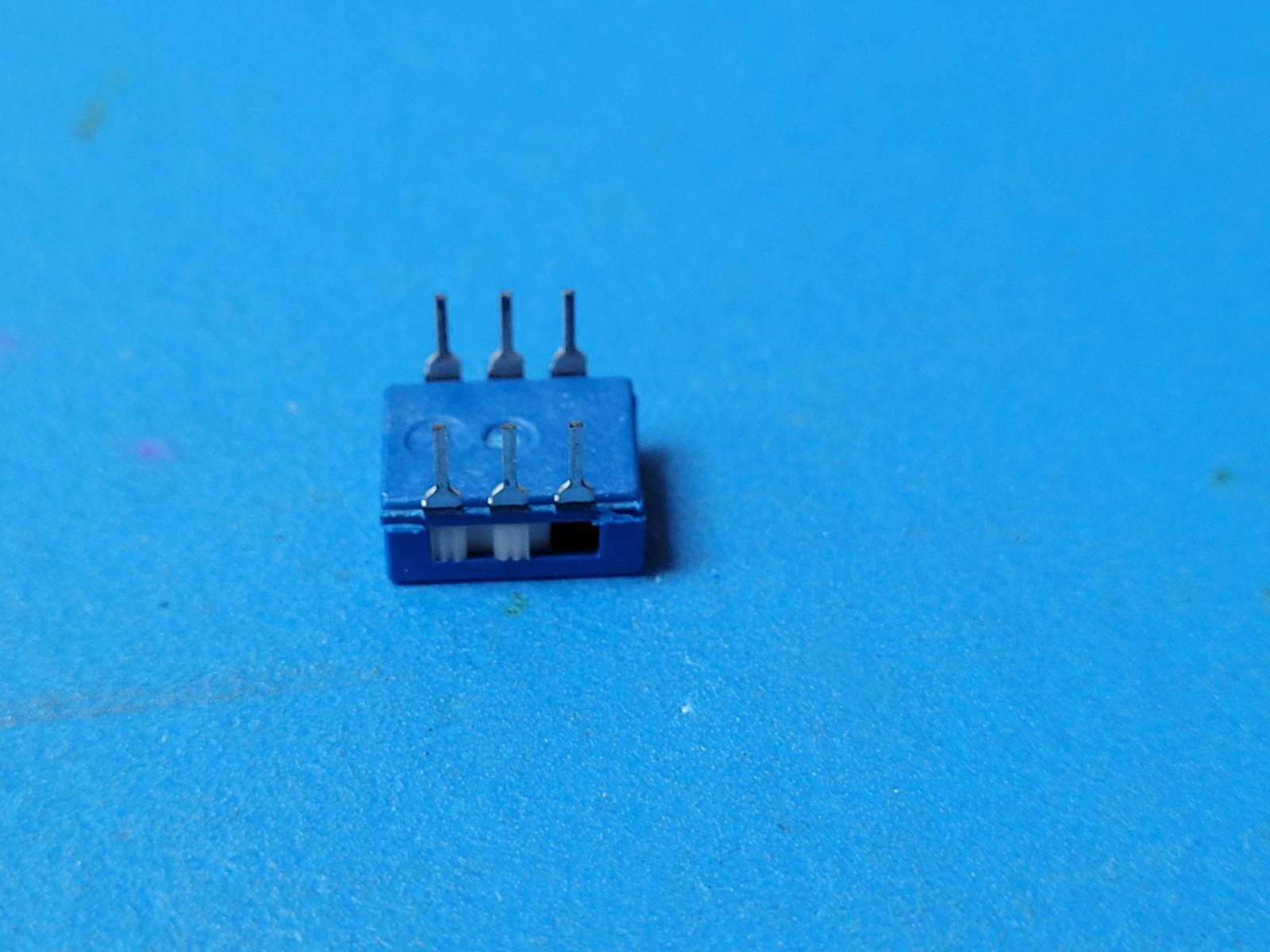

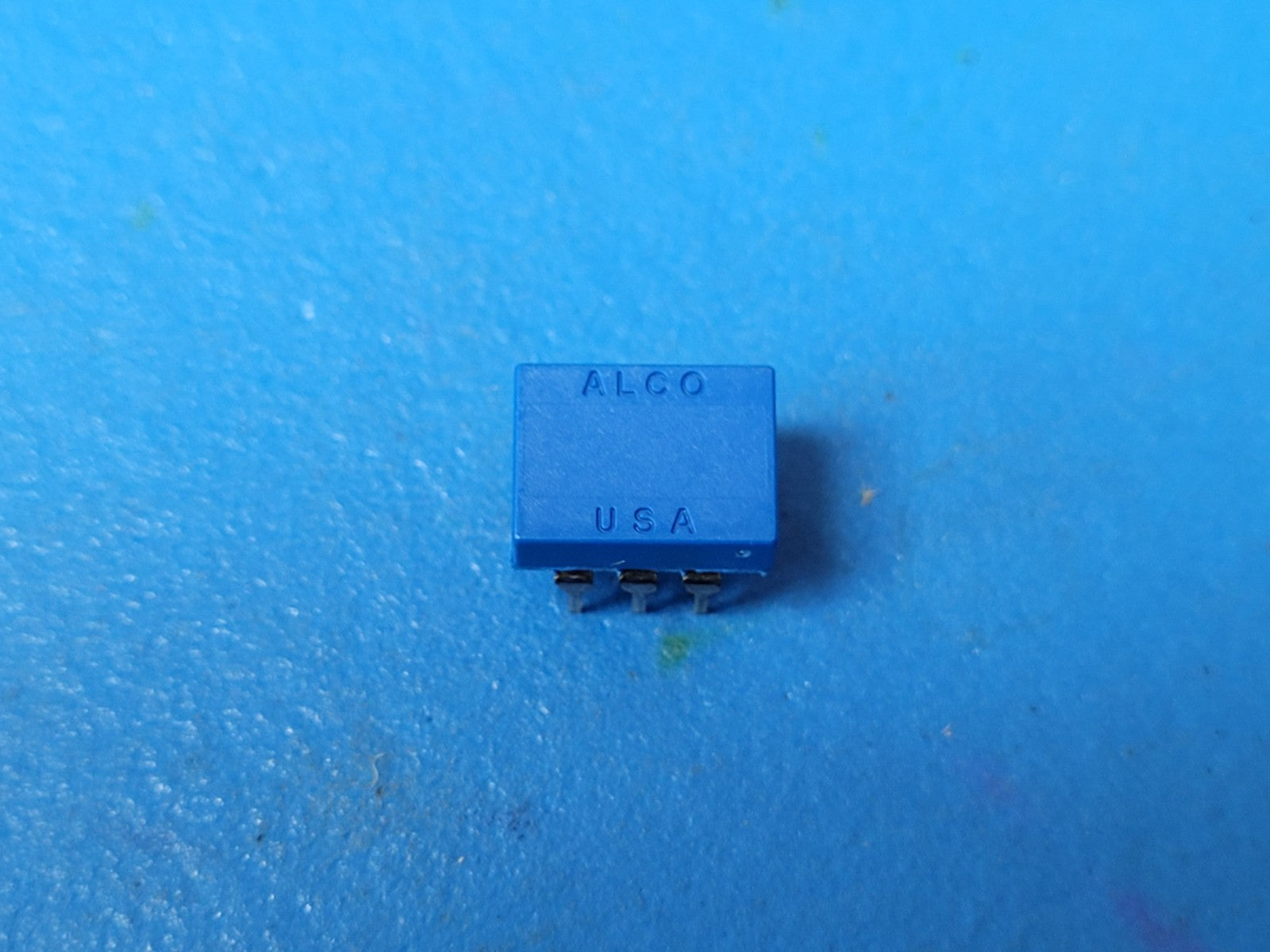

THIS IS FOR (1 PC) OF ASF22R BY ALCOSWITCH
Slide Switch, 2 Positions, DPDT, Latched, 0.3A, 115VDC DIP-6
Status Discontinued
Actuator Angle (deg) 0.000000
Actuator Length (inch) 0.000000
Actuator Material POLYESTER
Actuator Type FLUSH SIDE TYPE
Body Breadth (mm) 7.3660
Body Height (mm) 8.5090
Body Length or Diameter (mm) 10.1600
Center Contact Plating SILVER
Contact Current(DC)-Max (A) 0.30000000
Contact DC Max Rating R Load .3A@115VDC
Contact Timing MAKE-BEFORE-BREAK
Contact Voltage(DC)-Max (V) 115.00000000
Dielectric Withstand Volts (V) 1000VRMS
End Contact Material COPPER ALLOY
End Contact Plating SILVER
Insulation Resistance (ohm) 1000000000.000000000000000
Insulator Material POLYESTER
Mounting Feature THROUGH HOLE-RIGHT ANGLE
Number of Positions 2
Operating Temperature-Max (Cel) 85
Operating Temperature-Min (Cel) -40
Switch Action LATCHED
Switch Function DPDT
Switch Type SLIDE SWITCH
Terminal Length (inch) 0.160000
Terminal Material COPPER ALLOY
Termination Type SOLDER
Washability SOLVENT
