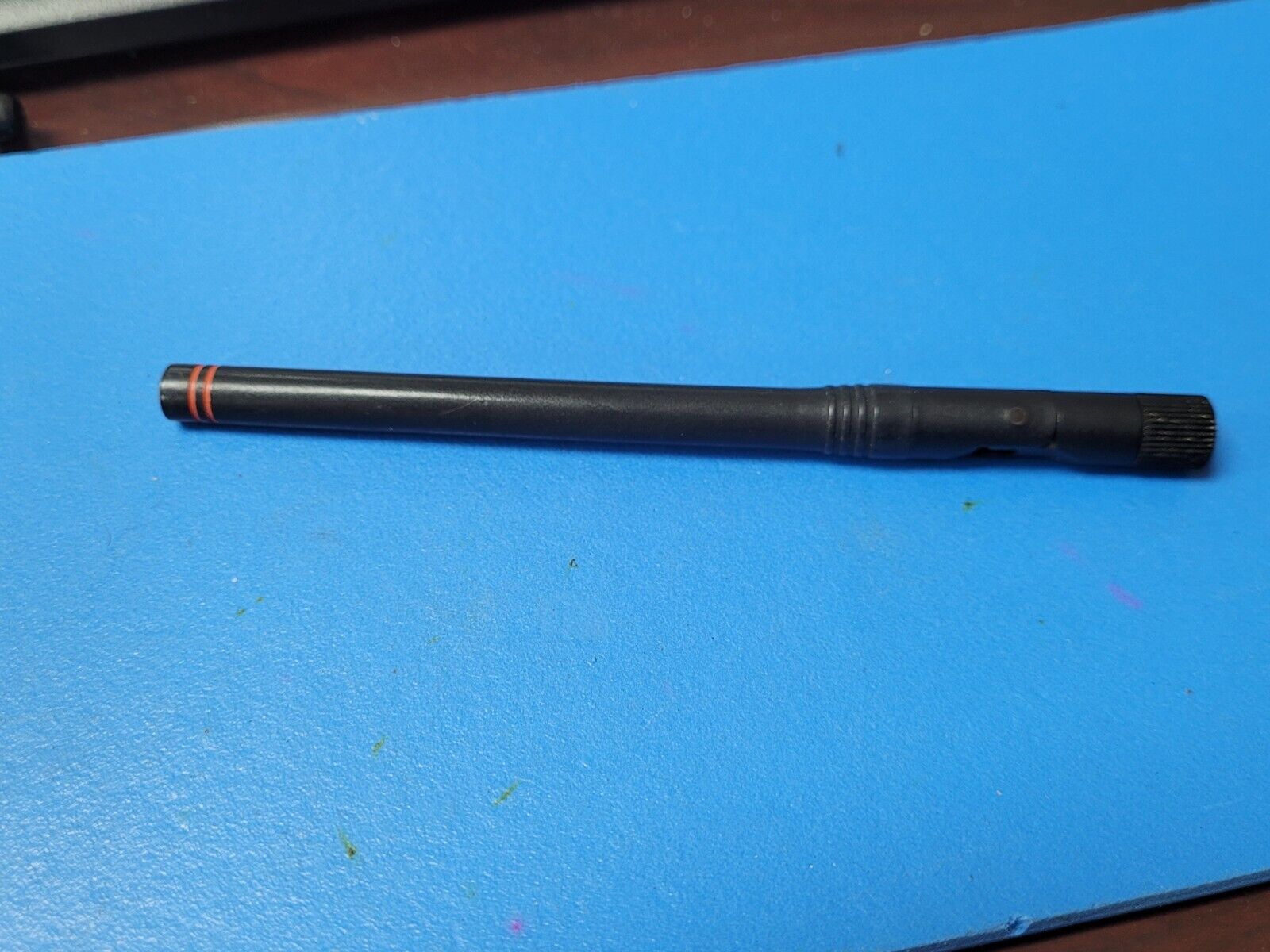

(1 PC) ANT-433-CW-HWR-SMA Antenna 1/4 Wave Whip Swivel 433MHz SMA ROHS
Tax included.
THIS IS FOR (1 PC) OF ANT-433-CW-HWR-SMA BY TE
Antenna 1/4 Wave Whip Swivel 433MHz SMA ROHS
Manufacturer: TE Connectivity
Product Category: Antennas
RoHS: YES
REACH - SVHC:
Product Type: ISM Antennas - ISM, MICS, UHF, VHF, UWB
Product: Indoor Antennas
Type: Passive Antenna
Minimum Frequency: 418 MHz
Maximum Frequency: 448 MHz
Protocol - Cellular, NBIoT, LTE: Cellular (NBIoT, LTE), GSM
Protocol - WiFi - 802.11: LoRaWAN, WiFi, WLAN
Protocol - Sub GHz: ISM
Mechanical Style: Whip

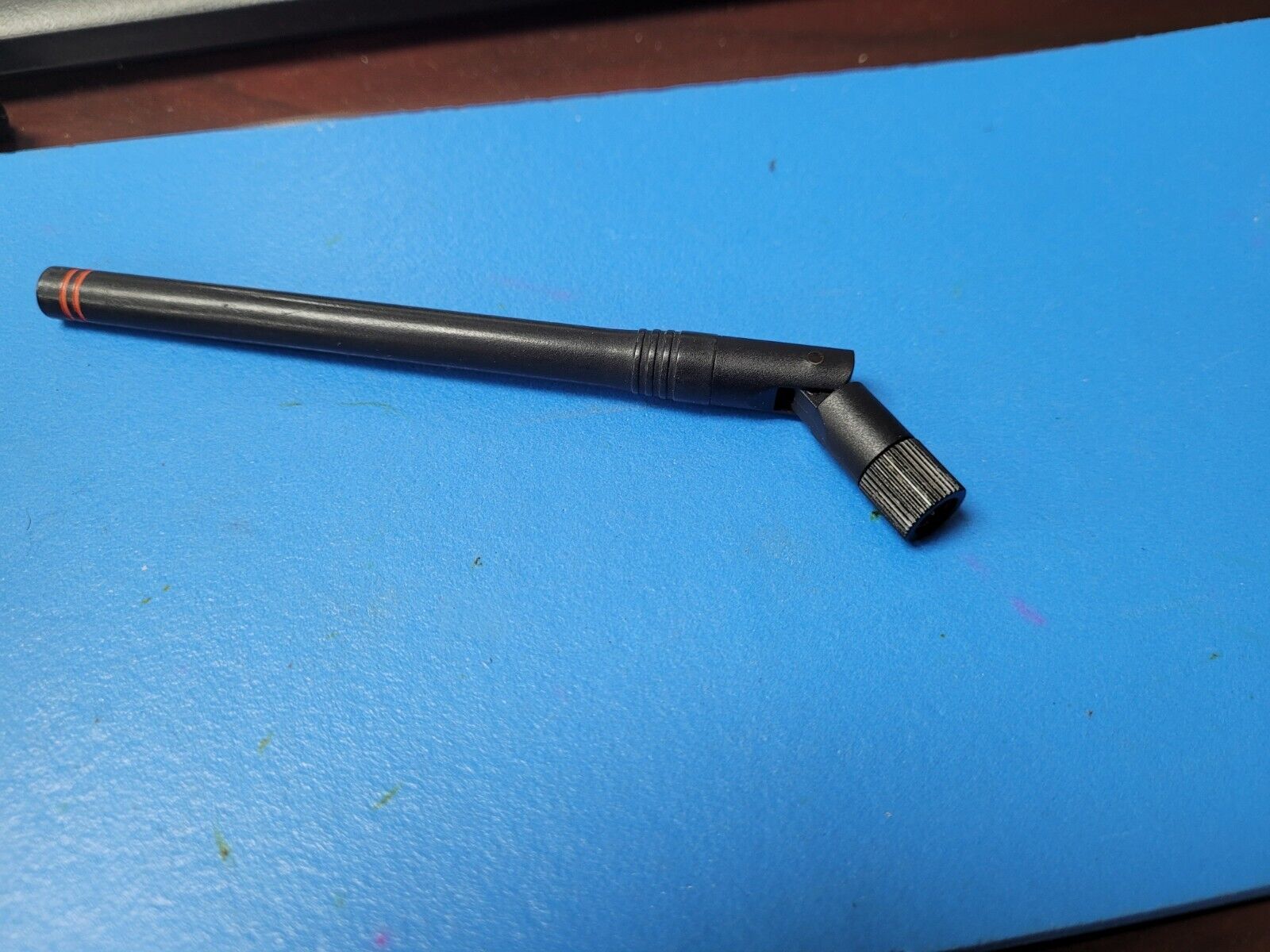

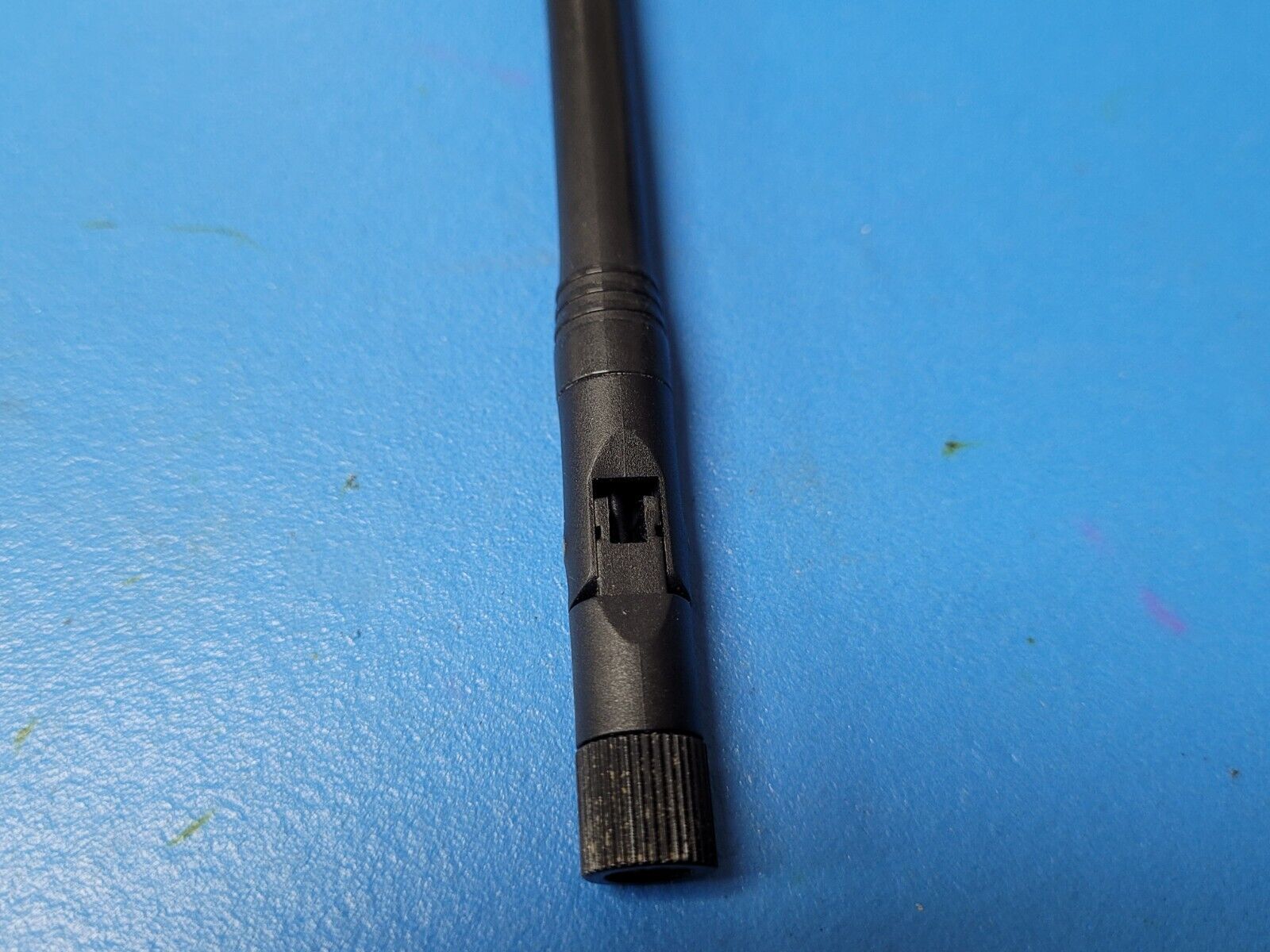

Style: Tilt/Swivel
Gain: 1.1 dBi
Bandwidth: 30 MHz
Impedance: 50 Ohms
VSWR: 2
Minimum Operating Temperature: - 30 C
Maximum Operating Temperature: + 80 C
Electrical Type: Monopole
Number of Bands: 1 Band
Mounting Style: Panel Mount
Termination Style: Connector

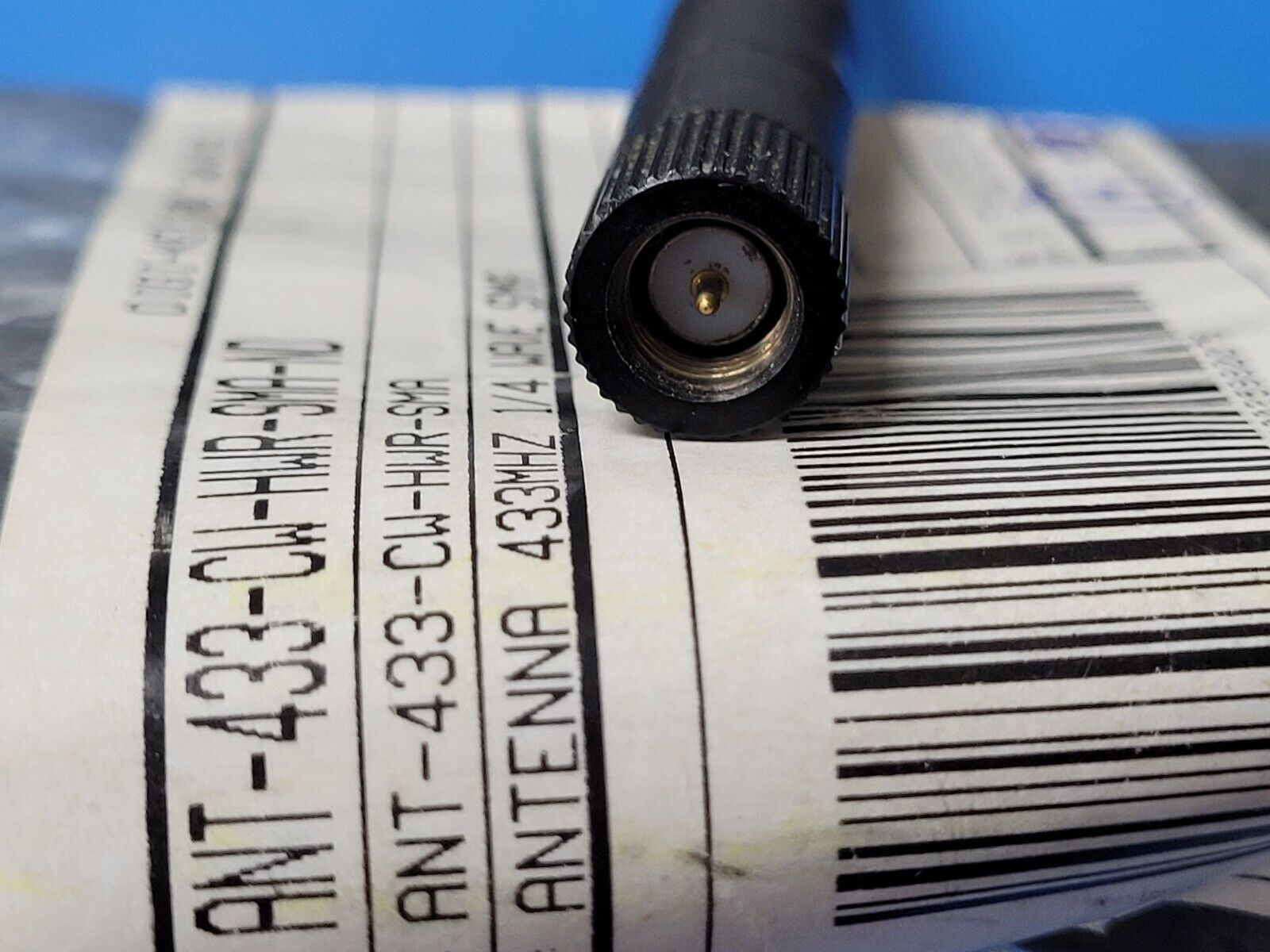

Antenna Connector Type: SMA Male
Center Frequency: 433 MHz
Application: ISM, Remote Control, Alarms, Security Systems
Length: 142 mm
Width: 30 mm
Cable Type: -
Series: HWR
Packaging: Tray
Brand: TE Connectivity / Linx Technologies
Diameter: 10 mm
Ground Plane Size: 102 mm x 102 mm
Polarization: Linear
50
Subcategory: Antennas
Wavelength: 1/4 Wave
Unit Weight: 0.470798 oz
