(1 PC) AM29DL323DB-90EI AMD Flash, 2MX16, 90ns, TSOP48
Tax included.

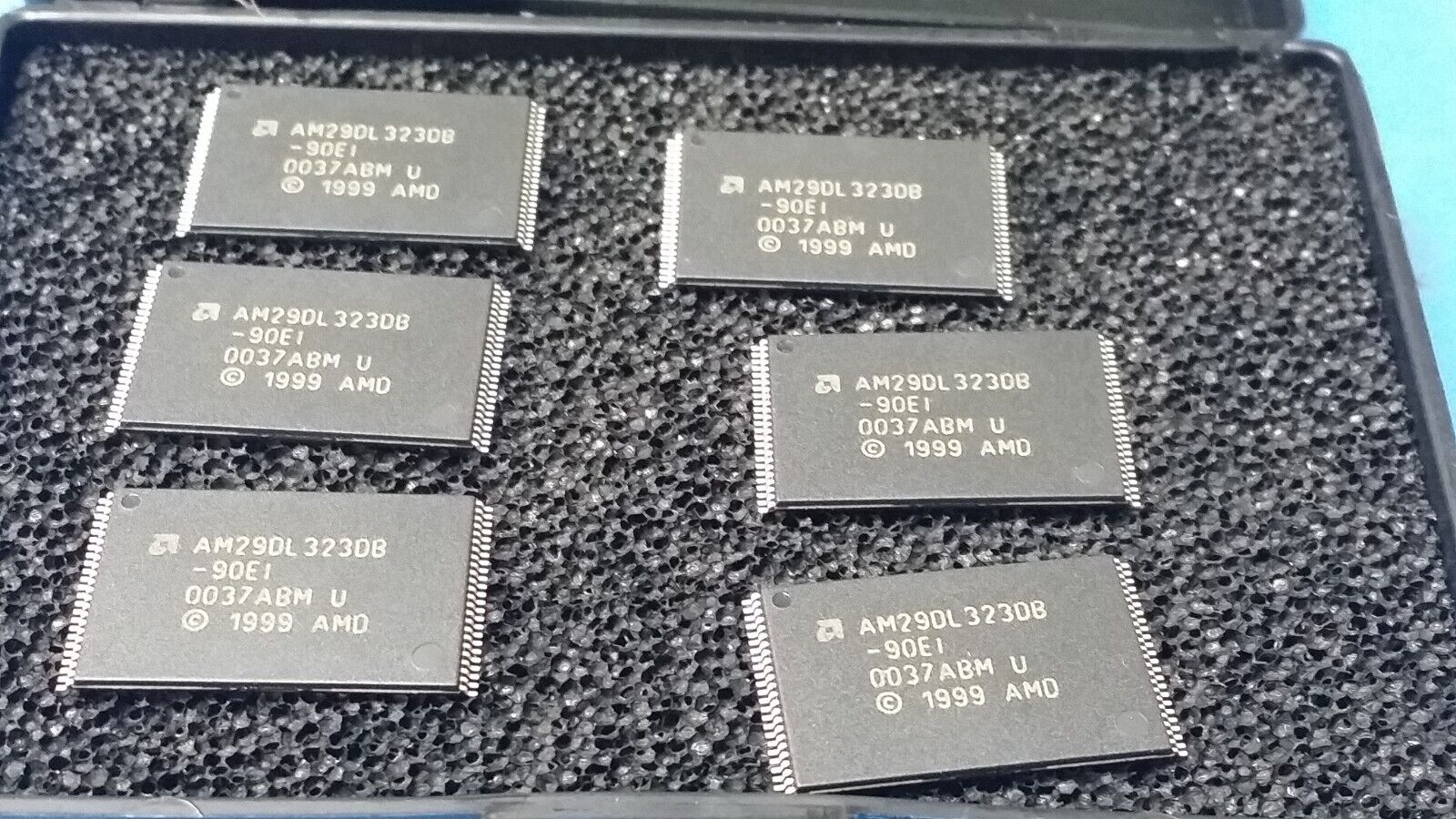

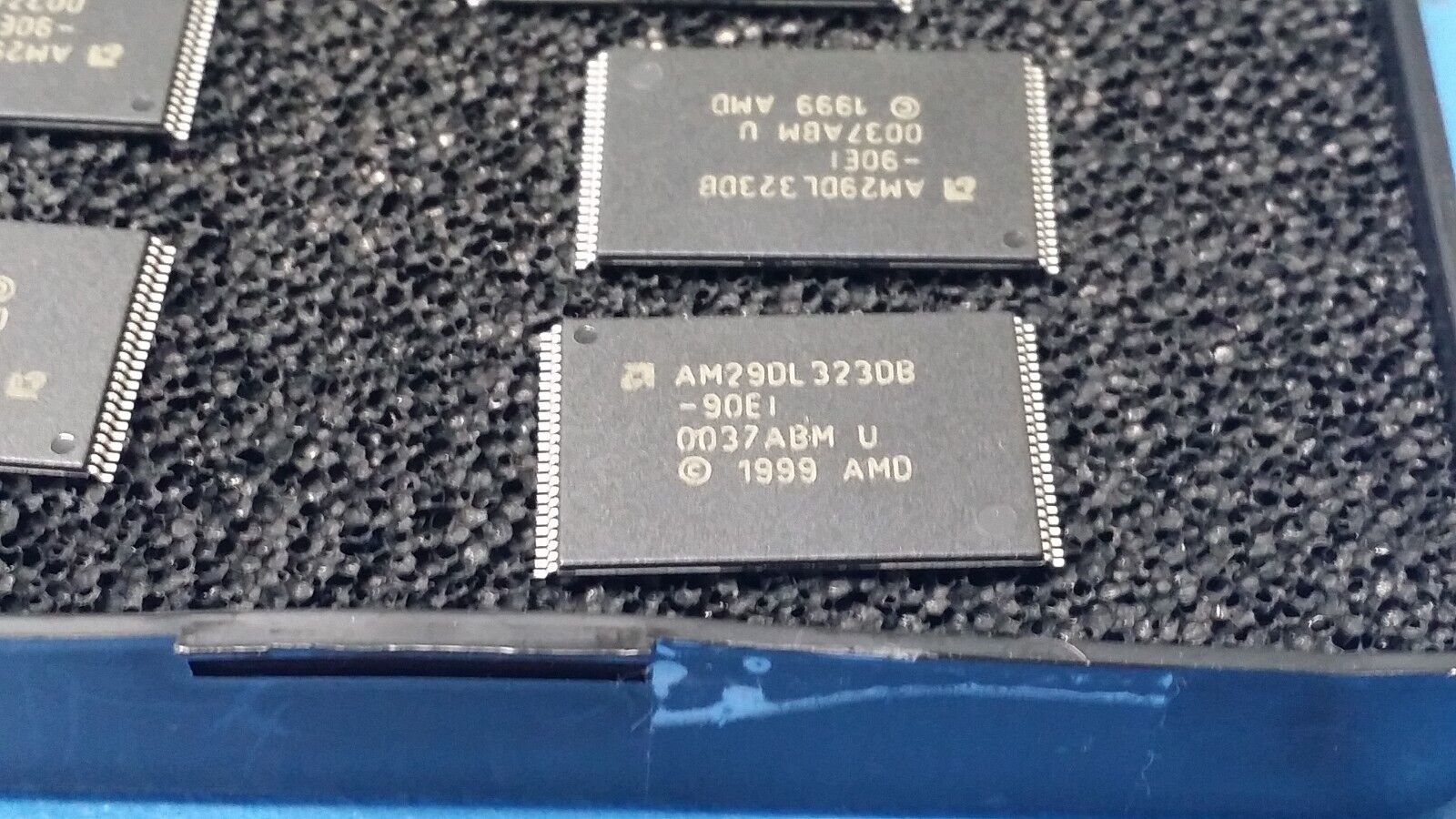

THIS IS FOR (1 PC) OF AM29DL323DB-90EI BY AMD
Mfr Package Description MO-142DD, TSOP-48
Part #: AM29DL323DB90EI
Part Category: Memory ICs
Manufacturer: Advanced Micro Devices, Inc.
Description: Flash, 2MX16, 90ns, PDSO48
Status Transferred
Type NOR TYPE
Sub Category Flash Memories
Access Time-Max 90.0 ns
Boot Block BOTTOM
Command User Interface YES
Common Flash Interface YES
Data Polling YES
Data Retention Time-Min 20
JESD-30 Code R-PDSO-G48
JESD-609 Code e0
Memory Density 3.3554432E7 bit
Memory IC Type FLASH
Memory Width 16
Alternate Memory Width 8.0
Moisture Sensitivity Level 3
Number of Functions 1
Number of Sectors/Size 8,63
Number of Terminals 48
Number of Words 2097152.0 words
Number of Words Code 2M
Operating Mode ASYNCHRONOUS
Operating Temperature-Min -40.0 Cel
Operating Temperature-Max 85.0 Cel
Organization 2MX16
Package Body Material PLASTIC/EPOXY
Package Code TSOP1
Package Equivalence Code TSSOP48,.8,20
Package Shape RECTANGULAR
Package Style SMALL OUTLINE, THIN PROFILE
Parallel/Serial PARALLEL
Qualification Status Not Qualified
Ready/Busy YES
Seated Height-Max 1.2 mm
Standby Current-Max 5.0E-6 Amp
Supply Current-Max 0.045 Amp
Supply Voltage-Nom (Vsup) 3.0 V
Supply Voltage-Min (Vsup) 2.7 V
Supply Voltage-Max (Vsup) 3.6 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish TIN LEAD
Terminal Form GULL WING
Terminal Pitch 0.5 mm
Terminal Position DUAL
Toggle Bit YES
Length 18.4 mm
Width 12.0 mm
Additional Feature MINIMUM 1000K PROGRAM/ERASE CYCLE; 20 YEAR DATA RETENTION
