(1 PC) AM29C841PC AMD Bus Driver CMOS 1-Func 10-Bit True Output PDIP24

$6.95
Unit price per

Tax included.

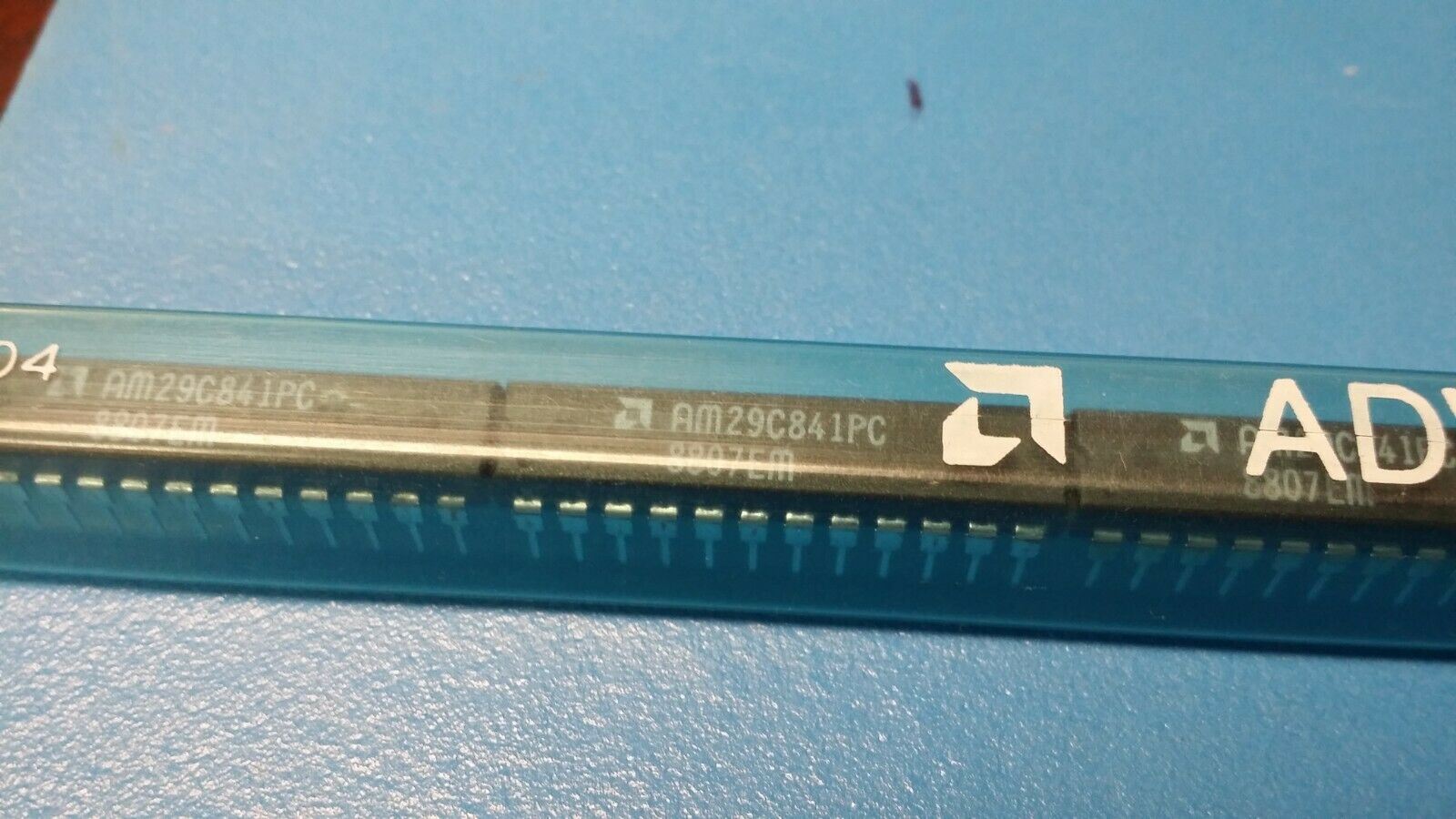

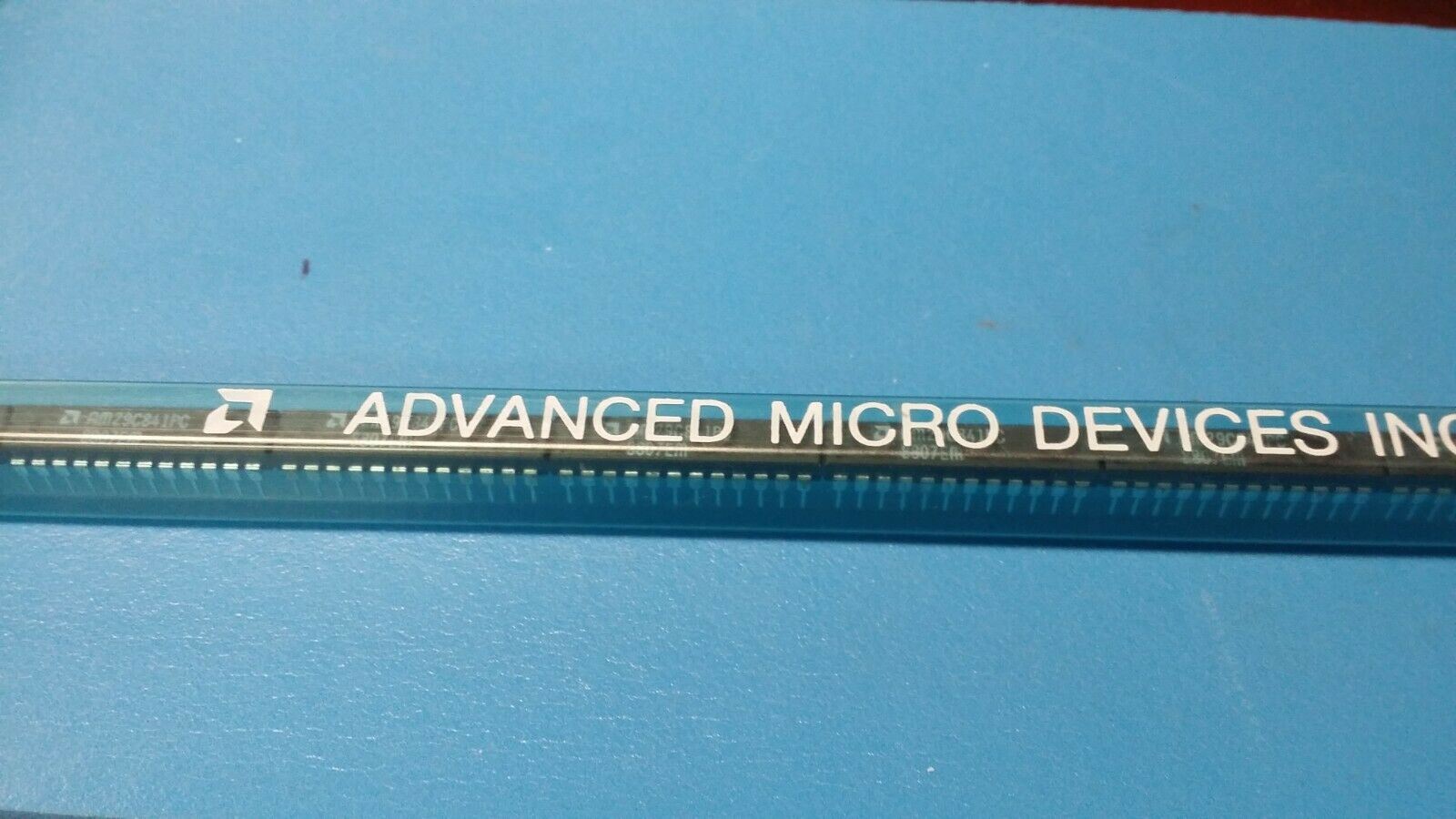

THIS LISTING IS FOR (1 PC) OF AM29C841PC BY AMD

Bus Driver CMOS 1-Func 10-Bit True Output PDIP24

Part #: AM29C841PC

Part Category: Logic ICs

Manufacturer: Advanced Micro Devices, Inc.

Description: Bus Driver, CMOS Series, 1-Func, 10-Bit, True Output, CMOS, PDIP24

Mfr Package Description SLIM, PLASTIC, DIP-24

Status Discontinued

Logic IC Type BUS DRIVER

Sub Category FF/Latches

Family CMOS

JESD-30 Code R-PDIP-T24

JESD-609 Code e0

Load Capacitance (CL) 50.0 pF

Max I(ol) 0.024 Amp

Number of Bits 10

Number of Functions 1

Number of Ports 2

Number of Terminals 24

Operating Temperature-Min 0.0 Cel

Operating Temperature-Max 70.0 Cel

Output Characteristics 3-STATE

Output Polarity TRUE

Package Body Material PLASTIC/EPOXY

Package Code DIP

Package Equivalence Code DIP24,.3

Package Shape RECTANGULAR

Package Style IN-LINE

Peak Reflow Temperature (Cel) NOT SPECIFIED

Prop. Delay@Nom-Sup 11.0 ns

Propagation Delay (tpd) 12.0 ns

Qualification Status Not Qualified

Seated Height-Max 5.715 mm

Supply Voltage-Nom (Vsup) 5

Supply Voltage-Min (Vsup) 4.5 V

Supply Voltage-Max (Vsup) 5.5 V

Surface Mount NO

Technology CMOS

Temperature Grade COMMERCIAL

Terminal Finish Tin/Lead (Sn/Pb)

Terminal Form THROUGH-HOLE

Terminal Pitch 2.54 mm

Terminal Position DUAL

Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED

Length 32.004 mm

Width 7.62 mm
