(1 PC) AM2902APC AMD 4-BIT LOOK-AHEAD CARRY GENERATOR, PDIP16
Tax included.

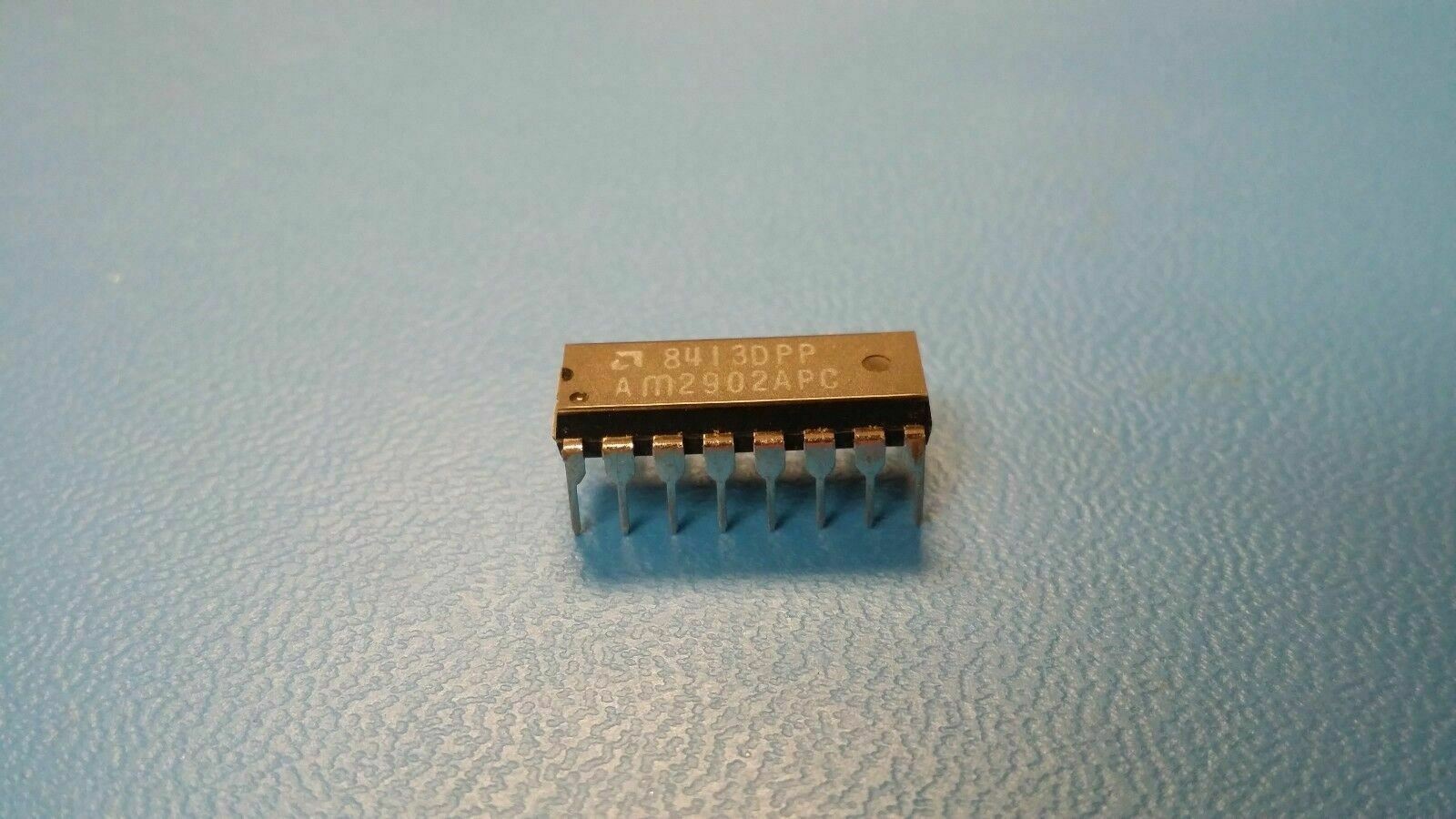

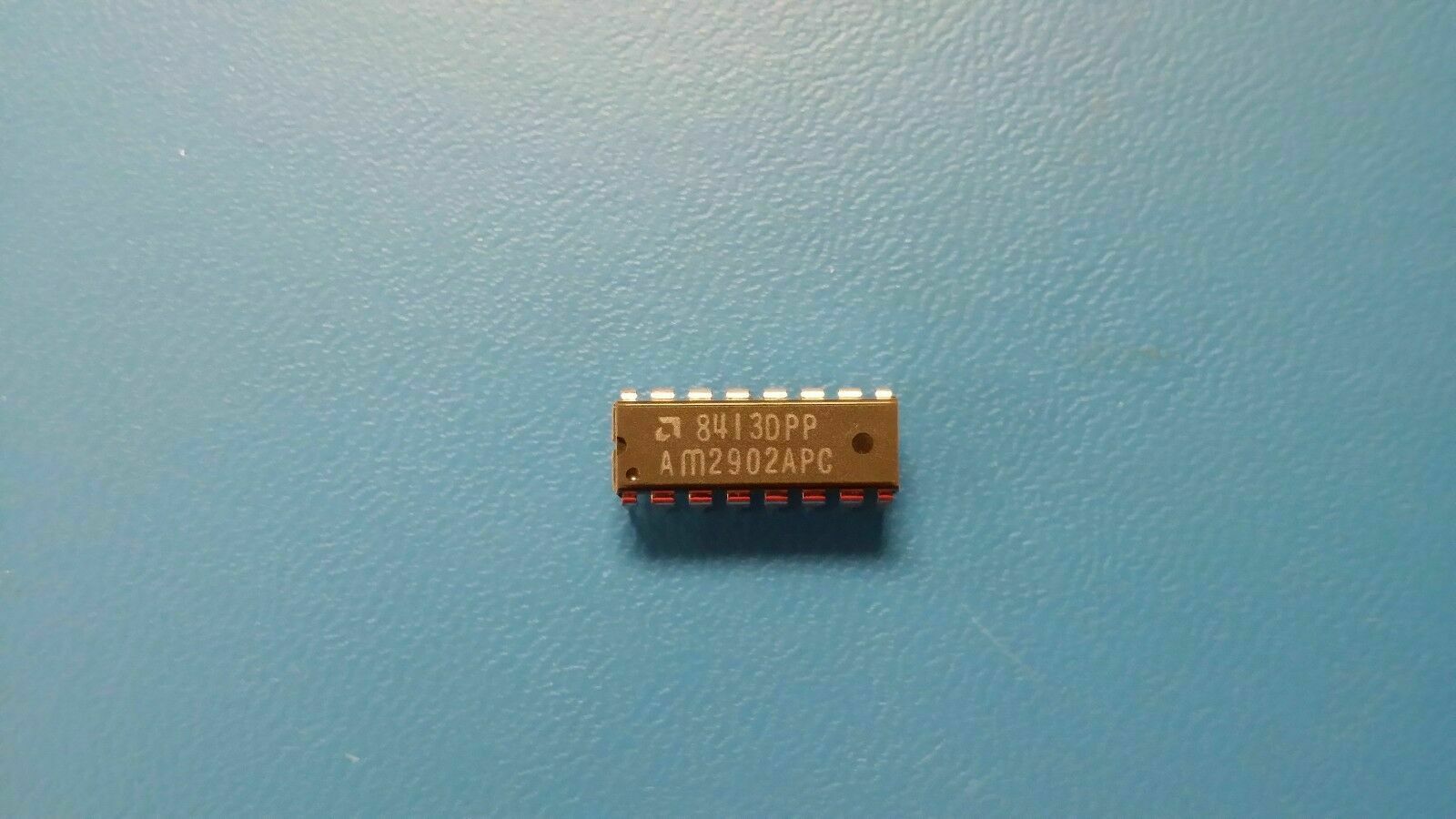

THIS LISTING IS FOR (1 PC) OF AM2902APC BY AMD
4-BIT LOOK-AHEAD CARRY GENERATOR, PDIP16
Part #: AM2902APC
Part Category: Logic ICs
Manufacturer: Advanced Micro Devices, Inc.
Description: S SERIES, 4-BIT LOOK-AHEAD CARRY GENERATOR, PDIP16
Manufacturer: Advanced Micro Devices, Inc.
Description: S SERIES, 4-BIT LOOK-AHEAD CARRY GENERATOR, PDIP16
| Mfr Package Description | PLASTIC, DIP-16 |
| Status | Discontinued |
| Logic IC Type | LOOK-AHEAD CARRY GENERATOR |
| Sub Category | Arithmetic Circuits |
| Family | S |
| JESD-30 Code | R-PDIP-T16 |
| JESD-609 Code | e0 |
| Load Capacitance (CL) | 50.0 pF |
| Number of Bits | 4 |
| Number of Functions | 1 |
| Number of Terminals | 16 |
| Operating Temperature-Min | 0.0 Cel |
| Operating Temperature-Max | 70.0 Cel |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | DIP |
| Package Equivalence Code | DIP16,.3 |
| Package Shape | RECTANGULAR |
| Package Style | IN-LINE |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED |
| Power Supply Current-Max (ICC) | 109.0 mA |
| Propagation Delay (tpd) | 14.0 ns |
| Qualification Status | Not Qualified |
| Seated Height-Max | 5.08 mm |
| Supply Voltage-Nom (Vsup) | 5 |
| Supply Voltage-Min (Vsup) | 4.75 V |
| Supply Voltage-Max (Vsup) | 5.25 V |
| Surface Mount | NO |
| Technology | TTL |
| Temperature Grade | COMMERCIAL |
| Terminal Form | THROUGH-HOLE |
| Terminal Pitch | 2.54 mm |
| Terminal Position | DUAL |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |
| Length | 19.304 mm |
| Width | 7.62 mm |
| Additional Feature | WITH HIGHER ORDER LOOKAHEAD |
