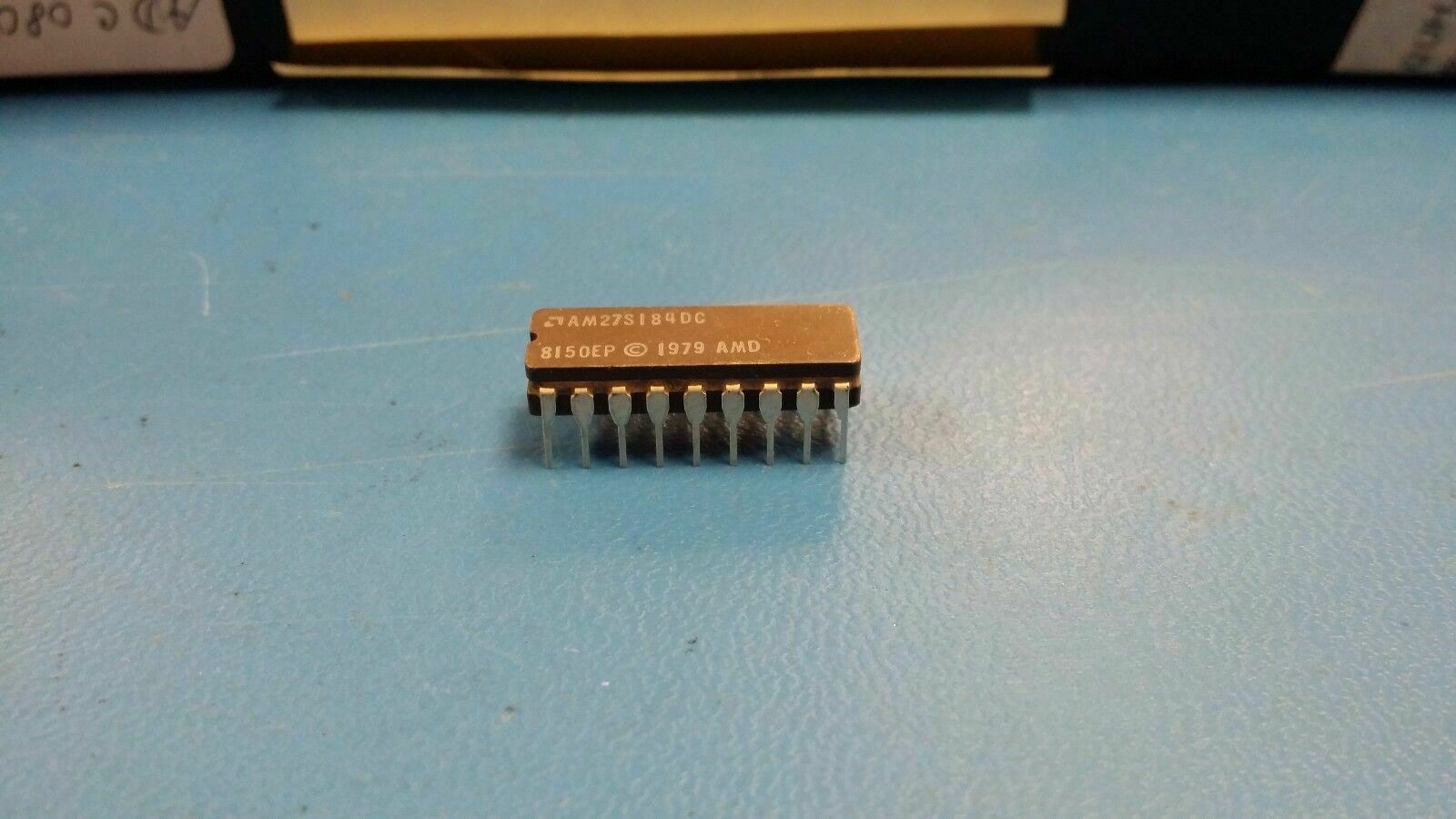

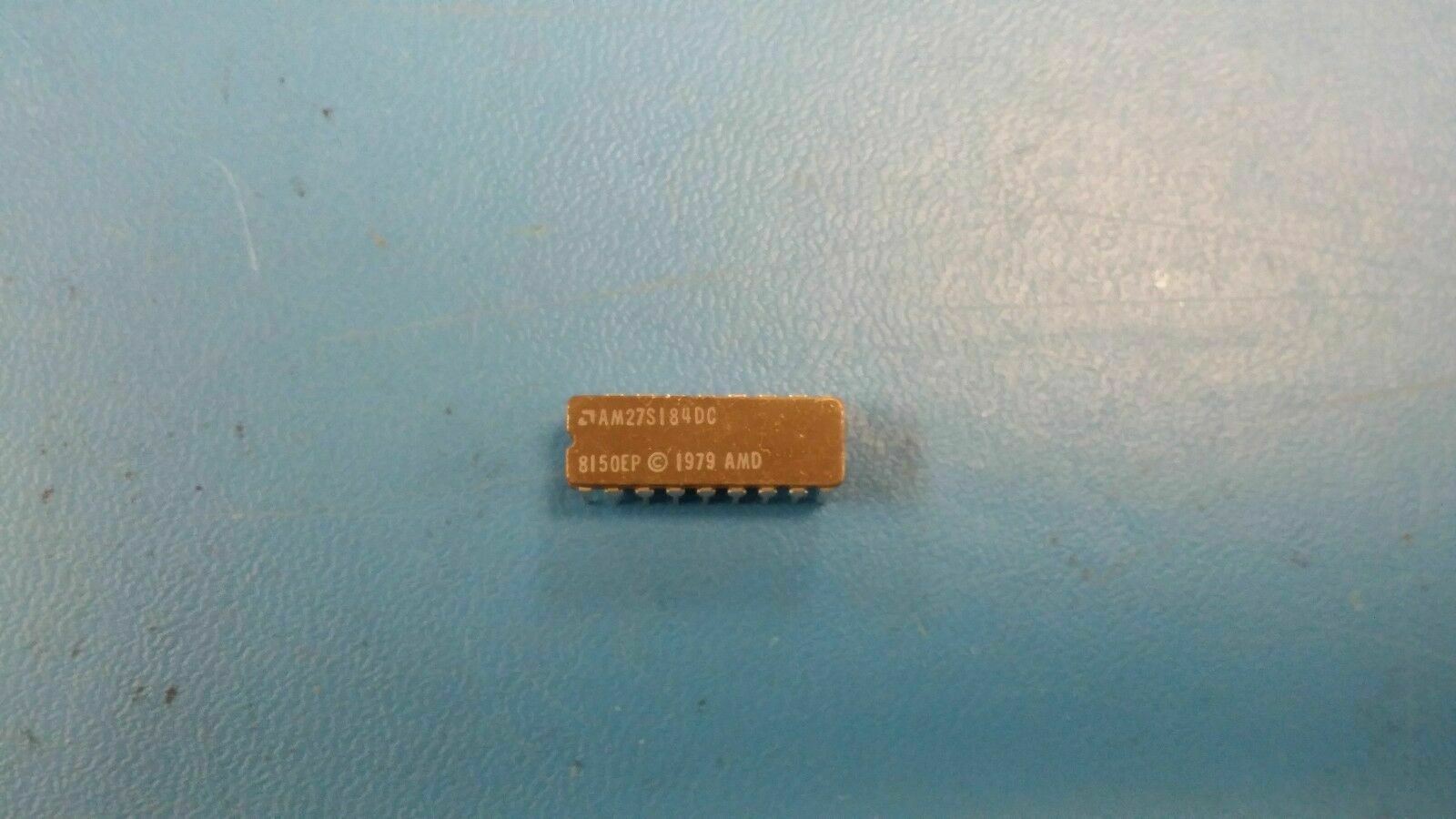

(1 PC) AM27S184DC AMD 2KX4 OTPROM, 50ns, CDIP18
Tax included.
THIS LISTING IS FOR (1 PC) OF AM27S184DCBY AMD
2KX4 OTPROM, 50ns, CDIP18
Part #: AM27S184DC
Part Category: Memory ICs
Manufacturer: Advanced Micro Devices, Inc.
Description: 2KX4 OTPROM, 50ns, CDIP18
Manufacturer: Advanced Micro Devices, Inc.
Description: 2KX4 OTPROM, 50ns, CDIP18
| Mfr Package Description | HERMETIC SEALED, CERAMIC, DIP-18 |
| Status | Discontinued |
| Sub Category | OTP ROMs |
| Access Time-Max | 50.0 ns |
| JESD-30 Code | R-GDIP-T18 |
| JESD-609 Code | e0 |
| Memory Density | 8192.0 bit |
| Memory IC Type | OTP ROM |
| Memory Width | 4 |
| Number of Functions | 1 |
| Number of Terminals | 18 |
| Number of Words | 2048.0 words |
| Number of Words Code | 2K |
| Operating Mode | ASYNCHRONOUS |
| Operating Temperature-Min | 0.0 Cel |
| Operating Temperature-Max | 75.0 Cel |
| Organization | 2KX4 |
| Output Characteristics | OPEN-COLLECTOR |
| Package Body Material | CERAMIC, GLASS-SEALED |
| Package Code | DIP |
| Package Equivalence Code | DIP18,.3 |
| Package Shape | RECTANGULAR |
| Package Style | IN-LINE |
| Parallel/Serial | PARALLEL |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED |
| Qualification Status | Not Qualified |
| Seated Height-Max | 5.08 mm |
| Supply Voltage-Nom (Vsup) | 5.0 V |
| Supply Voltage-Min (Vsup) | 4.75 V |
| Supply Voltage-Max (Vsup) | 5.25 V |
| Surface Mount | NO |
| Technology | BIPOLAR |
| Temperature Grade | COMMERCIAL EXTENDED |
| Terminal Finish | Tin/Lead (Sn/Pb) |
| Terminal Form | THROUGH-HOLE |
| Terminal Pitch | 2.54 mm |
| Terminal Position | DUAL |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |
| Length | 22.86 mm |
| Width | 7.62 mm |
