(1 PC) AM27256-1DC AMD UVPROM, 32KX8, 170ns, NMOS, CDIP28
Tax included.

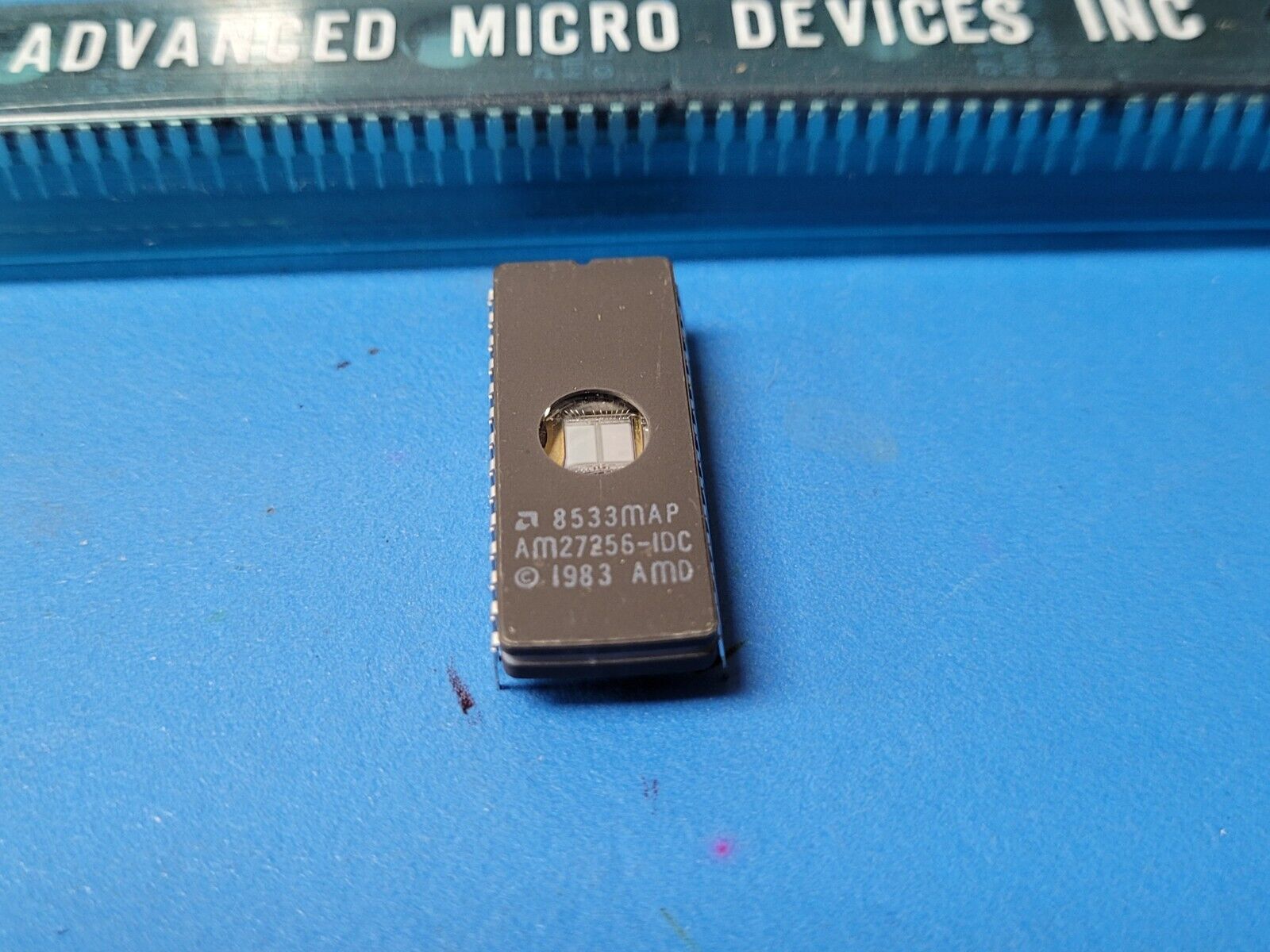

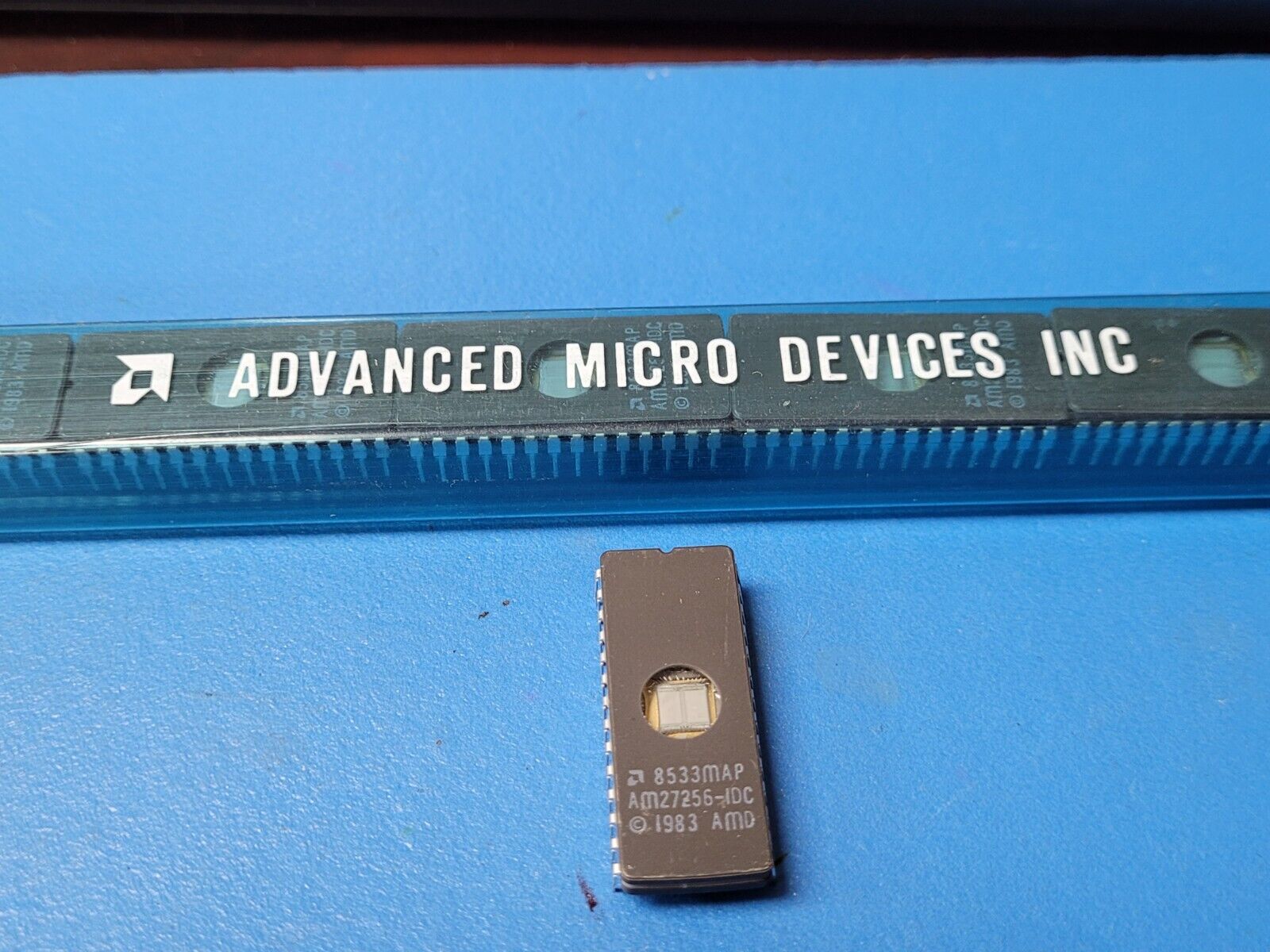

THIS IS FOR (1 PC) OF AM27256-1DC BY AMD
UVPROM, 32KX8, 170ns, NMOS, CDIP28
Part #: AM27256-1DC
Part Category: Memory ICs
Manufacturer: Advanced Micro Devices, Inc.
Description: UVPROM, 32KX8, 170ns, NMOS, CDIP28
Mfr Package Description HERMETIC SEALED, CERAMIC, DIP-28
Status Discontinued
Sub Category EPROMs
Access Time-Max 170.0 ns
I/O Type COMMON
JESD-30 Code R-GDIP-T28
JESD-609 Code e0
Memory Density 262144.0 bit
Memory IC Type UVPROM
Memory Width 8
Number of Functions 1
Number of Terminals 28
Number of Words 32768.0 words
Number of Words Code 32K
Operating Mode ASYNCHRONOUS
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Organization 32KX8
Output Characteristics 3-STATE
Package Body Material CERAMIC, GLASS-SEALED
Package Code WDIP
Package Equivalence Code DIP28,.6
Package Shape RECTANGULAR
Package Style IN-LINE, WINDOW
Parallel/Serial PARALLEL
Qualification Status Not Qualified
Seated Height-Max 5.588 mm
Supply Current-Max 0.1 Amp
Supply Voltage-Nom (Vsup) 5.0 V
Supply Voltage-Min (Vsup) 4.75 V
Supply Voltage-Max (Vsup) 5.25 V
Surface Mount NO
Technology NMOS
Temperature Grade COMMERCIAL
Terminal Finish TIN LEAD
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
Length 37.1475 mm
Width 15.24 mm
