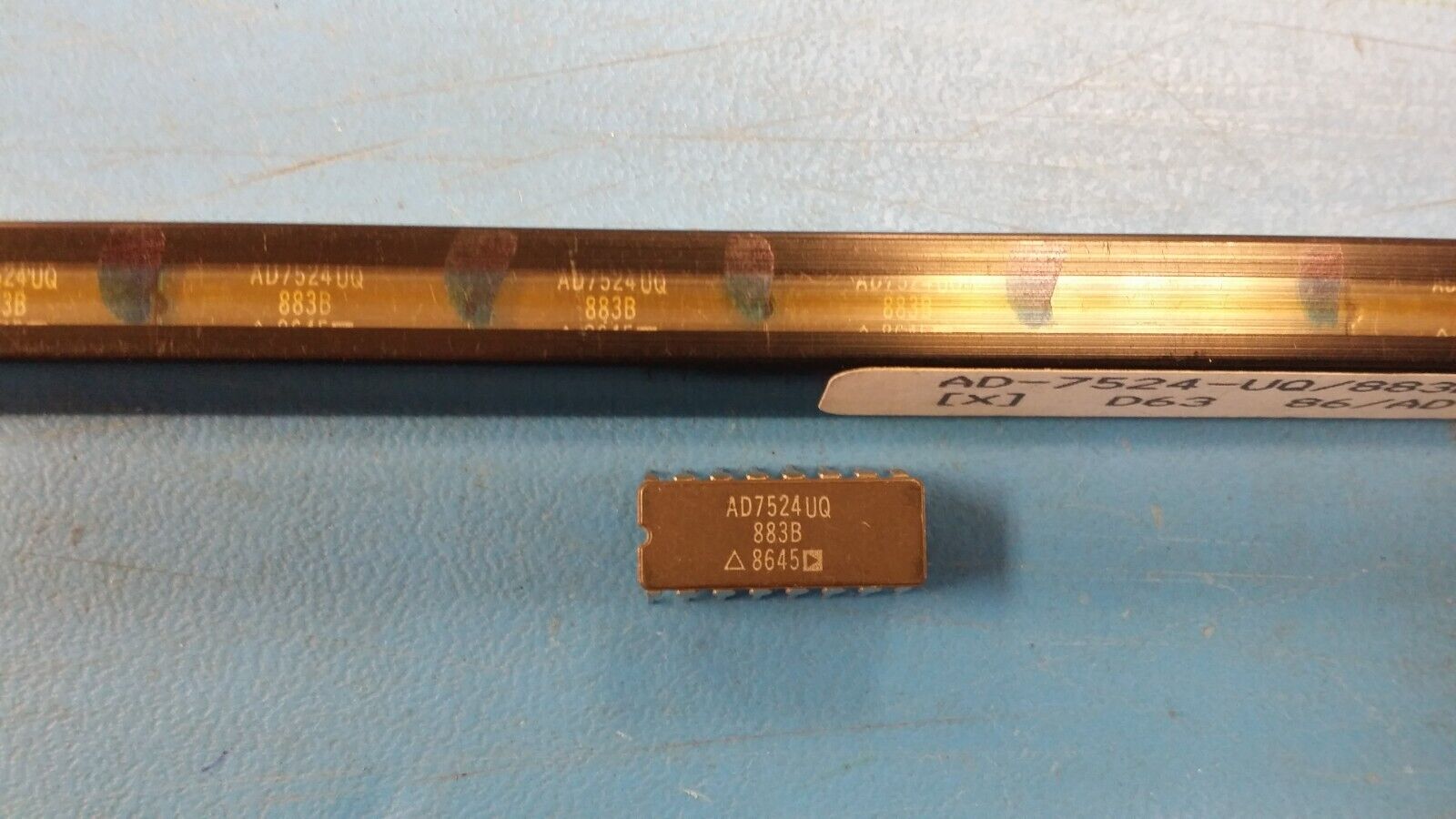

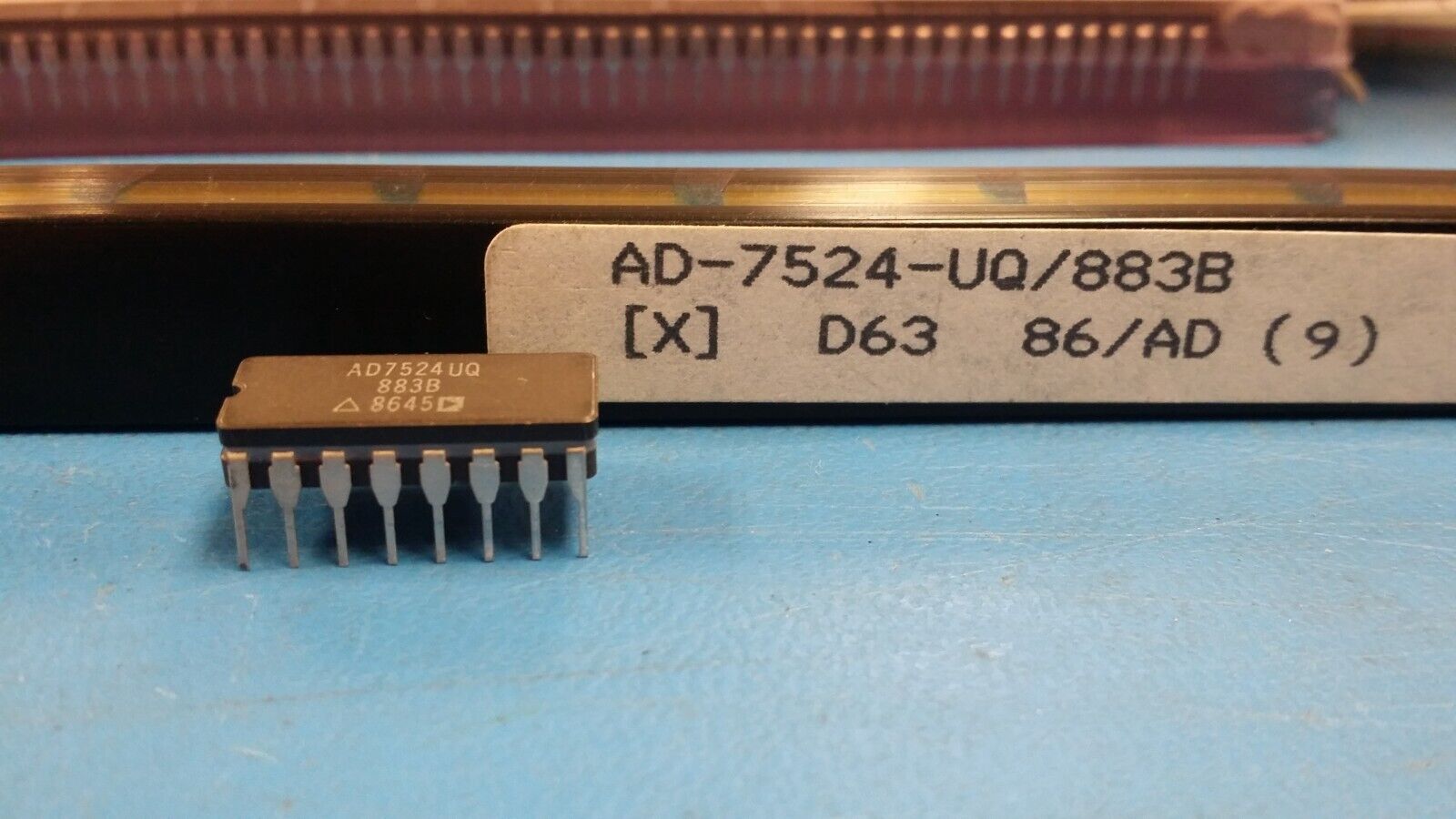

(1 PC) AD7524UQ/883B AD D/A Converter, 1 Func, Parallel, 8 Bits CDIP16

$49.95
Unit price per

Tax included.

THIS IS FOR (1 PC) OF AD7524UQ/883B BY AD

D/A Converter, 1 Func, Parallel, 8 Bits CDIP16

Part #: AD7524UQ/883B

Part Category: Converters

Manufacturer: Analog Devices, Inc.

Description: D/A Converter, 1 Func, Parallel, 8 Bits Input Loading, 0.1us Settling Time, CDIP16

Mfr Package Description CERDIP-16

Status Discontinued

Converter Type D/A CONVERTER

Input Bit Code BINARY

Input Format PARALLEL, 8 BITS

JESD-30 Code R-GDIP-T16

JESD-609 Code e0

Linearity Error-Max (EL) 0.0488 %

Number of Bits 8

Number of Functions 1

Number of Terminals 16

Operating Temperature-Min -55.0 Cel

Operating Temperature-Max 125.0 Cel

Package Body Material CERAMIC, GLASS-SEALED

Package Code DIP

Package Equivalence Code DIP16,.3

Package Shape RECTANGULAR

Package Style IN-LINE

Qualification Status Not Qualified

Screening Level MIL-STD-883 Class B

Seated Height-Max 5.08 mm

Settling Time-Max 0.0 µs

Settling Time-Nom (tstl) 0.1 µs

Sub Category Other Converters

Supply Current-Max 2.0 mA

Supply Voltage-Nom 5.0 V

Surface Mount NO

Technology CMOS

Temperature Grade MILITARY

Terminal Finish TIN LEAD

Terminal Form THROUGH-HOLE

Terminal Pitch 2.54 mm

Terminal Position DUAL

Length 19.05 mm

Width 7.62 mm
