(1 PC) 9ZX21901CKLF IDT IC BUFFER PCIE Z 72VFQFPN ROHS
Tax included.

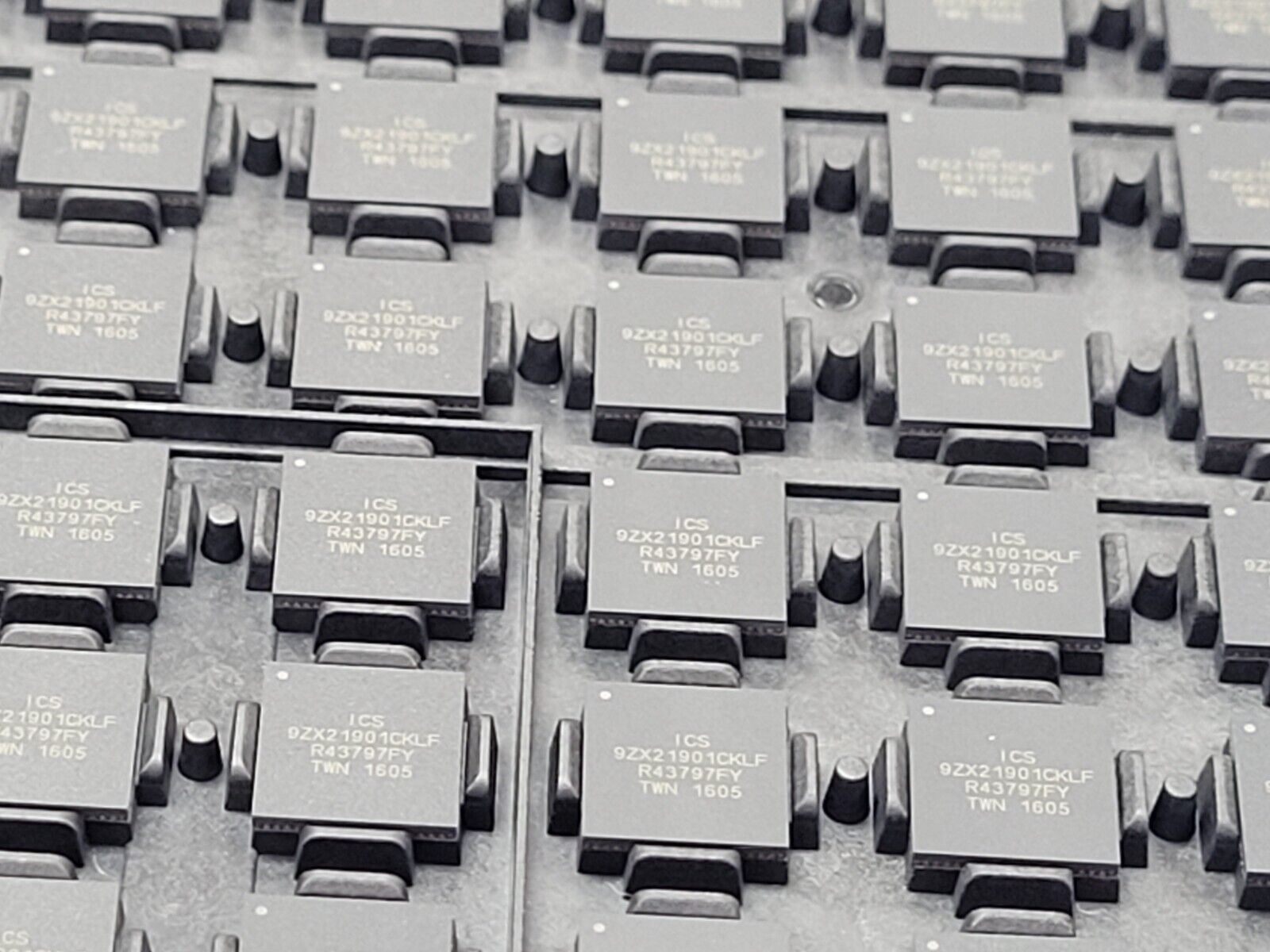

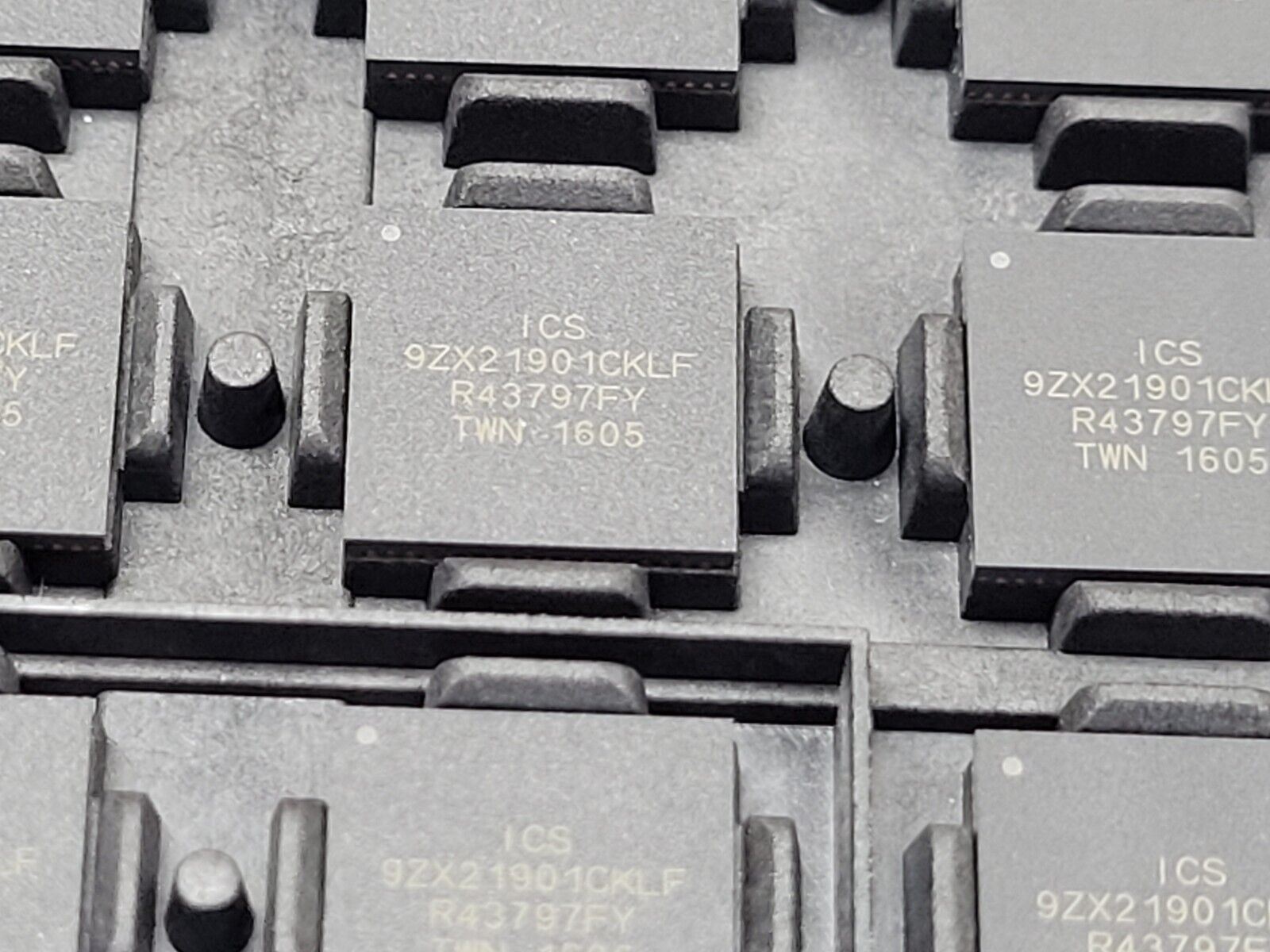

THIS IS FOR (1 PC) OF 9ZX21901CKLF BY IDT
IC BUFFER PCIE Z 72VFQFPN ROHS
Part #: 9ZX21901CKLF
Part Category: Logic ICs
Manufacturer: Integrated Device Technology
Description: PLL Based Clock Driver, 9ZX Series, 19 True Output(s), 0 Inverted Output(s), PQCC72
Mfr Package Description VQFN-72
REACH Compliant Yes
EU RoHS Compliant Yes
China RoHS Compliant Yes
Status Transferred
Logic IC Type PLL BASED CLOCK DRIVER
Sub Category Clock Drivers
Family 9ZX
Input Conditioning DIFFERENTIAL MUX
JESD-30 Code S-PQCC-N72
JESD-609 Code e3
Moisture Sensitivity Level 3
Number of Functions 1
Number of Inverted Outputs 0.0
Number of Terminals 72
Number of True Outputs 19.0
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Output Characteristics 3-STATE
Package Body Material PLASTIC/EPOXY
Package Code HVQCCN
Package Equivalence Code LCC72,.39SQ,20
Package Shape SQUARE
Package Style CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
Same Edge Skew-Max (tskwd) 0.065 ns
Seated Height-Max 1.0 mm
Supply Voltage-Nom (Vsup) 3.3
Supply Voltage-Min (Vsup) 3.135 V
Supply Voltage-Max (Vsup) 3.465 V
Surface Mount YES
Temperature Grade COMMERCIAL
Terminal Finish MATTE TIN
Terminal Form NO LEAD
Terminal Pitch 0.5 mm
Terminal Position QUAD
Time@Peak Reflow Temperature-Max (s) 30
Length 10.0 mm
Width 10.0 mm
