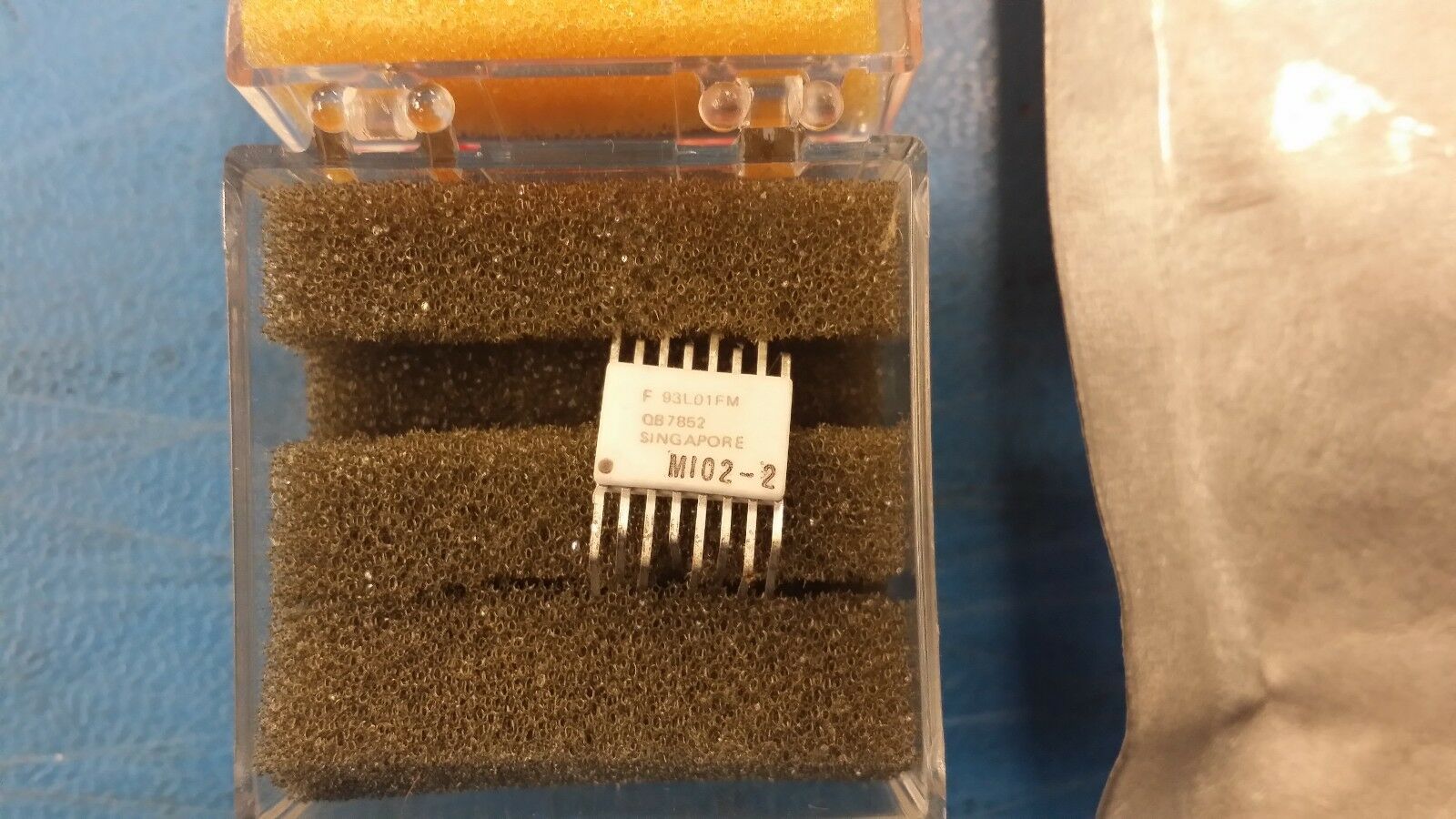

(1 PC) 93L01FMQB FSC Decimal Decoder/Driver, Inverted Output, TTL, CDFP16
Tax included.
THIS LISTING IS FOR (1 PC) OF 93L01FMQB BY FSC
Decimal Decoder/Driver, Inverted Output, TTL, CDFP16
Part #: 93L01FMQB
Part Category: Logic ICs
Manufacturer: Fairchild Semiconductor
Description: Decimal Decoder/Driver, 93L Series, Inverted Output, TTL, CDFP16
Manufacturer: Fairchild Semiconductor
Description: Decimal Decoder/Driver, 93L Series, Inverted Output, TTL, CDFP16
| Mfr Package Description | CERAMIC, FP-16 |
| Status | Discontinued |
| Logic IC Type | DECIMAL DECODER/DRIVER |
| Sub Category | Decoder/Drivers |
| Family | 93L |
| Input Conditioning | STANDARD |
| JESD-30 Code | R-GDFP-F16 |
| JESD-609 Code | e0 |
| Number of Functions | 1 |
| Number of Terminals | 16 |
| Operating Temperature-Min | -55.0 Cel |
| Operating Temperature-Max | 125.0 Cel |
| Output Polarity | INVERTED |
| Package Body Material | CERAMIC, GLASS-SEALED |
| Package Code | DFP |
| Package Equivalence Code | FL16,.3 |
| Package Shape | RECTANGULAR |
| Package Style | FLATPACK |
| Power Supplies (V) | 5 |
| Propagation Delay (tpd) | 36.0 ns |
| Qualification Status | Not Qualified |
| Screening Level | 38535Q/M;38534H;883B |
| Supply Voltage-Nom (Vsup) | 5 |
| Supply Voltage-Min (Vsup) | 4.5 V |
| Supply Voltage-Max (Vsup) | 5.5 V |
| Surface Mount | YES |
| Technology | TTL |
| Temperature Grade | MILITARY |
| Terminal Finish | Tin/Lead (Sn/Pb) |
| Terminal Form | FLAT |
| Terminal Pitch | 1.27 mm |
| Terminal Position | DUAL |
