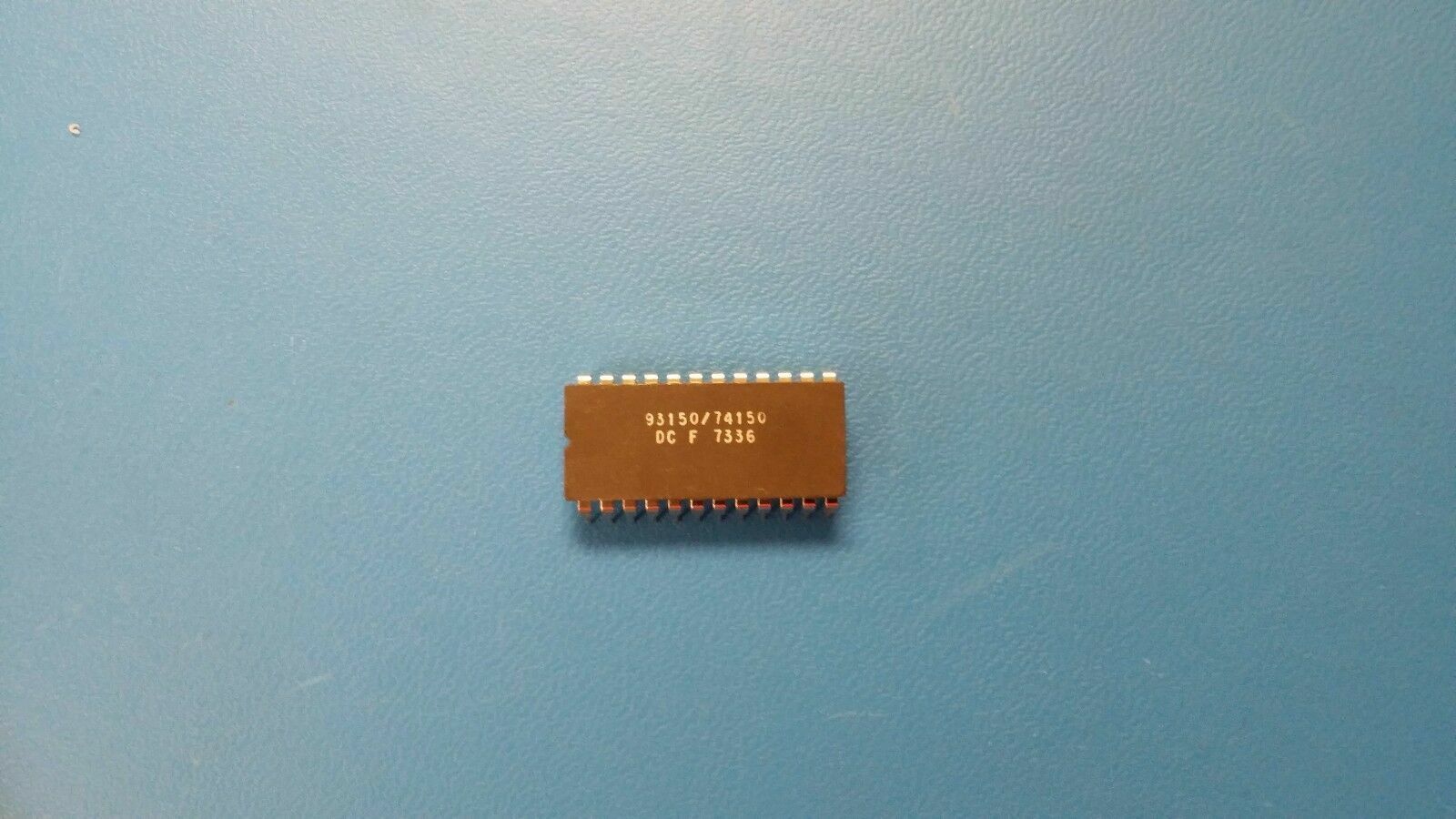

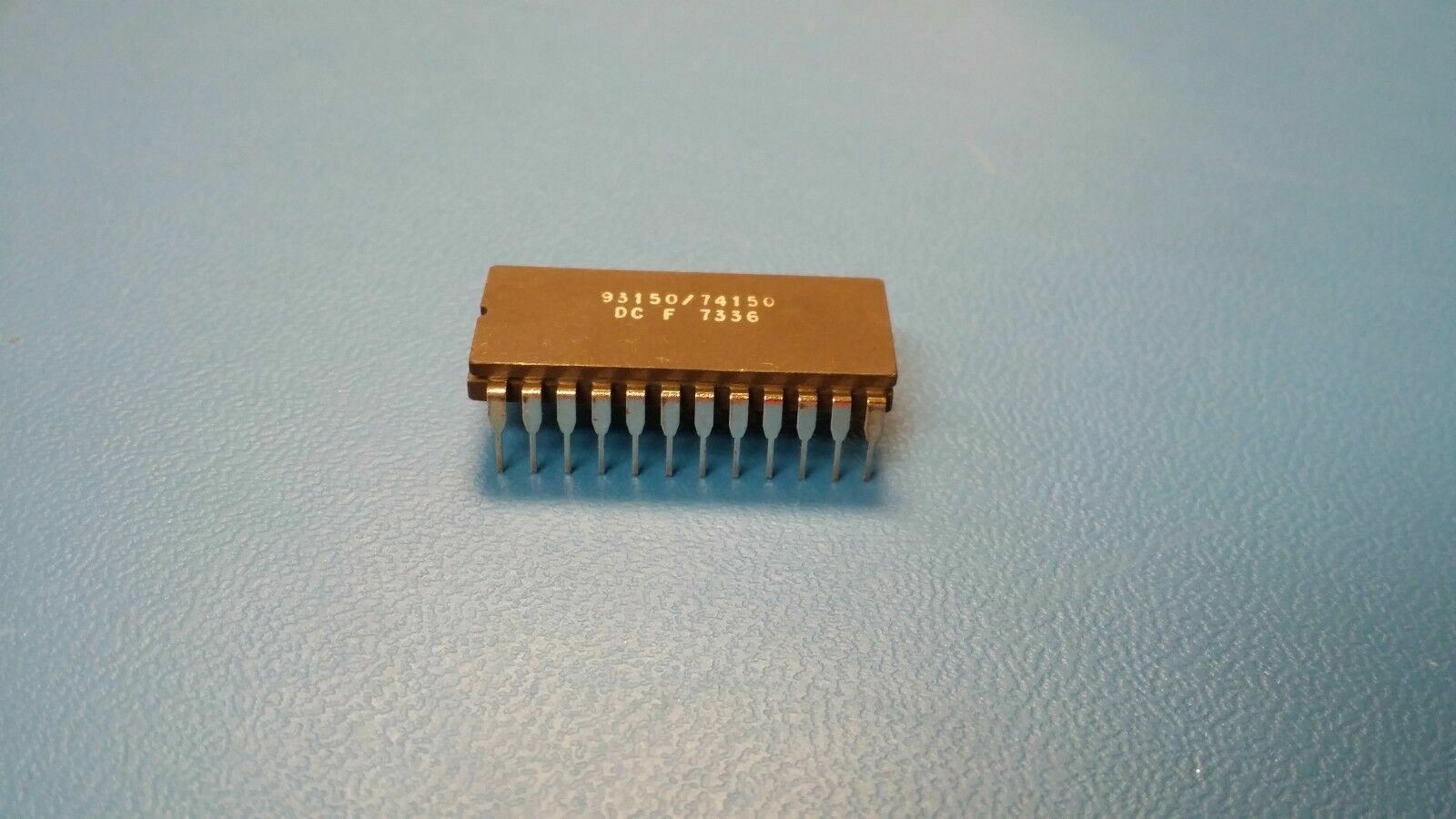

(1 PC) 93150/74150DC FSC IC,LOGIC MUX,SINGLE,16-INPUT,STD-TTL,DIP,24PIN,CERAMIC
Tax included.
THIS LISTING IS FOR (1 PC) OF 93150/74150DC BY FSC
IC,LOGIC MUX,SINGLE,16-INPUT,STD-TTL,DIP,24PIN,CERAMIC
Part #: 74150DC
Part Category: Logic ICs
Manufacturer: Fairchild Semiconductor
Description: IC,LOGIC MUX,SINGLE,16-INPUT,STD-TTL,DIP,24PIN,CERAMIC
Manufacturer: Fairchild Semiconductor
Description: IC,LOGIC MUX,SINGLE,16-INPUT,STD-TTL,DIP,24PIN,CERAMIC
| Status | Discontinued |
| Logic IC Type | MULTIPLEXER |
| Sub Category | Multiplexer/Demultiplexers |
| JESD-30 Code | R-XDIP-T24 |
| JESD-609 Code | e0 |
| Number of Functions | 1 |
| Number of Inputs | 16.0 |
| Number of Terminals | 24 |
| Operating Temperature-Min | 0.0 Cel |
| Operating Temperature-Max | 70.0 Cel |
| Output Characteristics | 3-STATE |
| Package Body Material | CERAMIC |
| Package Code | DIP |
| Package Equivalence Code | DIP24,.6 |
| Package Shape | RECTANGULAR |
| Package Style | IN-LINE |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED |
| Power Supplies (V) | 5 |
| Qualification Status | Not Qualified |
| Supply Voltage-Nom (Vsup) | 5 |
| Surface Mount | NO |
| Technology | TTL |
| Temperature Grade | COMMERCIAL |
| Terminal Finish | Tin/Lead (Sn/Pb) |
| Terminal Form | THROUGH-HOLE |
| Terminal Pitch | 2.54 mm |
| Terminal Position | DUAL |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |
