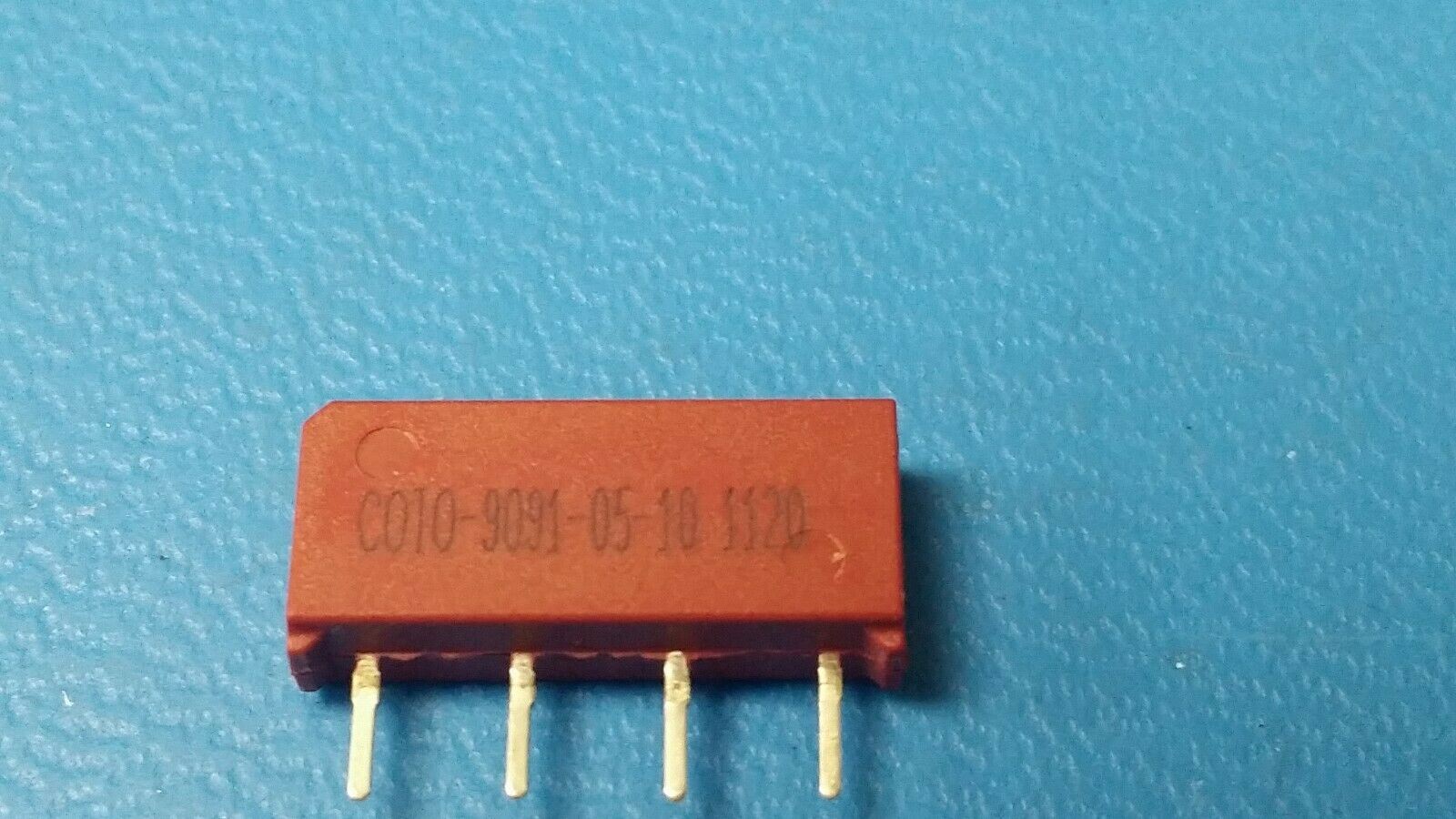

(1 PC) 9091-05-10 COTO REED RELAY, SPST, 5V, MAG SHIELD ROHS
Tax included.
THIS IS FOR (1 PC) OF 9091-05-10 BY COTO
REED RELAY, SPST, 5V, MAG SHIELD ROHS
Category Relays, Reed Relays
Mfr Coto Technology
Series 9091
Package Tube
Part Status Active
Mounting Type Through Hole
Coil Voltage 5VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 500 mA
Switching Voltage 200VAC, 200VDC - Max
Coil Current 10 mA
Coil Type Non Latching
Features EMI Shielded
Termination Style PC Pin
Seal Rating -
Must Operate Voltage 3.75 VDC
Must Release Voltage 0.4 VDC
Operate Time 0.5 ms
Release Time 0.3 ms
Operating Temperature -20°C ~ 85°C
Contact Material -
Coil Resistance 500 Ohms
Base Product Number 9091
