(1 PC) 787170-4 AMP/TYCO 40 Position D-Type Receptacle, Female Sockets Connector
Tax included.

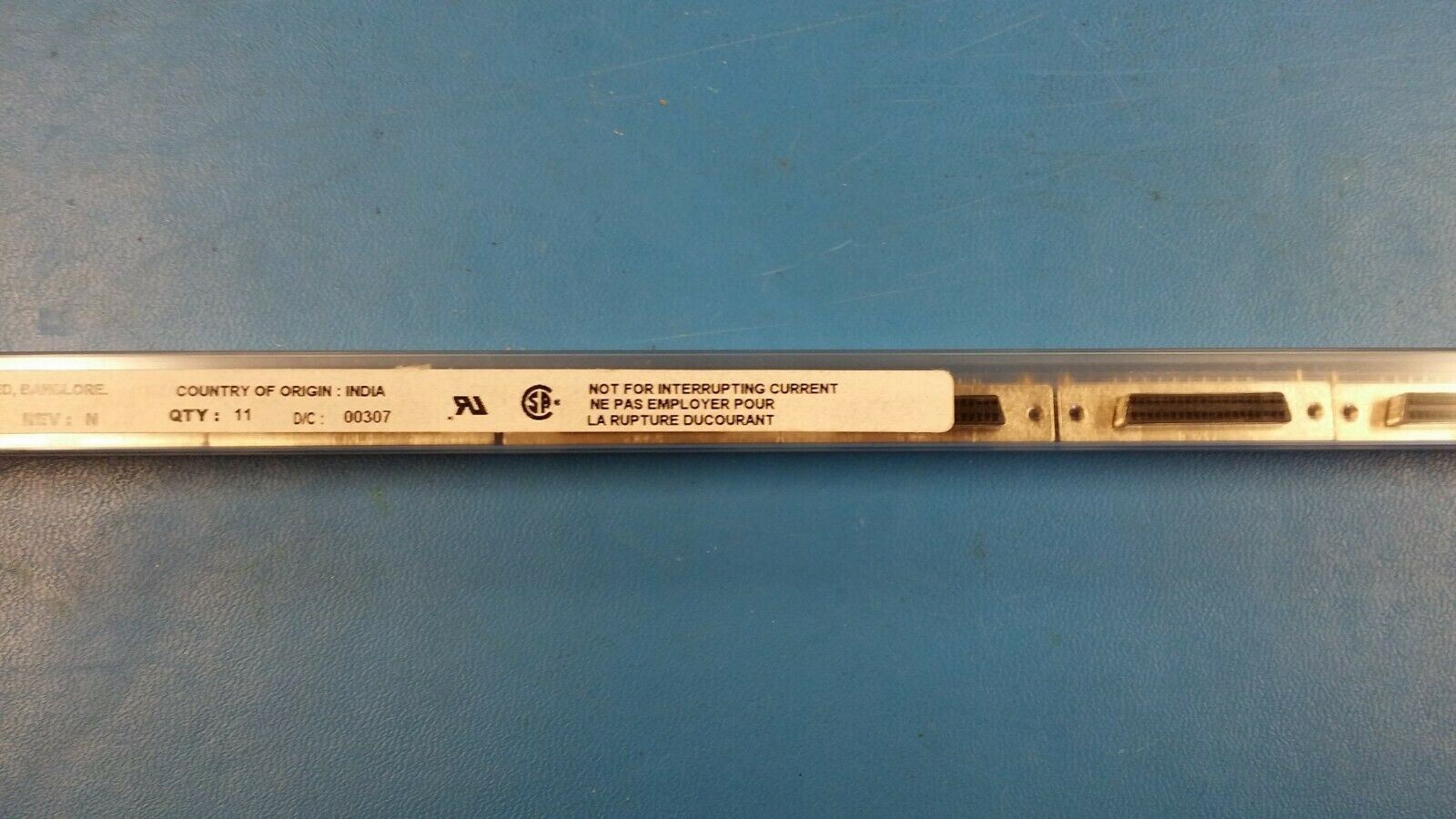

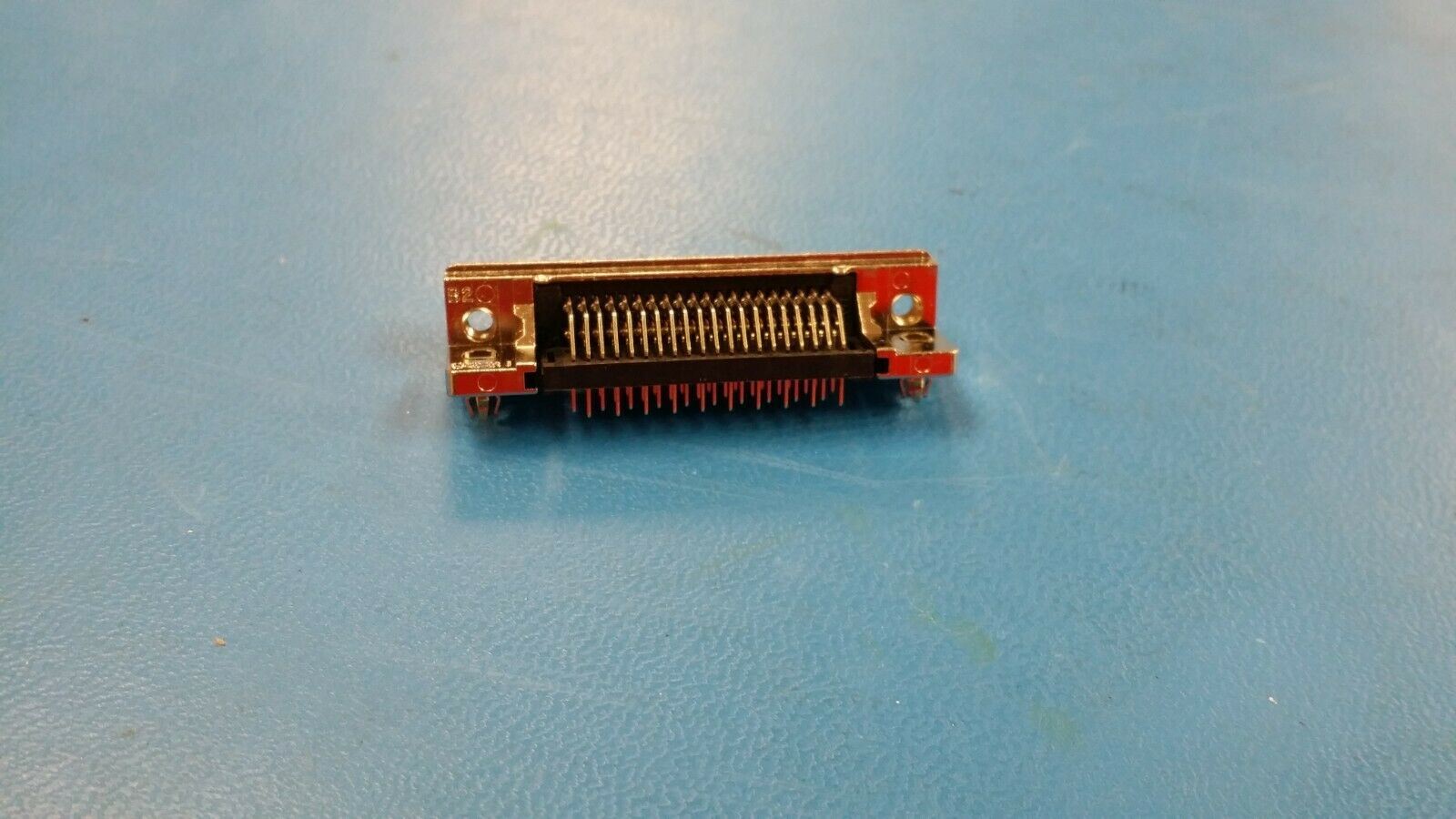

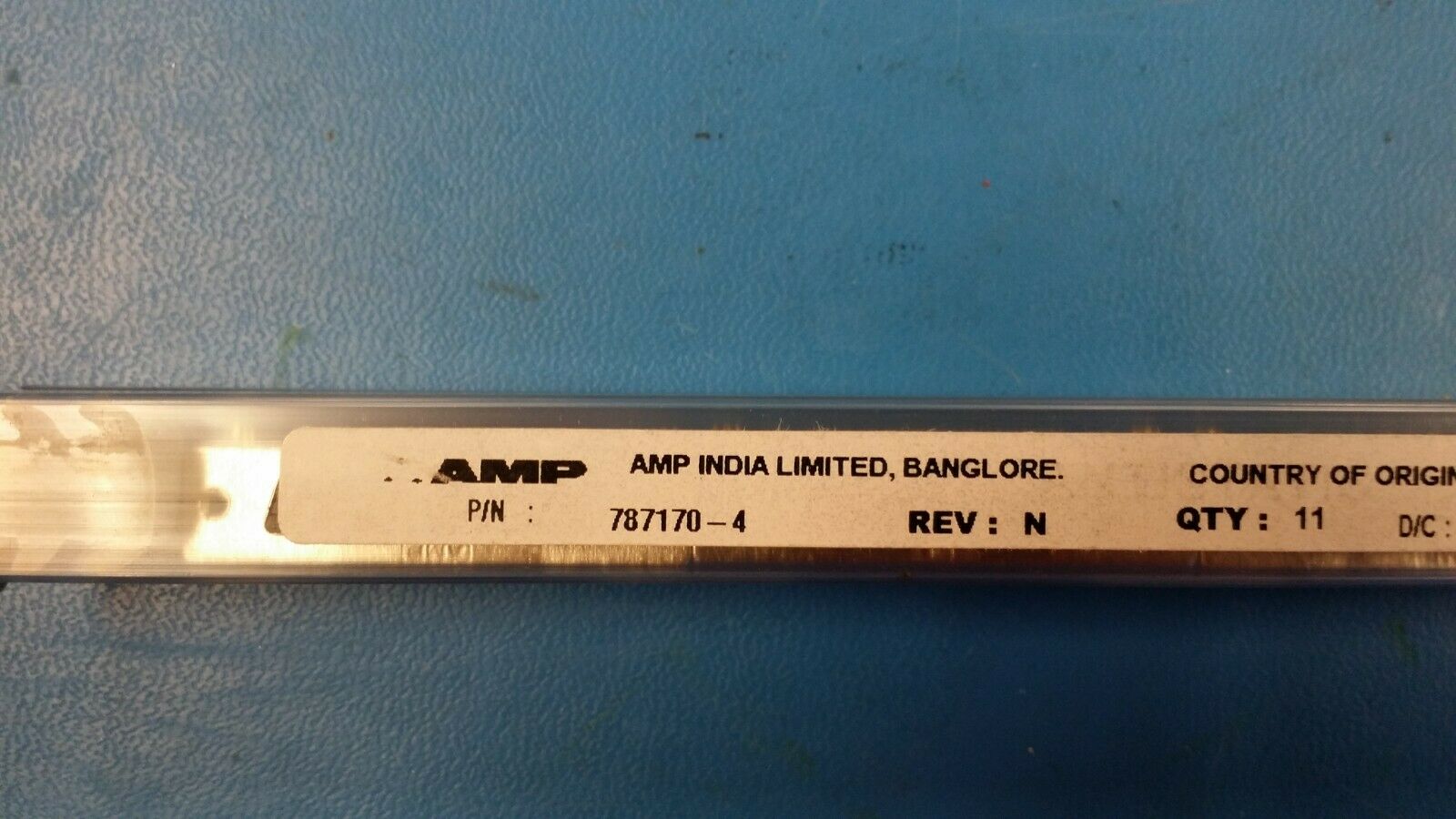

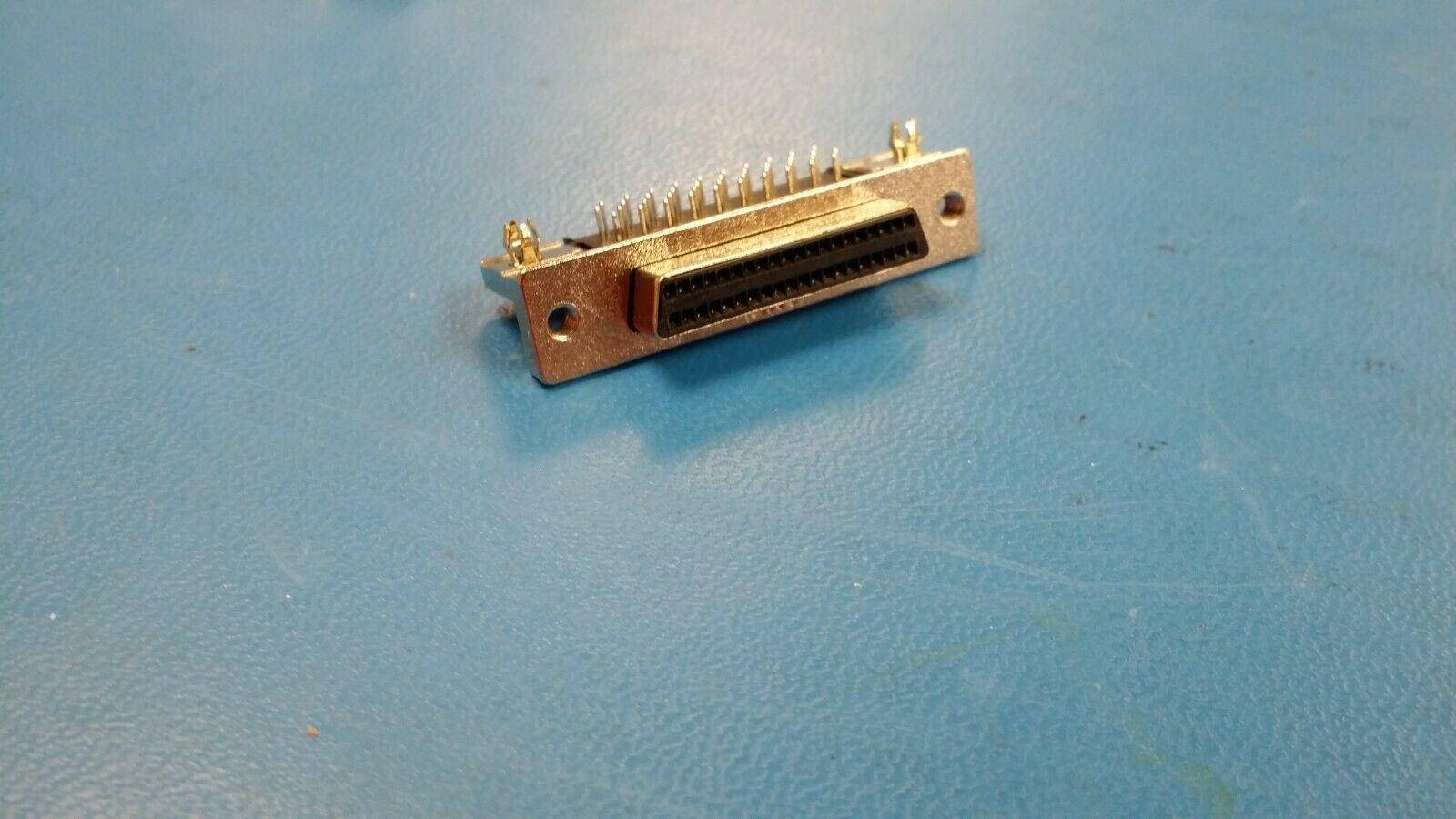

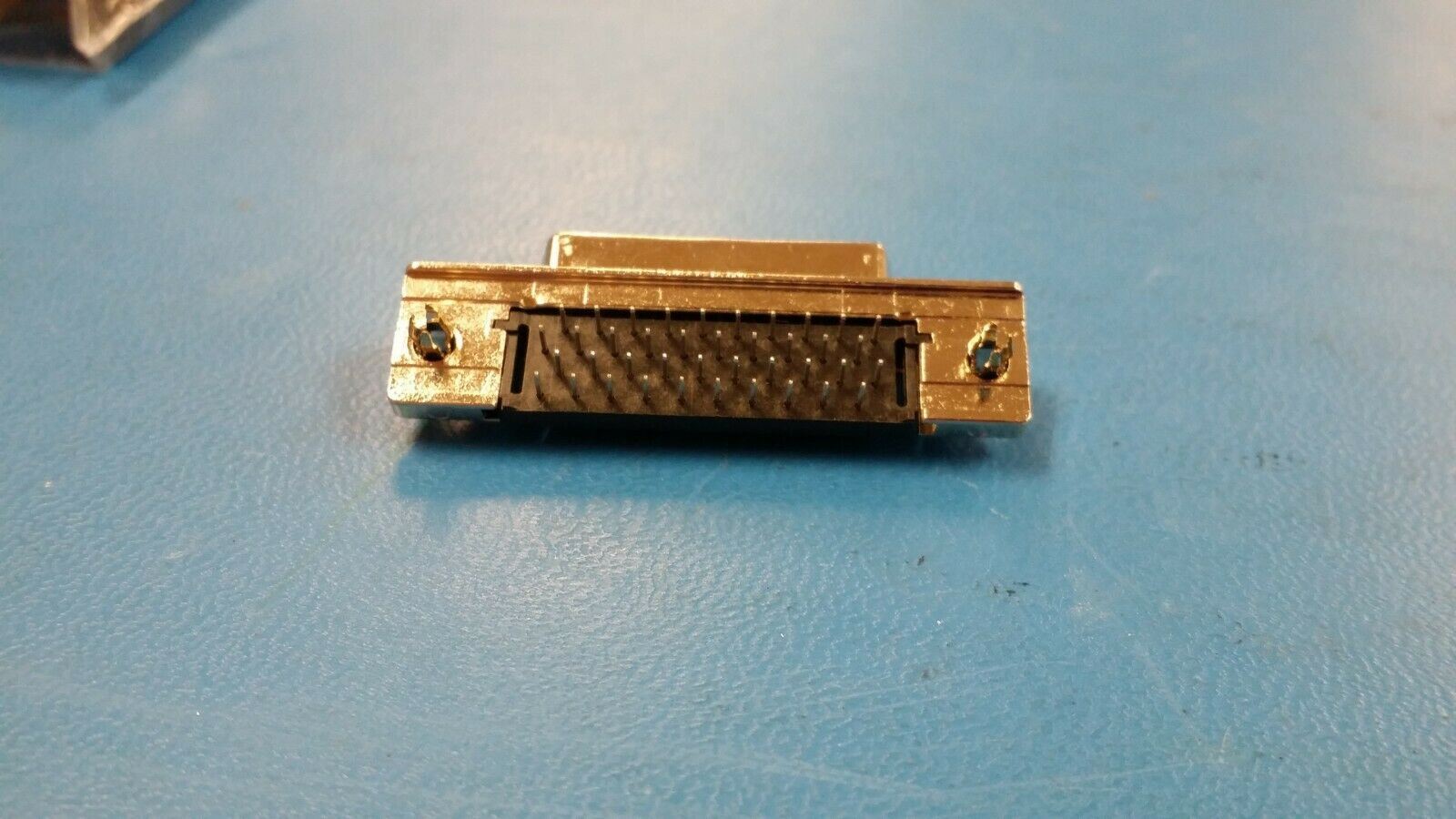

THIS LISTING IS FOR (1 PC) OF 787170-4 AMP/TYCO
40 Position D-Type Receptacle, Female Sockets Connector
Manufacturer TE Connectivity AMP Connectors
Series AMPLIMITE .050 III

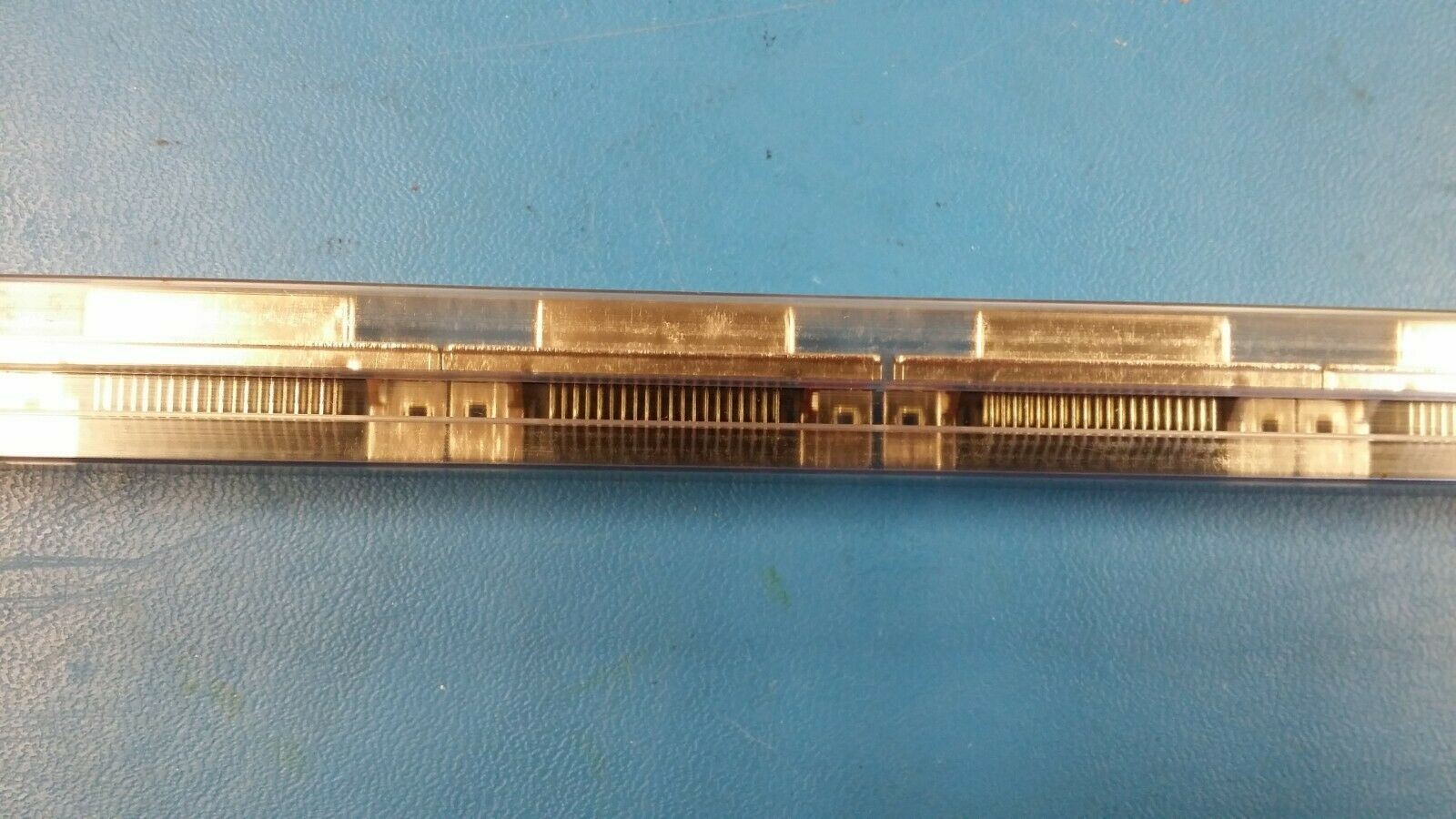

Packaging Tube
Part Status Active
Connector Style D-Type
Connector Type Receptacle, Female Sockets
Number of Positions 40
Number of Rows 2
Shell Size, Connector Layout 0.050 Pitch x 0.100 Row to Row
Contact Type Signal
Mounting Type Board Edge, Through Hole, Right Angle
Flange Feature Housing/Shell (4-40)
Termination Solder
Features Board Lock, Shielded
Shell Material, Finish Steel, Nickel Plated
Contact Finish Gold
Contact Finish Thickness -
Ingress Protection -
Material Flammability Rating UL94 V-0
Current Rating (Amps) 1A
Operating Temperature -55°C ~ 105°C
Voltage Rating 30V
Color Black
Contact Form -
Dielectric Material Thermoplastic
Wire Gauge -
Contact Material Phosphor Bronze
Backset Spacing 0.146" (3.71mm)
