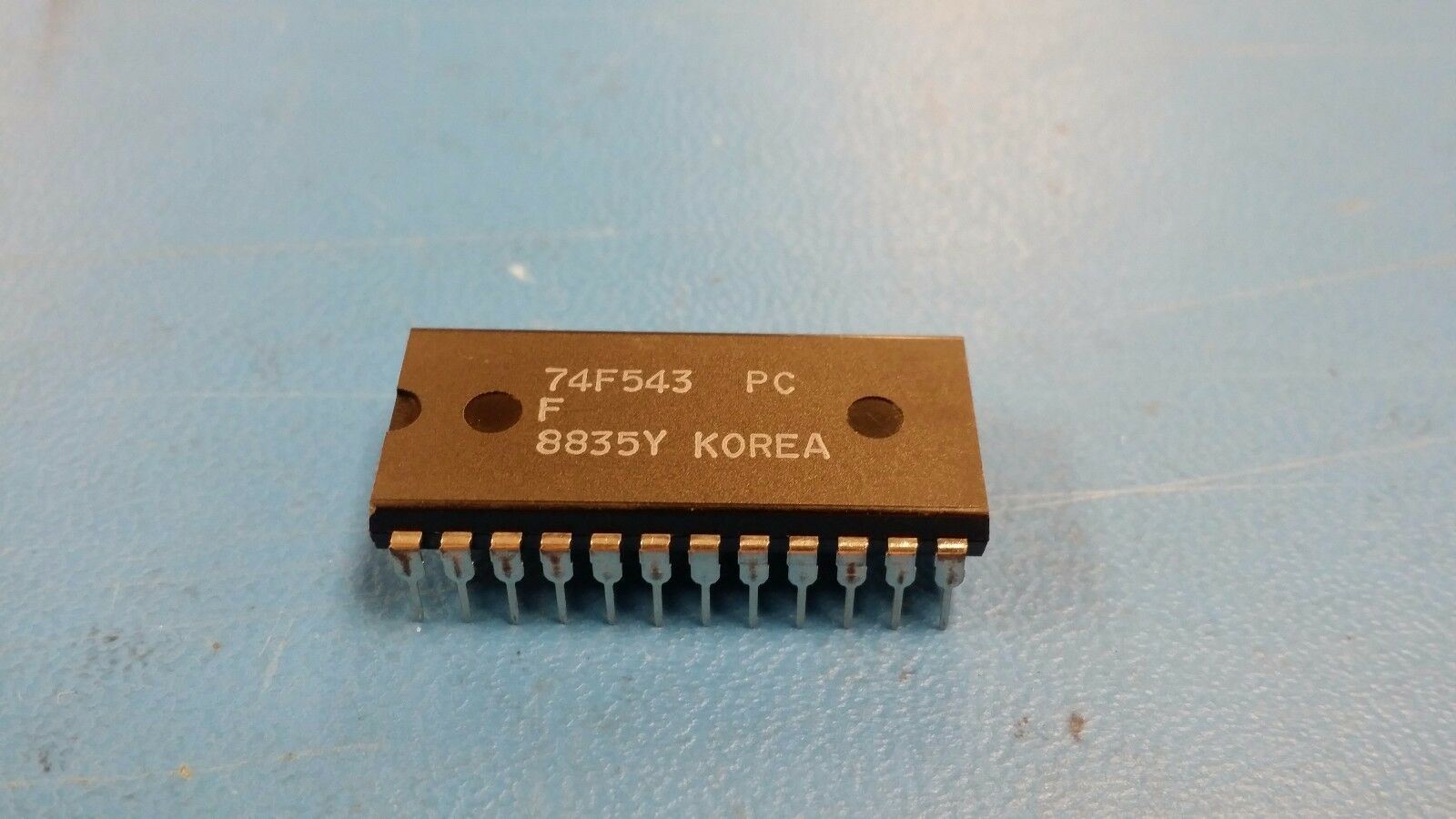

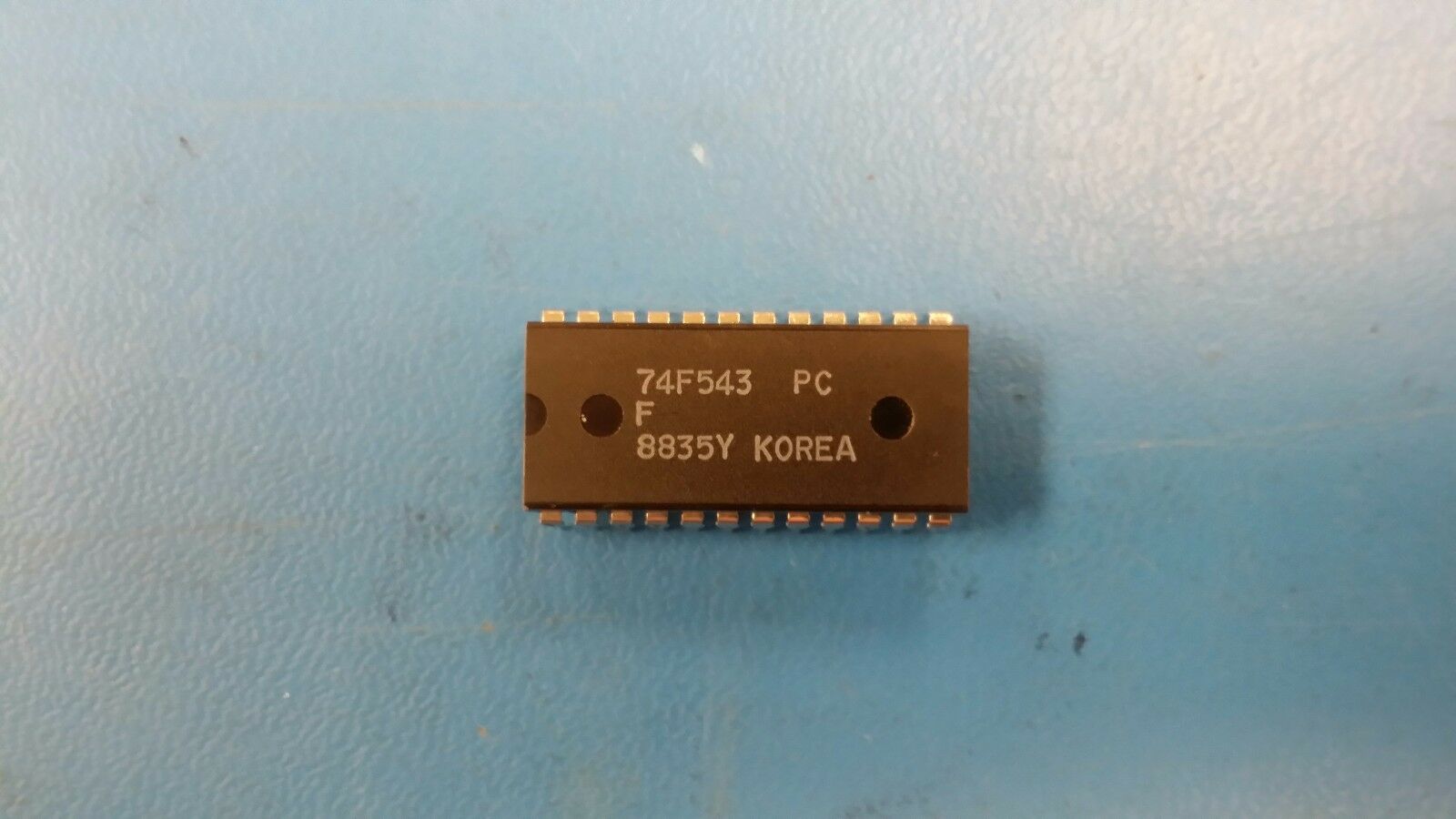

(1 PC) 74F543PC FSC 8-BIT REGISTERED TRANSCEIVER, TRUE OUTPUT (.600MIL) PDIP24
Tax included.
THIS LISTING IS FOR (1 PC) OF 74F543PC BY FSC
8-BIT REGISTERED TRANSCEIVER, TRUE OUTPUT (.600MIL) PDIP24
Part #: 74F543PC
Part Category: Logic ICs
Manufacturer: Fairchild Semiconductor
Description: F/FAST SERIES, 8-BIT REGISTERED TRANSCEIVER, TRUE OUTPUT, PDIP24
Manufacturer: Fairchild Semiconductor
Description: F/FAST SERIES, 8-BIT REGISTERED TRANSCEIVER, TRUE OUTPUT, PDIP24
| Mfr Package Description | 0.600 INCH, PLASTIC, MS-011, DIP-24 |
| REACH Compliant | Yes |
| EU RoHS Compliant | Yes |
| Status | Discontinued |
| Logic IC Type | REGISTERED BUS TRANSCEIVER |
| Sub Category | Bus Driver/Transceivers |
| Control Type | INDEPENDENT CONTROL |
| Count Direction | BIDIRECTIONAL |
| Family | F/FAST |
| JESD-30 Code | R-PDIP-T24 |
| JESD-609 Code | e3 |
| Moisture Sensitivity Level | NOT APPLICABLE |
| Number of Bits | 8 |
| Number of Functions | 1 |
| Number of Ports | 2 |
| Number of Terminals | 24 |
| Operating Temperature-Min | 0.0 Cel |
| Operating Temperature-Max | 70.0 Cel |
| Output Characteristics | 3-STATE |
| Output Polarity | TRUE |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | DIP |
| Package Equivalence Code | DIP24,.6 |
| Package Shape | RECTANGULAR |
| Package Style | IN-LINE |
| Peak Reflow Temperature (Cel) | NOT APPLICABLE |
| Power Supplies (V) | 5 |
| Propagation Delay (tpd) | 12.5 ns |
| Qualification Status | Not Qualified |
| Seated Height-Max | 5.334 mm |
| Supply Voltage-Nom (Vsup) | 5 |
| Supply Voltage-Min (Vsup) | 4.5 V |
| Supply Voltage-Max (Vsup) | 5.5 V |
| Surface Mount | NO |
| Technology | TTL |
| Temperature Grade | COMMERCIAL |
| Terminal Finish | MATTE TIN |
| Terminal Form | THROUGH-HOLE |
| Terminal Pitch | 2.54 mm |
| Terminal Position | DUAL |
| Time@Peak Reflow Temperature-Max (s) | NOT APPLICABLE |
| Translation | N/A |
| Length | 31.915 mm |
| Width | 15.24 mm |
| Additional Feature | WITH INDEPENDENT OUTPUT ENABLE FOR EACH DIRECTION |
