(1 PC) 74F189PC FSC/NSC Standard SRAM, 16X4, 27ns, CMOS, PDIP16

$4.95
Unit price per

Tax included.

Quantity

Only 0 left!

Will be in stock after

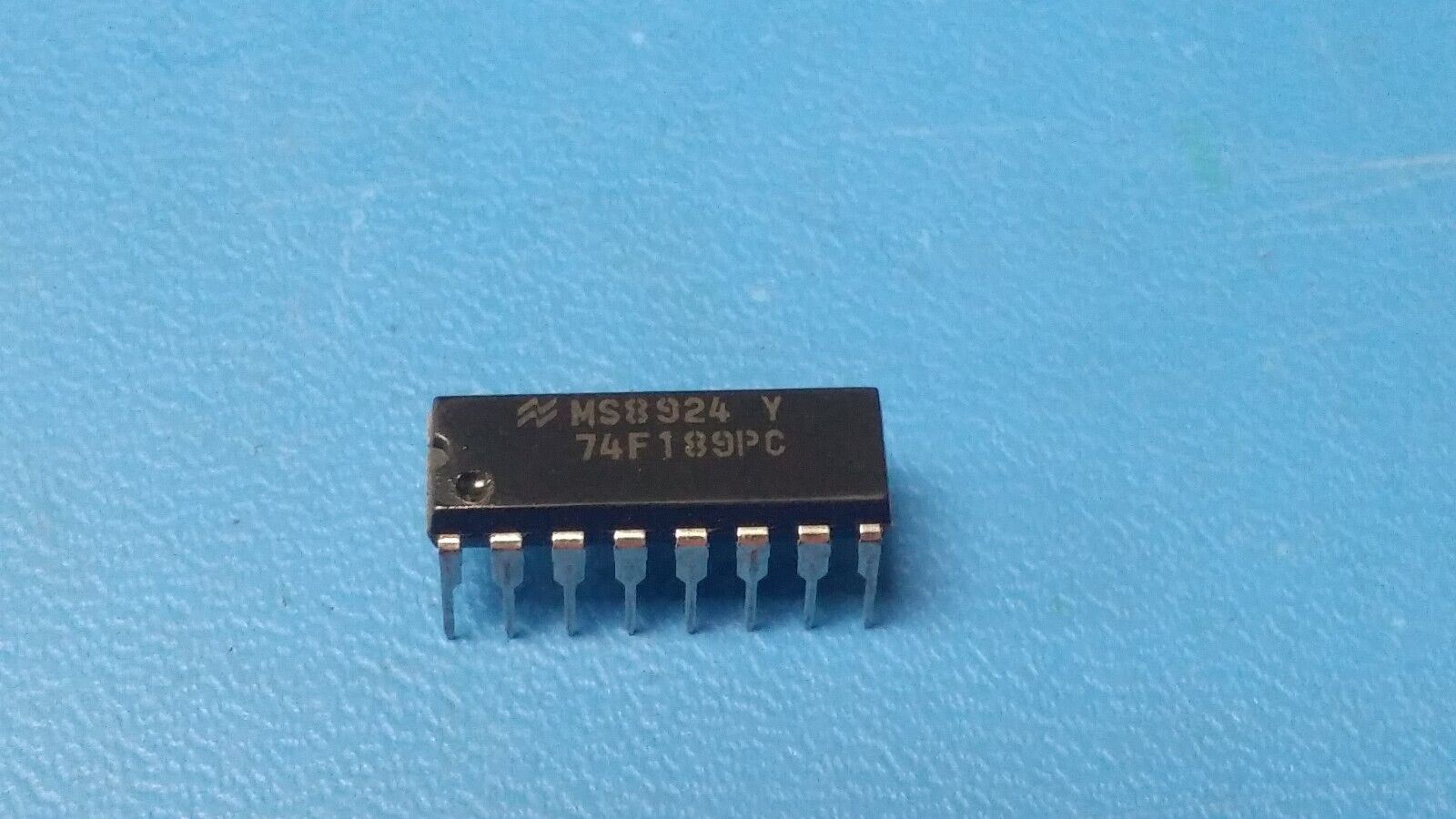

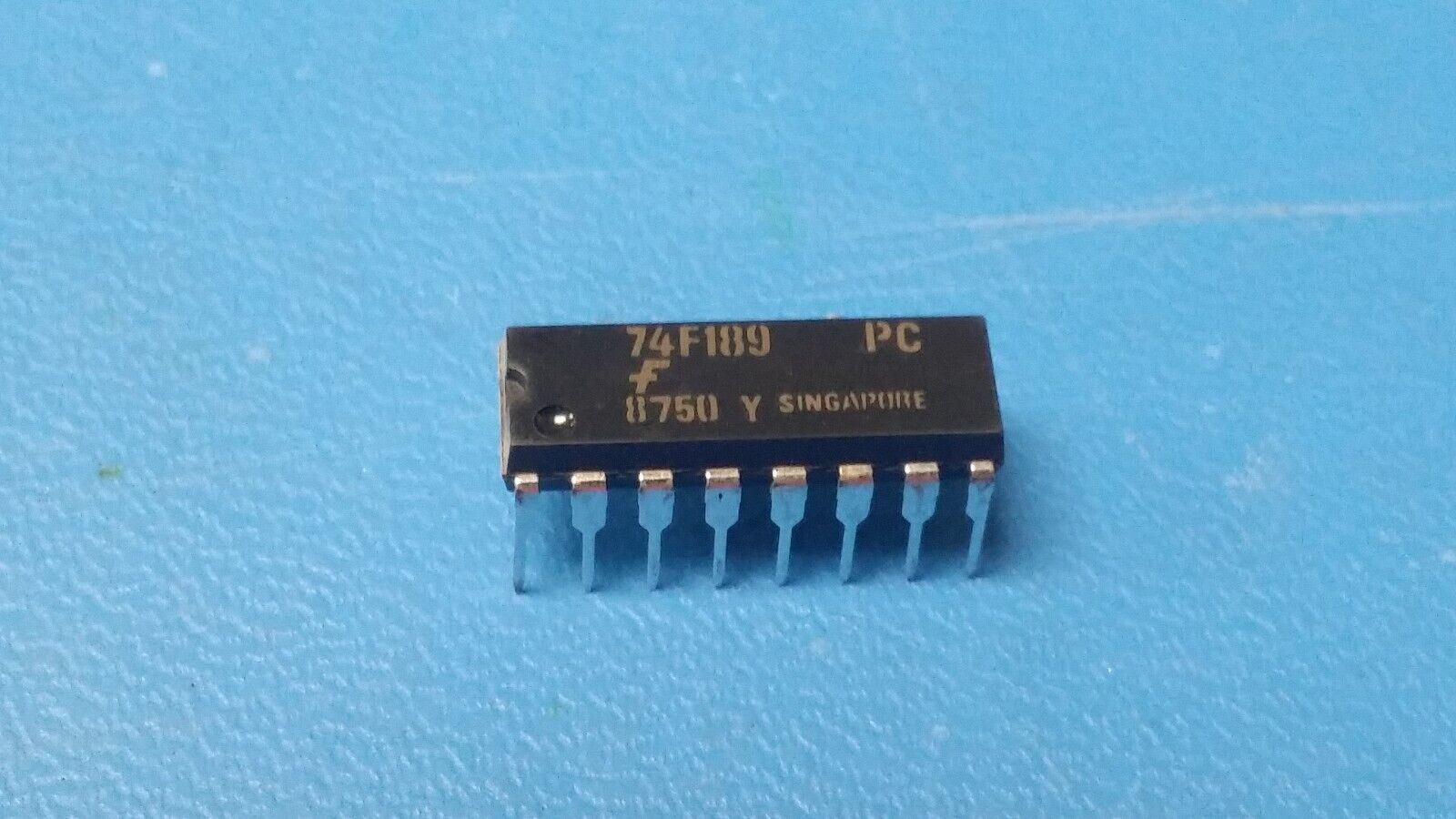

THIS IS FOR (1 PC) OF 74F189PC BY FSC/NSC

Standard SRAM, 16X4, 27ns, CMOS, PDIP16

Part #: 74F189PC

Part Category: Memory ICs

Manufacturer: Fairchild Semiconductor

Description: Standard SRAM, 16X4, 27ns, CMOS, PDIP16

Mfr Package Description 0.300 INCH, PLASTIC, MS-001, DIP-16

REACH Compliant Yes

Status Discontinued

Sub Category SRAMs

Access Time-Max 27.0 ns

JESD-30 Code R-PDIP-T16

Memory Density 64.0 bit

Memory IC Type STANDARD SRAM

Memory Width 4

Number of Functions 1

Number of Terminals 16

Number of Words 16.0 words

Number of Words Code 16

Operating Mode ASYNCHRONOUS

Operating Temperature-Min 0.0 Cel

Operating Temperature-Max 70.0 Cel

Organization 16X4

Output Characteristics 3-STATE

Package Body Material PLASTIC/EPOXY

Package Code DIP

Package Equivalence Code DIP16,.3

Package Shape RECTANGULAR

Package Style IN-LINE

Parallel/Serial PARALLEL

Peak Reflow Temperature (Cel) NOT SPECIFIED

Qualification Status Not Qualified

Seated Height-Max 5.08 mm

Supply Current-Max 0.055 Amp

Supply Voltage-Nom (Vsup) 5.0 V

Supply Voltage-Min (Vsup) 4.5 V

Supply Voltage-Max (Vsup) 5.5 V

Surface Mount NO

Technology CMOS

Temperature Grade COMMERCIAL

Terminal Form THROUGH-HOLE

Terminal Pitch 2.54 mm

Terminal Position DUAL

Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED

Length 19.305 mm

Width 7.62 mm
