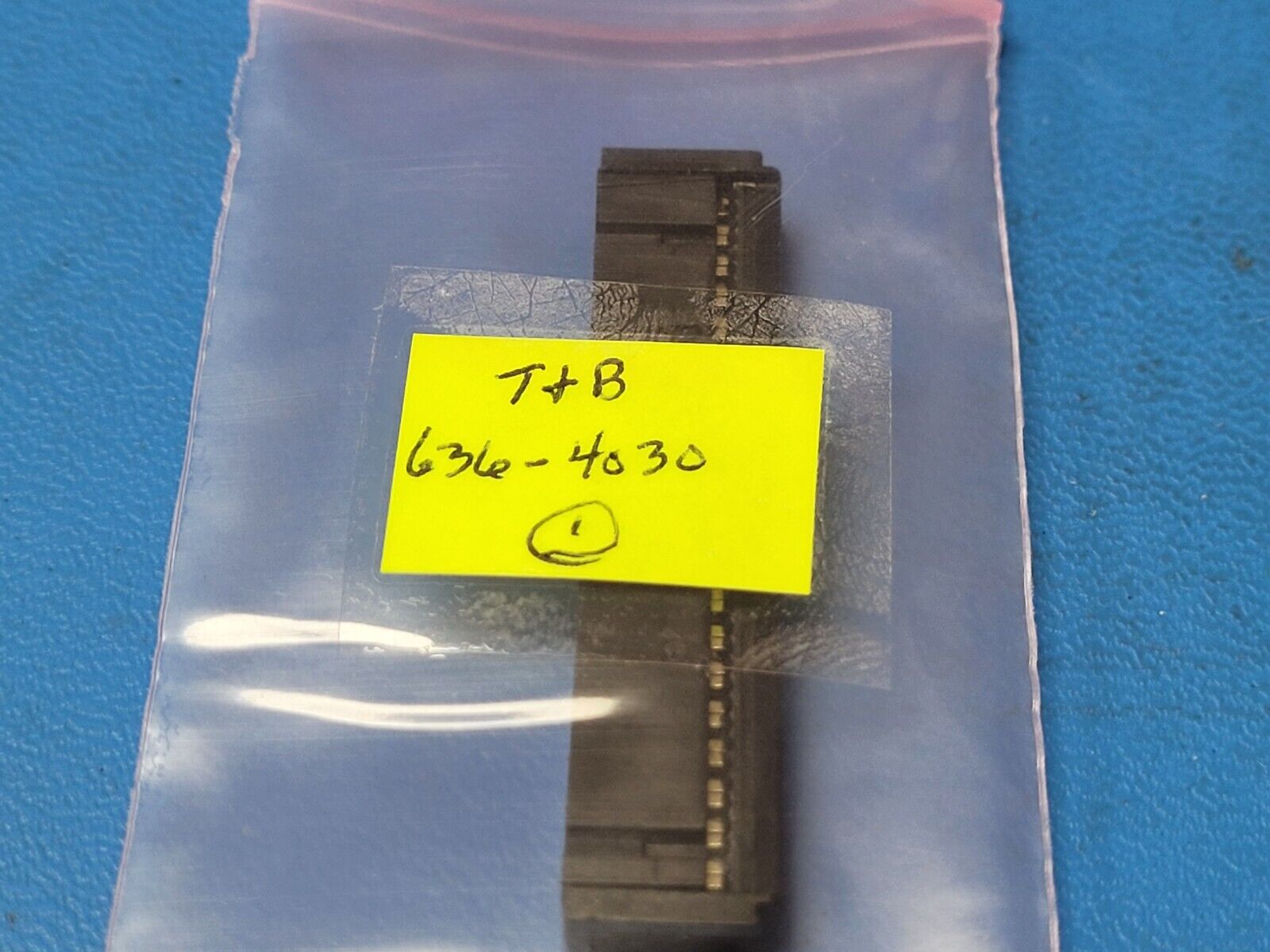

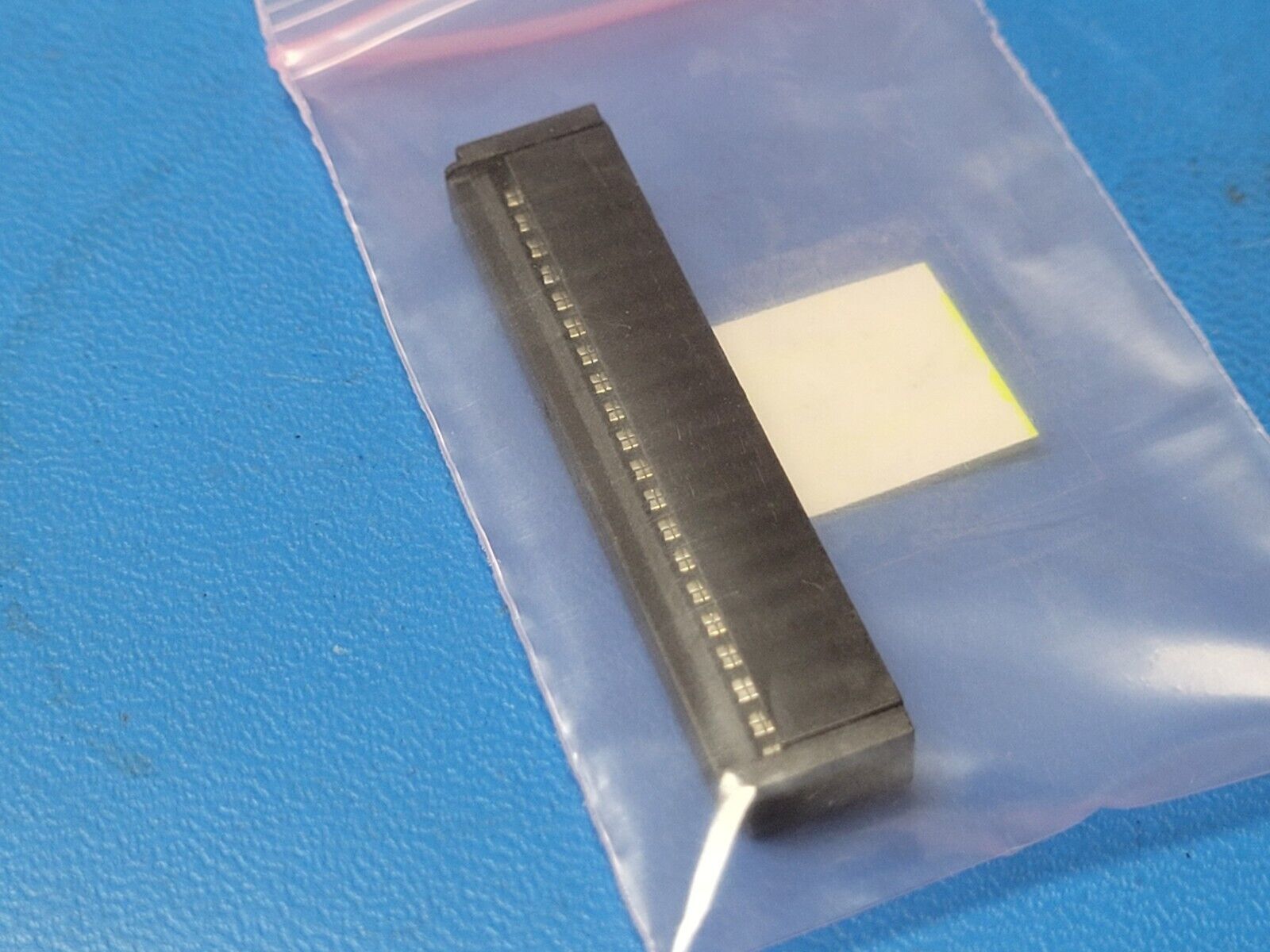

(1 pc) 636-4030 T&B Female Socket Connector - 40 Position - Socket
Tax included.
THIS IS FOR (1 pc) OF 636-4030 BY T&B
T&B Female Socket Connector - 40 Position - Socket
Status Discontinued
Connector Type BOARD CONNECTOR
Body Breadth 0.24 inch
Body Depth 0.476 inch
Body Length 2.177 inch
Body/Shell Style SOCKET
Contact Design PREASSEM CONN
Contact Finish - Mating NOT SPECIFIED
Contact Gender FEMALE
Contact Material NOT SPECIFIED
Contact Pattern RECTANGULAR
Contact Style SQ PIN-SKT
DIN Conformance NO
Filter Feature NO
IEC Conformance NO
Insulation Resistance 1.0E9 ohm
Insulator Color BLACK
Insulator Material GLASS FILLED POLYETHYLENE
Manufacturer Series 636
Mating Information MULTIPLE MATING PARTS AVAILABLE
MIL Conformance NO
Mixed Contacts NO
Mounting Type CABLE
Number of Rows Loaded 2
Operating Temperature-Min -55.0 Cel
Option GENERAL PURPOSE
Polarization Key GUIDE SLOT(S)
Rated Current (Signal) 1.0 A
Reference Standard UL, CSA
Reliability COMMERCIAL
Sub Category Headers and Edge Type Connectors
Total Number of Contacts 40
UL Flammability Code 94V-0
Wire Size-Min 28.0 AWG
Wire Size-Max 26.0 AWG
Additional Feature POLARIZED
