(1 PC) 5962-9221401MSA Bus Transceiver, 1-Func, 8-Bit, CMOS, CERPACK-20

$29.95
Unit price per

Tax included.

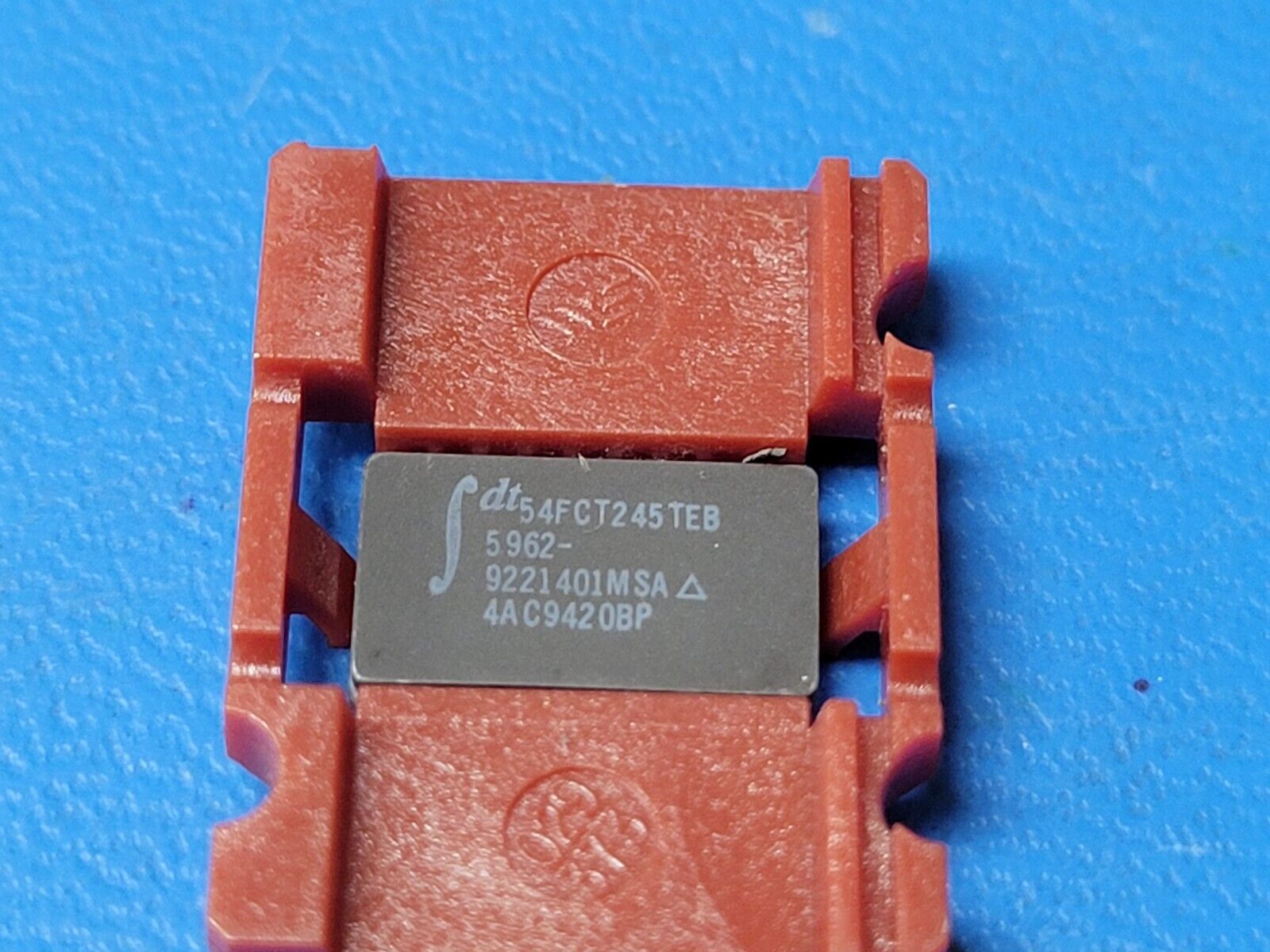

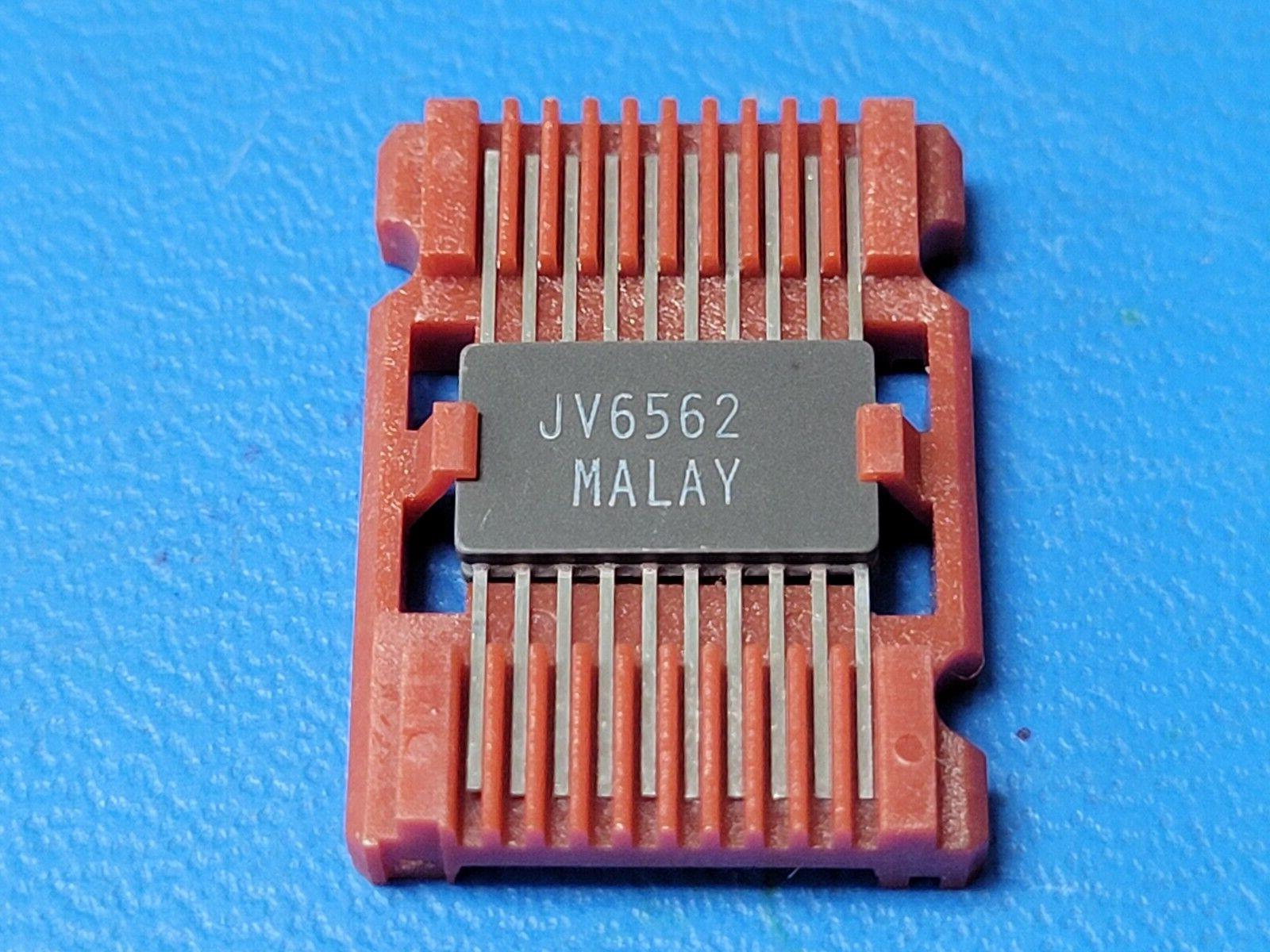

THIS IS FOR (1 PC) OF 5962-9221401MSA BY IDT

Bus Transceiver, 1-Func, 8-Bit, CMOS, CERPACK-20

Part #: 5962-9221401MSA

Part Category: Logic ICs

Manufacturer: Integrated Device Technology

Description: Bus Transceiver, FCT Series, 1-Func, 8-Bit, True Output, CMOS, CDFP20

Mfr Package Description CERPACK-20

Status Discontinued

Logic IC Type BUS TRANSCEIVER

Family FCT

JESD-30 Code R-GDFP-F20

JESD-609 Code e0

Load Capacitance (CL) 50.0 pF

Number of Bits 8

Number of Functions 1

Number of Ports 2

Number of Terminals 20

Operating Temperature-Min -55.0 Cel

Operating Temperature-Max 125.0 Cel

Output Characteristics 3-STATE

Output Polarity TRUE

Package Body Material CERAMIC, GLASS-SEALED

Package Code DFP

Package Shape RECTANGULAR

Package Style FLATPACK

Propagation Delay (tpd) 7.5 ns

Qualification Status Not Qualified

Screening Level MIL-STD-883

Seated Height-Max 2.3368 mm

Supply Voltage-Nom (Vsup) 5

Supply Voltage-Min (Vsup) 4.5 V

Supply Voltage-Max (Vsup) 5.5 V

Surface Mount YES

Technology CMOS

Temperature Grade MILITARY

Terminal Finish TIN LEAD

Terminal Form FLAT

Terminal Pitch 1.27 mm

Terminal Position DUAL

Width 6.9215 mm

Additional Feature WITH DIRECTION CONTROL
