(1 PC) 5962-8951302RA Bus Driver FCT Series 1-Func 8-Bit True Output CMOS CDIP20
Tax included.

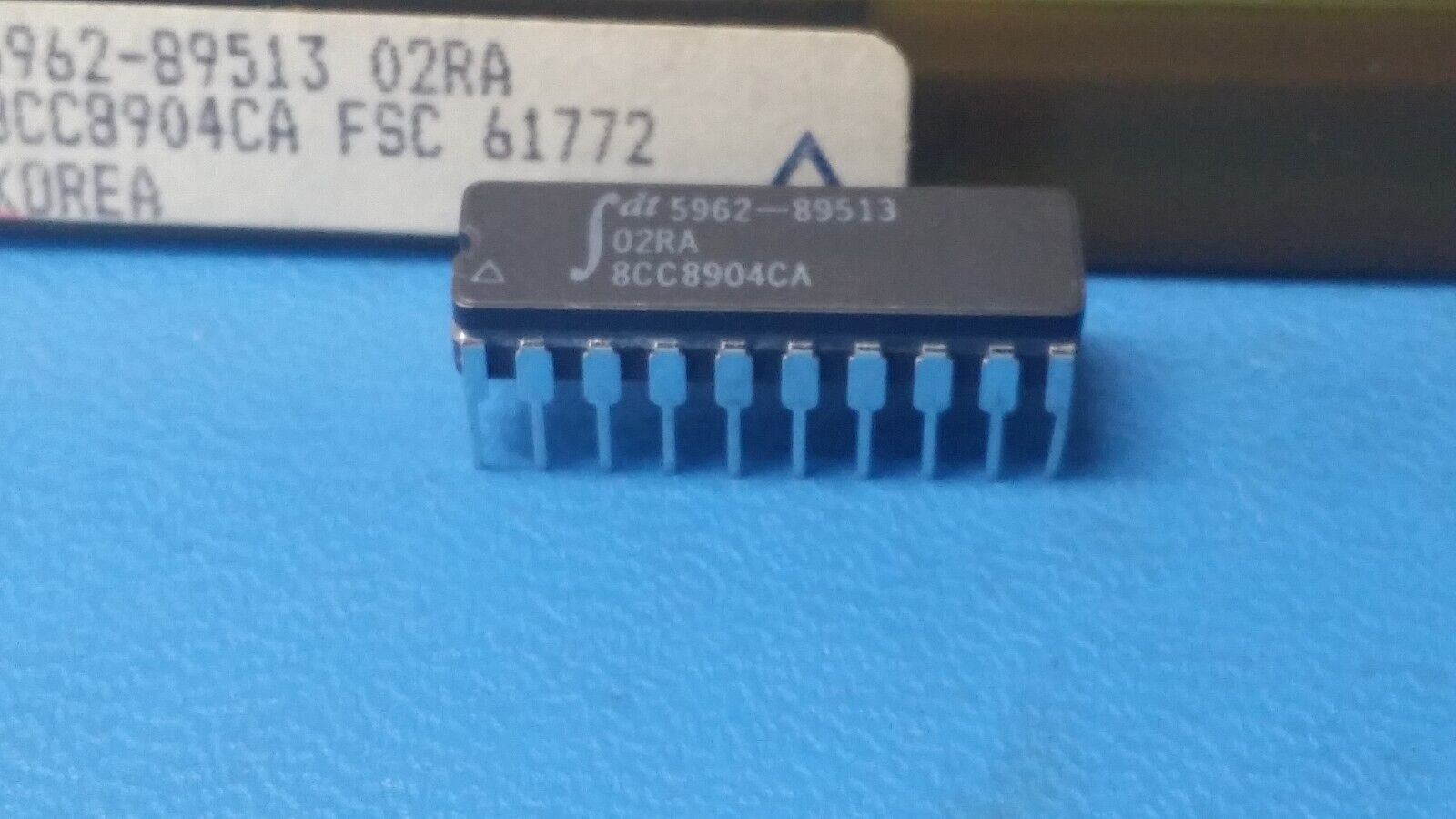

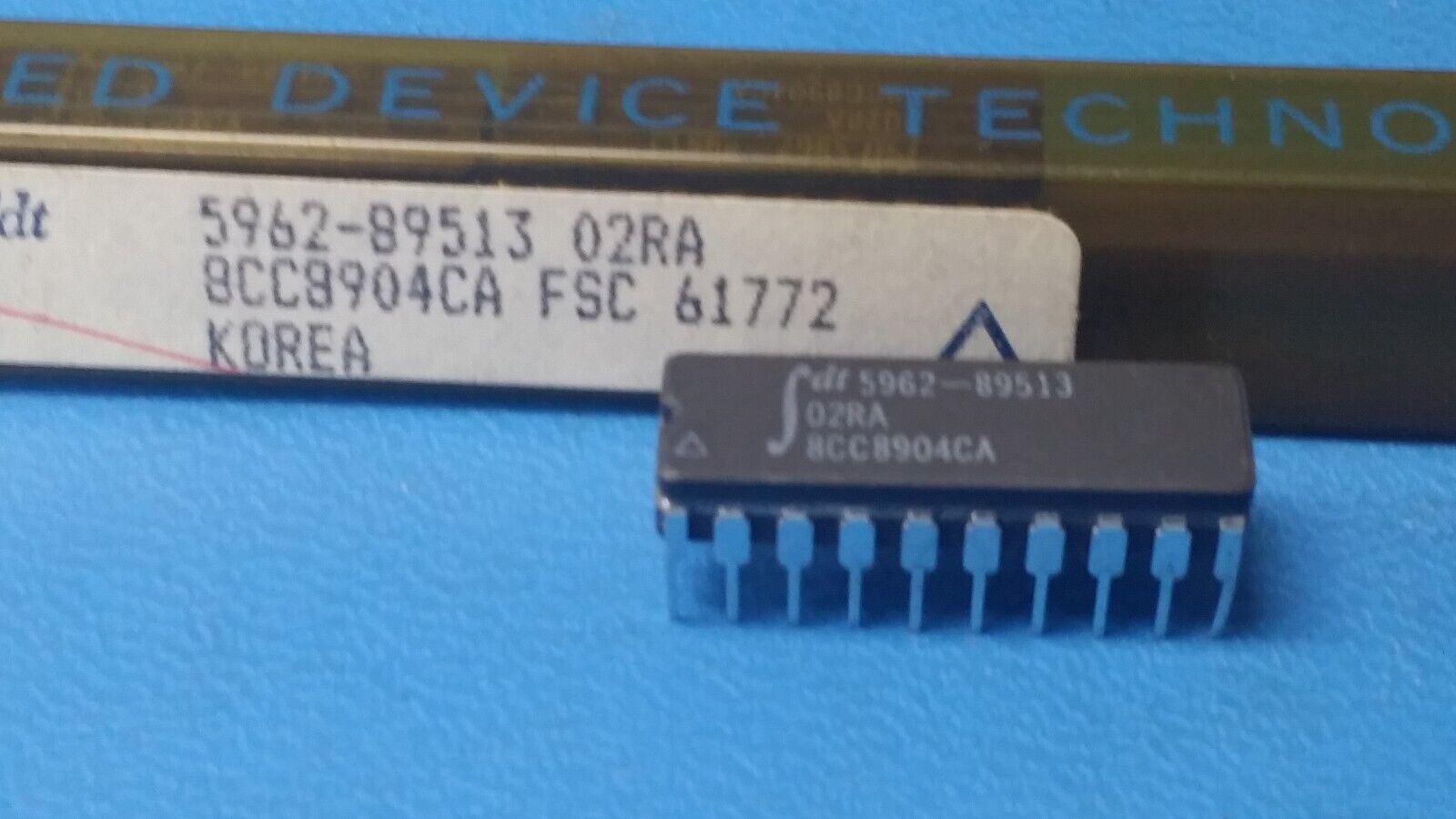

THIS IS FOR (1 PC) OF 5962-8951302RA BY IDT
Bus Driver FCT Series 1-Func 8-Bit True Output CMOS CDIP20
Part #: 5962-8951302RA
Part Category: Logic ICs
Manufacturer: Integrated Device Technology
Description: Bus Driver, FCT Series, 1-Func, 8-Bit, True Output, CMOS, CDIP20
Mfr Package Description 0.300 INCH, CERDIP-20
Status Discontinued
Logic IC Type BUS DRIVER
Sub Category FF/Latches
Family FCT
JESD-30 Code R-GDIP-T20
JESD-609 Code e0
Load Capacitance (CL) 50.0 pF
Max I(ol) 0.032 Amp
Moisture Sensitivity Level 1
Number of Bits 8
Number of Functions 1
Number of Ports 2
Number of Terminals 20
Operating Temperature-Min -55.0 Cel
Operating Temperature-Max 125.0 Cel
Output Characteristics 3-STATE
Output Polarity TRUE
Package Body Material CERAMIC, GLASS-SEALED
Package Code DIP
Package Equivalence Code DIP20,.3
Package Shape RECTANGULAR
Package Style IN-LINE
Peak Reflow Temperature (Cel) 240
Prop. Delay@Nom-Sup 7.2 ns
Propagation Delay (tpd) 7.2 ns
Qualification Status Not Qualified
Screening Level 38535Q/M;38534H;883B
Seated Height-Max 5.08 mm
Supply Voltage-Nom (Vsup) 5
Supply Voltage-Min (Vsup) 4.5 V
Supply Voltage-Max (Vsup) 5.5 V
Surface Mount NO
Technology CMOS
Temperature Grade MILITARY
Terminal Finish Tin/Lead (Sn/Pb)
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Trigger Type POSITIVE EDGE
Length 25.3365 mm
Width 7.62 mm
Additional Feature BROADSIDE VERSION OF 374; IOH = 0.3MA @ VOH = 4.3V; IOL = 0.3MA @ VOL = 0.2V
