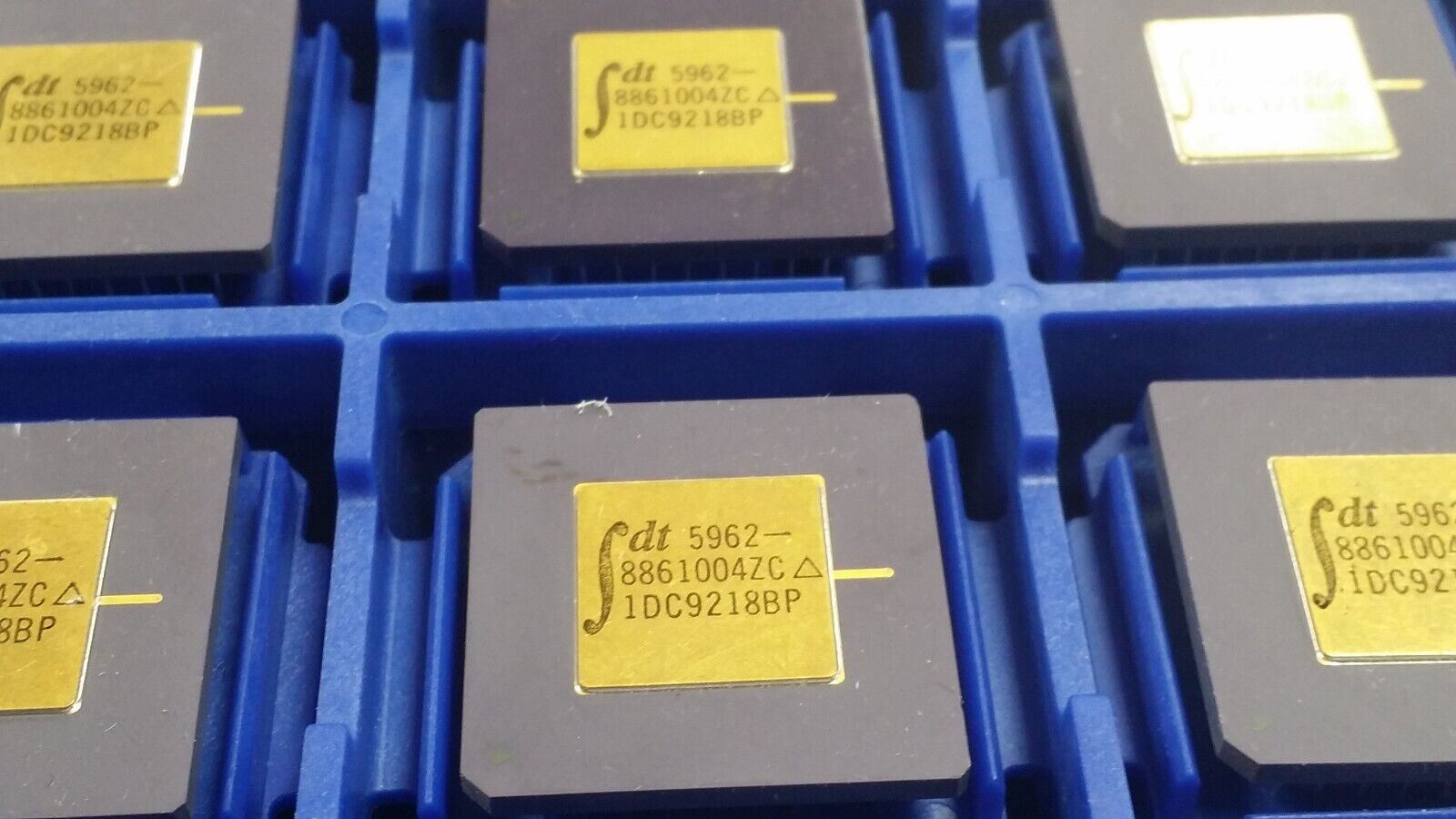

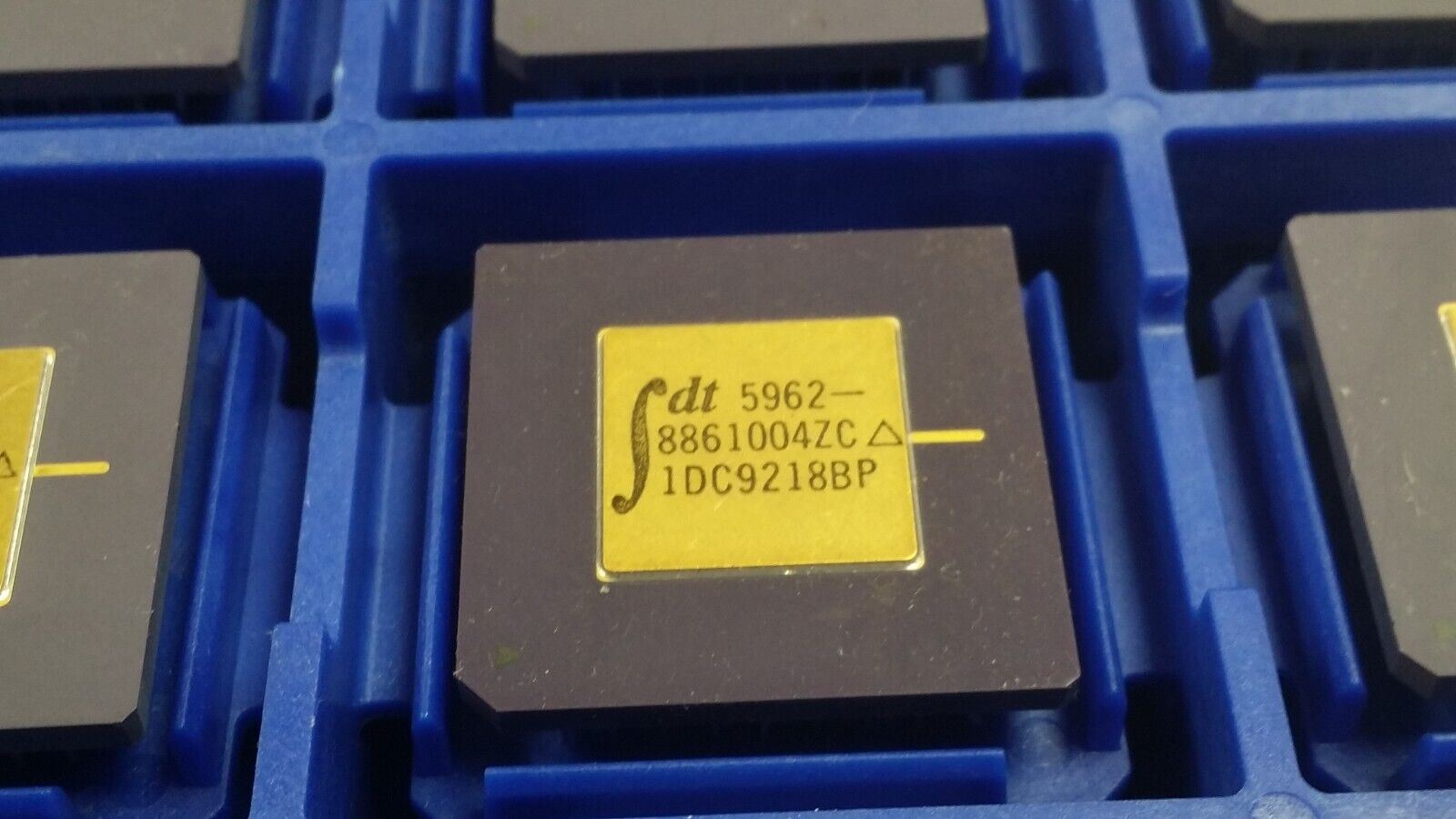

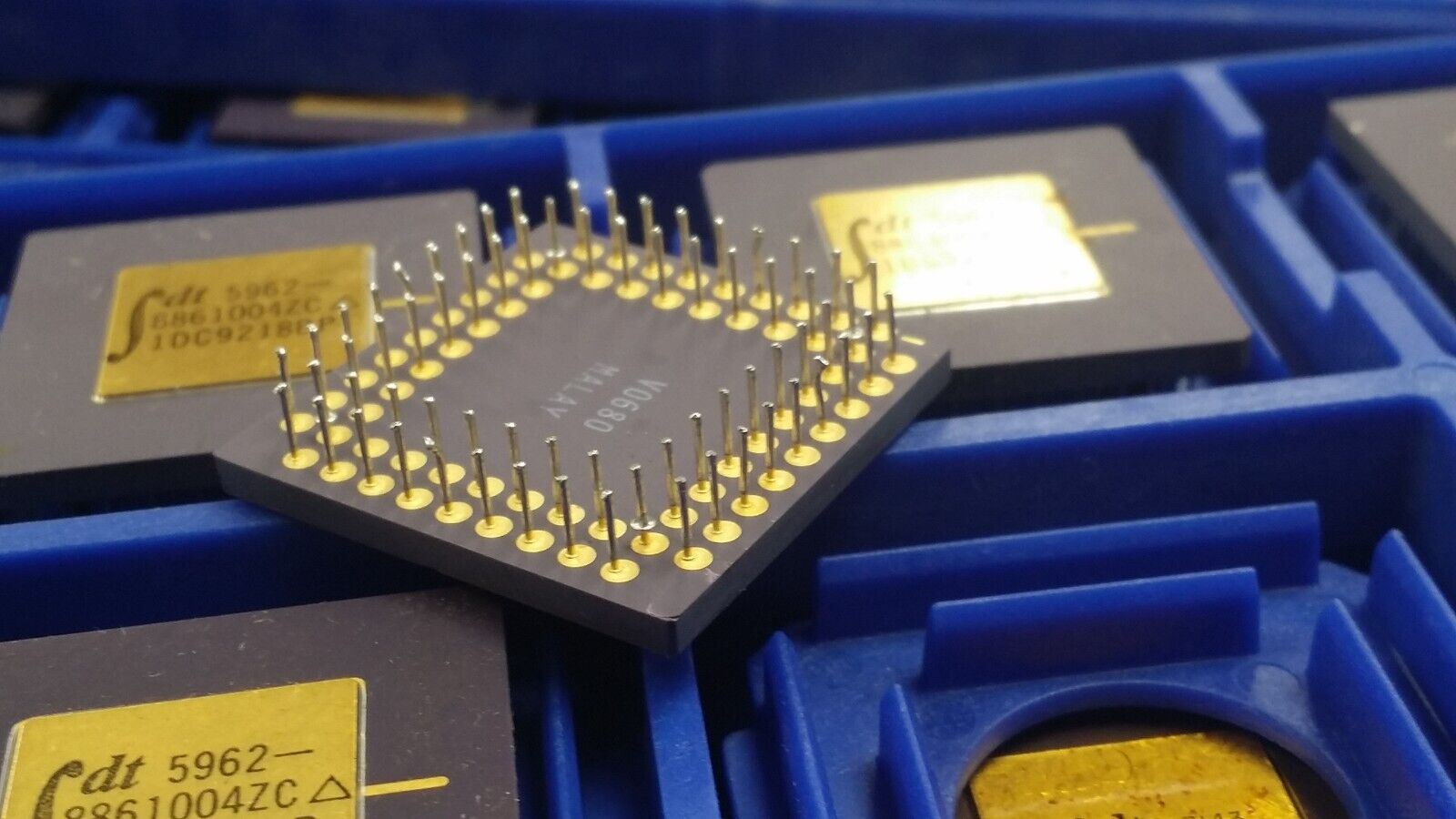

THIS IS FOR (1 PC) OF 5962-8861004ZC BY IDT
Multi-Port SRAM, 2KX16, 70ns, CMOS, CPGA68

Part #: 5962-8861004ZC
Part Category: Memory ICs
Manufacturer: Integrated Device Technology
Description: Multi-Port SRAM, 2KX16, 70ns, CMOS, CPGA68

Mfr Package Description PGA-68
REACH Compliant Yes
Status Discontinued-Unconfirmed
Access Time-Max 70.0  ns
JESD-30 Code X-CPGA-P68
Memory Density 32768.0  bit
Memory IC Type MULTI-PORT SRAM
Memory Width 16
Number of Functions 1
Number of Terminals 68
Number of Words 2048.0  words
Number of Words Code 2K
Operating Mode ASYNCHRONOUS
Operating Temperature-Min -55.0  Cel
Operating Temperature-Max 125.0  Cel
Organization 2KX16
Package Body Material CERAMIC, METAL-SEALED COFIRED
Package Code PGA
Package Shape UNSPECIFIED
Package Style GRID ARRAY
Parallel/Serial PARALLEL
Screening Level MIL-STD-883
Supply Voltage-Nom (Vsup) 5.0  V
Supply Voltage-Min (Vsup) 4.5  V
Supply Voltage-Max (Vsup) 5.5  V
Surface Mount NO
Technology CMOS
Temperature Grade MILITARY
Terminal Form PIN/PEG
Terminal Position PERPENDICULAR
