(1 PC) 5962-01-214-5702 NSC, 11568654, LM118J/883 OP-AMP, 4000uV 15MHz CDIP14
Tax included.

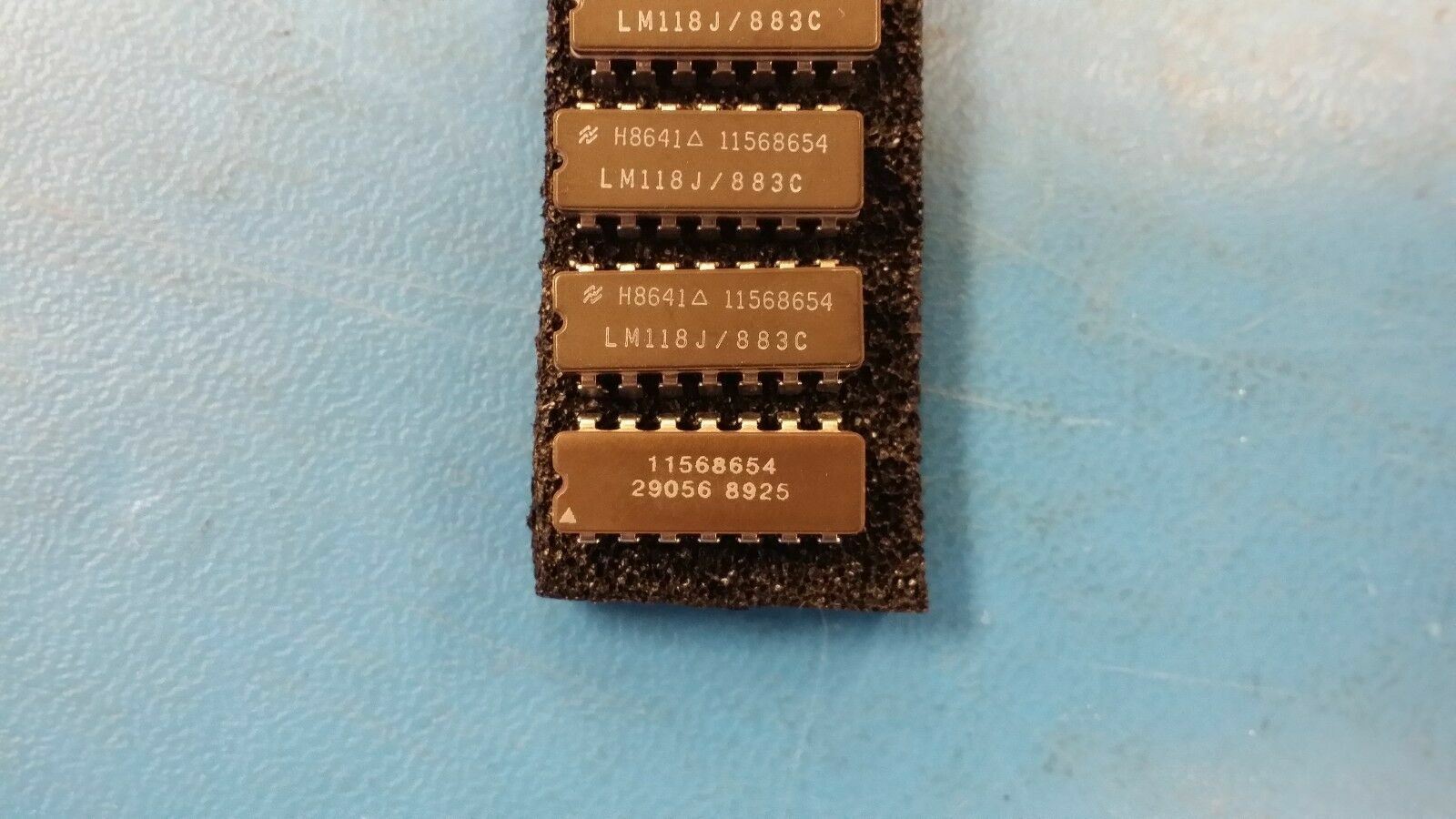

THIS LISTING IS FOR (1 PC) OF 5962-01-214-5702,11568654, LM118J/883 BY NSC
OP-AMP, 4000uV 15MHz
Part Category: Amplifiers
Manufacturer: National Semiconductor
Description: OP-AMP, 4000uV OFFSET-MAX, 15MHz BAND WIDTH, CDIP14
Manufacturer: National Semiconductor
Description: OP-AMP, 4000uV OFFSET-MAX, 15MHz BAND WIDTH, CDIP14
| Mfr Package Description | CERAMIC, DIP-14 |
| Status | Discontinued |
| Amplifier Type | OPERATIONAL AMPLIFIER |
| Average Bias Current-Max (IIB) | 0.25 µA |
| Common-mode Reject Ratio-Nom | 100.0 dB |
| Input Offset Voltage-Max | 4000.0 µV |
| JESD-30 Code | R-GDIP-T14 |
| Neg Supply Voltage Limit-Max | -20.0 V |
| Neg Supply Voltage-Nom (Vsup) | -15.0 V |
| Number of Functions | 1 |
| Number of Terminals | 14 |
| Operating Temperature-Min | -55.0 Cel |
| Operating Temperature-Max | 125.0 Cel |
| Package Body Material | CERAMIC, GLASS-SEALED |
| Package Code | DIP |
| Package Shape | RECTANGULAR |
| Package Style | IN-LINE |
| Qualification Status | Not Qualified |
| Screening Level | MIL-STD-883 |
| Seated Height-Max | 5.08 mm |
| Slew Rate-Nom | 70.0 V/us |
| Sub Category | Operational Amplifier |
| Supply Voltage Limit-Max | 20.0 V |
| Supply Voltage-Nom (Vsup) | 15.0 V |
| Surface Mount | NO |
| Technology | BIPOLAR |
| Temperature Grade | MILITARY |
| Terminal Form | THROUGH-HOLE |
| Terminal Pitch | 2.54 mm |
| Terminal Position | DUAL |
| Total Dose | MIL-STD-883 |
| Unity Gain BW-Nom | 15000.0 kHz |
| Length | 19.94 mm |
| Width | 7.62 mm |
