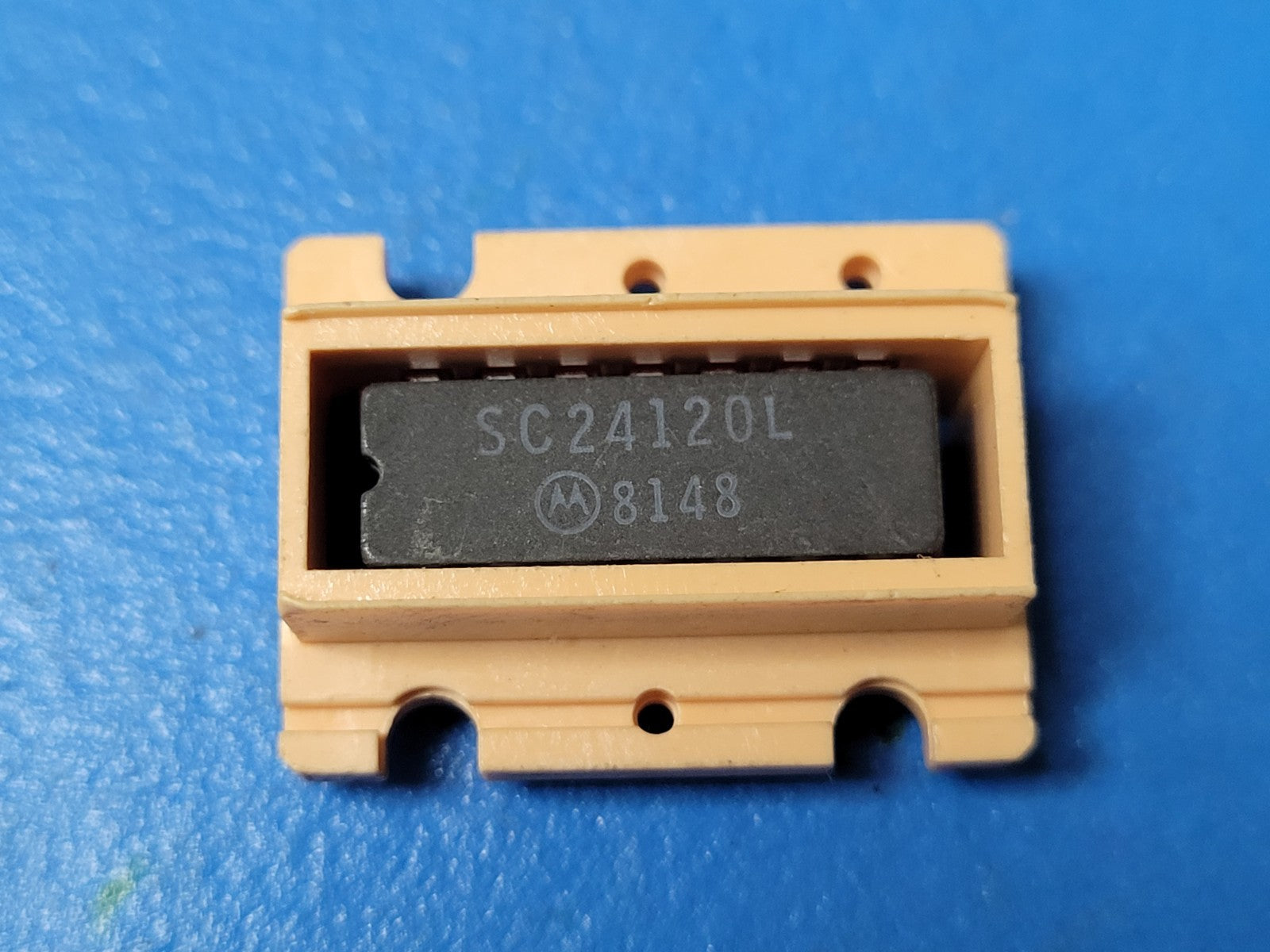

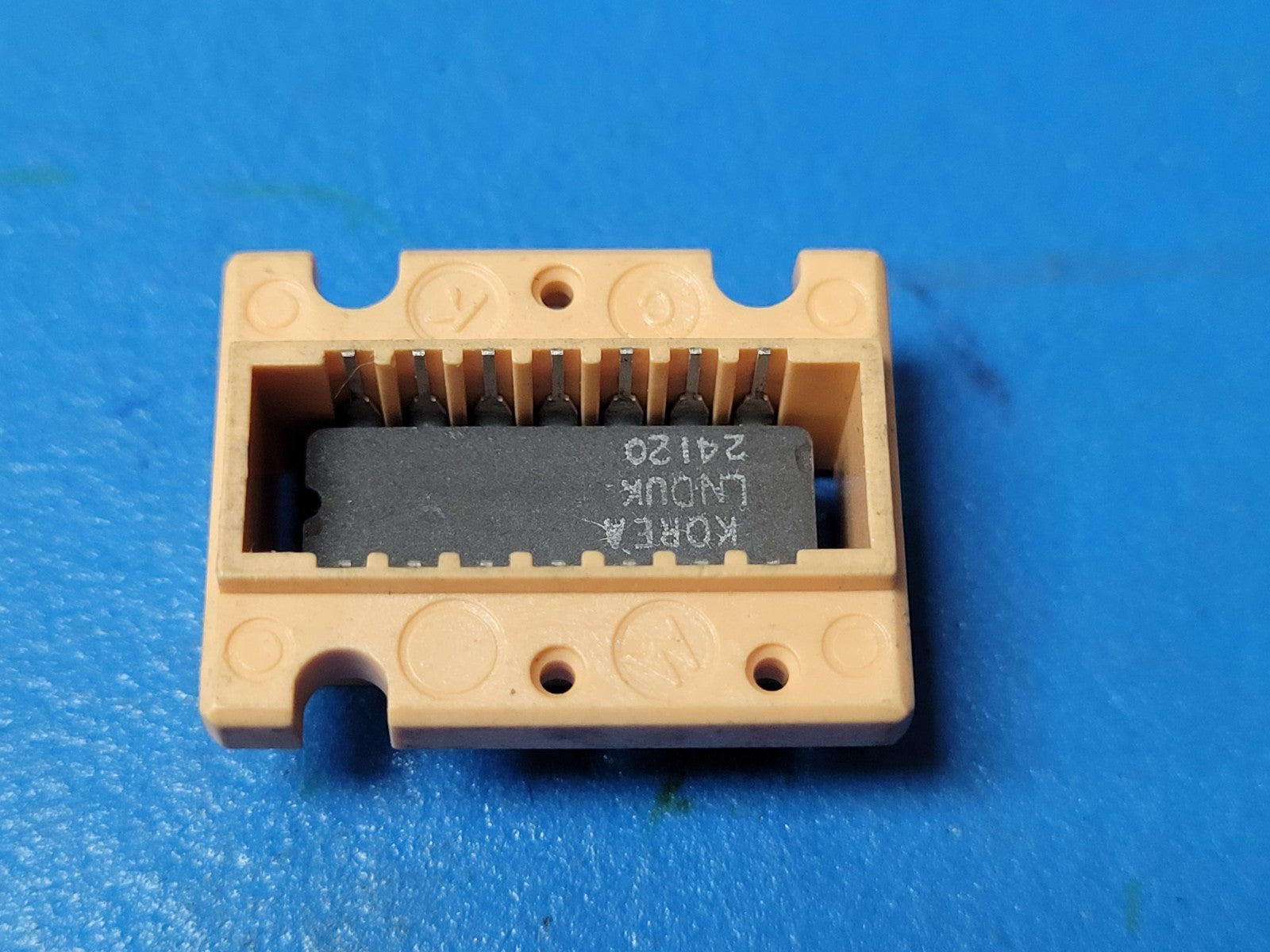

(1 PC) 5962-01-028-6959(SC24120L) Microcircuit, Digital

ADAQ Body Length 0.660 inches minimum and 0.785 inches maximum

ADAT Body Width 0.220 inches minimum and 0.280 inches maximum

ADAU Body Height 0.140 inches minimum and 0.185 inches maximum

AFGA Operating Temp Range +0.0/+85.0 deg celsius

AFJQ Storage Temp Range -65.0/+150.0 deg celsius

AGAV End Item Identification MX-8169/SQQ-23 fscm 56232

CBBL Features Provided Hermetically sealed and monolithic and positive outputs

CQSJ Inclosure Material Ceramic and glass

CQSZ Inclosure Configuration Dual-in-line

CQWX Output Logic Form Transistor-transistor logic

CQZP Input Circuit Pattern Quad 2 input

CSSL Design Function and Quantity 4 gate, nor

CTFT Case Outline Source and Designator T0-116 joint electron device engineering council

CWSG Terminal Surface Treatment Solder

CZEN Voltage Rating and Type per Characteristic -4.0 volts minimum power source and 6.0 volts maximum power source

TEST Test Data Document 56232-1603013 drawing (this is the basic governing drawing, such as a contractor drawing, original equipment manufacturer drawing, etc.; excludes any specification, standard or other document that may be referenced in a basic governing drawing)

TTQY Terminal Type and Quantity 14 printed circuit
