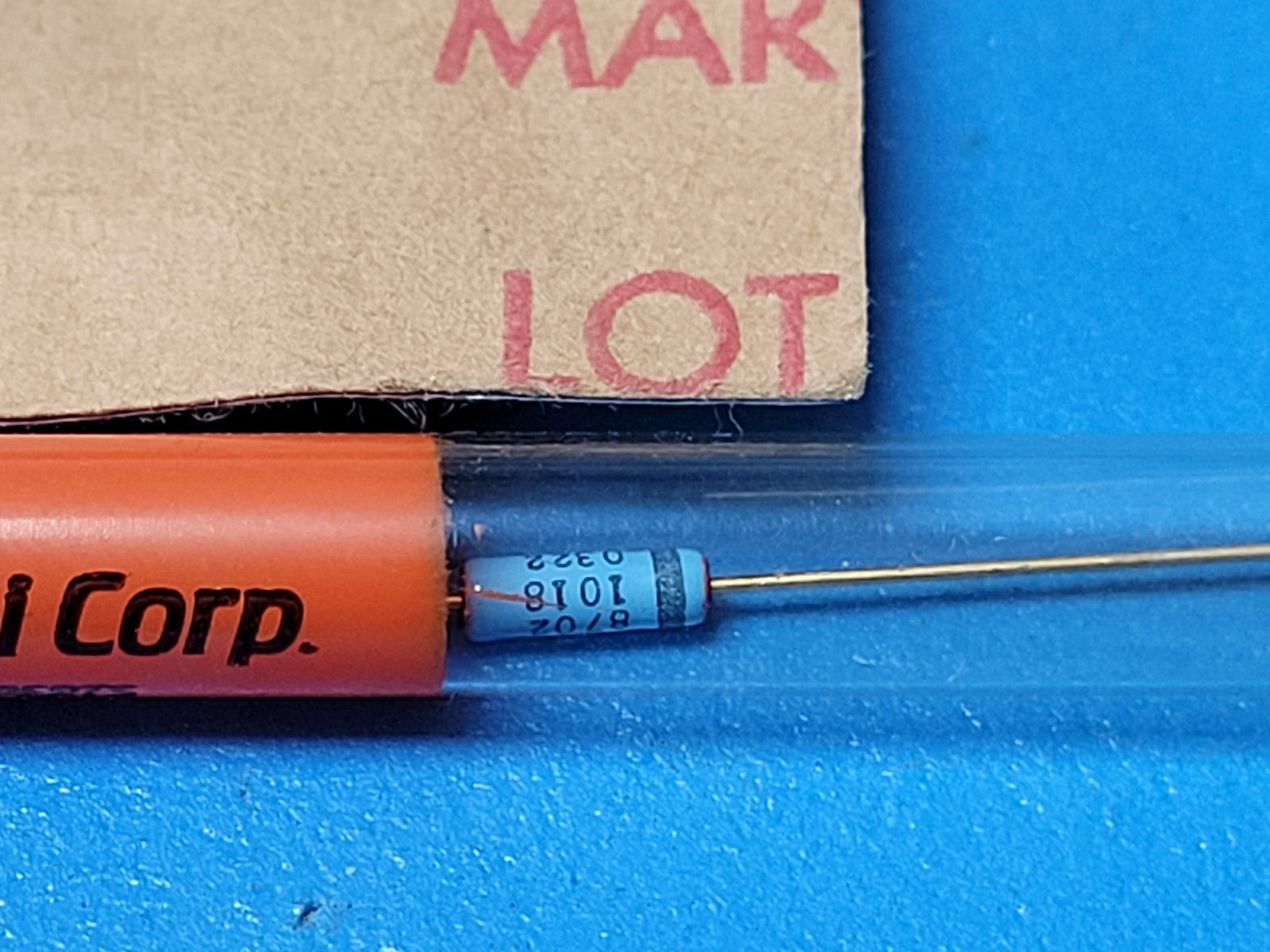

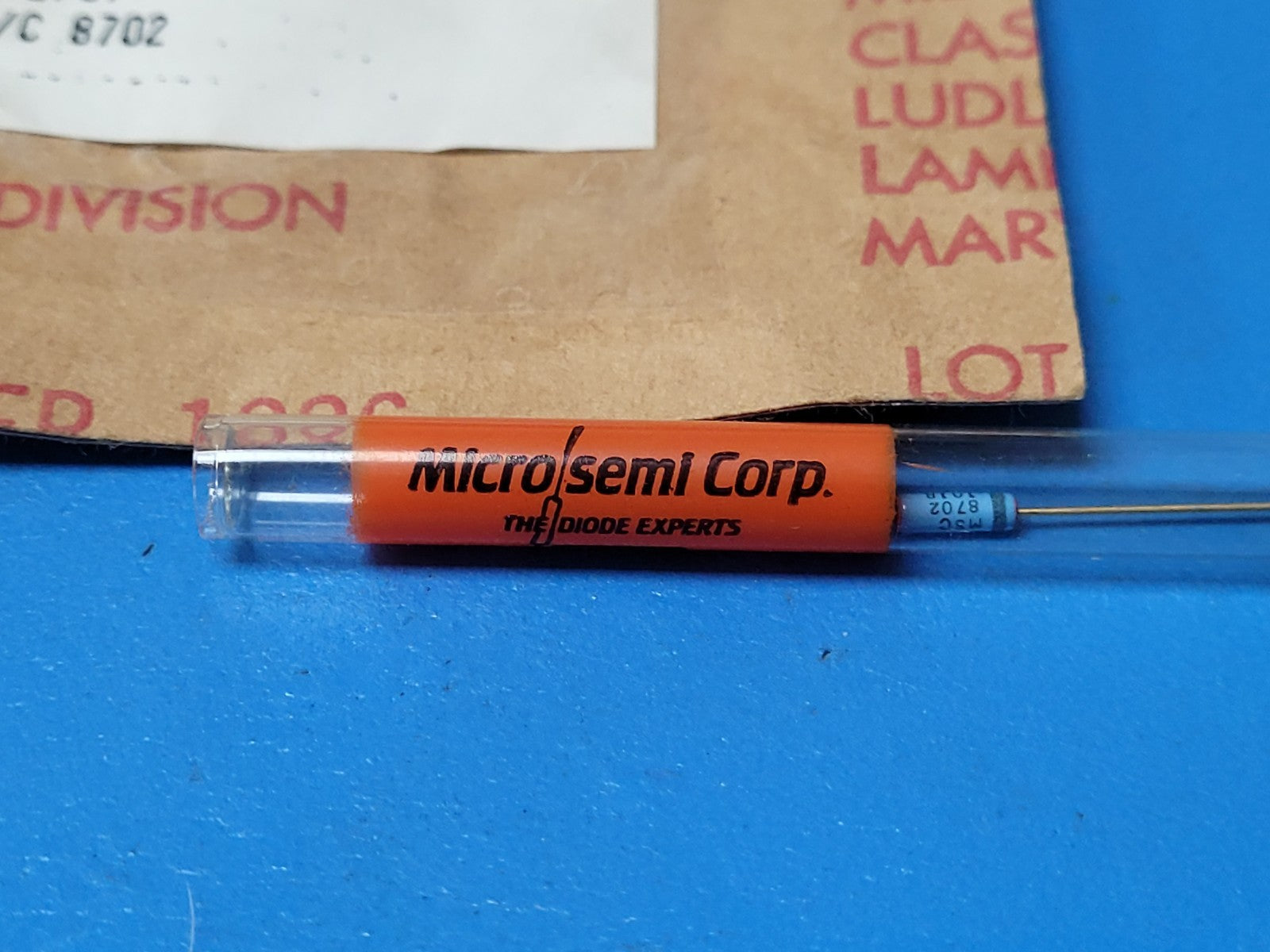

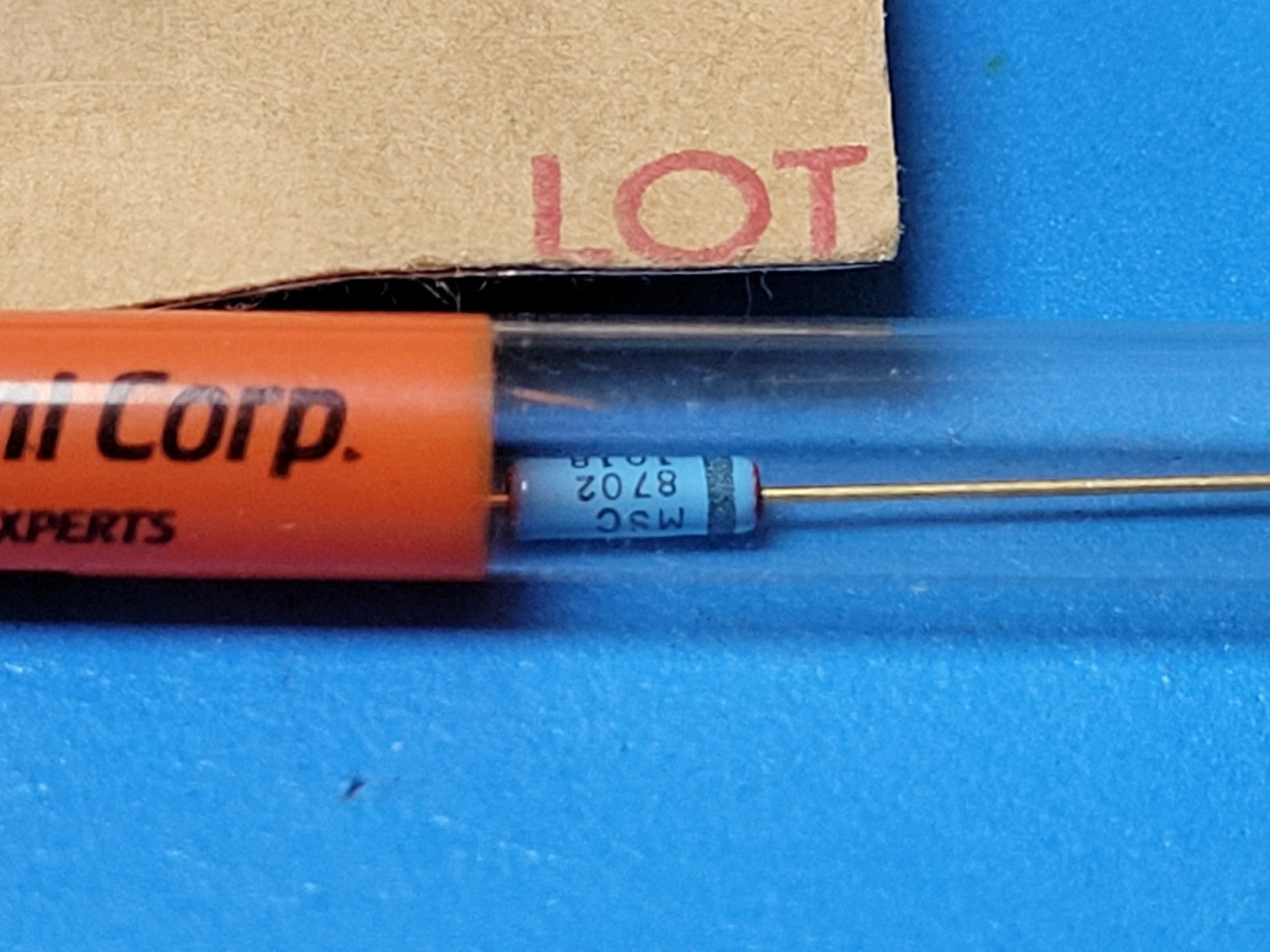

(1 PC) 5961-01-211-2730 (10180322) SEMICONDUCTOR DEVICE

MRC Criteria Characteristic

ABHP OVERALL LENGTH 0.300 INCHES MAXIMUM

ABJT TERMINAL LENGTH 1.500 INCHES MAXIMUM

ADAV OVERALL DIAMETER 0.130 INCHES MAXIMUM

AXGY MOUNTING METHOD TERMINAL

CBBL FEATURES PROVIDED HERMETICALLY SEALED CASE

CTQN VOLTAGE RATING IN VOLTS PER CHARACTERISTIC 0.02 NOMINAL REGULATOR VOLTAGE

CTQX CURRENT RATING PER CHARACTERISTIC 50.00 MILLIAMPERES MAXIMUM VOLTAGE REGULATOR DIODE CURRENT

CTRD POWER RATING PER CHARACTERISTIC 500.0 MILLIWATTS MAXIMUM TOTAL POWER DISSIPATION

CTSG MAXIMUM OPERATING TEMP PER MEASUREMENT POINT 175.0 DEG CELSIUS AMBIENT AIR

MATT MATERIAL GLASS INCLOSURE

MATT MATERIAL SILICON SEMICONDUCTOR

TEST TEST DATA DOCUMENT 81349-MIL-S-19500/156 SPECIFICATION (INCLUDES ENGINEERING TYPE BULLETINS,BROCHURES,ETC.,THAT REFLECT SPECIFICATION TYPE DATA IN SPECIFICATION FORMAT; EXCLUDES COMMERCIAL CATALOGS,INDUSTRY DIRECTORIES,AND SIMILAR TRADE PUBLICATIONS,REFL

TTQY TERMINAL TYPE AND QUANTITY 2 UNINSULATED WIRE LEAD
