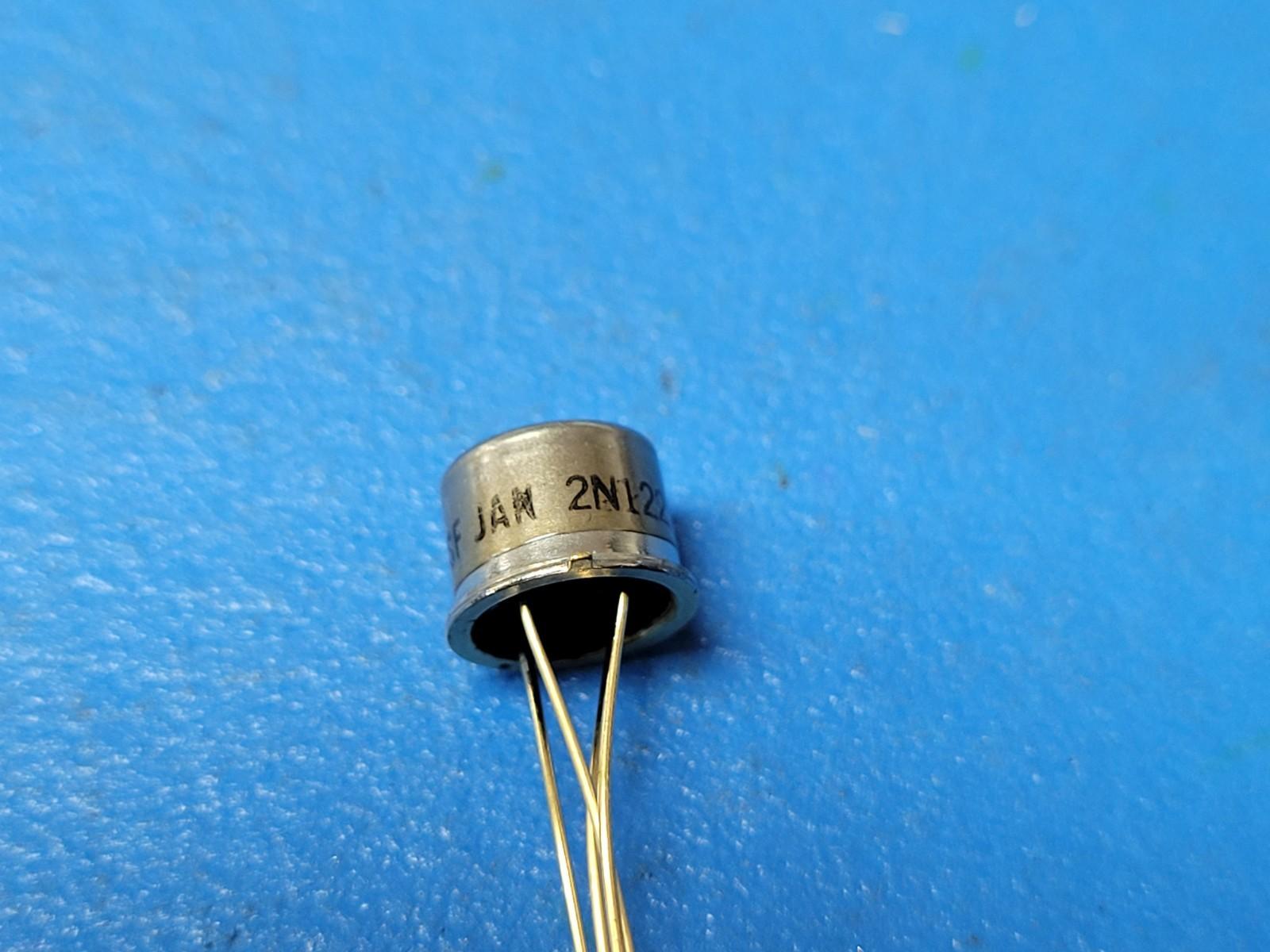

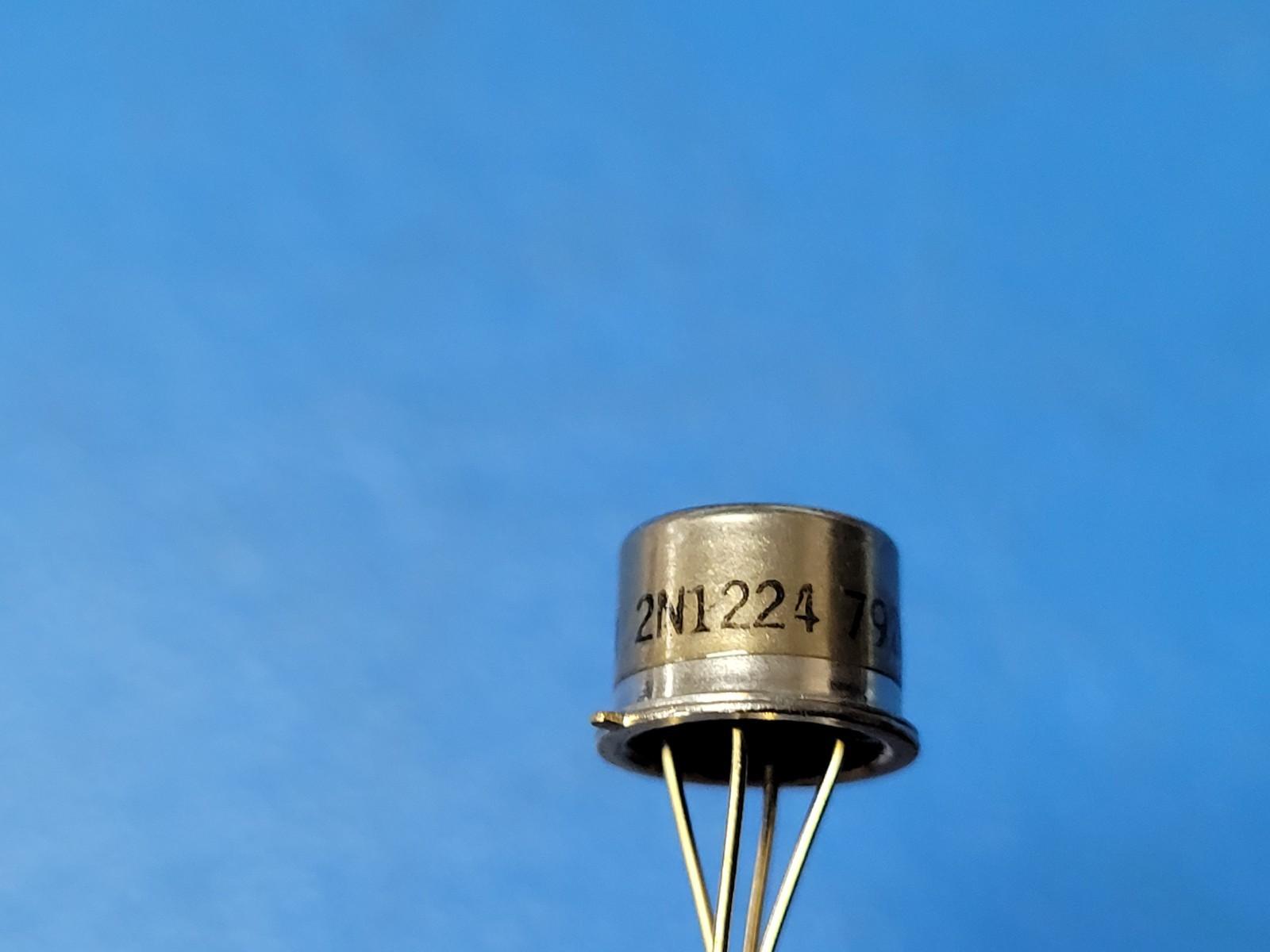

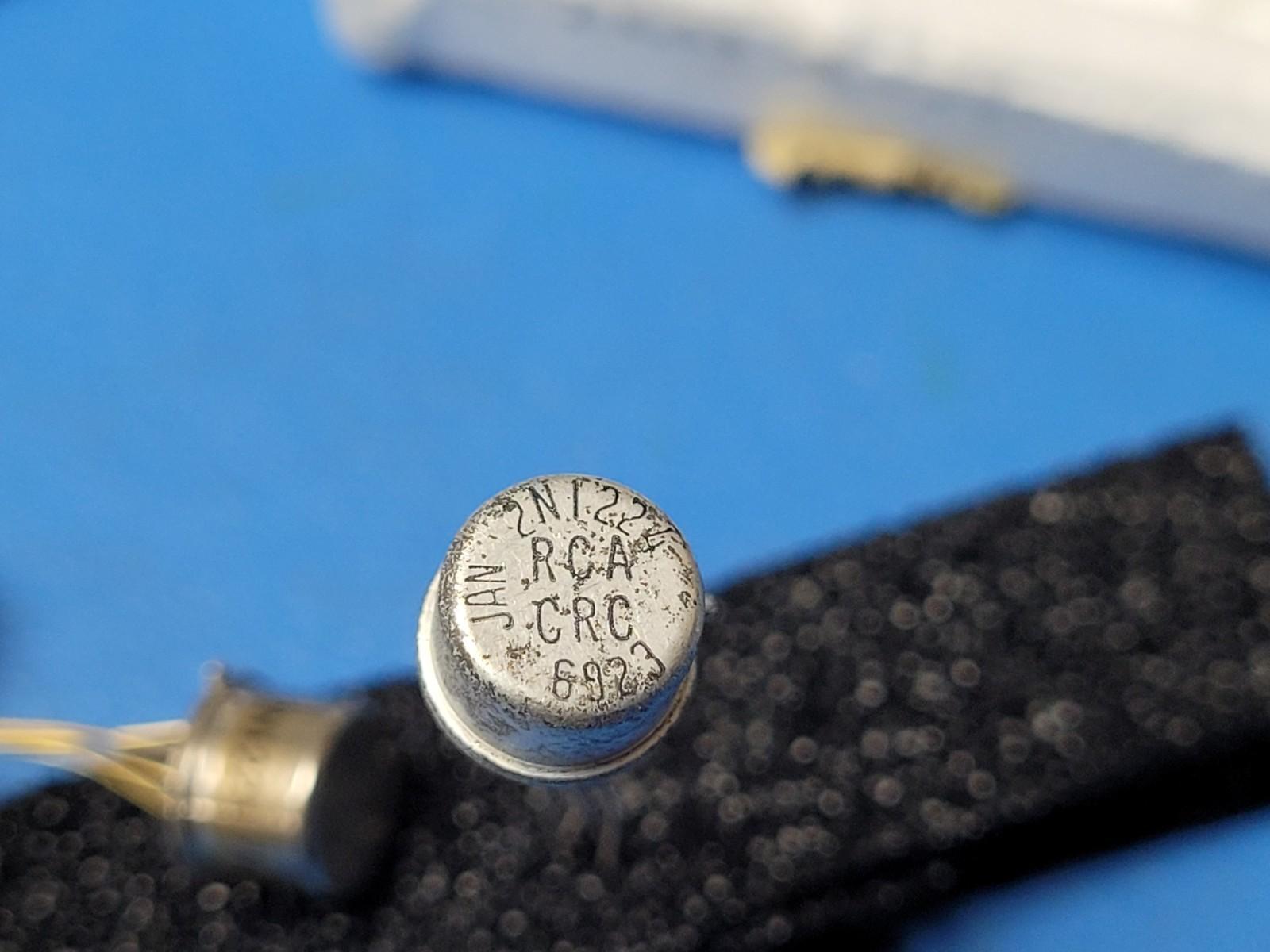

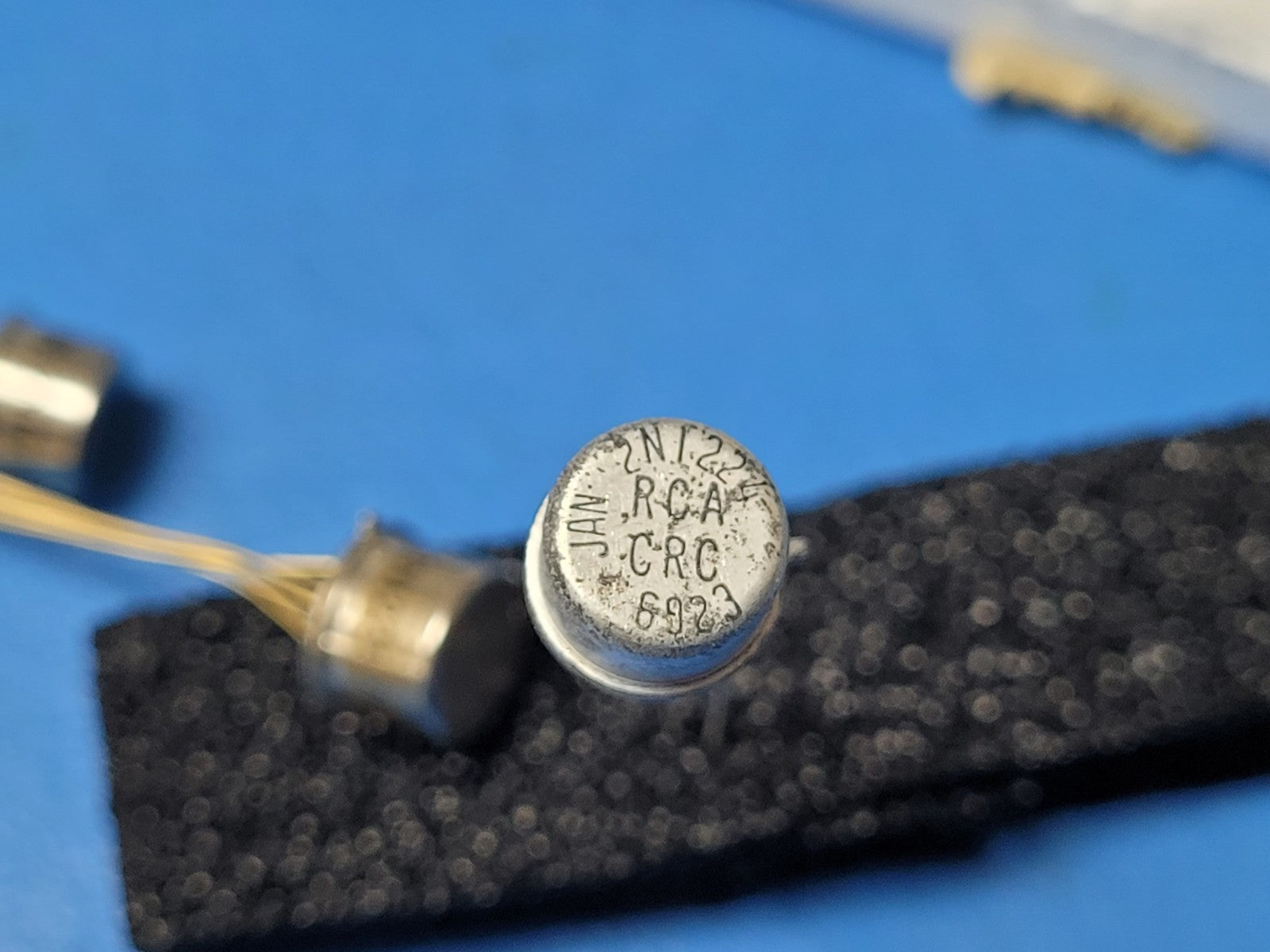

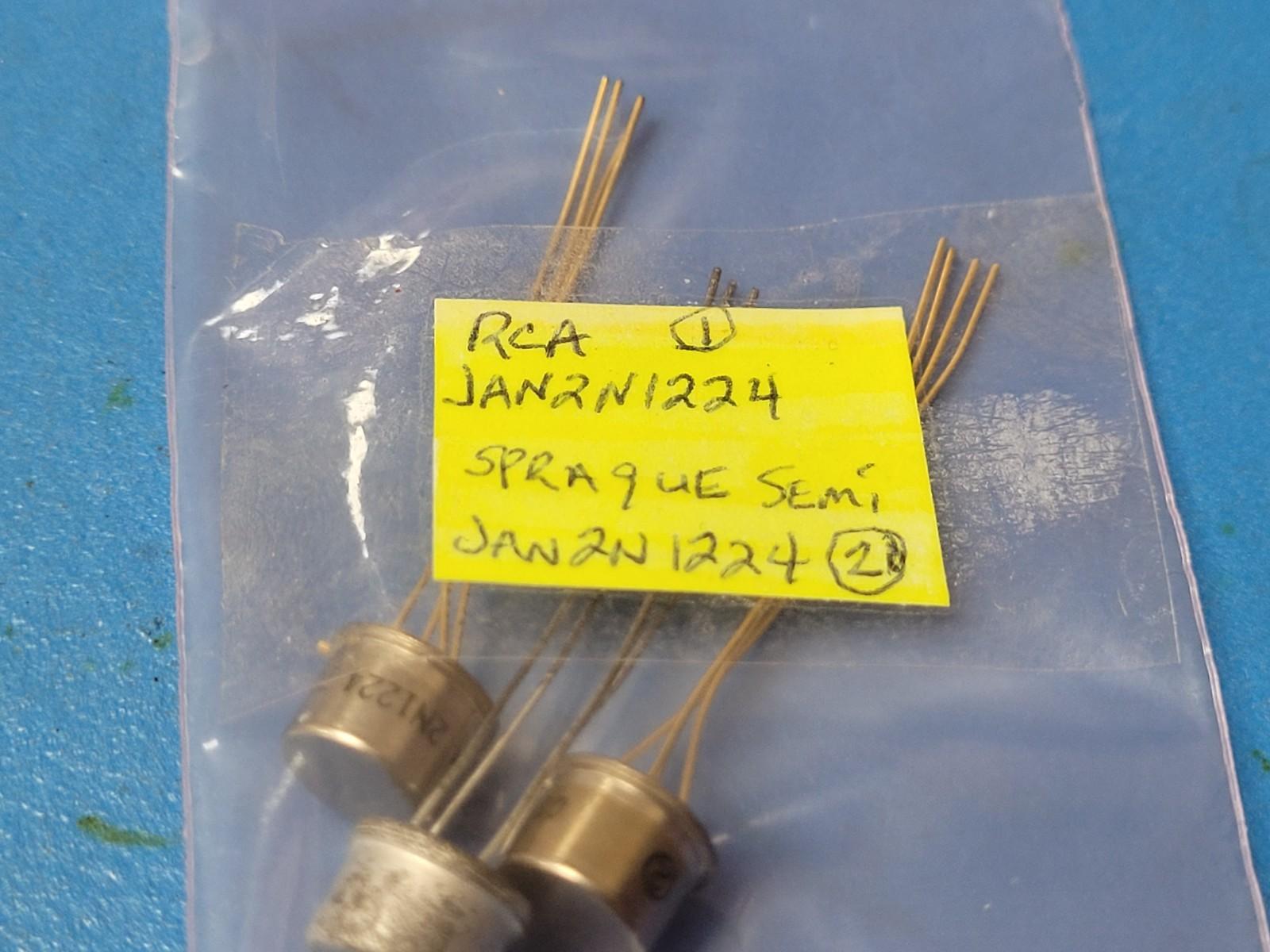

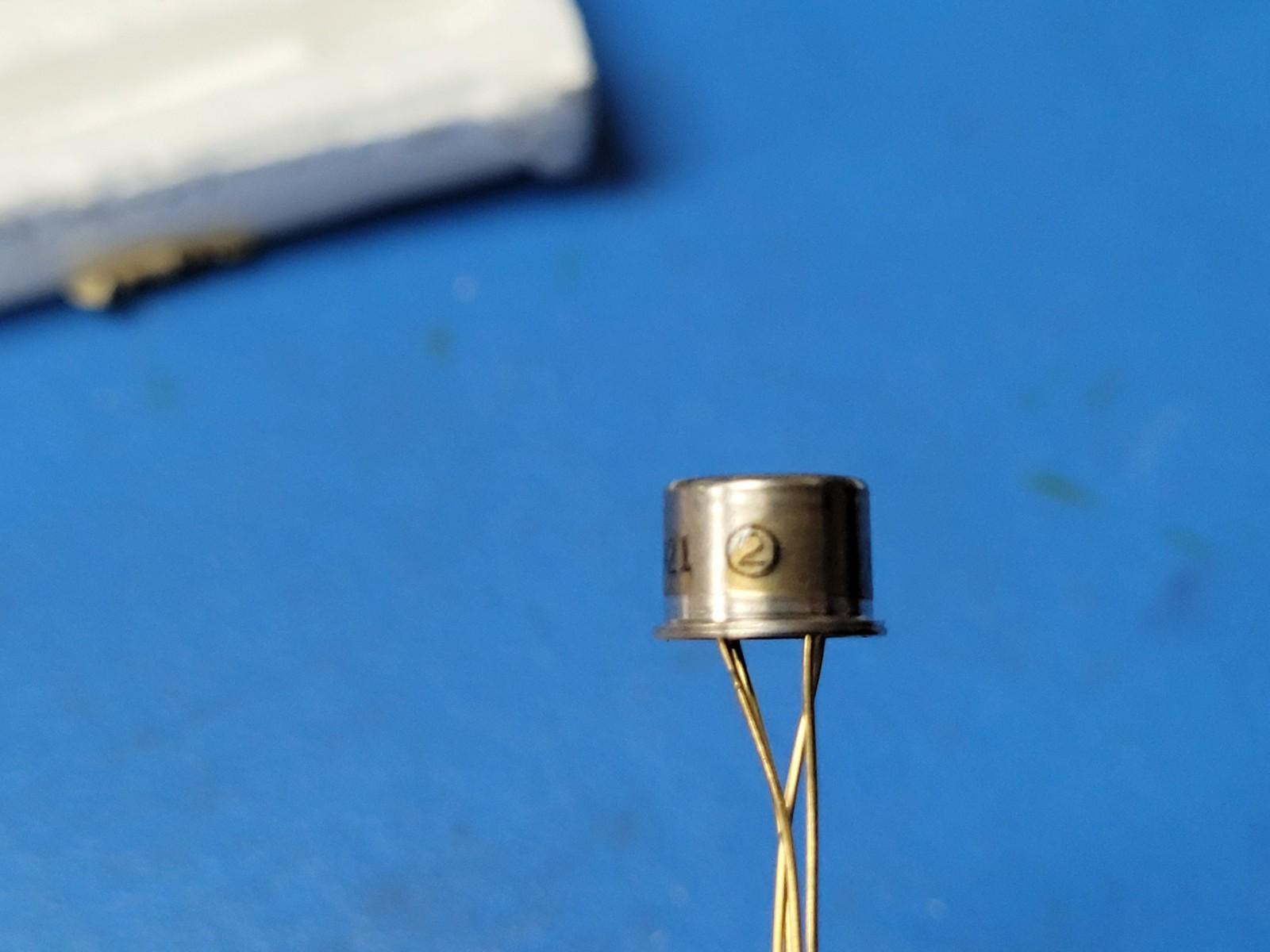

(1 PC) 5961-00-989-6706(JAN2N1224) Transistor Germanium Hermetically sealed case

5961-00-989-6706 Features

MRC Parameter Characteristics

ABBH Inclosure Material Metal

ABHP Overall Length 0.200 inches minimum and 0.260 inches maximum

ABJT Terminal Length 1.500 inches minimum

ADAV Overall Diameter 0.290 inches minimum and 0.370 inches maximum

ALAS Internal Configuration Junction contact

AXGY Mounting Method Terminal

AYQS Terminal Circle Diameter 0.190 inches minimum and 0.210 inches maximum

CBBL Features Provided Hermetically sealed case

CTMZ Semiconductor Material Germanium

CTQN Voltage Rating in Volts per Characteristic -40.0 maximum collector to base voltage, dc and -0.5 maximum emitter to base voltage, dc

CTQX Current Rating per Characteristic 10.00 milliamperes source cutoff current maximum and 10.00 milliamperes source cutoff current blank

CTRD Power Rating per Characteristic 120.0 milliwatts small-signal input power, common-collector minimum

FEAT Special Features Junction pattern arrangement: pnp

TEST Test Data Document 81349-MIL-S-19500 specification (includes engineering type bulletins, brochures, etc., that reflect specification type data in specification format; excludes commercial catalogs, industry directories, and similar trade publications, reflecting general type data on certain environmental and performance requirements and test conditions that are shown as "typical", "average", "nominal", etc.).

TTQY Terminal Type and Quantity 3 uninsulated wire lead

ZZZK Specification/Standard Data 81349-MIL-S-19500/189 government specification
