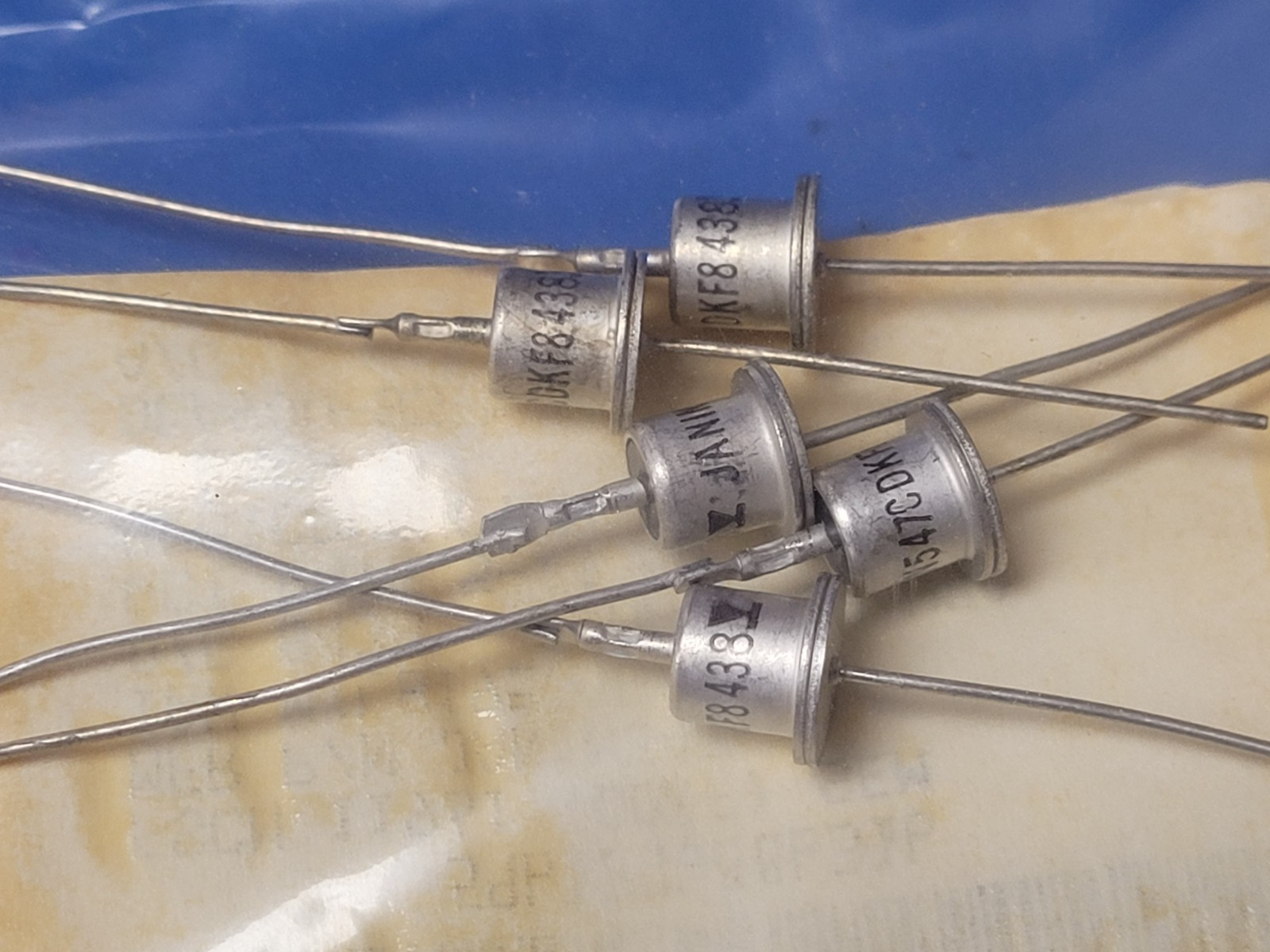

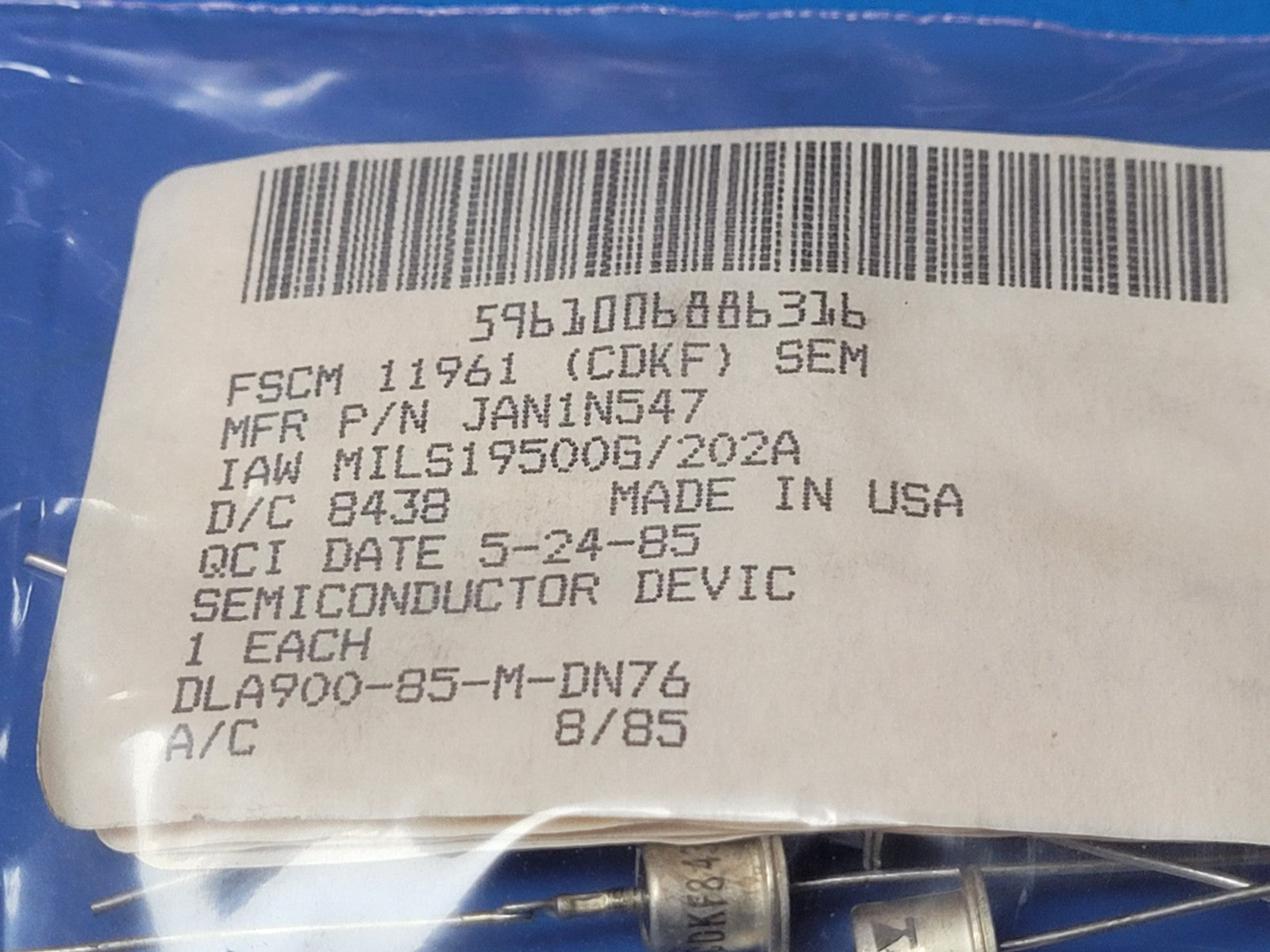

(1 PC) 5961-00-688-6316 JAN1N547 Semiconductor Device, Diode

NSN FSC NIIN Item Name INC

5961-00-688-6316 5961 006886316 Semiconductor Device, Diode 20589

5961-00-688-6316 Features

MRC Parameter Characteristics

ABHP Overall Length 0.800 inches maximum

ABJT Terminal Length 1.000 inches minimum

ADAV Overall Diameter 0.310 inches minimum and 0.400 inches maximum

AXGY Mounting Method Terminal

CBBL Features Provided Hermetically sealed case

CTQN Voltage Rating in Volts per Characteristic 720.0 maximum reverse voltage, instantaneous and 420.0 maximum reverse voltage, total rms

CTQX Current Rating per Characteristic 750.00 milliamperes maximum forward current, dc

CTSG Maximum Operating Temp per Measurement Point 150.0 deg celsius ambient air

MATT Material Glass inclosure

MATT Material Silicon semiconductor

TEST Test Data Document 81349-MIL-S-19500 specification (includes engineering type bulletins, brochures, etc., that reflect specification type data in specification format; excludes commercial catalogs, industry directories, and similar trade publications, reflecting general type data on certain environmental and performance requirements and test conditions that are shown as "typical", "average", "nominal", etc.).

TTQY Terminal Type and Quantity 2 uninsulated wire lead

ZZZK Specification/Standard Data 81349-MIL-S-19500/202 government specification
