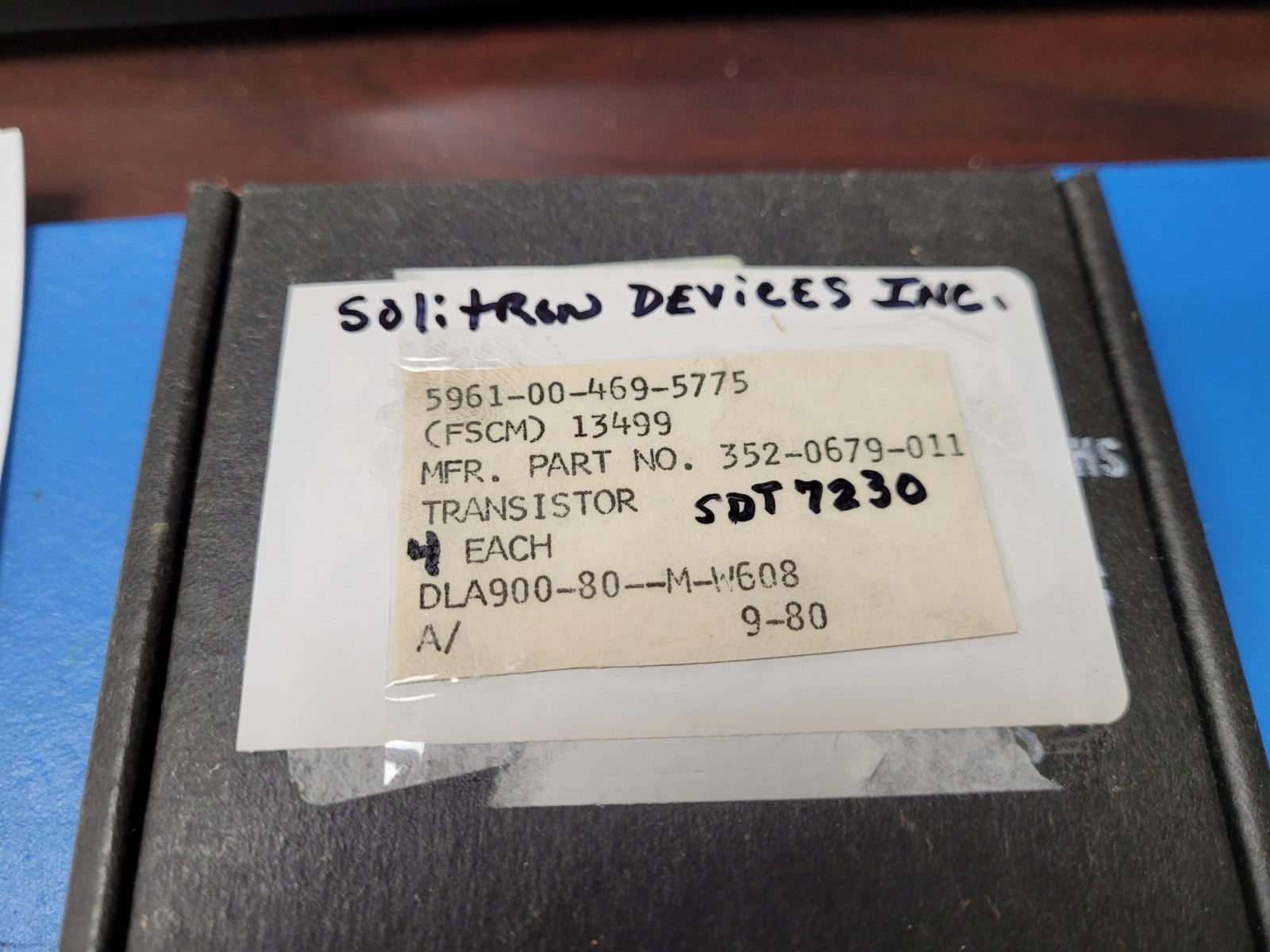

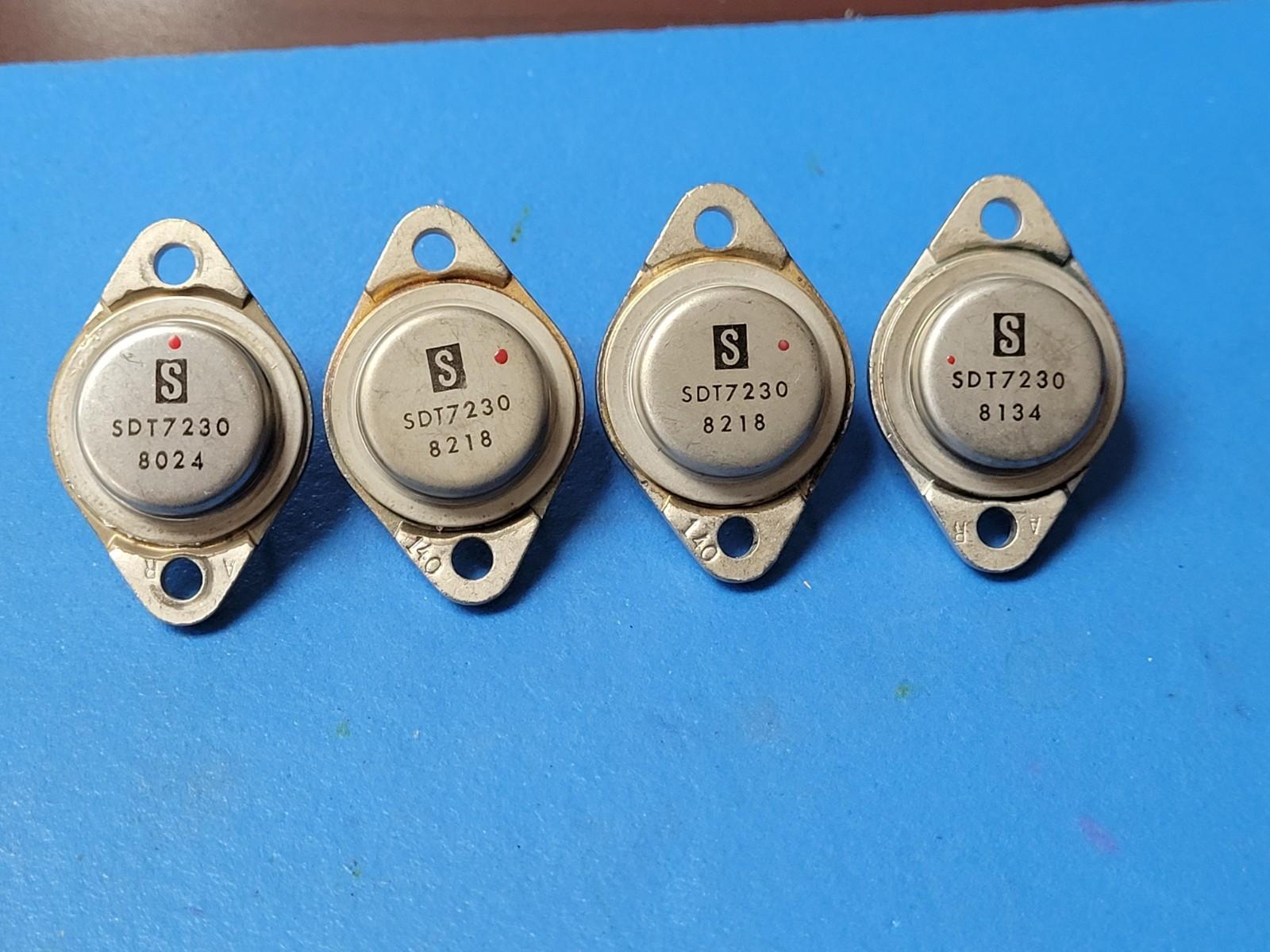

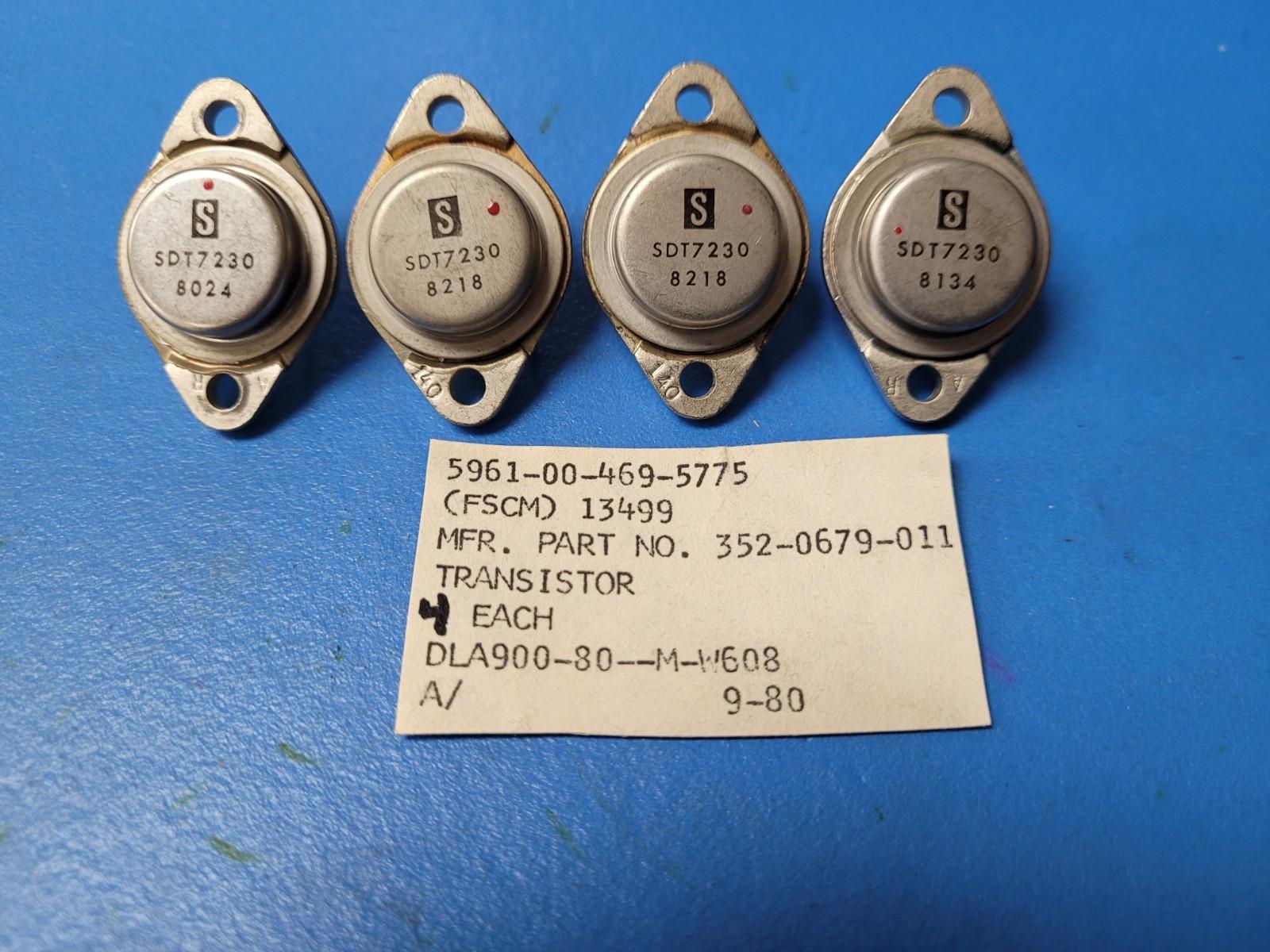

(1 PC) 5961-00-469-5775 352-0679-011 SOLITRON P/N STD7230 TRANSISTOR

5961-00-469-5775 Features

MRC Parameter Characteristics

ABBH Inclosure Material Metal

ABHP Overall Length 0.328 inches maximum

ADAV Overall Diameter 0.875 inches maximum

AKPV Mounting Facility Quantity 2

ALAS Internal Configuration Junction contact

ALBA Electrode Internally-Electrically Connected to Case Collector

AXGY Mounting Method Unthreaded hole

CBBL Features Provided Hermetically sealed case

CTMZ Semiconductor Material Silicon

CTQN Voltage Rating in Volts per Characteristic 325.0 maximum collector to base voltage/static/emitter open and 300.0 maximum collector to emitter voltage/static/base open and 8.0 maximum emitter to base voltage, static, collector open

CTQX Current Rating per Characteristic 8.00 amperes source cutoff current maximum

CTRD Power Rating per Characteristic 60.0 watts small-signal input power, common-collector preset

CTSG Maximum Operating Temp per Measurement Point 200.0 deg celsius junction

FEAT Special Features Junction pattern arrangement: npn

TTQY Terminal Type and Quantity 2 pin and 1 case

5961-00-469-5775 Manufacturing Part Numbers (SKUs)

MFG SKU CAGE STATUS ISC RNVC RNCC SADC DAC HCC RNAAC

352-0679-011 13499 A 2 3 TA

SDT7230 21845 A 1 5 TX

5961-00-469-5775 Manufacturer

MFG SKU CAGE Manufacturer Type Status Role

352-0679-011 13499 Rockwell Collins Inc. A A

SDT7230 21845 Solitron Devices Inc. A A
