(1 PC) 5961-00-152-7989 1N4589R Power Rectifier Single 300V 150A 2-Pin DO-205AA
Tax included.

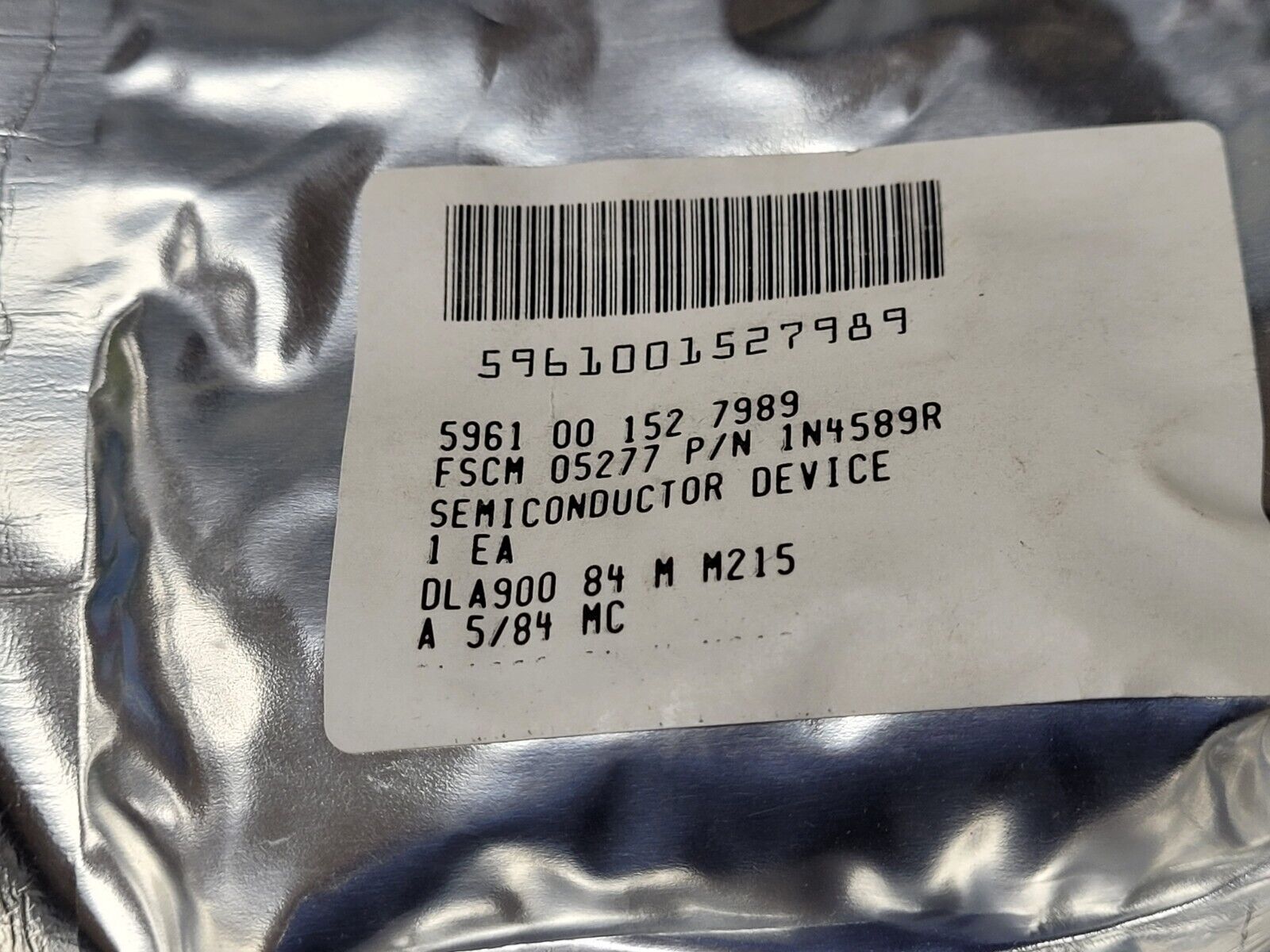

THIS IS FOR (1 PC) OF 5961-00-152-7989 1N4589R BY WESTINGHOUSE

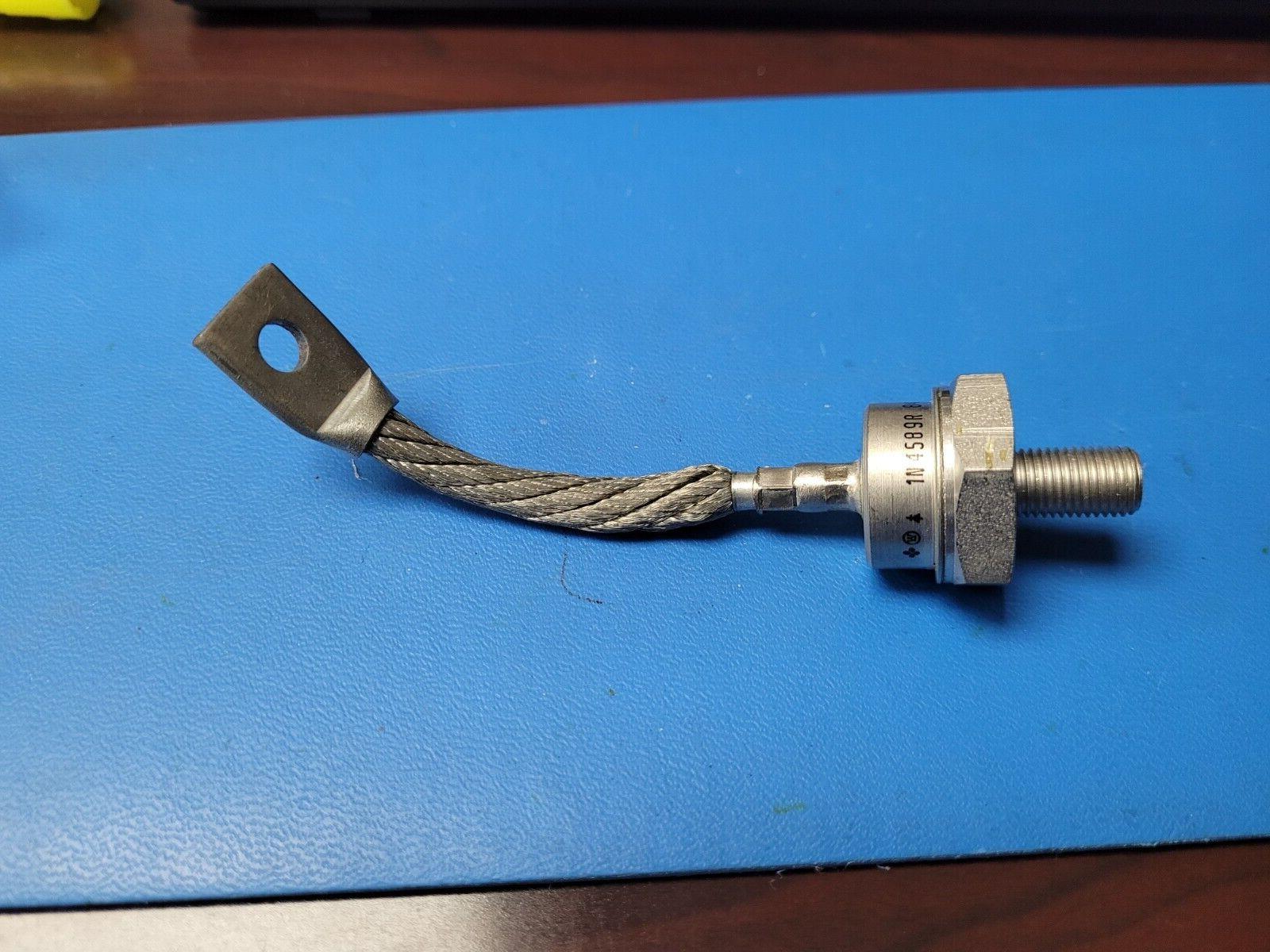

Diode Module Power Rectifier Single 300V 150A 2-Pin DO-205AA
Mfr Package Description METAL, DO-8, 1 PIN
Status Transferred
Diode Type RECTIFIER DIODE
Application SOFT RECOVERY POWER
Case Connection ANODE
Configuration SINGLE
Diode Element Material SILICON
Forward Voltage-Max (VF) 1.1 V
JEDEC-95 Code DO-205AA
JESD-30 Code O-MUPM-X1
JESD-609 Code e0
Non-rep Pk Forward Current-Max 2500.0 A
Number of Elements 1.0
Number of Phases 1.0
Number of Terminals 1
Operating Temperature-Min -65.0 Cel
Operating Temperature-Max 200.0 Cel
Output Current-Max 150.0 A
Package Body Material METAL
Package Shape ROUND
Package Style POST/STUD MOUNT
Qualification Status Not Qualified
Rep Pk Reverse Voltage-Max 300.0 V
Sub Category Rectifier Diodes
Surface Mount NO
Terminal Finish TIN LEAD
Terminal Form UNSPECIFIED
Terminal Position UPPER
