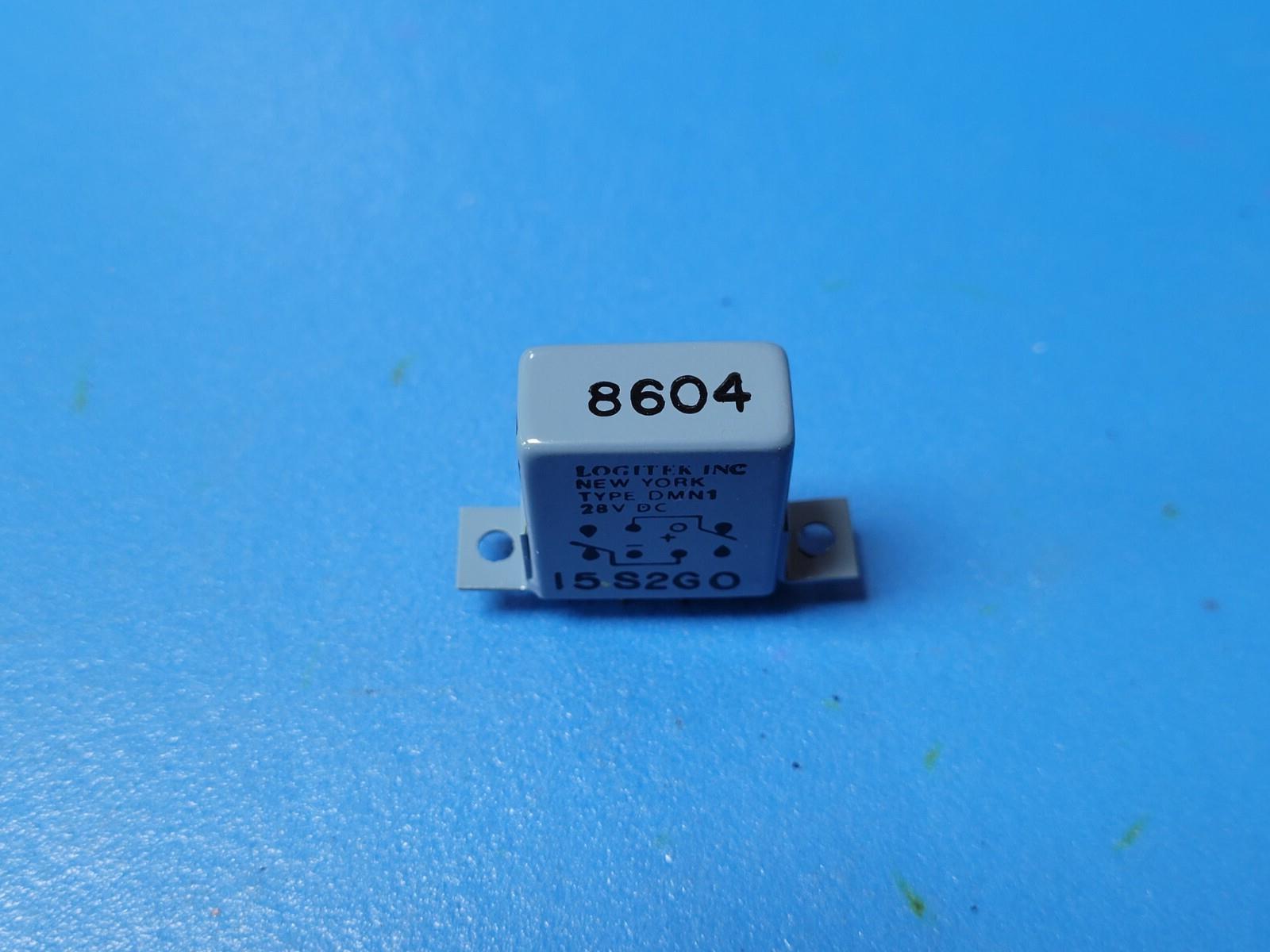

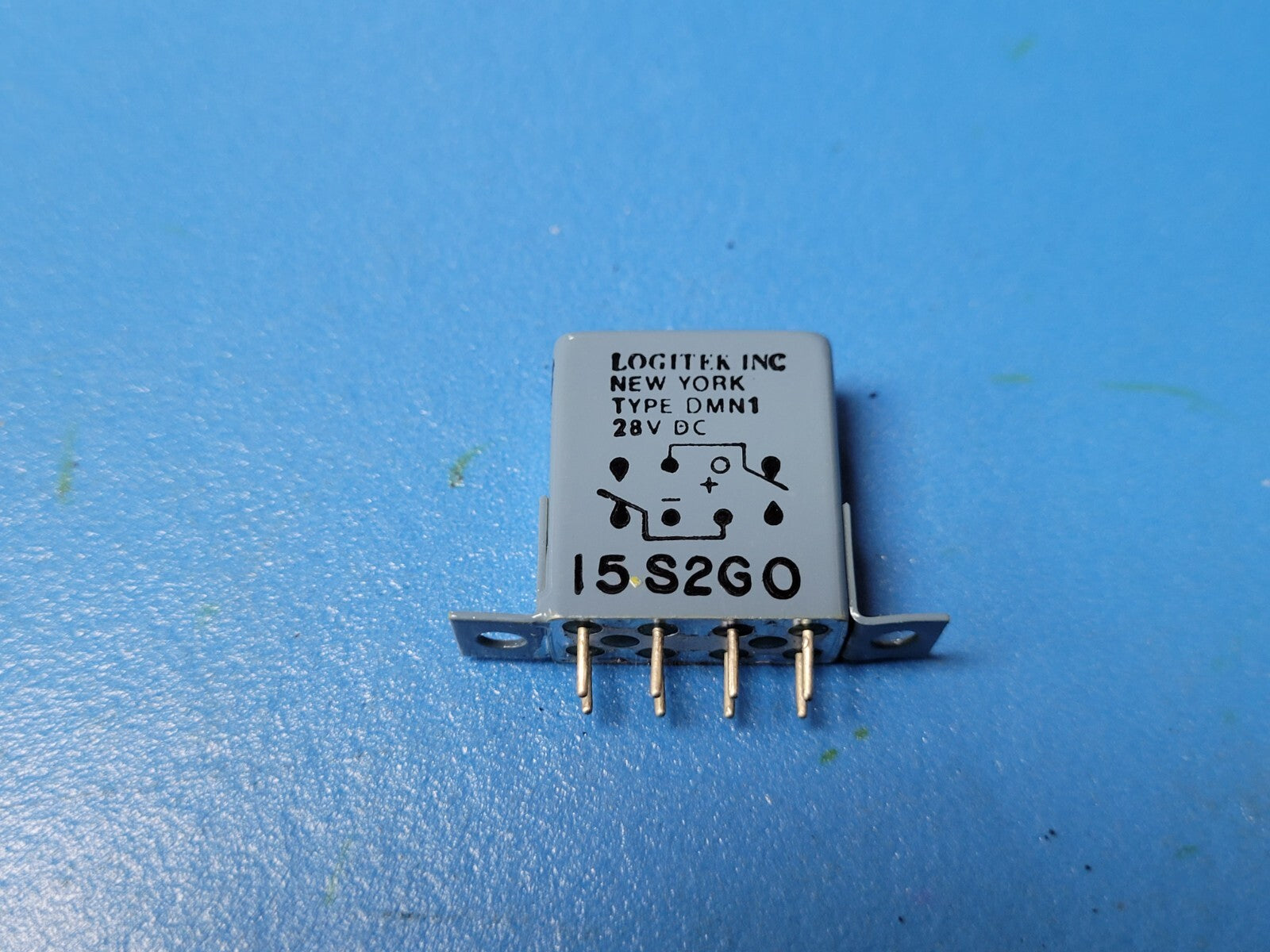

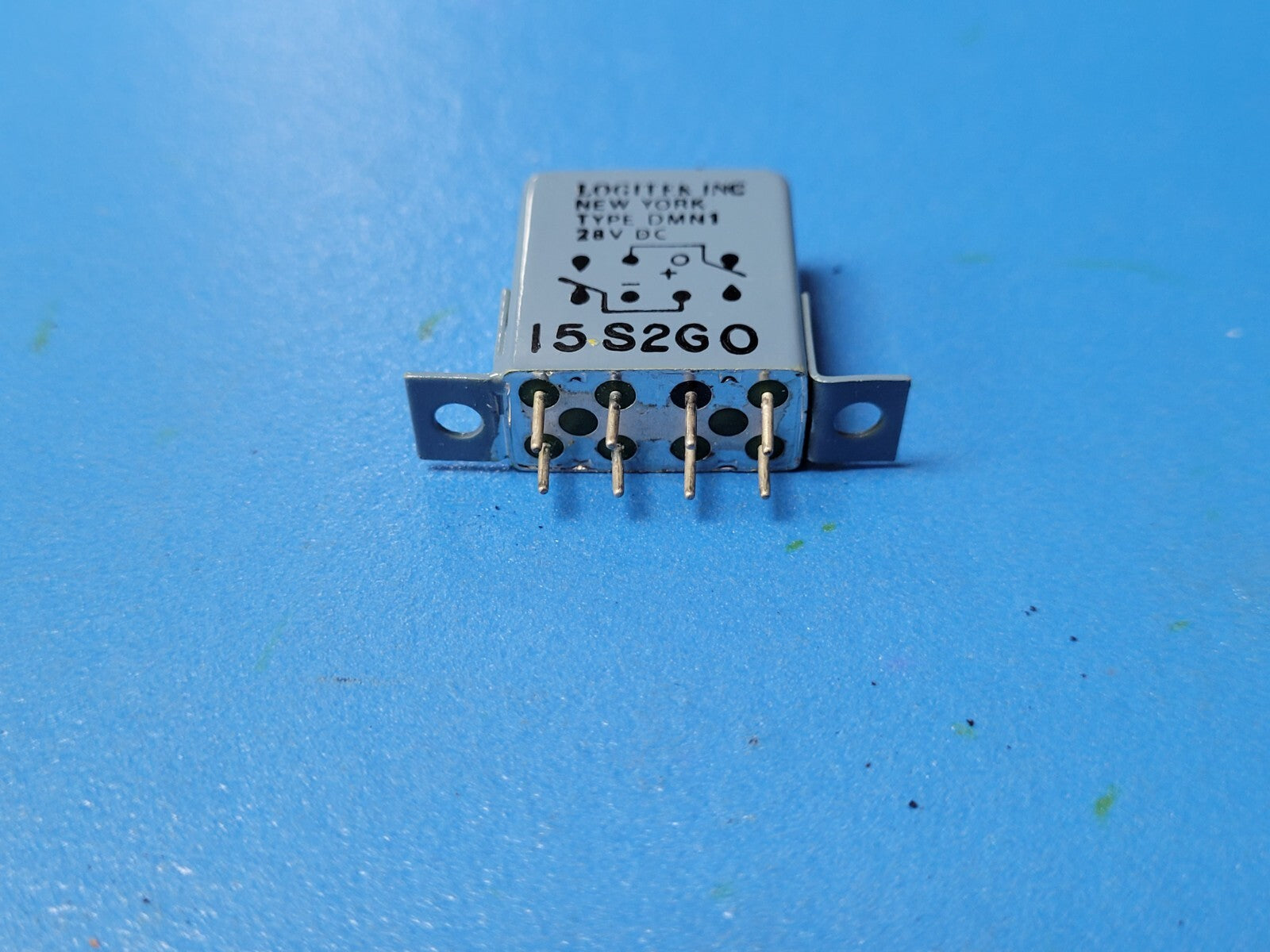

(1 PC) 5945-01-190-7327 (D1-23S3A0) LOGITEK INC Relay, Electromagnetic
Tax included.
THIS IS FOR (1 PC) OF 5945-01-190-7327 (D1-23S3A0) BY LOGITEK INC
Relay, Electromagnetic
5945-01-190-7327 Features
MRC Parameter Characteristics
AAJD Thread Class 2A single mounting facility
AAJF Thread Direction Right-hand single mounting facility
ABHP Overall Length 1.560 inches maximum
ABKQ Center to Center Distance Between Mounting Facilities Parallel to Length 1.000 inches nominal single mounting facility
ABKR Center to Center Distance Between Mounting Facilities Parallel to Width 0.937 inches nominal single mounting facility
ABKW Overall Height 2.000 inches maximum
ABMK Overall Width 1.210 inches maximum
ADTV Case Material Metal
ADZC Environmental Protection Hermetic
AFJN Fragility Factor Moderately rugged
AKDX Winding Quantity 1
AKSL Purpose for Which Designed General
APCN Coil Quantity 1
APNP Duty Type Continuous
APNQ ARC Quenching Method AIR
AXHR Mounting Facility Type and Quantity 4 threaded stud single mounting facility
BBRG Storage Type General purpose warehouse
CBME Cubic Measure 3.775 cubic inches
CMLP Thread Quantity per Inch 40 single mounting facility
CQJX Nominal Thread Size 0.112 inches single mounting facility
CQYJ Mounting Facility Pattern Rectangular single mounting facility
CRNG Nonpile-up Main Contact Arrangement 2 pole, double throw, one position momentary
CRXH Time Delay 0.005 seconds maximum fixed release time
CRXH Time Delay 3.00 seconds maximum fixed operate time
CSXF Operating Voltage Rating and Type at Specified Temp 28.0 volts dc 25 deg celsius single winding
CTDL Main Contact Load Current Rating at Maximum Rated Voltage 10.0 amperes ac resistive load and 2.0 amperes dc resistive load
CTDL Main Contact Load Current Rating at Maximum Rated Voltage 5.0 amperes ac inductive load and 1.0 amperes dc inductive load
CWAB Main Contact Maximum Voltage Rating in Volts 115.0 ac and 28.0 dc
THSD Thread Series Designator Unc single mounting facility
TTQY Terminal Type and Quantity 8 wire hook all functions
5945-01-190-7327 Manufacturing Part Numbers (SKUs)
MFG SKU CAGE STATUS ISC RNVC RNCC SADC DAC HCC RNAAC
D1-23S3A0 15420 A 2 3 TX
GR835GT2 26512 A 2 5 TX
5945-01-190-7327 Manufacturer
MFG SKU CAGE Manufacturer Type Status Role
D1-23S3A0 15420 Logitek Inc. A A
GR835GT2 26512 Northrop Grumman Systems Corporation A A
