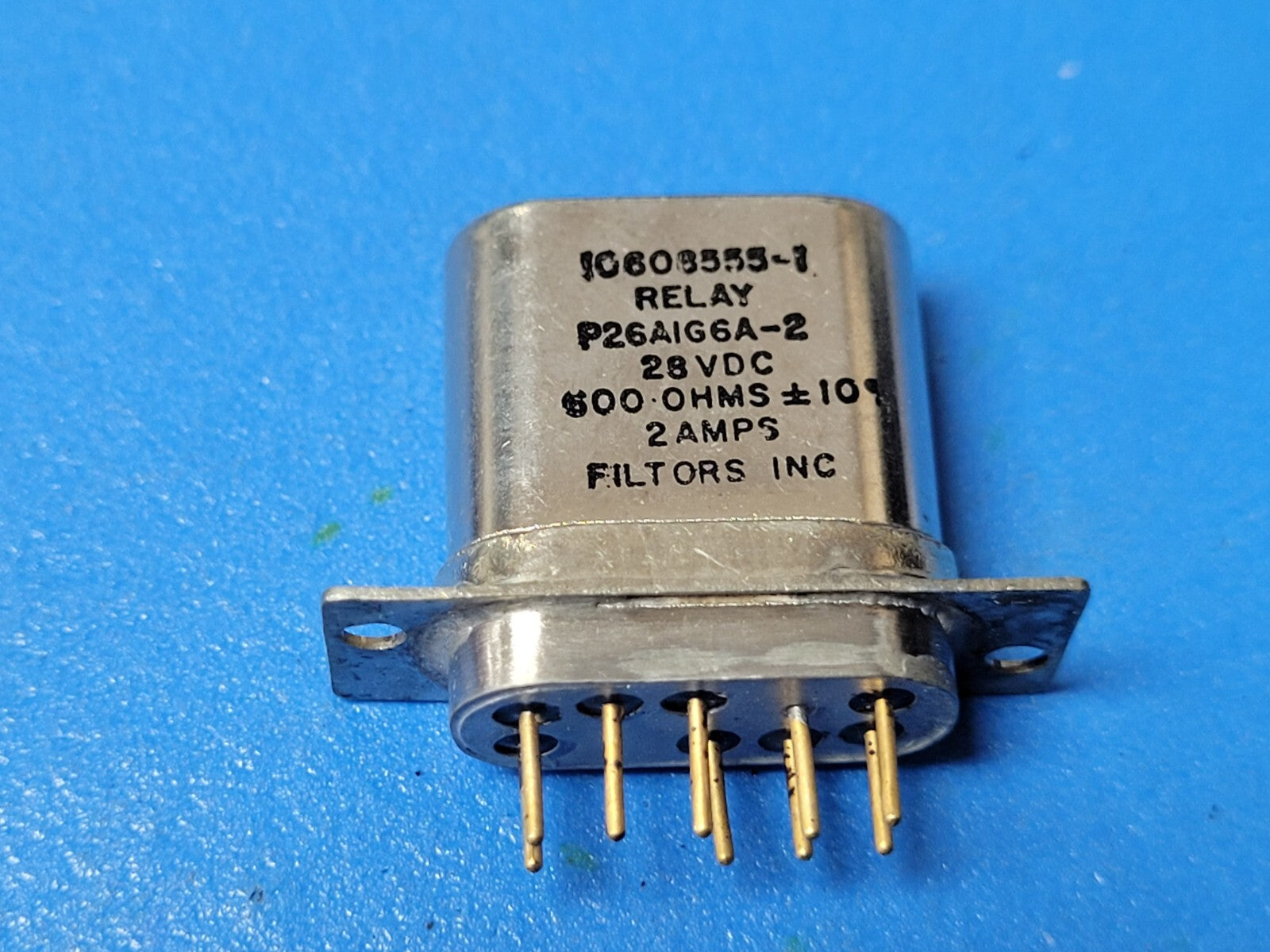

(1 PC) 5945-00-987-8401(10608555-1) RELAY,ELECTROMAGNETIC
Tax included.
THIS IS FOR (1 PC) OF 5945-00-987-8401(10608555-1)
RELAY,ELECTROMAGNETIC
Relays and Solenoids
RELAY,ELECTROMAGNETIC
MFG P/N: 10608555-1
NSN: 5945-00-987-8401
FSC: 5945 - Relays and Solenoids
MFG: U S Army Aviation And Missile
Description: RELAY,ELECTROMAGNETIC
Technical Characteristics
Main Contact Maximum Voltage Rating In Volts
28.0 dc
Nonpile-Up Main Contact Arrangement
2 pole,double throw,one position momentary
Mounting Facility Type And Quantity
2 unthreaded hole
Winding Dc Resistance Rating
600.0 ohms nominal
Winding Quantity
1
Overall Height
0.890 inches nominal
Center To Center Distance Between Mounting Facilities Parallel To Length
1.000 inches nominal
Overall Length
1.220 inches nominal
Terminal Type And Quantity
8 pin
Main Contact Load Current Rating At Maximum Rated Voltage
2.0 amperes dc
Operating Voltage Rating And Type At Specified Temp
28.0 volts dc 25 deg celsius
Mounting Facility Pattern
two position in-line
Features Provided
polarized
Duty Type
continuous
Coil Quantity
1
Unthreaded Mounting Hole Diameter
0.096 inches nominal
Environmental Protection
hermetic
Overall Width
0.400 inches nominal
