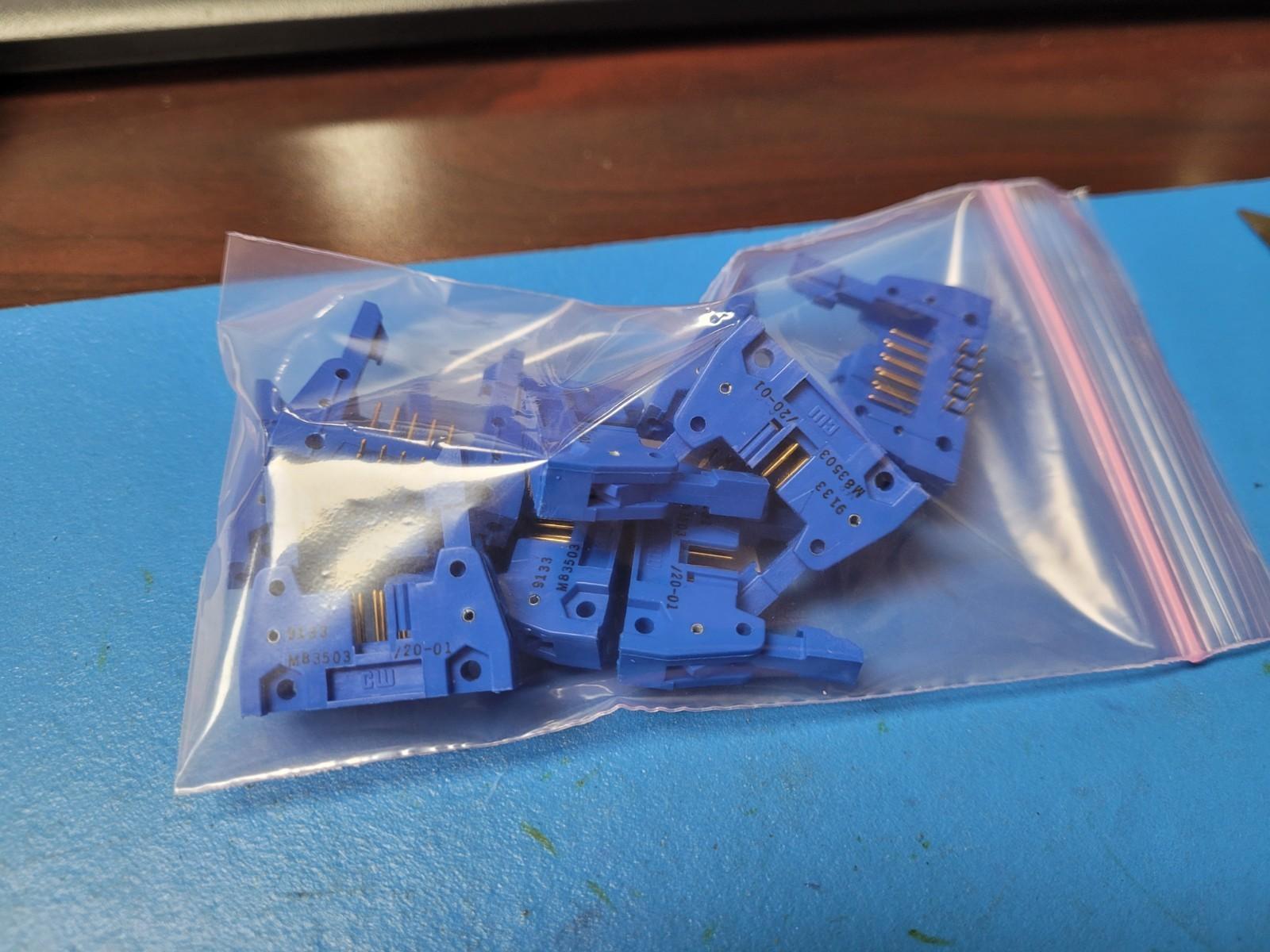

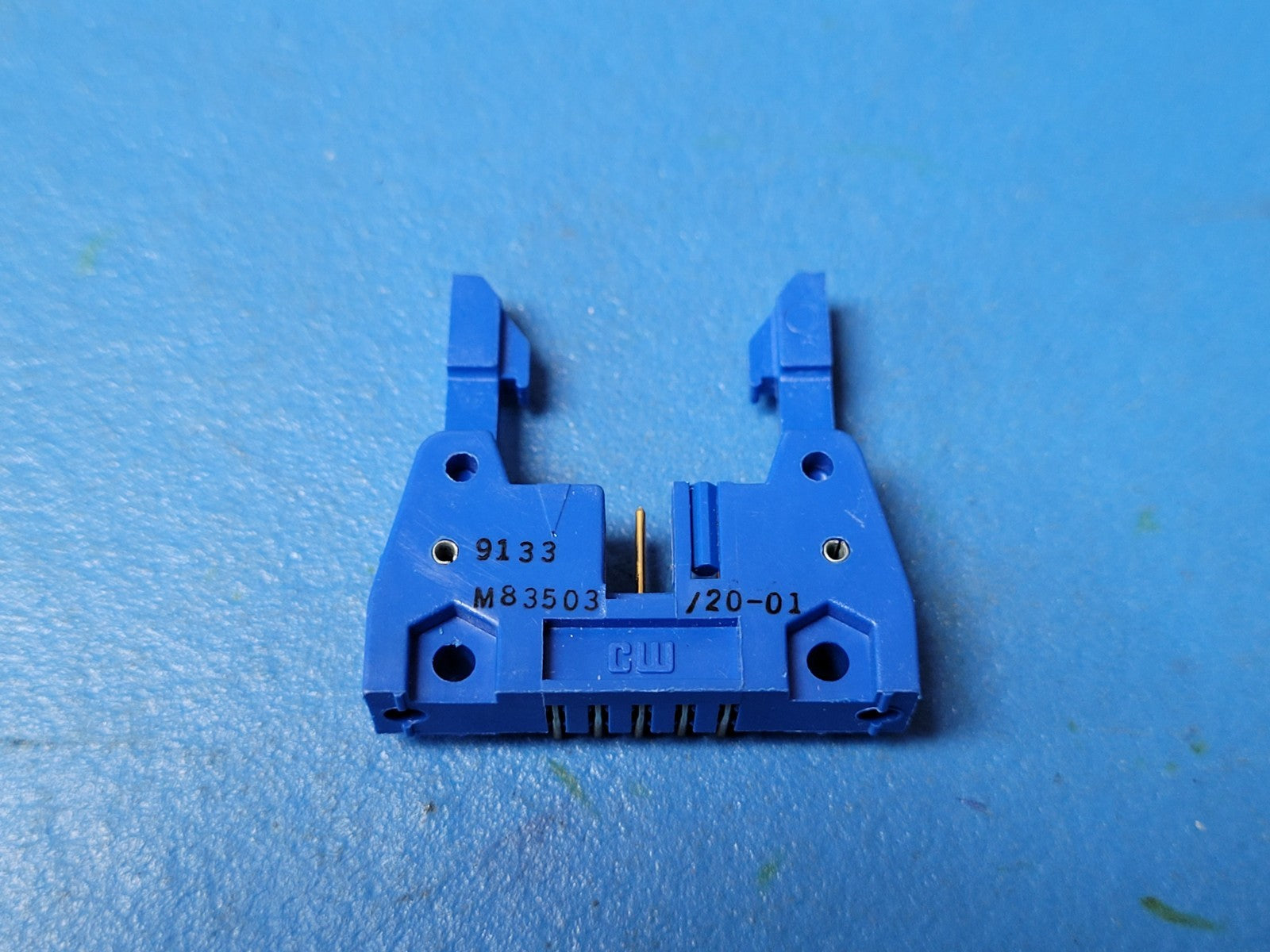

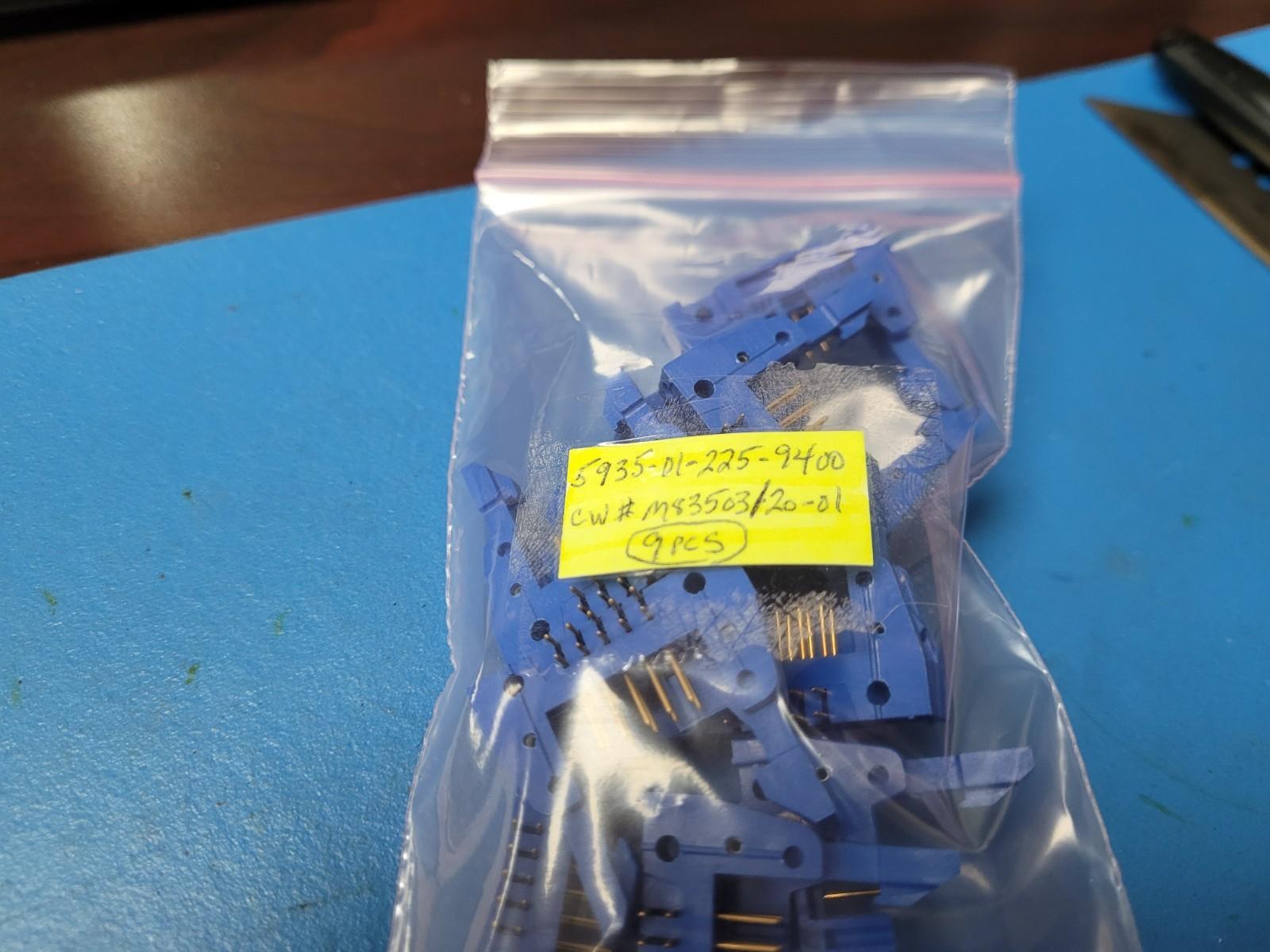

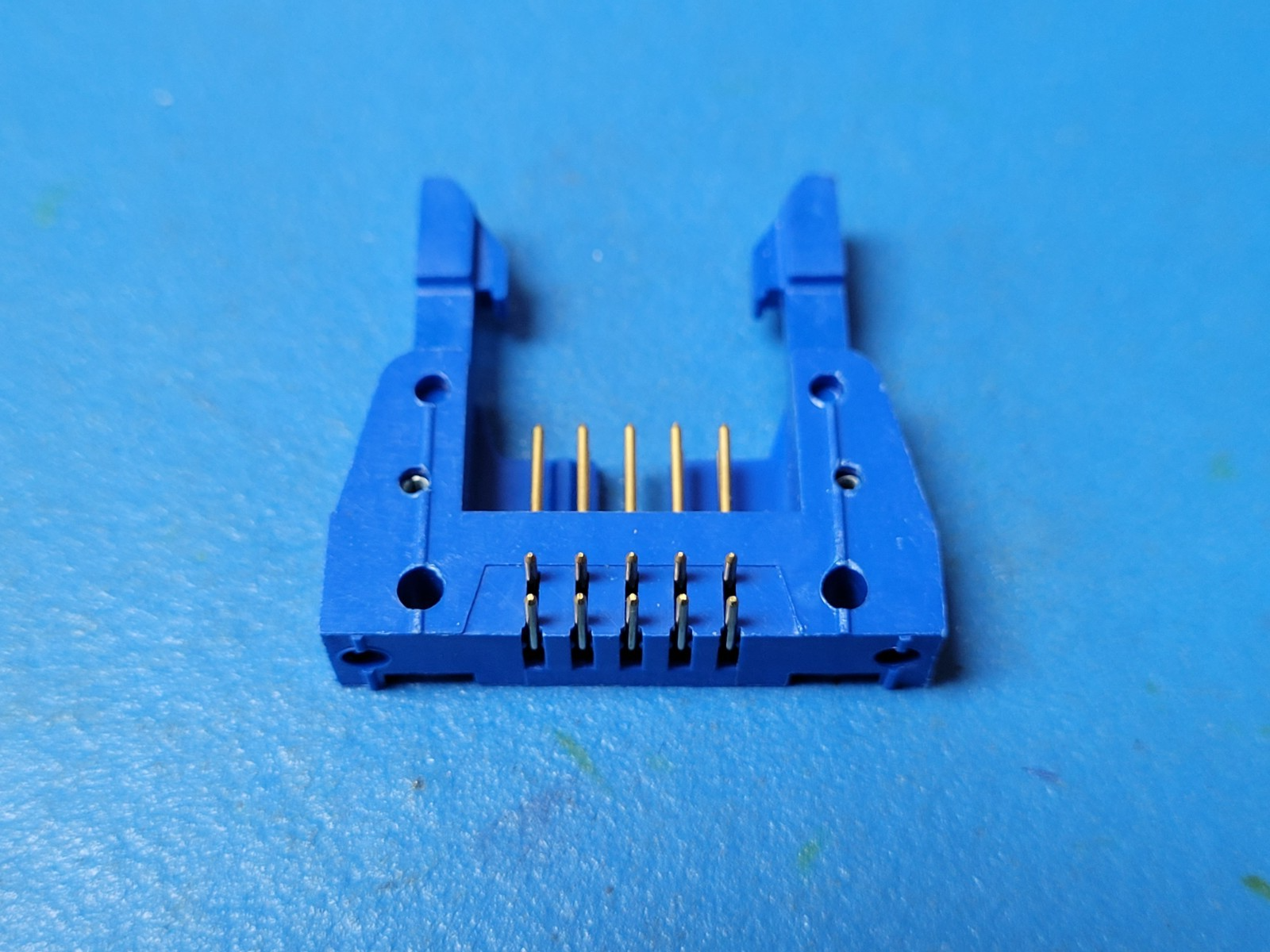

(1 PC) 5935-01-225-9400 (M83503/20-01) Connector, Receptacle, Electrical

MRC Parameter Characteristics

AAQL Body Style Right angle type

ABHP Overall Length 1.260 inches nominal

ABKW Overall Height 1.300 inches maximum

ABMK Overall Width 0.331 inches minimum and 0.376 inches maximum

ADZC Environmental Protection Corrosion resistant and fungus resistant and humidity resistant and shock resistant and vibration proof

AEBV Unthreaded Mounting Hole Diameter 0.100 inches nominal

AEJN Distance Between Mounting Facility Centers 0.860 inches nominal

AFQW Mating End Quantity 1

AFQX Contact Position Arrangement Style 2 rows of contacts non-inserted board single mating end

AFQZ Contact Removability Nonremovable single mating end single contact grouping

AFRC Contact Maximum Current Rating in Amps 1.0 single mating end single contact grouping

AFRD Contact Maximum AC Voltage Rating in Volts 300.0 single mating end single contact grouping

AFRN Polarization Method Mating end

AFRV Connector Locking Method Friction and latch

AGAV End Item Identification AN/MSQ-T51

CQTM Terminal Location Side single mating end single contact grouping

CQTZ Contact Material Copper alloy single mating end single contact grouping

CQYH Contact Surface Treatment Gold single mating end single contact grouping

CQZG Insert Material Plastic diallyl phthalate single mating end

CRBJ Contact Surface Treatment Document and Classification MIL-G-45204, ty 2, gr C, cl 1 mil spec single treatment response single mating end single contact grouping

CSCF Terminal Type Pin single mating end single contact grouping

CSGF Contact Material Document and Classification QQ-C-530 fed spec single material response single mating end single contact grouping or QQ-B-750 fed spec single material response single mating end single contact grouping or QQ-C-533 fed spec single material response single mating end single contact grouping

CXCG Included Contact Quantity 10 single mating end single contact grouping

CXCL Included Contact Type Round pin single mating end single contact grouping

PMLC Precious Material and Location Contact surfaces gold

PMWT Precious Material and Weight 0.010 gold grains, troy

PRMT Precious Material GOLD

TEST Test Data Document 81349-MIL-C-83503 specification (includes engineering type bulletins, brochures, etc., that reflect specification type data in specification format; excludes commercial catalogs, industry directories, and similar trade publications, reflecting general type data on certain environmental and performance requirements and test conditions that are shown as "typical", "average", "nominal", etc.).

ZZZK Specification/Standard Data 81349-MIL-C-83503/20 government specification
