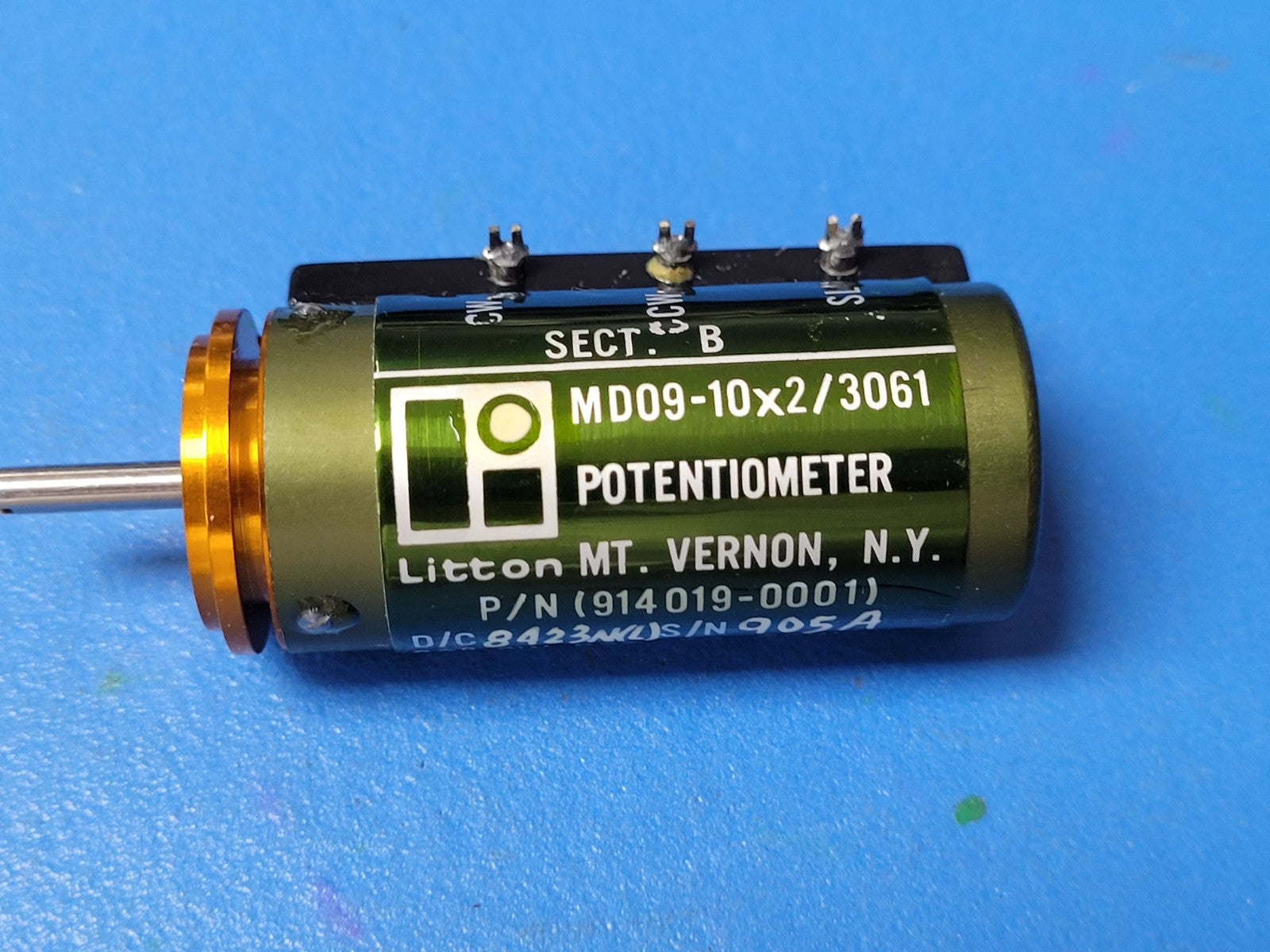

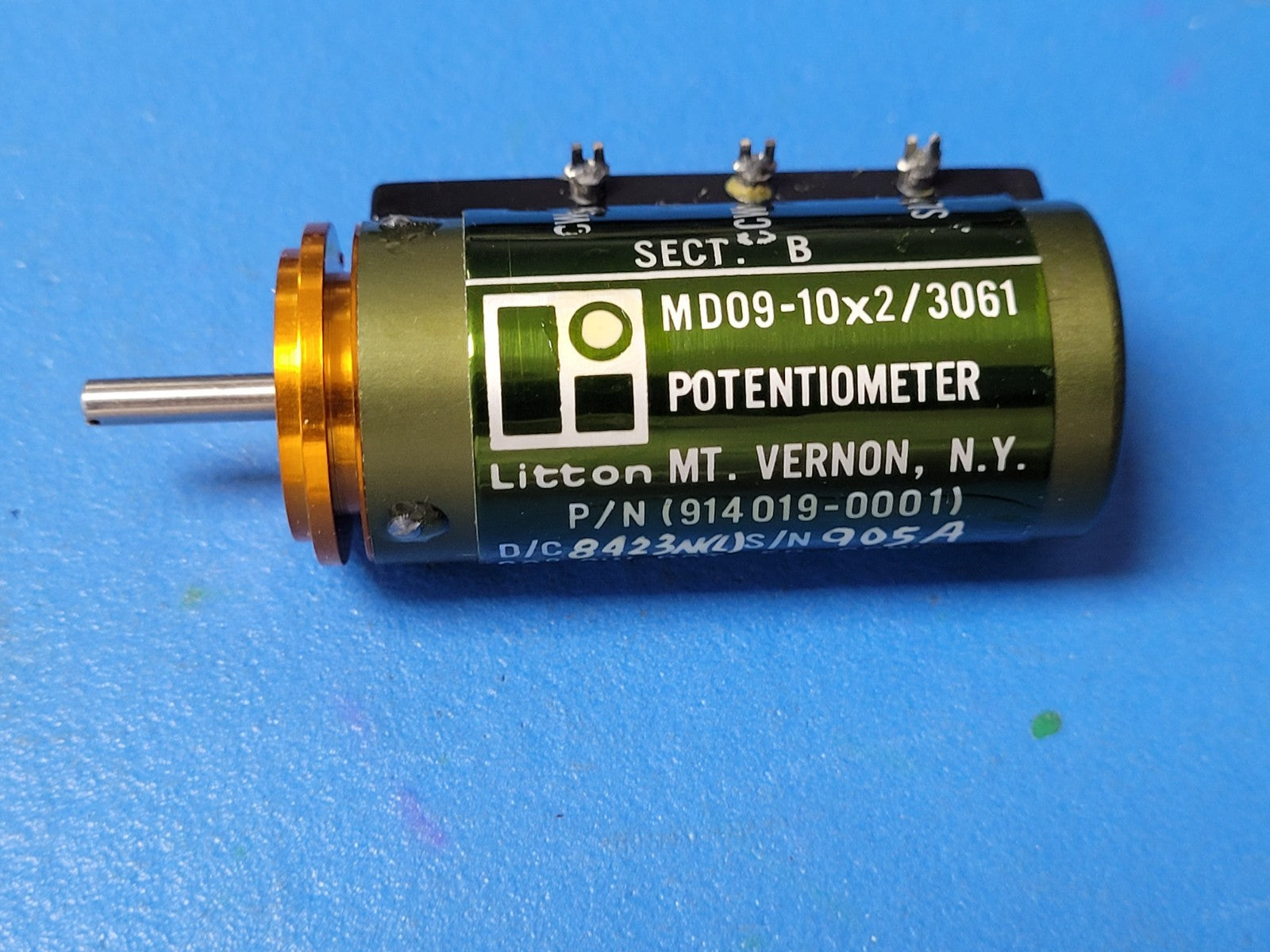

(1 PC) 5905-00-884-1012 P/N MD09-10X2-3061 Resistor Variable
Tax included.
THIS IS FOR (1 PC) OF 5905-00-884-1012 P/N MD09-10X2-3061
Resistor Variable
NSN FSC NIIN CLS Hazmat DEMIL Cancelled NSN

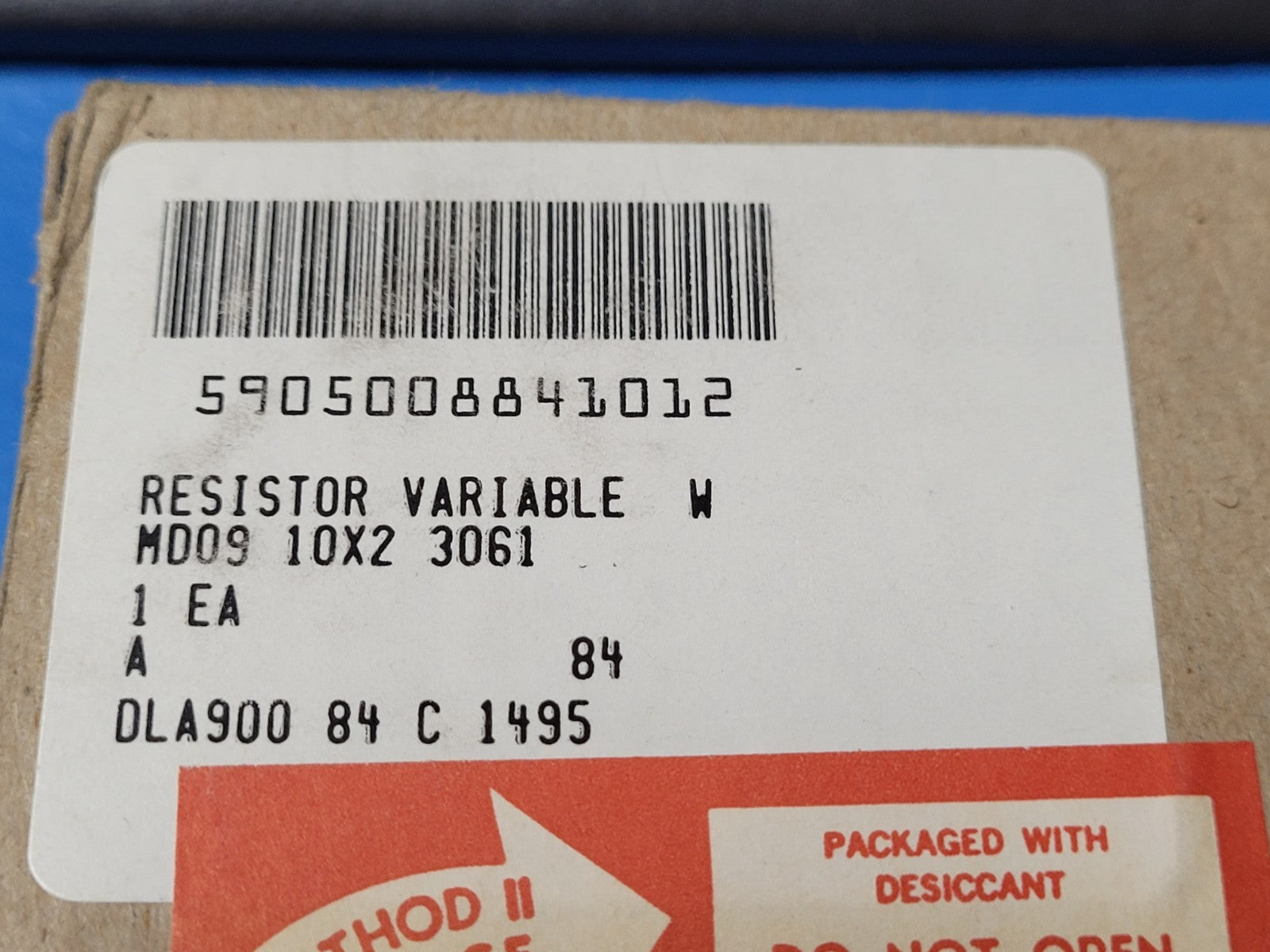

5905-00-884-1012
Item PartTypeName:
RESISTOR,VARIABLE,WIRE WOUND,NON
5905 008841012 0 N B
CIIC HCC ESD PMIC Criticality ENAC
U B U
Part Number ISC RNVC RNCC HCC MSDS SADC
914019-0001 2 2 7
MRC Criteria Characteristic
AAPN SECTION QUANTITY 1
AAQL BODY STYLE CYLINDRICAL SERVO MOUNTED
AARG RELIABILITY INDICATOR NOT ESTABLISHED
AAVL PILOT DIAMETER 0.7500 INCHES NOMINAL
AAVM PILOT LENGTH 0.0620 INCHES NOMINAL
ABPA UNDERCUT DIAMETER 0.875 INCHES NOMINAL
ABPC UNDERCUT WIDTH 0.0570 INCHES MINIMUM
ABPM BODY DIAMETER 0.875 INCHES NOMINAL
ABWV SHAFT DIAMETER 0.1248 INCHES NOMINAL
ABXF SHAFT LENGTH 0.585 INCHES NOMINAL
ADAQ BODY LENGTH 2.000 INCHES MAXIMUM
AECZ MOUNTING LIP DIAMETER 0.8750 INCHES NOMINAL
AEDA MOUNTING LIP DEPTH 0.0620 INCHES NOMINAL
AEDX SHAFT STYLE ROUND,SLOTTED
AEDZ SHAFT BEARING TYPE BALL
AEFD ACTUATOR TYPE SINGLE SHAFT
AEFH EFFECTIVE ELECTRICAL ROTATION IN DEG ANGULAR ROTATION 3600.0 NOMINAL
AEFK MAXIMUM STARTING TORQUE 0.70 INCH-OUNCES
AEFL MAXIMUM RUNNING TORQUE 0.60 INCH-OUNCES
APXH TERMINAL LOCATION REAR END
AXGY MOUNTING METHOD CLAMP RING

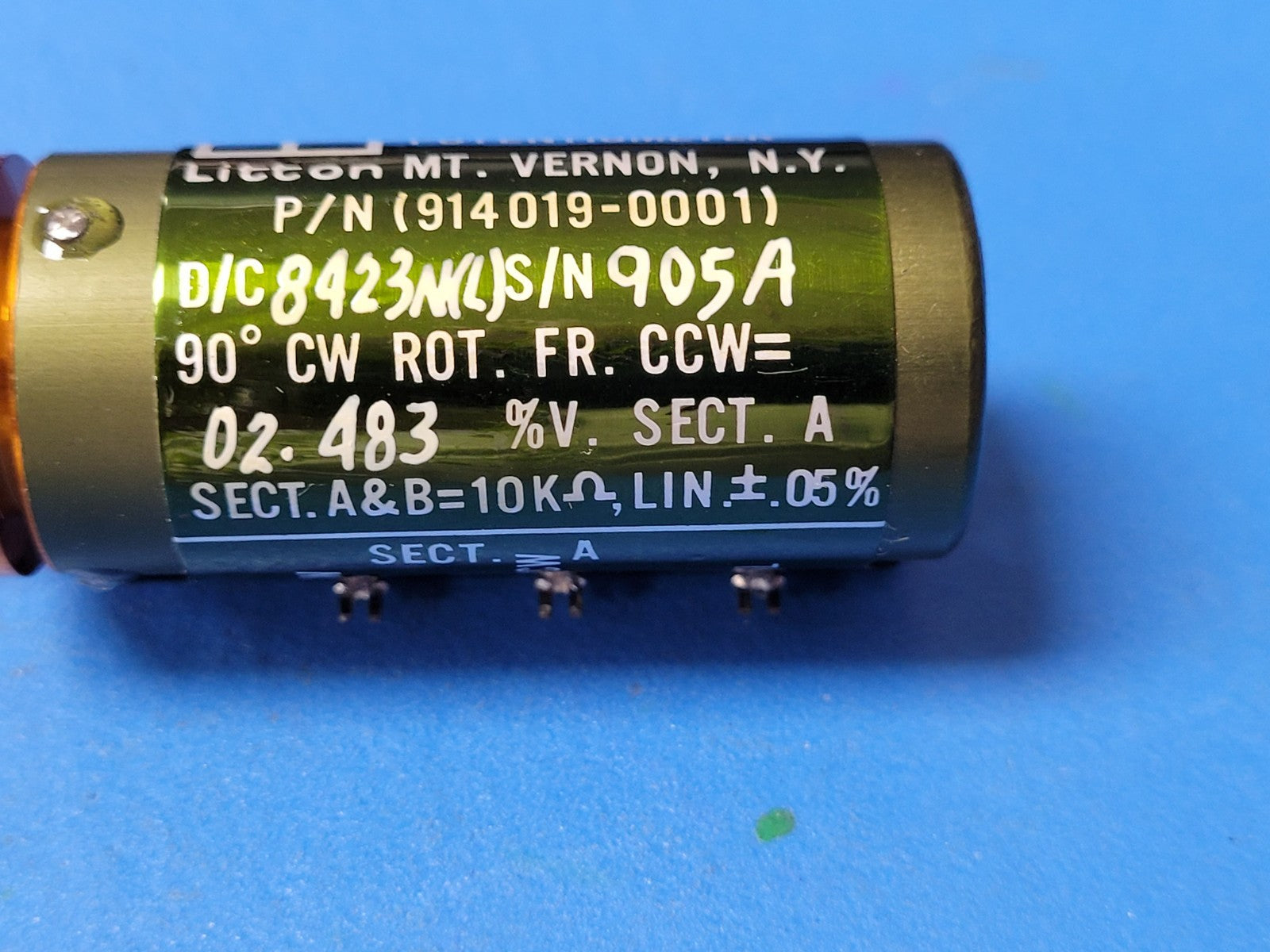

CQCC ELECTRICAL RESISTANCE PER SECTION 10.000 KILOHMS SINGLE SECTION
CQCK ROTARY ACTUATOR TRAVEL IN ANGULAR DEG 3600.0 NOMINAL
CQGN AMBIENT TEMP IN DEG CELSIUS PER SECTION AT ZERO PERCENT RATED POWER 125.0 SINGLE SECTION
CRFJ TEMP COEFFICIENT OF RESISTANCE PER SECTION IN PPM PER DEG CELSIUS -20.0 TO 20.0 SINGLE SECTION
CRGD POWER DISSIPATION RATING PER SECTION IN WATTS 1.25 FREE AIR SINGLE SECTION
CRSS RESISTANCE TOLERANCE PER SECTION IN PERCENT -5.0 TO 5.0 SINGLE SECTION
CRSX ACTUATOR TRAVEL CONTROL FEATURE STOPS
CSDH AMBIENT TEMP IN DEG CELSIUS PER SECTION AT FULL RATED POWER 40.0 SINGLE SECTION

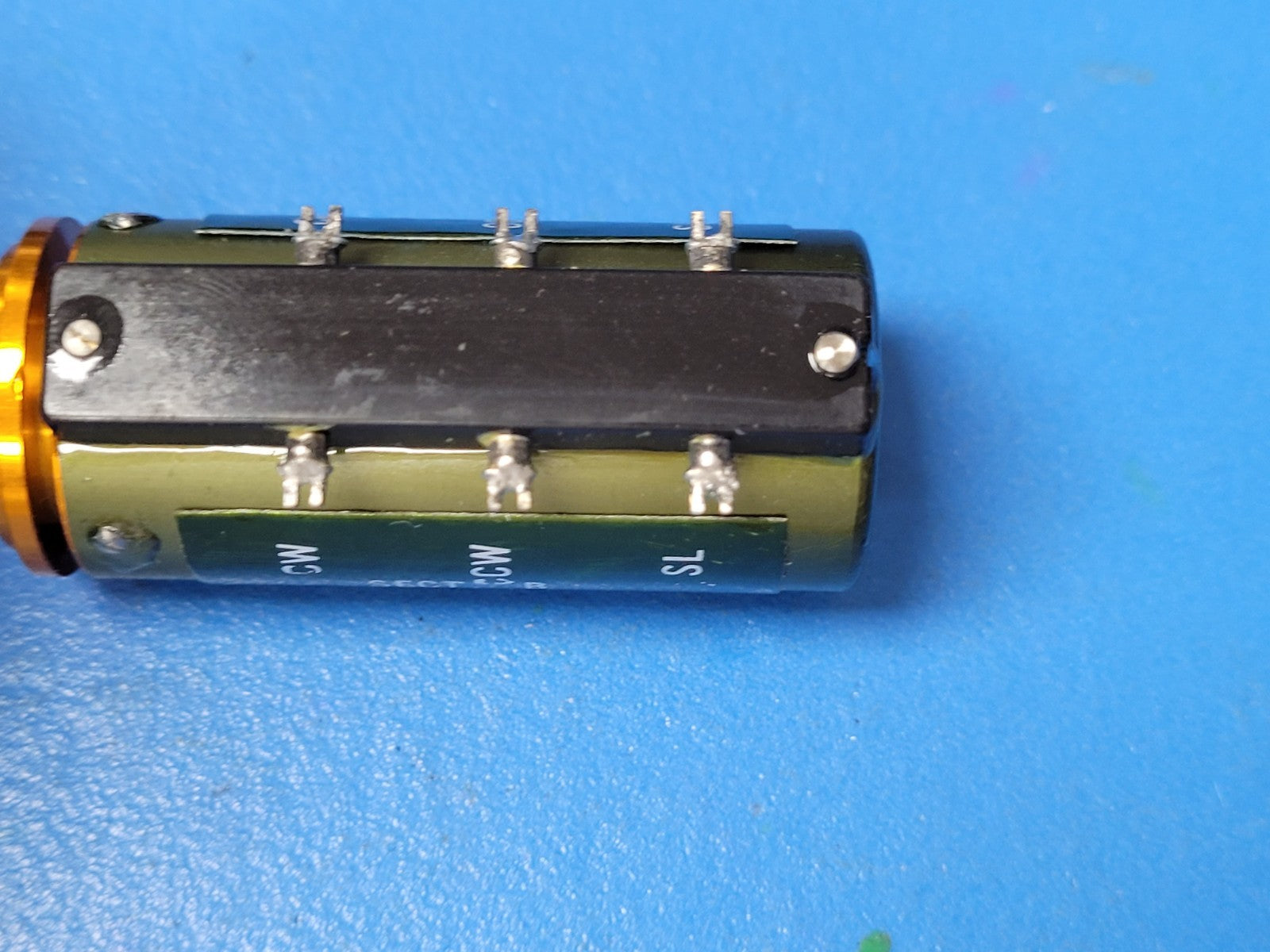

TTQY TERMINAL TYPE AND QUANTITY 3 WIRE LEAD
