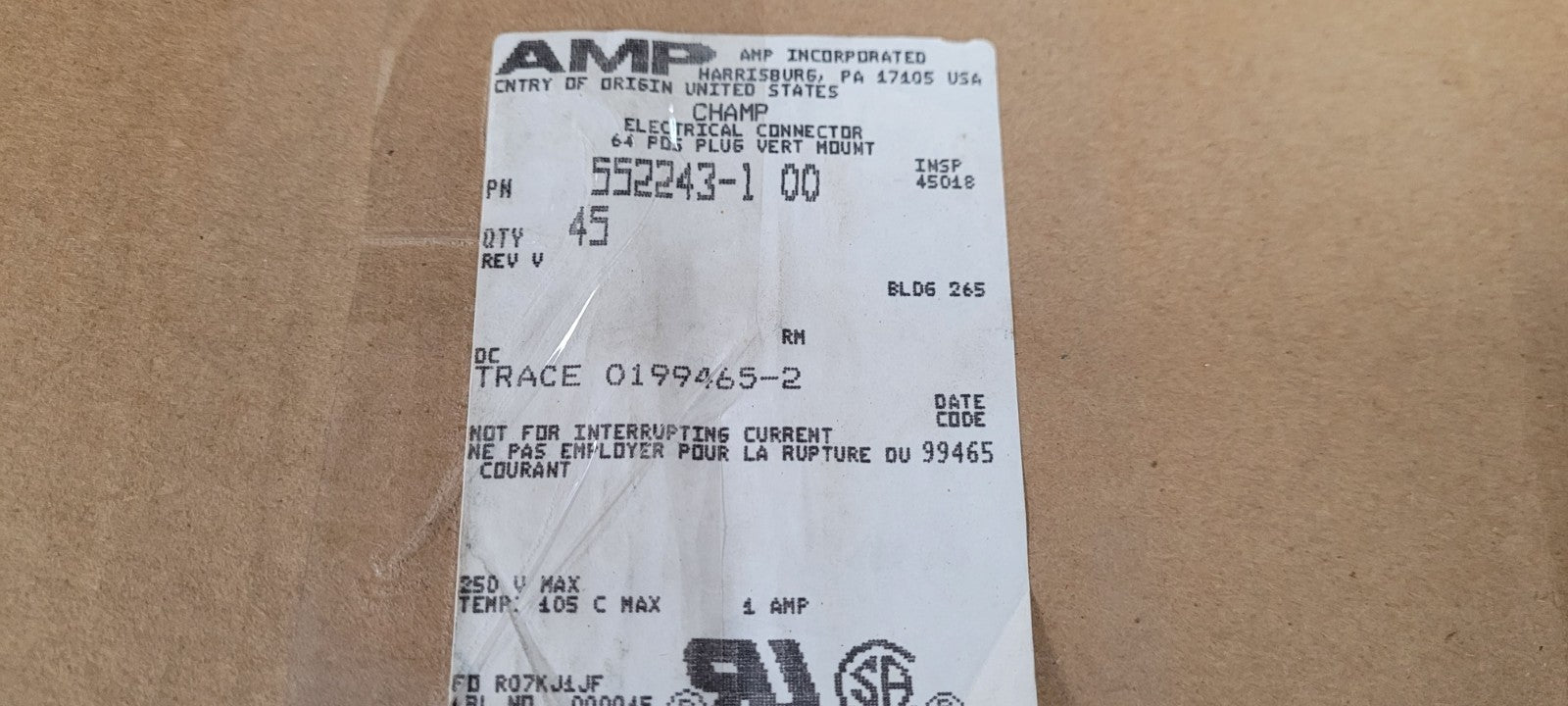

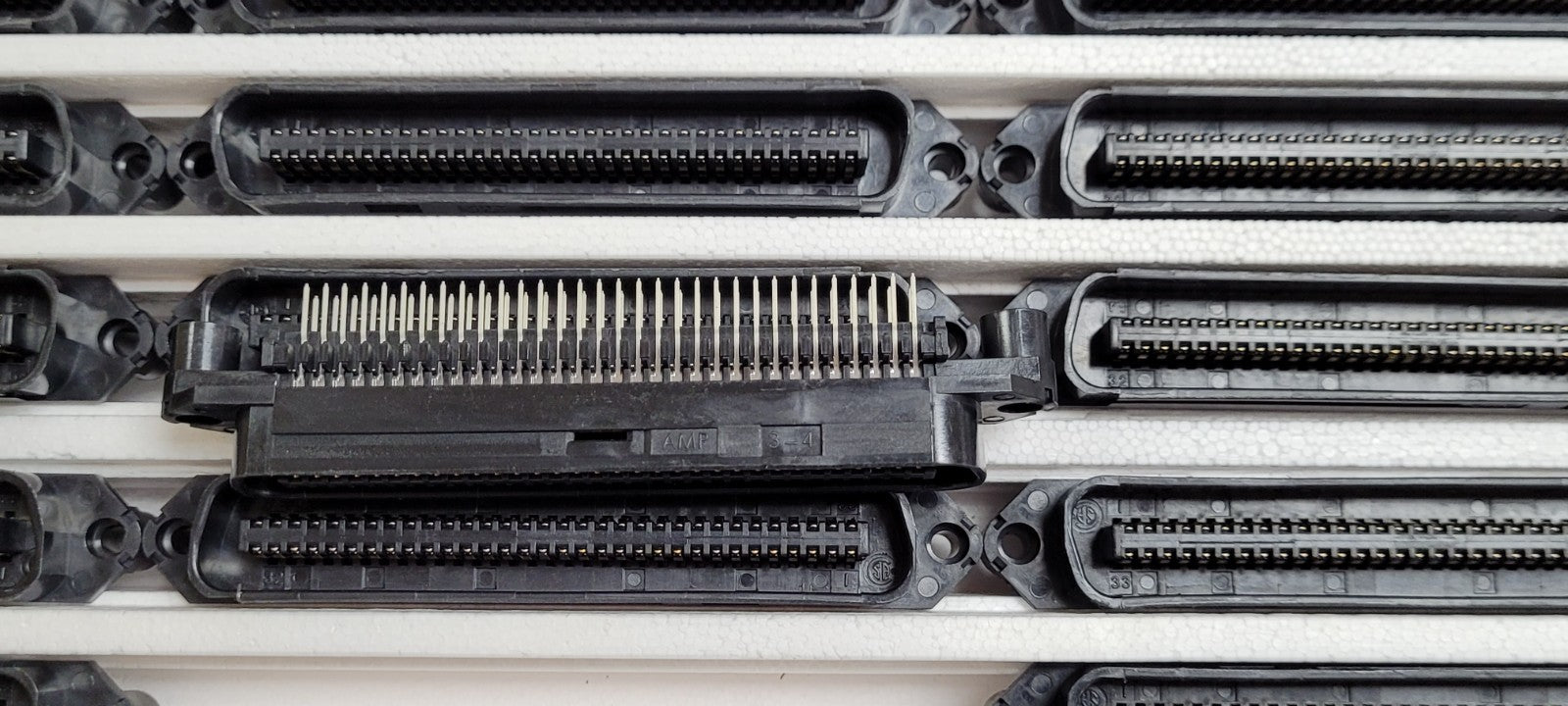

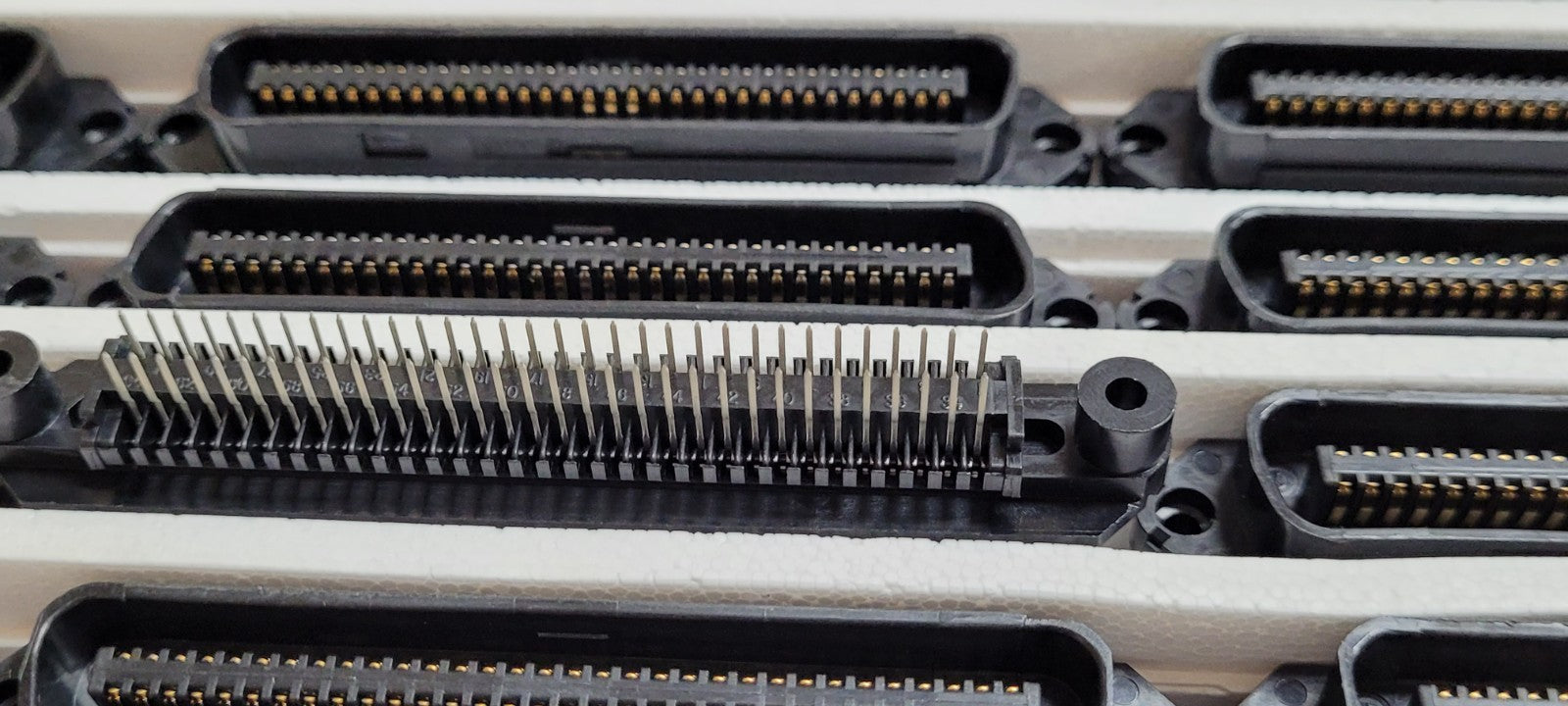

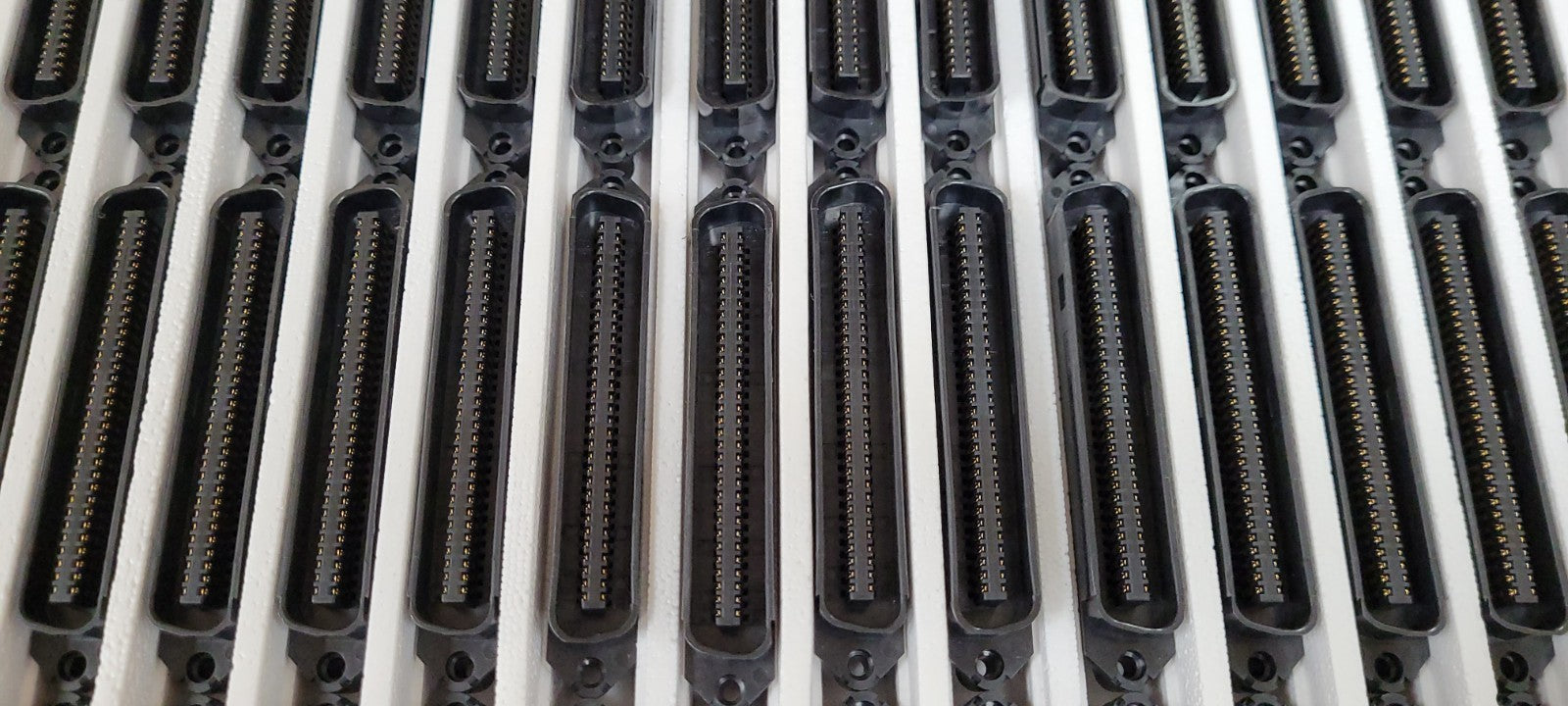

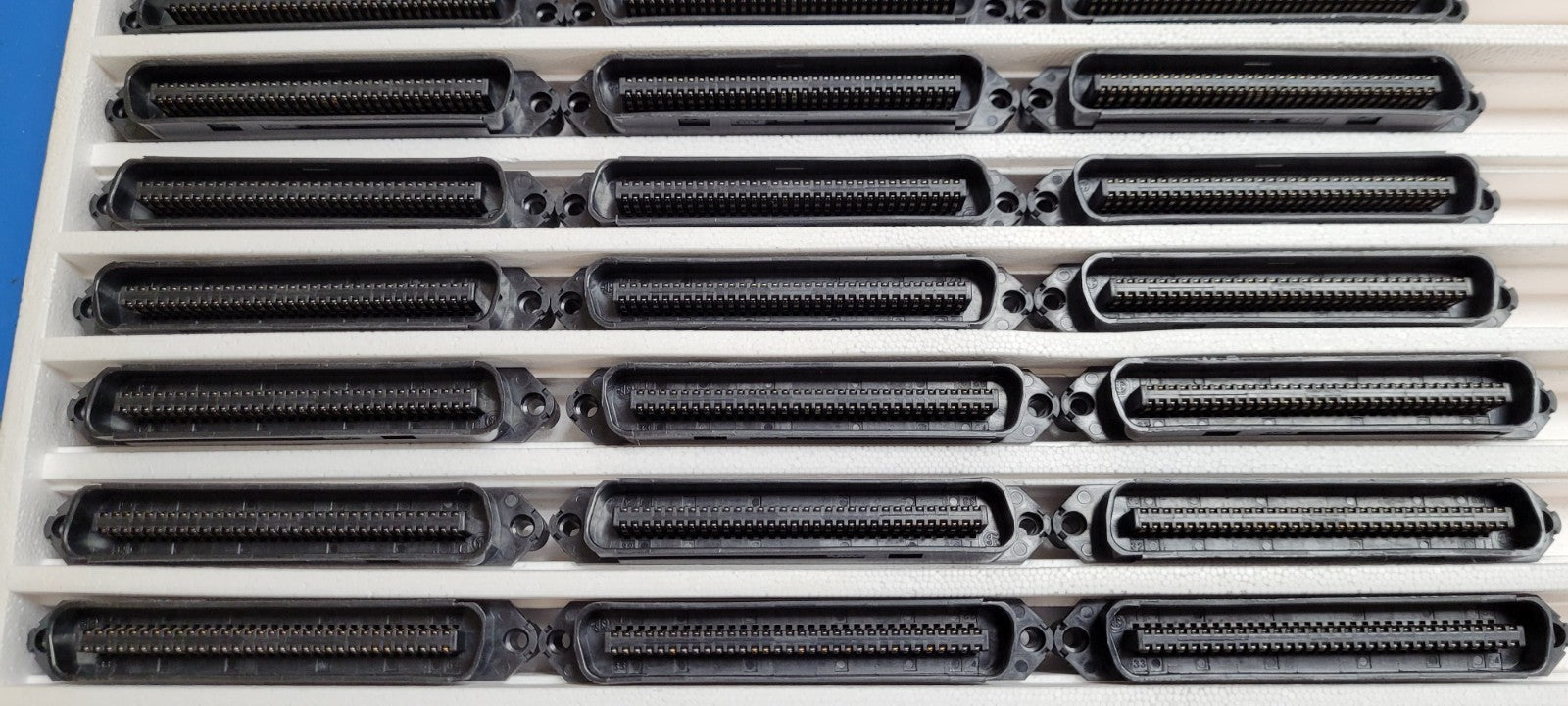

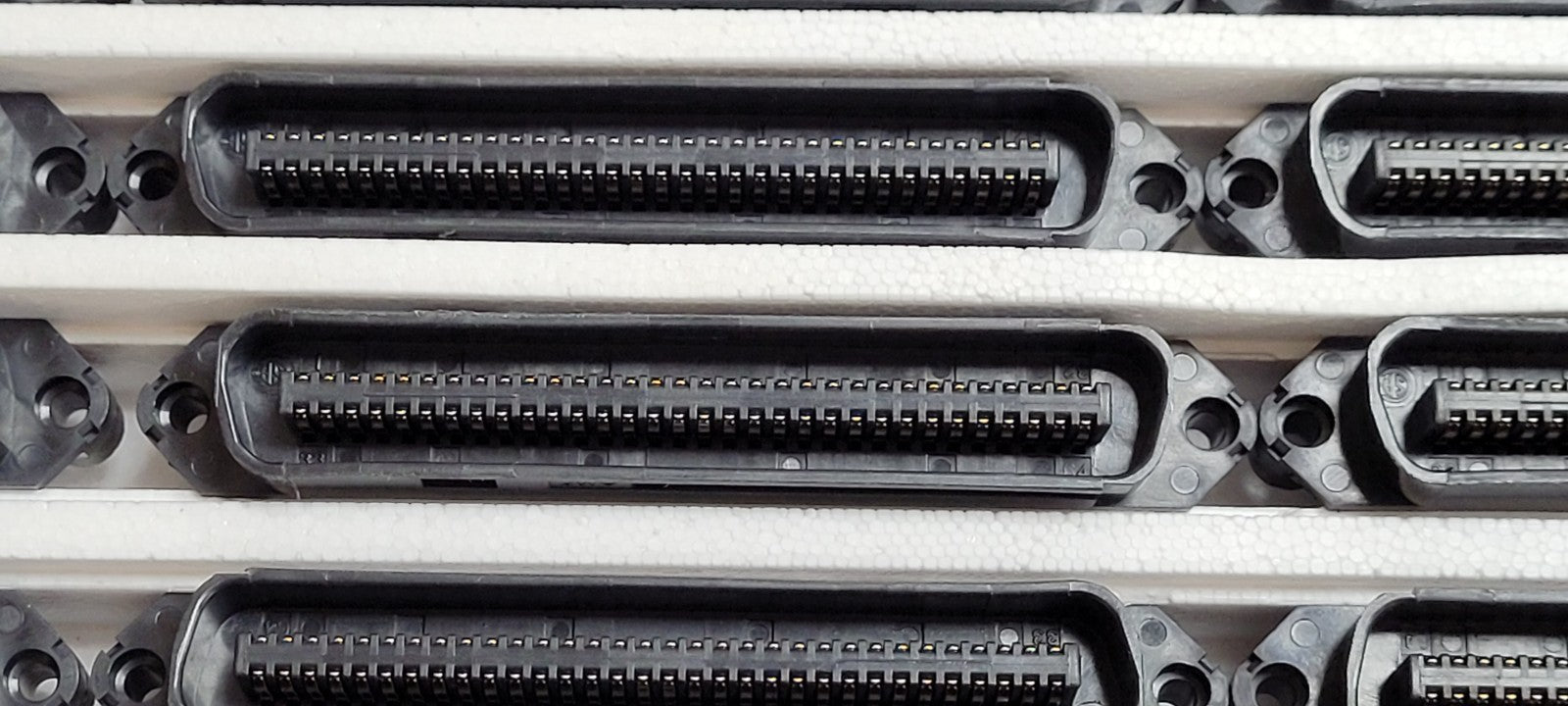

(1 PC) 552243-1 TE Connectivity AMP Connectors CONN PLUG 64POS VERT SOLDER
Tax included.
THIS IS FOR (1 PC) OF 552243-1 BY TE Connectivity AMP Connectors
CONN PLUG 64POS VERT SOLDER
Part #: 552243-1
Obsolete
Part Category:Telecom and Datacom Connectors
Manufacturer:TE CONNECTIVITY LTD
Description:
Telecom and Datacom Connector, 64 Contact(s), Male, Straight, Solder Terminal, Plug
Status Discontinued
Additional Feature CHAMP-LOK
Body Depth (inch) 0.512000
Body Length (inch) 3.875000
Body/Shell Style PLUG
Connector Type TELECOM AND DATACOM CONNECTOR
Contact Finish - Mating NOT SPECIFIED
Contact Finish - Termination Tin (Sn)
Contact Gender MALE
Contact Material COPPER ALLOY
Contact Pattern RECTANGULAR
DIN Conformance NO
Empty Shell NO
Filter Feature NO
IEC Conformance NO
Insulator Material POLYETHYLENE
J-STD-609 Code e3
MIL Conformance NO
Mating Contact Pitch (inch) 0.085
Mixed Contacts NO
Mounting Option 2 SCREWLOCKS
Mounting Style STRAIGHT
Mounting Type BOARD
Number of PCB Rows 2
Number of Rows Loaded 2
Operating Temperature-Max (Cel) 105
Operating Temperature-Min (Cel) -40
Option GENERAL PURPOSE
PCB Contact Pattern RECTANGULAR
PCB Contact Row Spacing (mm) 4.2926
Rated Current (Signal) (A) 3.5000000000000000
Screening Level / Reference Standard CSA, UL
Terminal Length (inch) 0.196000
Terminal Pitch (mm) 2.159
Termination Type SOLDER
Number of Contacts 64
UL Flammability Code 94V-0
