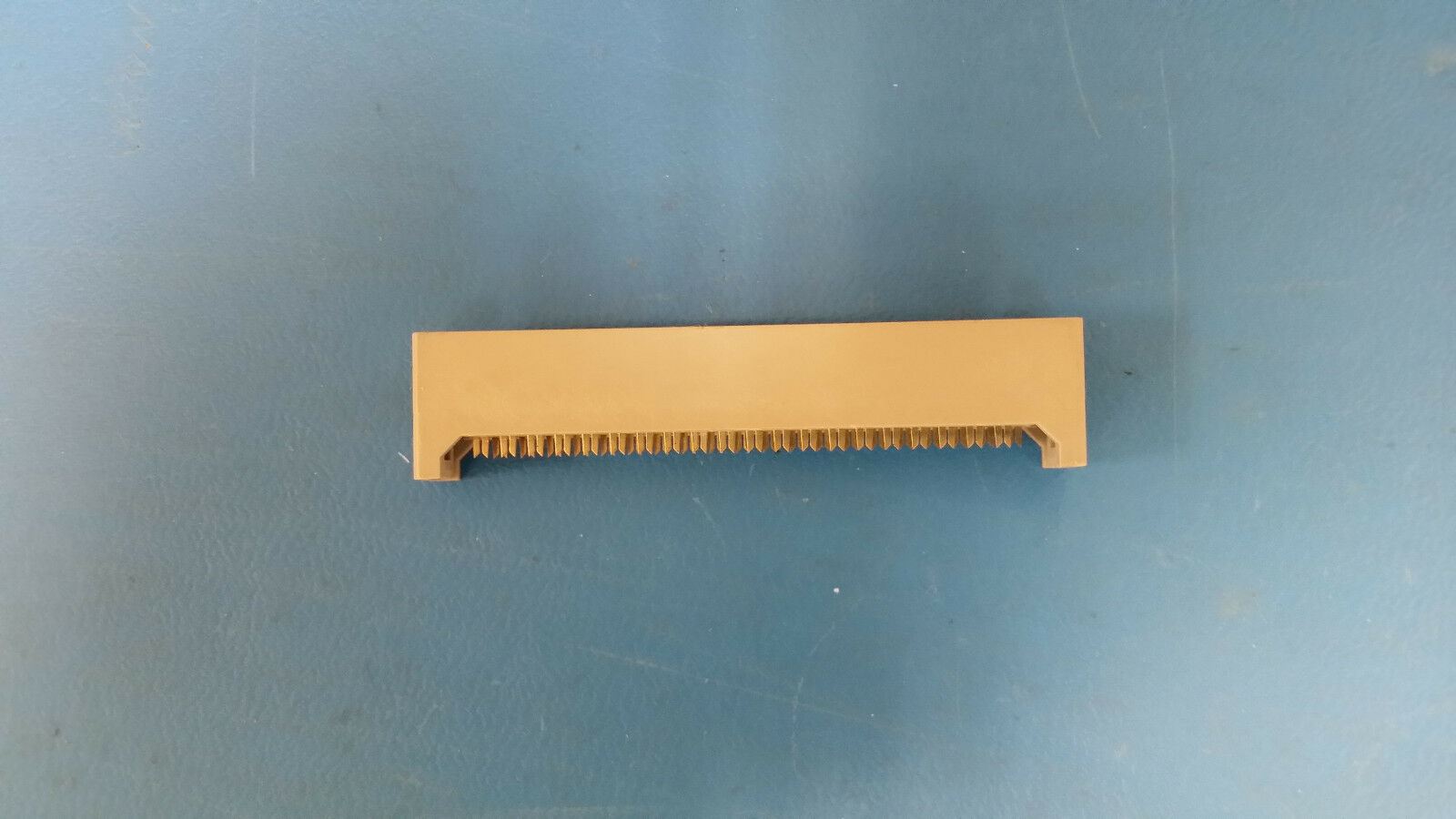

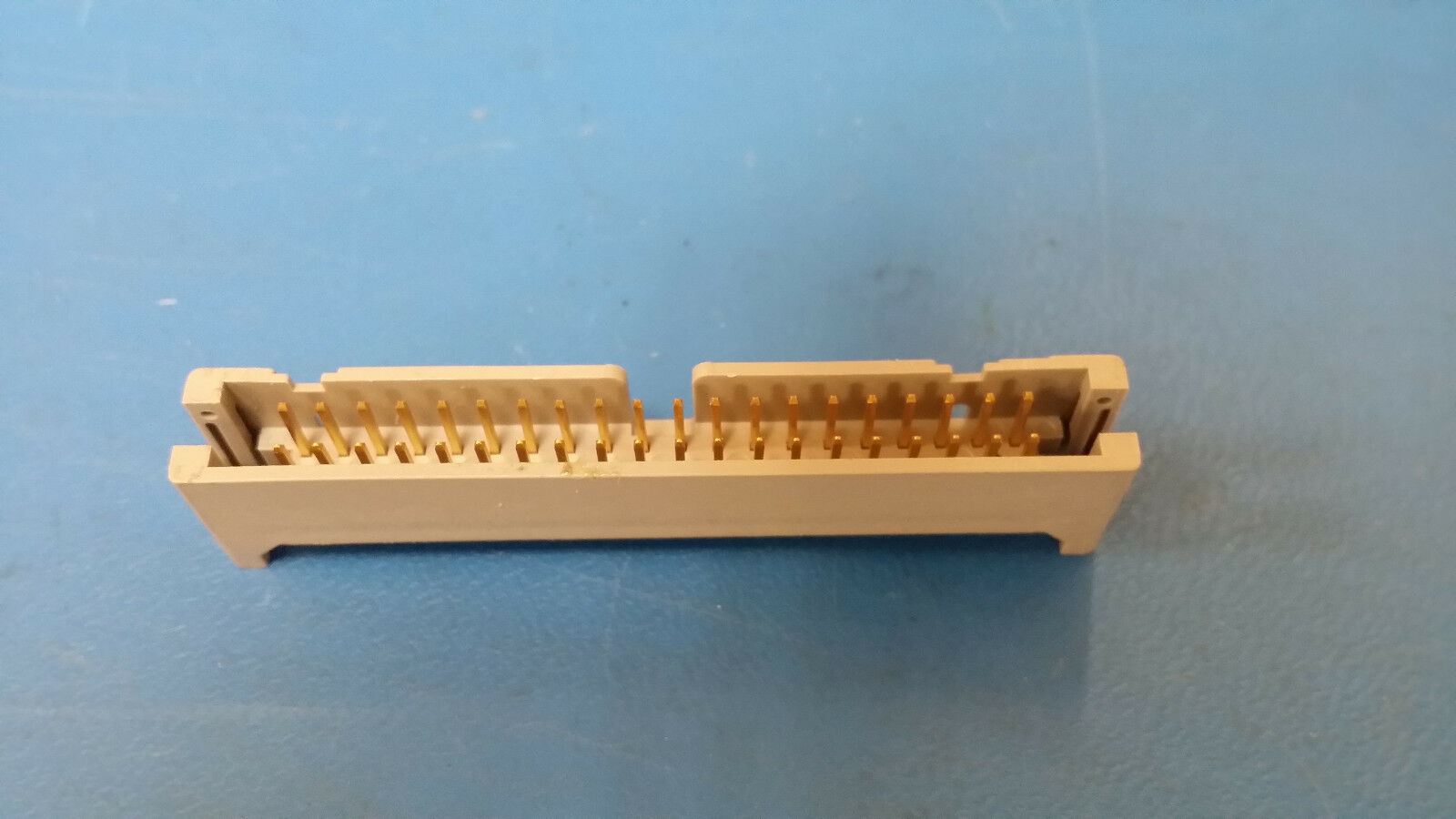

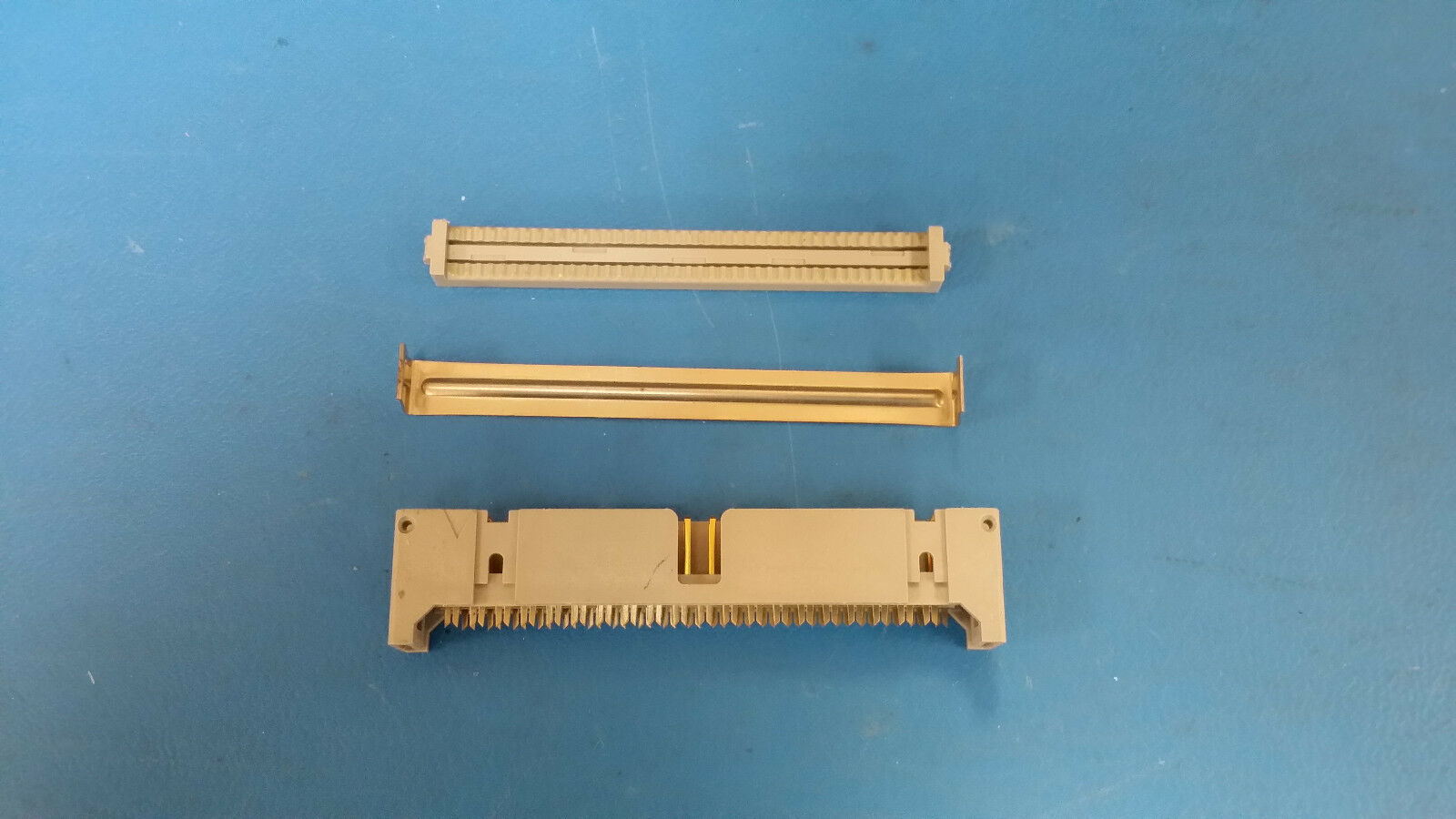

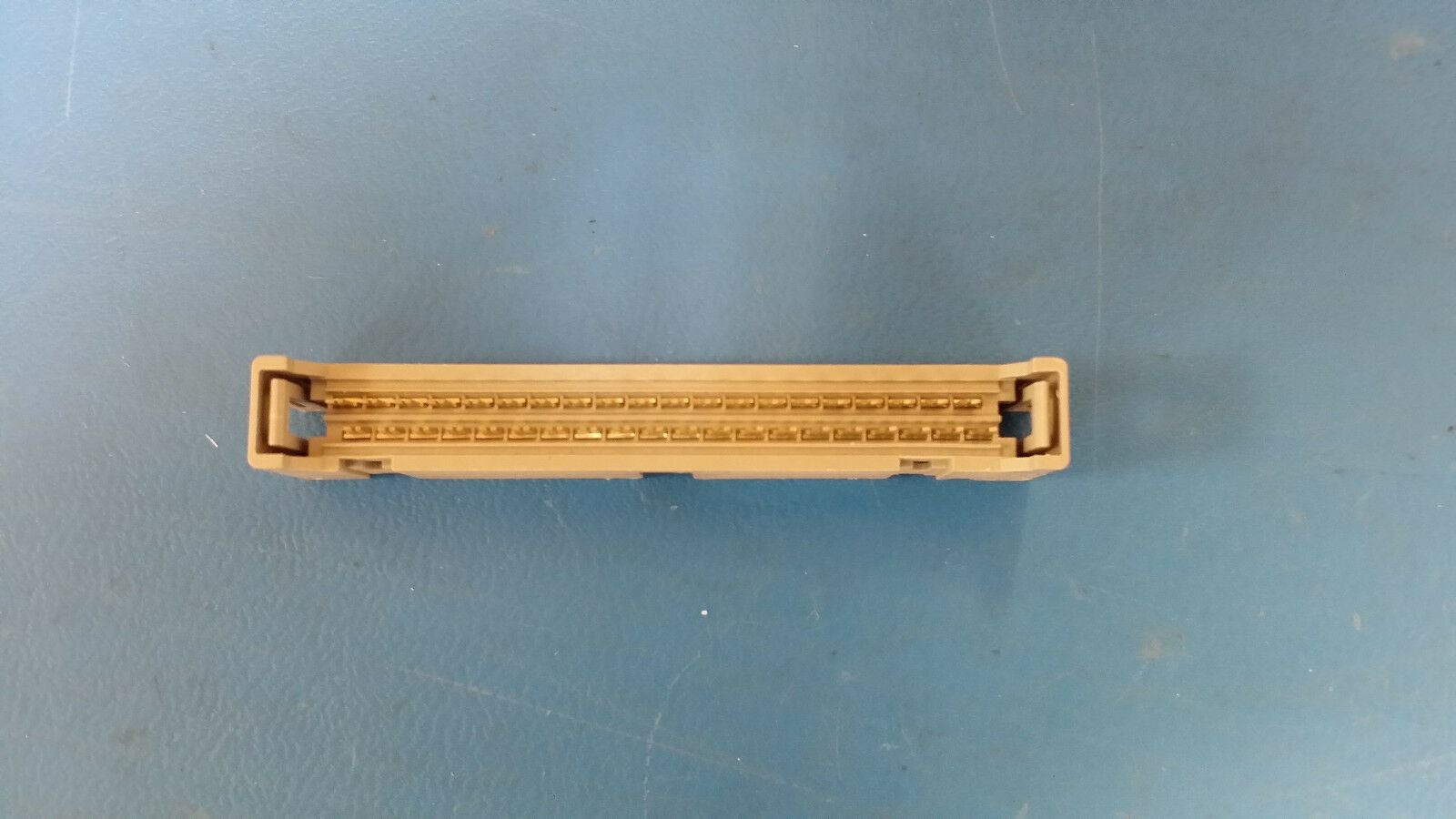

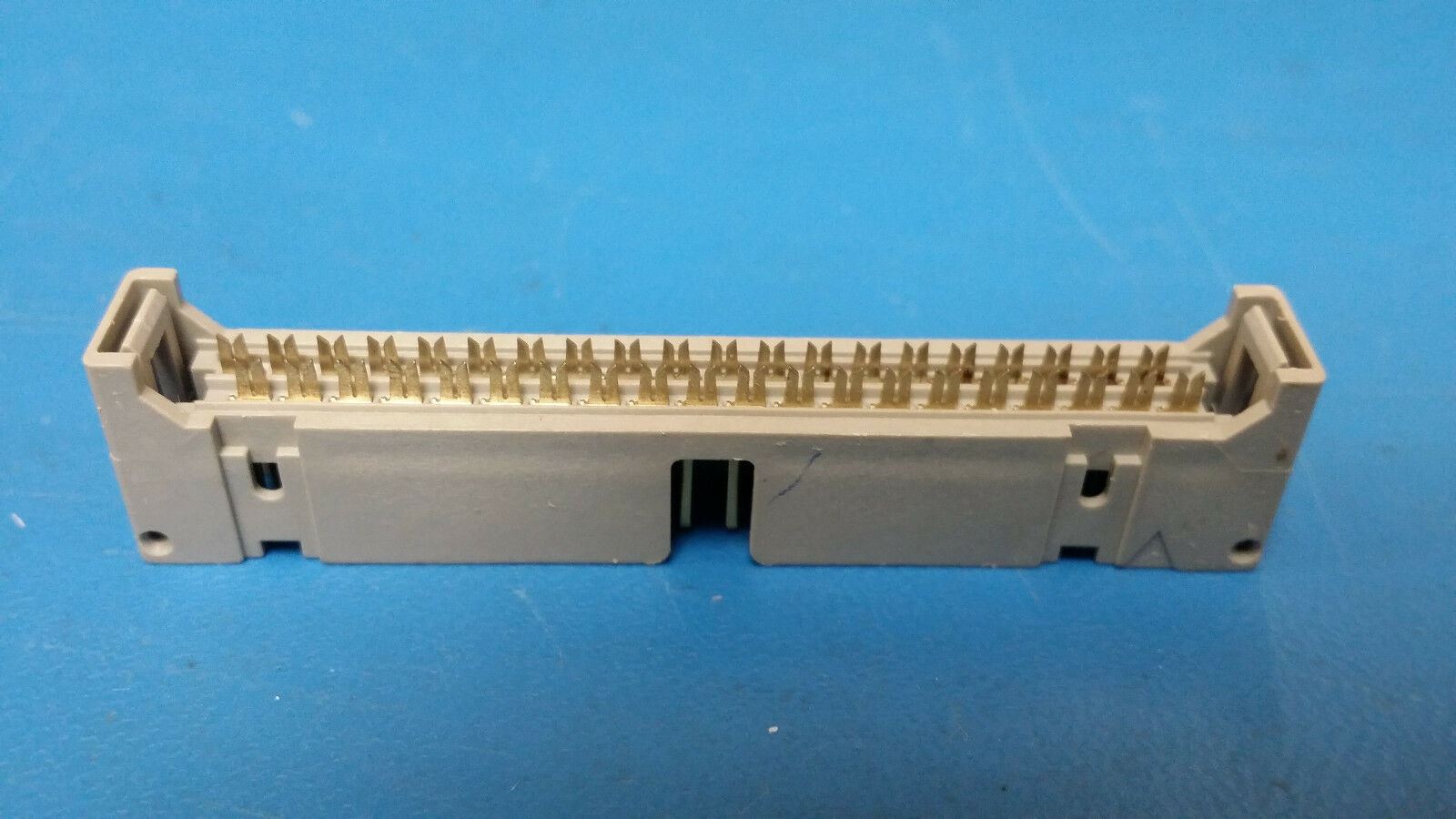

(1 PC) 4640-6001 3M CONNECTOR 40 PIN OPEN END PLUG IDC SHROUDED HEADER
Tax included.
THIS LISTING IS FOR (1 PC) OF 4640-6001 BY 3M
CONNECTOR 40 PIN OPEN END PLUG IDC SHROUDED HEADER
Manufacturer:
CONNECTOR 40 PIN OPEN END PLUG IDC SHROUDED HEADER
Manufacturer:
| 3M | ||
| Product Category: | Headers & Wire Housings | |
| Product: | Headers | |
| Type: | Ribbon Cable | |
| Number of Positions: | 40 Position | |
| Pitch: | 2.54 mm | |
| Number of Rows: | 2 Row | |
| Mounting Style: | Cable | |
| Termination Style: | IDC | |
| Mounting Angle: | Straight | |
| Contact Gender: | Pin (Male) | |
| Contact Plating: | Gold | |
| Accessory Type: | - |
|
| Application: | IDC, Wire to Wire |
|
| Brand: | 3M Electronic Solutions Division |
|
| Contact Material: | Copper Alloy |
|
| Contact Type: | - |
|
| Current Rating: | 1 A |
|
| Flammability Rating: | UL 94 V-0 |
|
| Housing Gender: | - |
|
| Housing Material: | Polyester |
|
| Insulation Resistance: | 1 GOhms |
|
| Latching Type: | Unlatched |
|
| Mating Post Length: | 6.1 mm |
|
| Operating Temperature Range: | - 55 C to + 105 C |
|
| Row Spacing: | 2.54 mm |
|
| Factory Pack Quantity: | 100 |
|
| Wire Gauge: | 28 AWG to 26 AWG |
