(1 PC) 4301.8052 Schurter KFA POWER ENTRY MODULE FILTER 4A
Tax included.
THIS LISTING IS FOR (1 PC) OF 4301.8052 BY Schurter
KFA POWER ENTRY MODULE FILTER 4A
Manufacturer Schurter Inc.
Series KFA
Packaging Bulk
Part Status Active

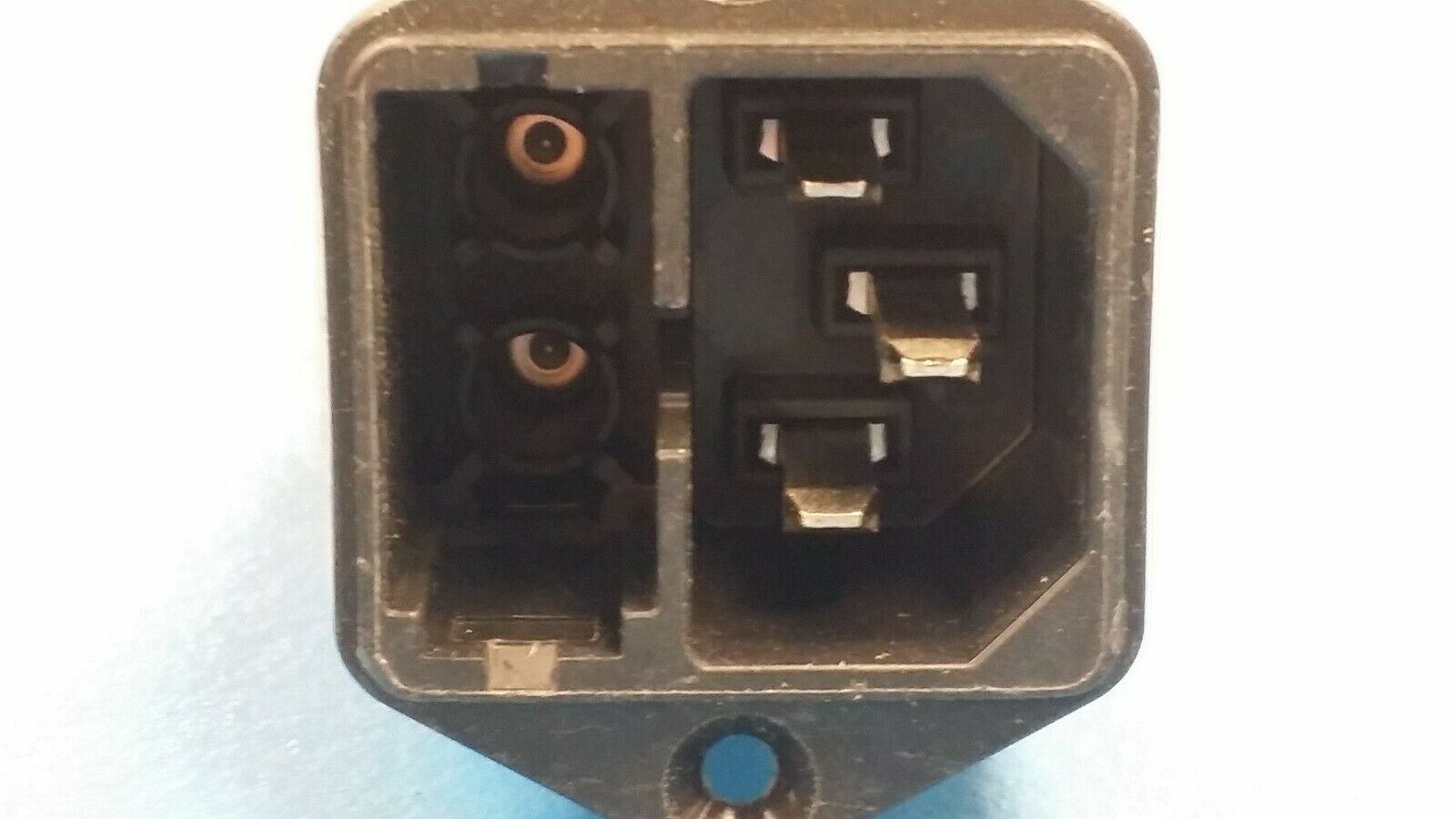

Connector Style IEC 320-C14
Connector Type Receptacle, Male Blades - Module
Current - IEC 4A
Voltage - IEC 250VAC
Current - UL 4A
Voltage - UL 125VAC
Filter Type Filtered (EMI, RFI) - Commercial
Accomodates a Fuse Yes (Fuse Not Included)
Number of Positions 3
Mounting Type Panel Mount, Flange

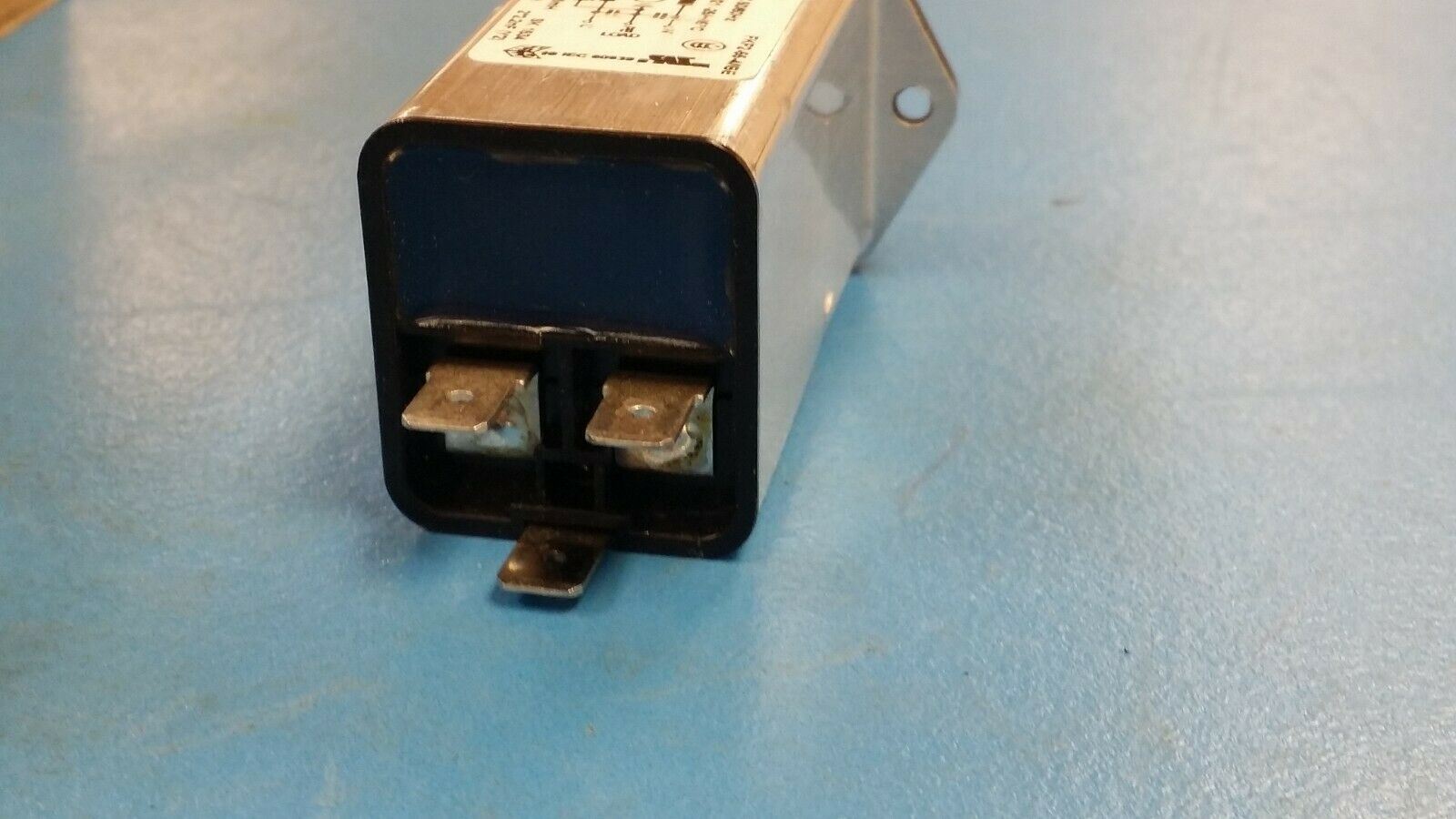

Termination Quick Connect - 0.250" (6.3mm)
Switch Features -
Features -
Fuse Holder, Drawer Drawer Sold Separate
Panel Cutout Dimensions Rectangular - 29.00mm x 33.00mm
Panel Thickness -
Material Flammability Rating UL94 V-0
Ingress Protection IP40
Approval Agency CCC, cULus, ENEC
