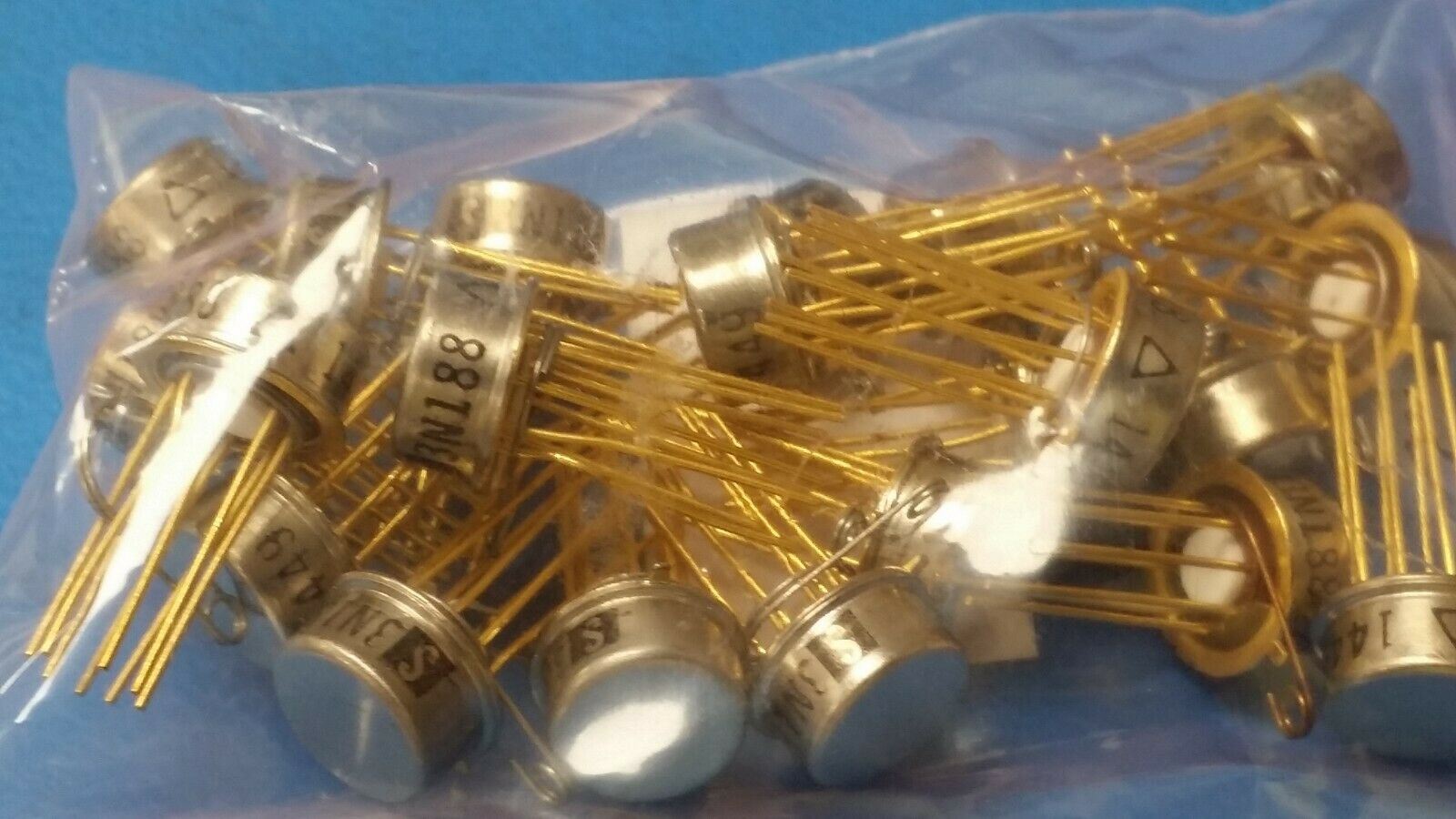

(1 PC) 3N188 MOSFET Transistor 0.05A 2-Element P-Channel Silicon TO-99
Tax included.

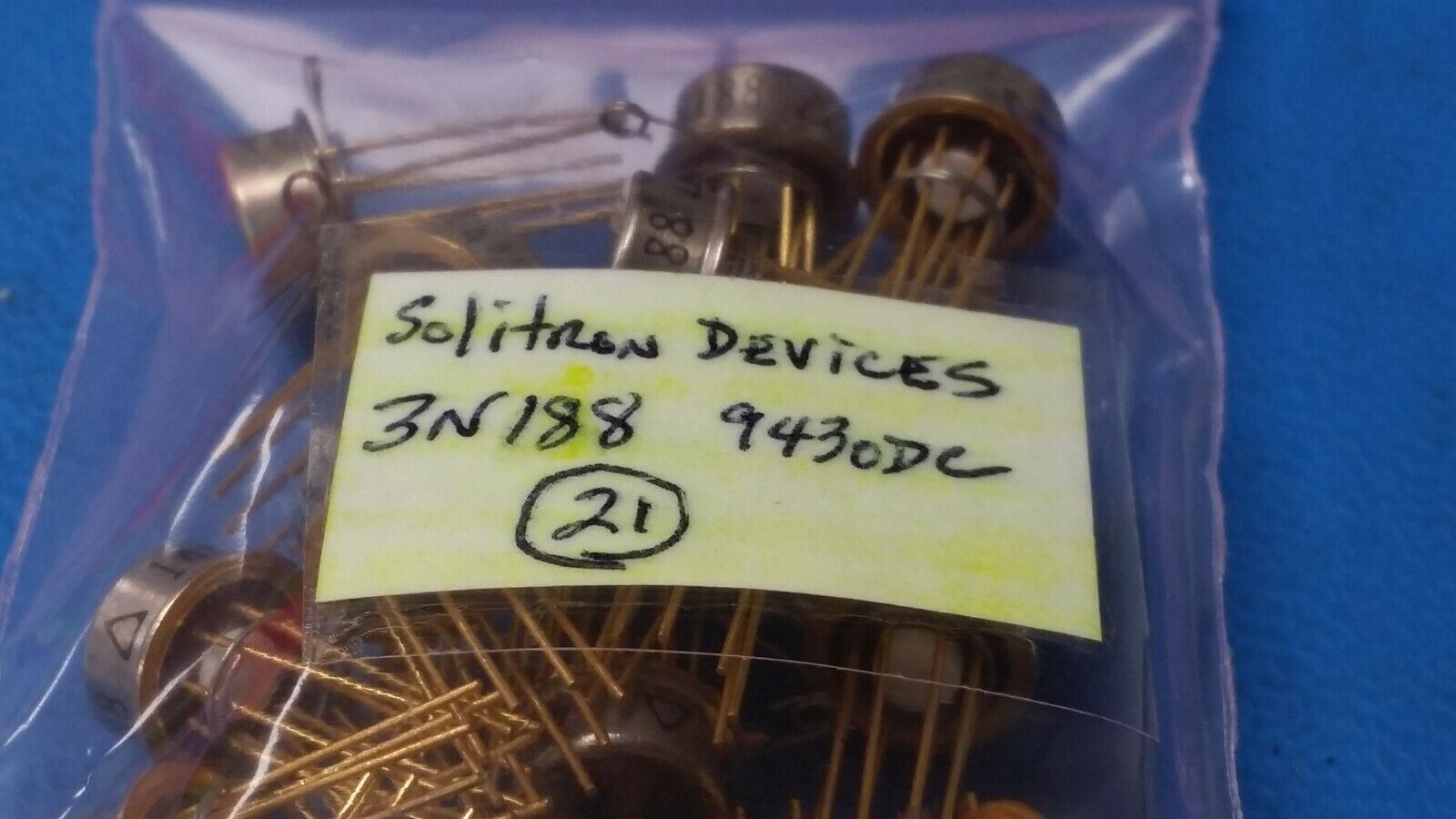

THIS IS FOR (1 PC) OF 3N188 BY SOLITRO
MOSFET Transistor 0.05A 2-Element P-Channel Silicon TO-99
Part #: 3N188
Part Category: Transistors
Manufacturer: Solitron Devices, Inc.
Description: Small Signal Field-Effect Transistor, 0.05A I(D), 2-Element, P-Channel, Silicon, Metal-oxide Semiconductor FET, TO-99
Status Active-Unconfirmed
Configuration SEPARATE, 2 ELEMENTS
Drain Current-Max (Abs) (ID) 0.05 A
Drain Current-Max (ID) 0.05 A
FET Technology METAL-OXIDE SEMICONDUCTOR
JEDEC-95 Code TO-99
JESD-30 Code O-MBCY-W8
Number of Elements 2.0
Number of Terminals 8
Operating Mode ENHANCEMENT MODE
Operating Temperature-Max 200.0 Cel
Package Body Material METAL
Package Shape ROUND
Package Style CYLINDRICAL
Peak Reflow Temperature (Cel) NOT SPECIFIED
Polarity/Channel Type P-CHANNEL
Power Dissipation-Max (Abs) 0.3 W
Qualification Status Not Qualified
Sub Category Other Transistors
Surface Mount NO
Terminal Form WIRE
Terminal Position BOTTOM
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Transistor Element Material SILICON
