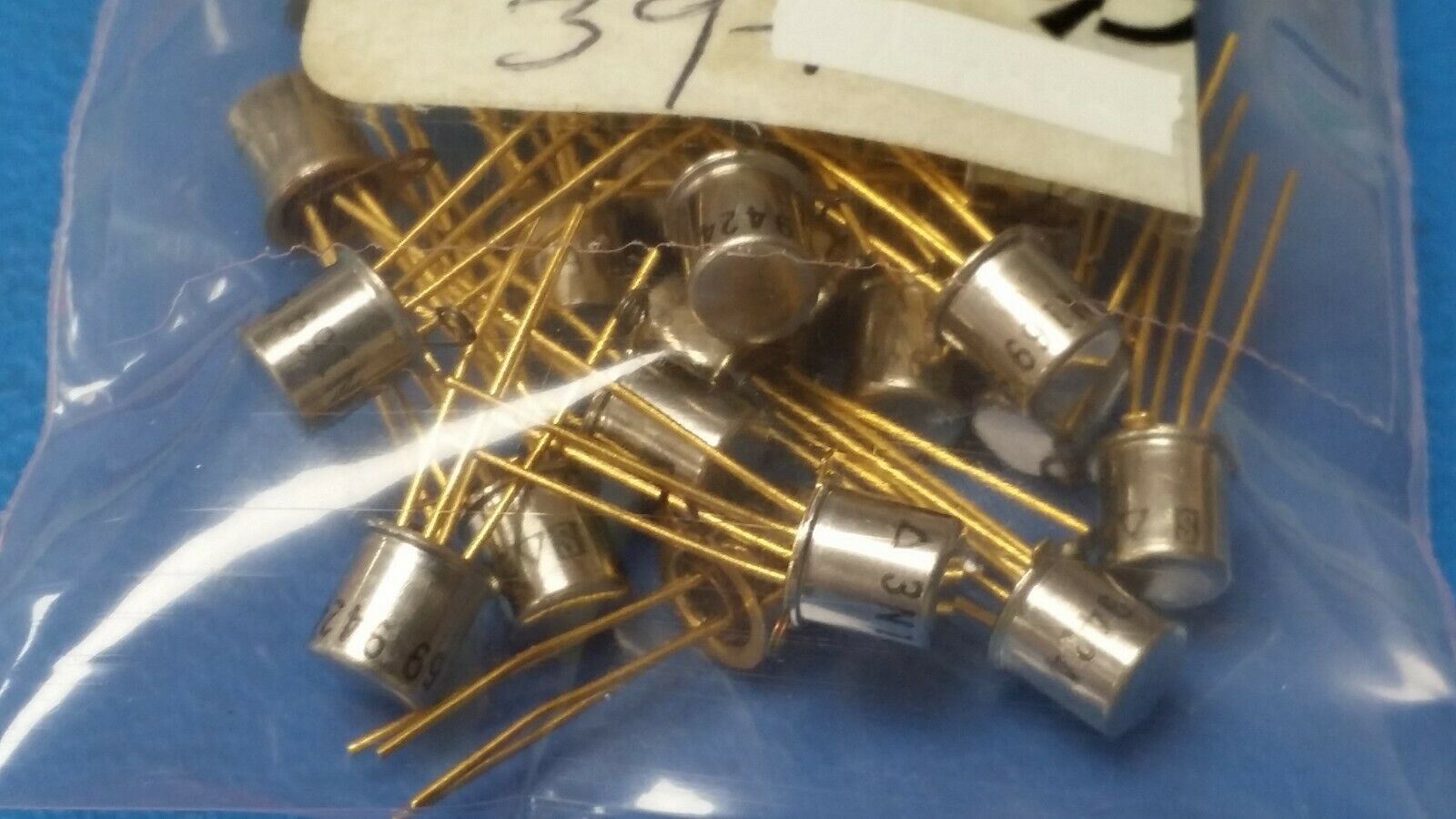

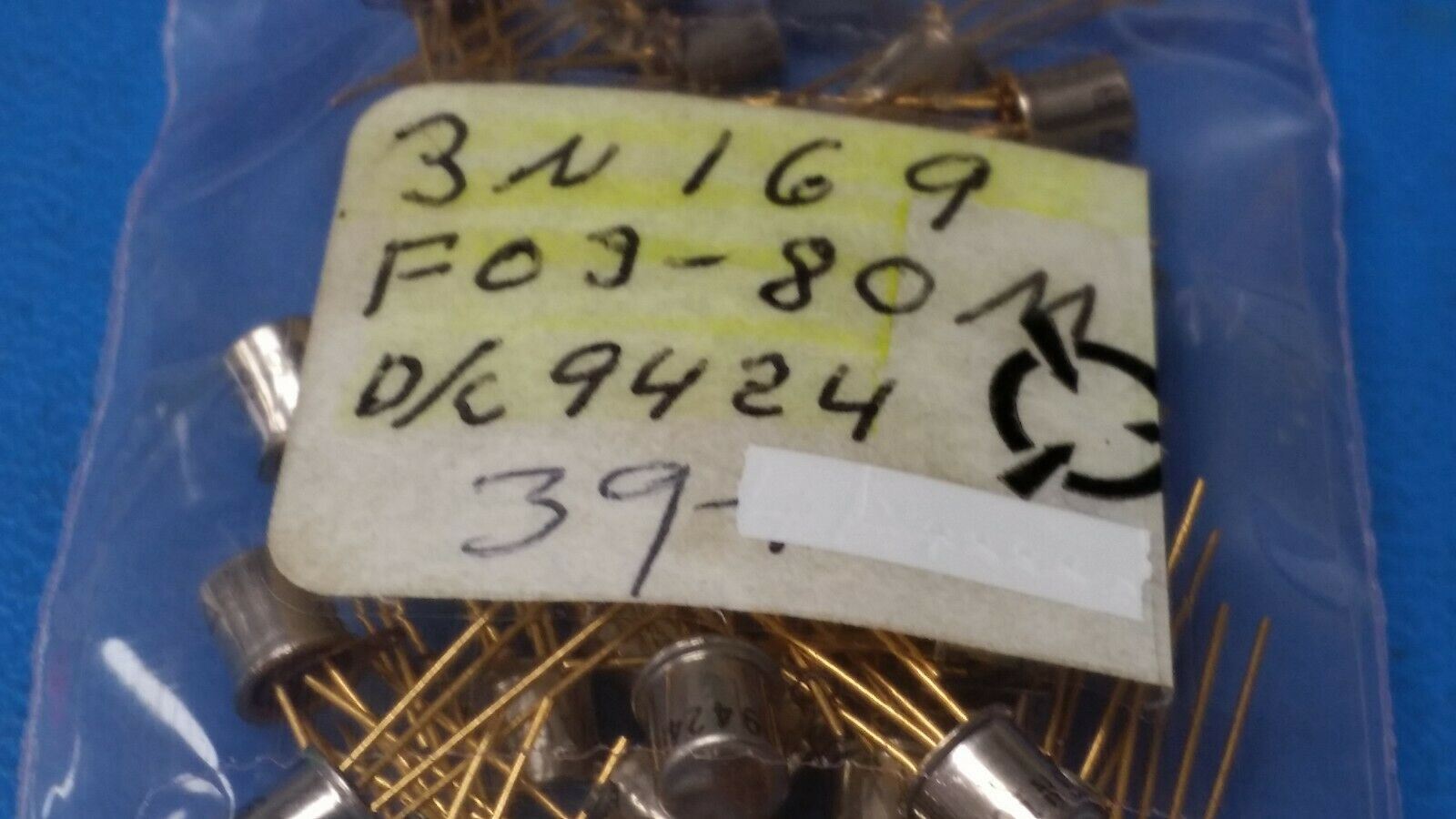

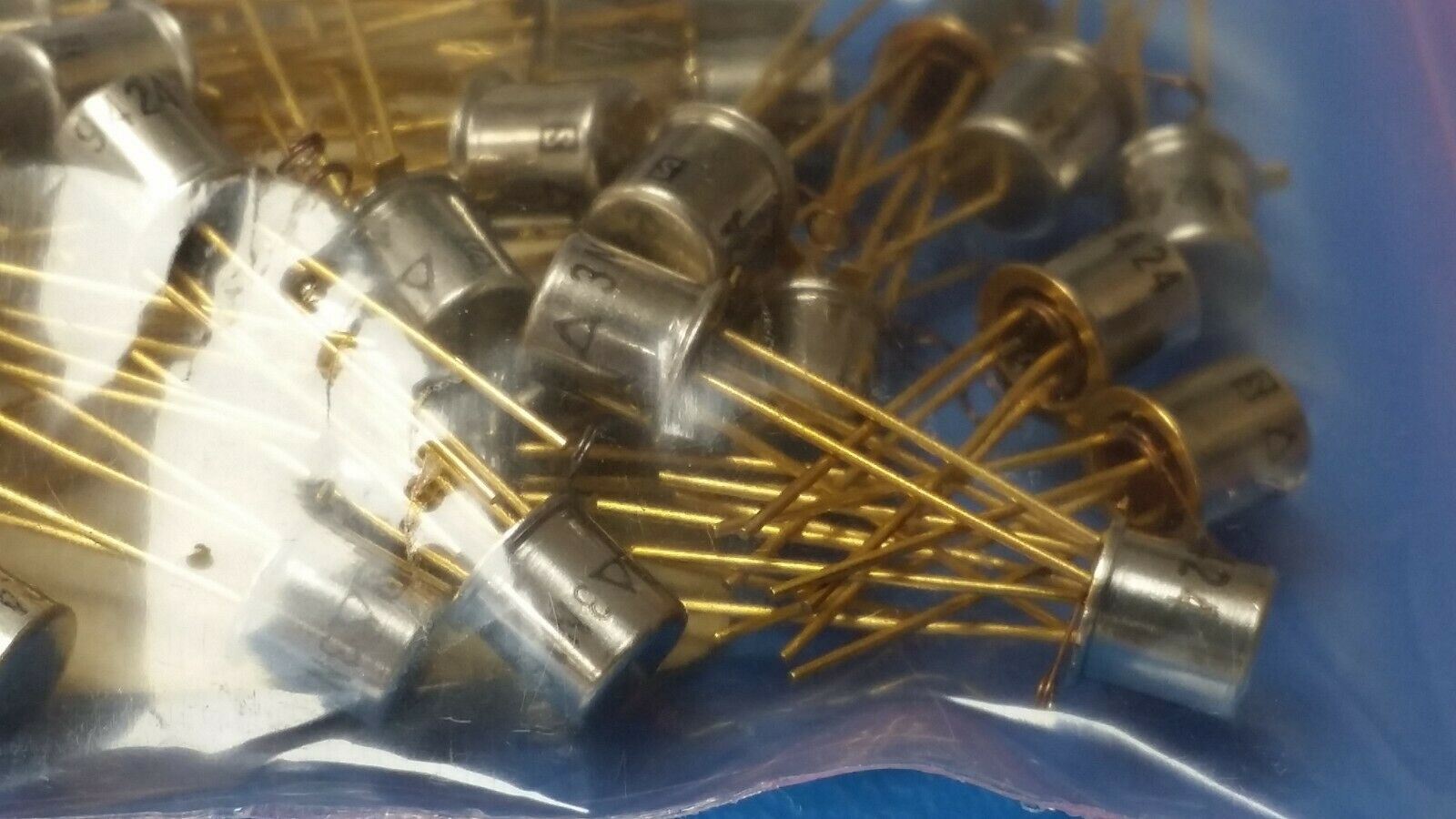

(1 PC) 3N169 MOSFET Transistor 0.03A 25V 1-Element N-Channel Silicon TO-72
(1 PC) 3N169 MOSFET Transistor 0.03A 25V 1-Element N-Channel Silicon TO-72
(1 PC) 3N169 MOSFET Transistor 0.03A 25V 1-Element N-Channel Silicon TO-72

(1 PC) 3N169 MOSFET Transistor 0.03A 25V 1-Element N-Channel Silicon TO-72

Tax included.
Only 36 left!
THIS IS FOR (1 PC) OF 3N169 MOSFET BY SOLITRON
MOSFET Transistor 0.03A 25V 1-Element N-Channel Silicon TO-72

Part #: 3N169
Part Category: Transistors
Manufacturer: Solitron Devices, Inc.
Description: Small Signal Field-Effect Transistor, 0.03A I(D), 25V, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-72

Status Active-Unconfirmed
Configuration SINGLE
Drain Current-Max (Abs) (ID) 0.03  A
Drain Current-Max (ID) 0.03  A
Drain-source On Resistance-Max 100.0  ohm
DS Breakdown Voltage-Min 25.0  V
Feedback Cap-Max (Crss) 1.3  pF
FET Technology METAL-OXIDE SEMICONDUCTOR
JEDEC-95 Code TO-72
JESD-30 Code O-MBCY-W4
Number of Elements 1.0
Number of Terminals 4
Operating Mode ENHANCEMENT MODE
Operating Temperature-Max 200.0  Cel
Package Body Material METAL
Package Shape ROUND
Package Style CYLINDRICAL
Peak Reflow Temperature (Cel) NOT SPECIFIED
Polarity/Channel Type N-CHANNEL
Power Dissipation-Max (Abs) 0.8  W
Qualification Status Not Qualified
Sub Category FET General Purpose Power
Surface Mount NO
Terminal Form WIRE
Terminal Position BOTTOM
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Transistor Element Material SILICON
