(1 PC) 3N164 SOLITRON MOSFET P-Channel 30 V 50mA (Ta) 375mW (Ta) TO-72-4
(1 PC) 3N164 SOLITRON MOSFET P-Channel 30 V 50mA (Ta) 375mW (Ta) TO-72-4

(1 PC) 3N164 SOLITRON MOSFET P-Channel 30 V 50mA (Ta) 375mW (Ta) TO-72-4

Tax included.
Only 46 left!

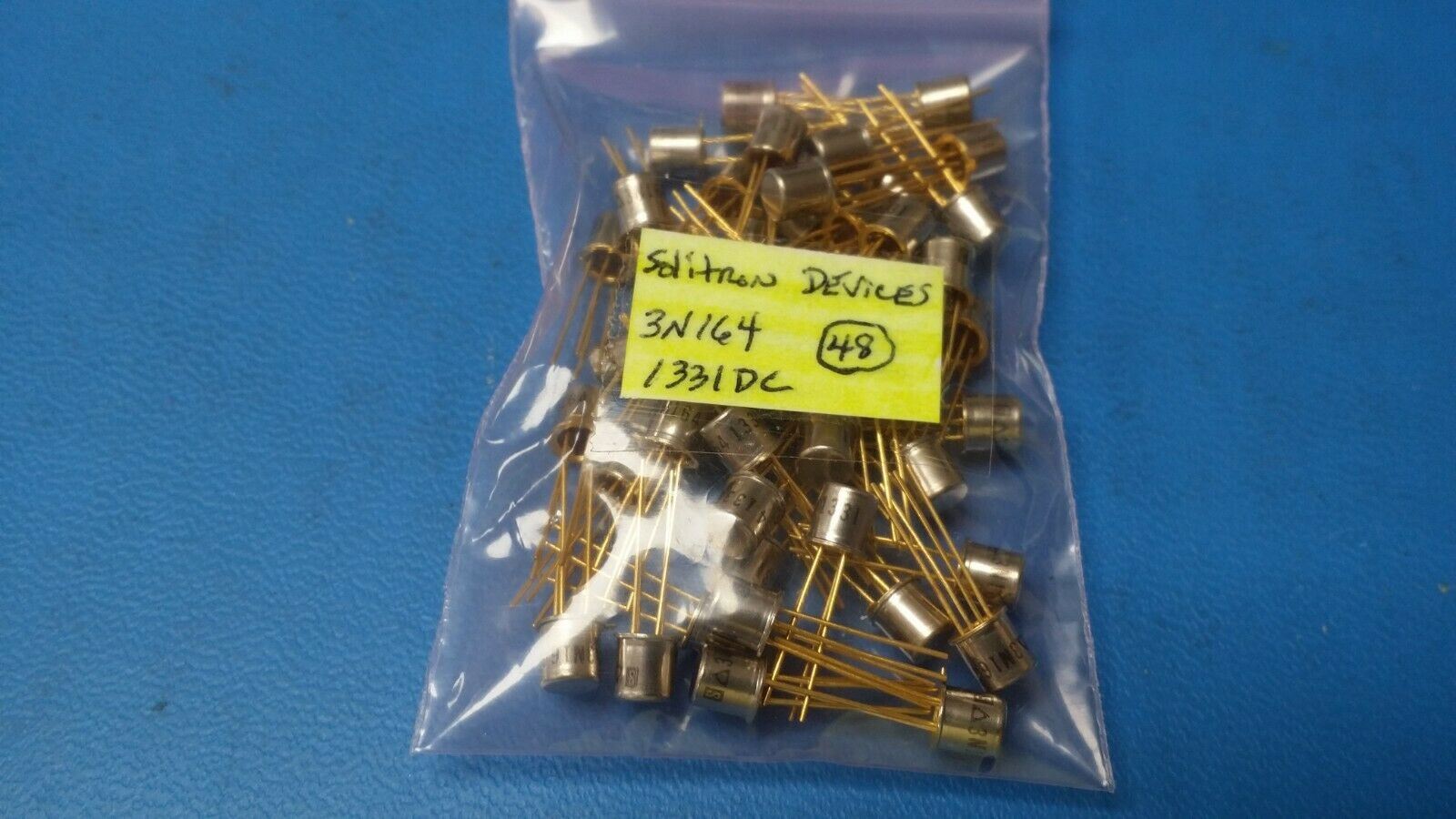

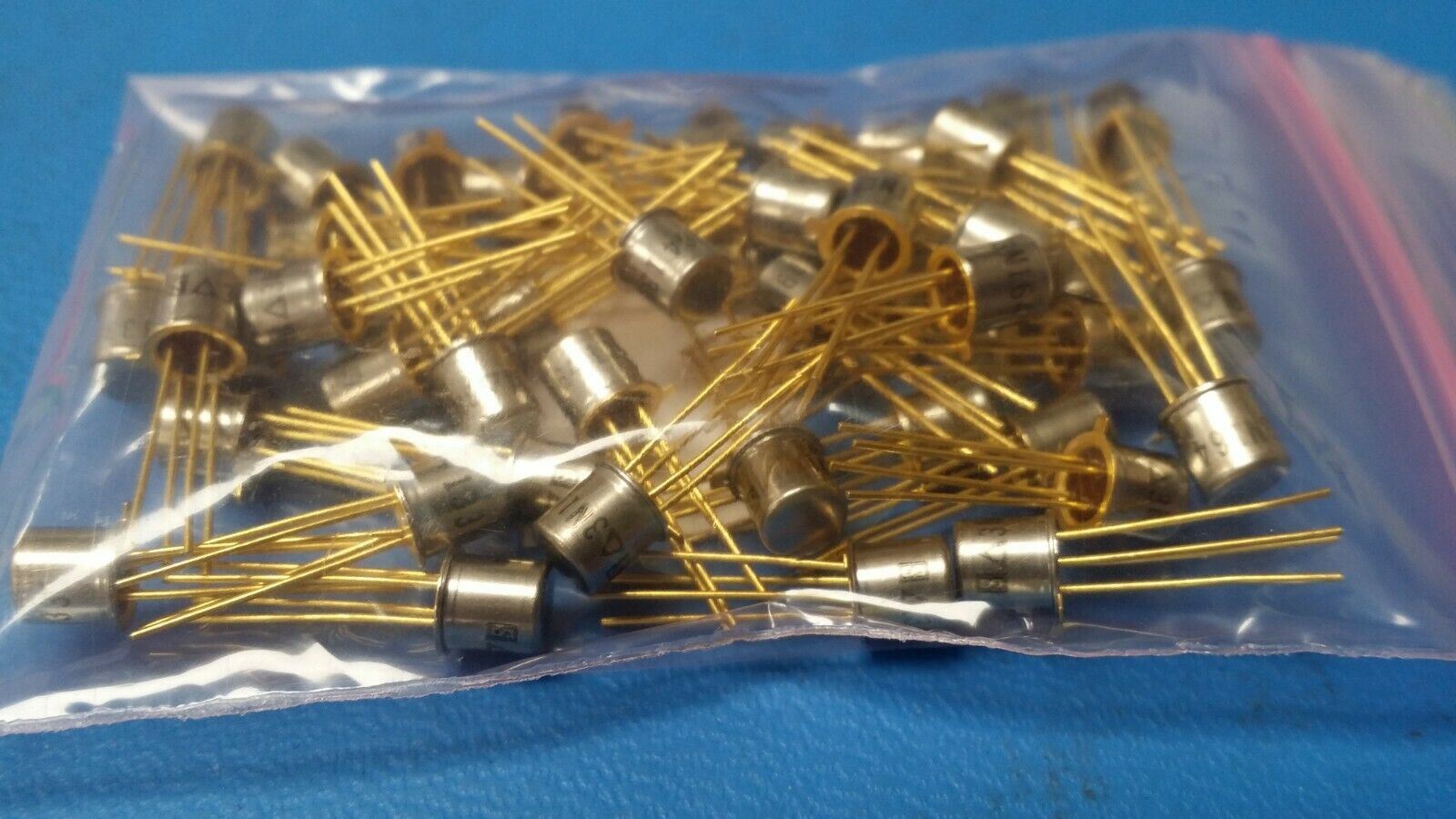

THIS IS FOR (1 PC) OF 3N164 BY SOLITRON
MOSFET P-Channel 30 V 50mA (Ta) 375mW (Ta) TO-72-4

Part #: 3N164
Part Category: Transistors
Manufacturer: Solitron Devices, Inc.
Description: Small Signal Field-Effect Transistor, 0.05A I(D), 30V, 1-Element, P-Channel, Silicon, Metal-oxide Semiconductor FET, TO-72

Status Active-Unconfirmed
Configuration SINGLE
Drain Current-Max (Abs) (ID) 0.05  A
Drain Current-Max (ID) 0.05  A
Drain-source On Resistance-Max 3000.0  ohm
DS Breakdown Voltage-Min 30.0  V
Feedback Cap-Max (Crss) 0.7  pF
FET Technology METAL-OXIDE SEMICONDUCTOR
JEDEC-95 Code TO-72
JESD-30 Code O-MBCY-W4
Number of Elements 1.0
Number of Terminals 4
Operating Mode ENHANCEMENT MODE
Operating Temperature-Max 200.0  Cel
Package Body Material METAL
Package Shape ROUND
Package Style CYLINDRICAL
Peak Reflow Temperature (Cel) NOT SPECIFIED
Polarity/Channel Type P-CHANNEL
Power Dissipation-Max (Abs) 0.375  W
Qualification Status Not Qualified
Sub Category Other Transistors
Surface Mount NO
Terminal Form WIRE
Terminal Position BOTTOM
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Transistor Element Material SILICON
