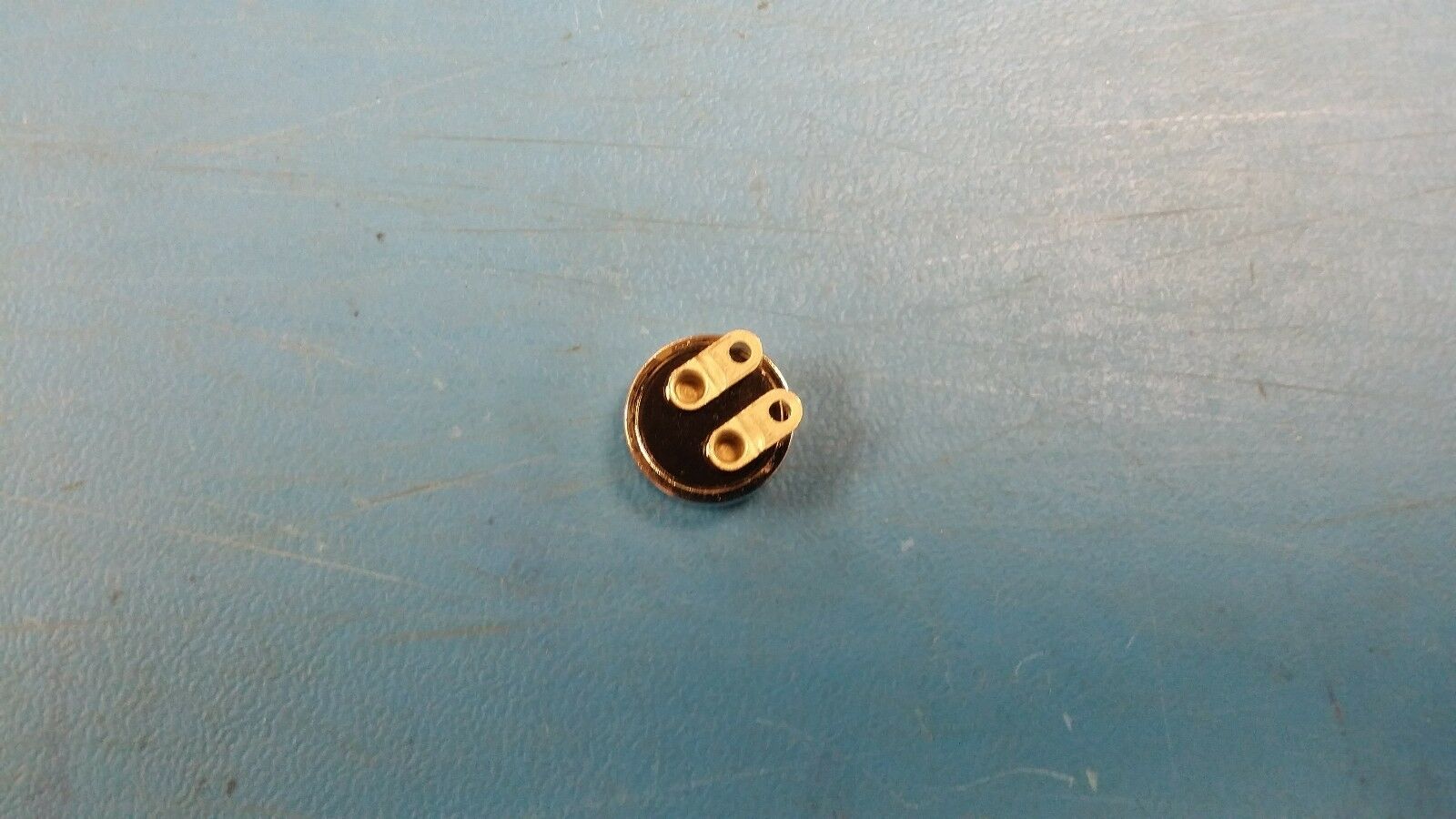

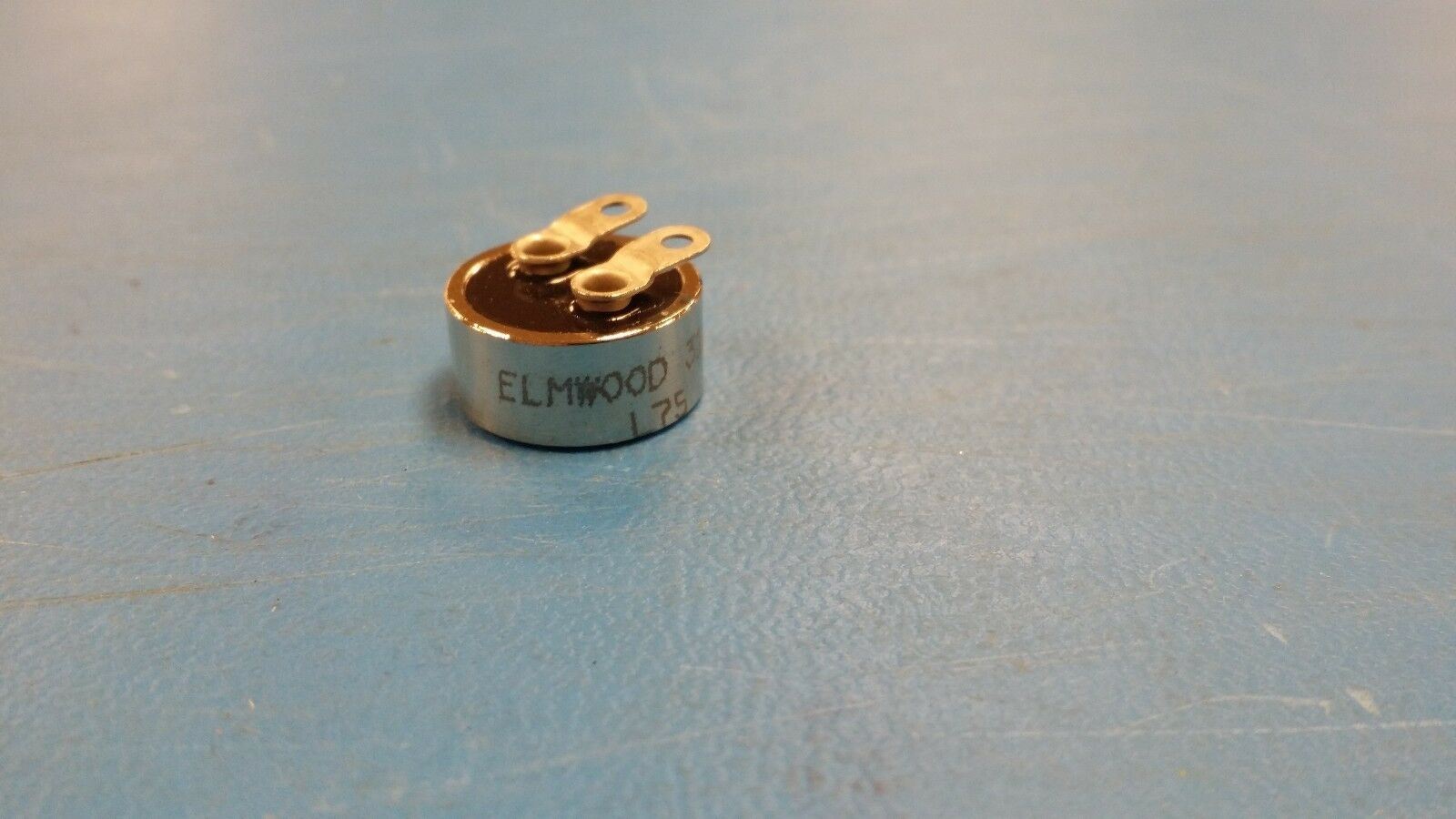

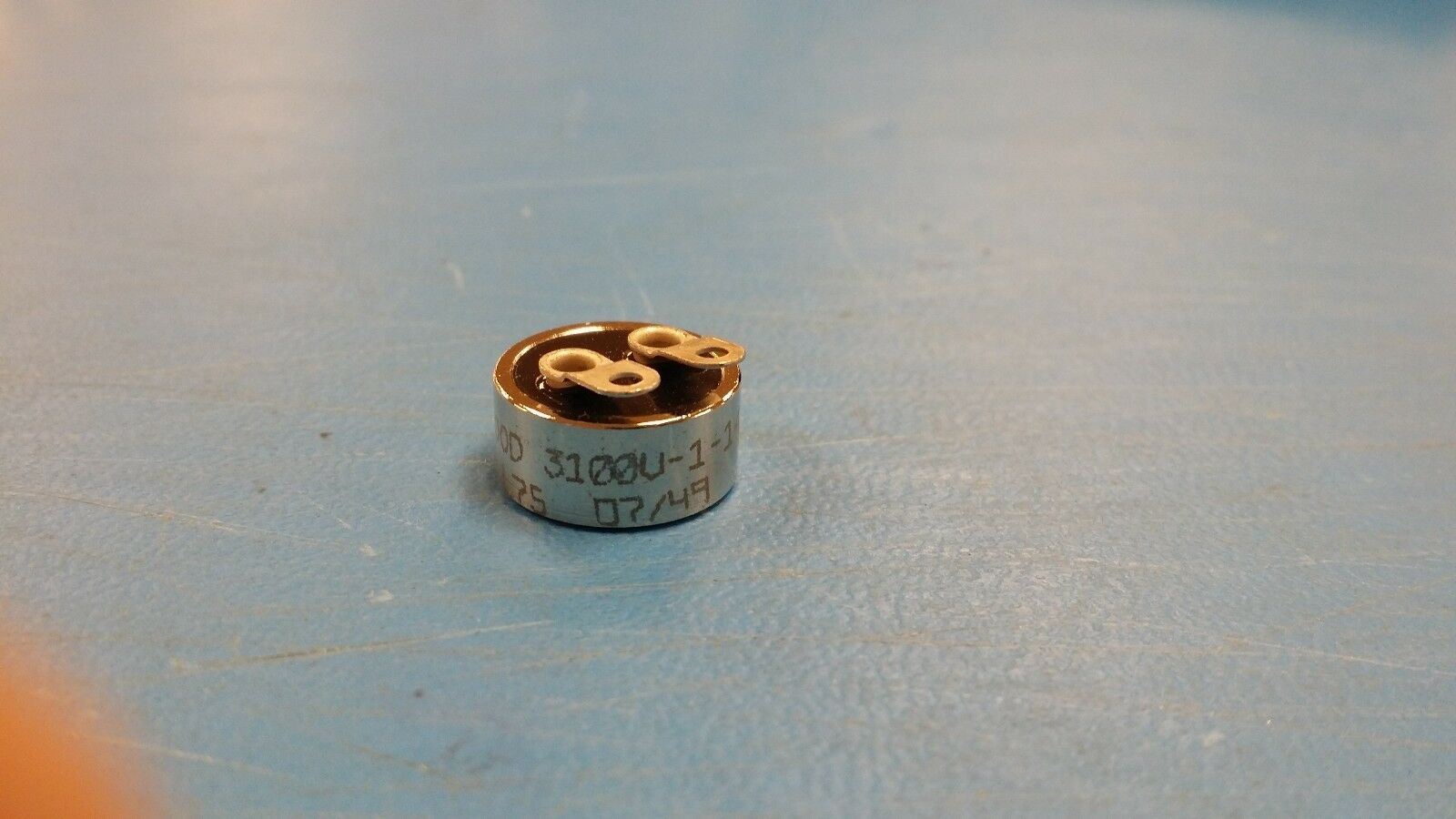

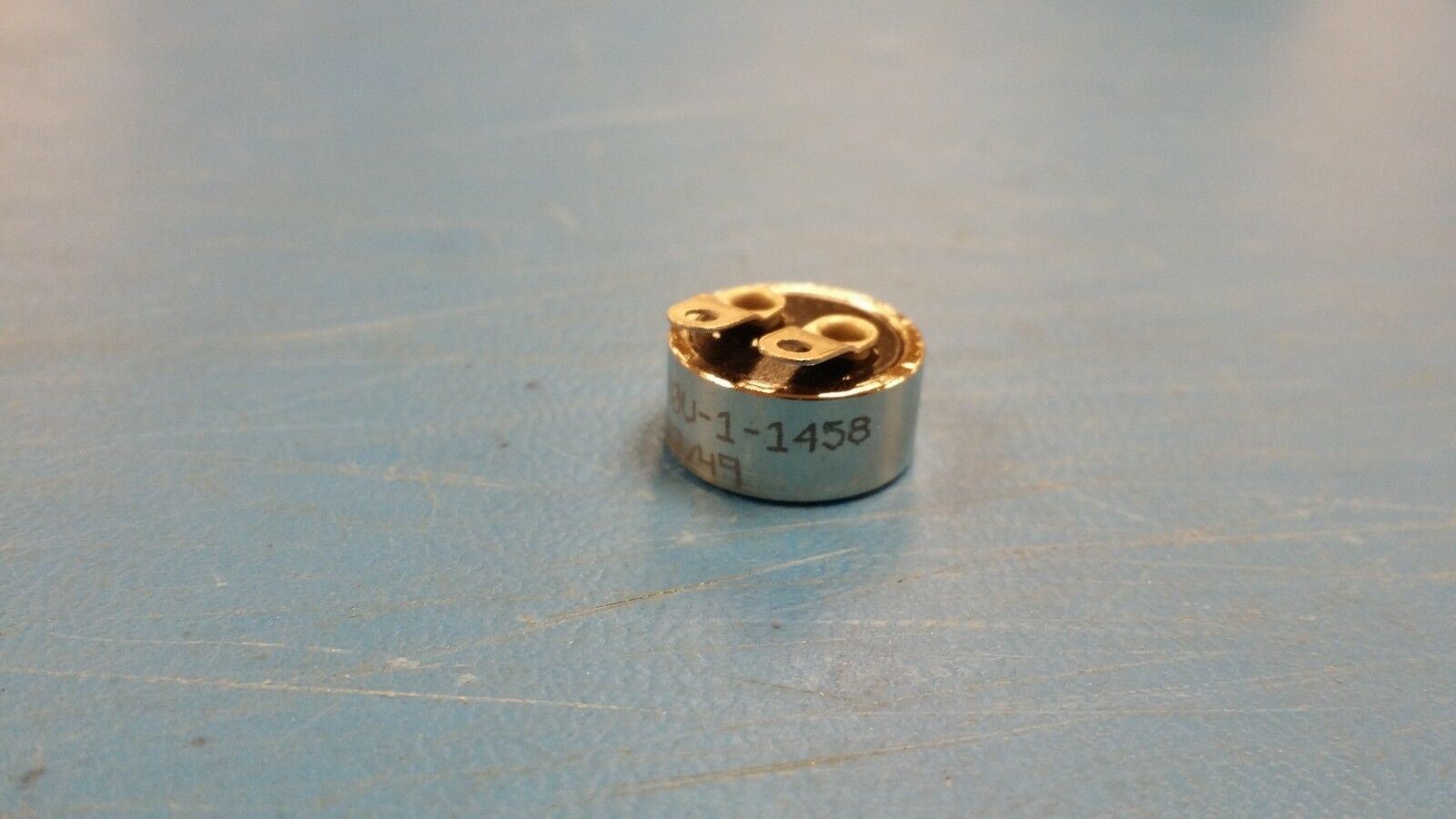

(1 PC) 3100U00011458 Hermetic Thermostat Automatic Reset Open on Rise 2-Pin
Tax included.
THIS LISTING IS FOR (1 PC) OF 3100U00011458 BY HONEYWELL SEISING & CONTROLS
Hermetic Thermostat Automatic Reset Open on Rise 2-Pin
Product Specifications
Functional Properties Open on rise
Reset Type Automatic
Amperage 3 A resistive max.
Voltage 120 Vac
Operating Temperature -29 °C to 260 °C [-20 °F to 500 °F]
Environmental
Exposure Range -62 °C to 288 °C [-80 °F to 550 °F]
Open Temperature 28.9 °C [75 °F]
Close Temperature 18.3 °C [65 °F]
Open Tolerance 2.8 °C [5 °F]
Close Tolerance 2.8 °C [5 °F]
Dielectric Strength MIL-STD-202, Method 301; 1250 Vac 60 Hz - Terminal to Case
Insulation Resistance MIL-STD-202, Method 302; Cond. B - 500 MOhm - 500 Vdc applied
Contact Resistance MIL-STD-202, Method 307; 0.050 Ohm
Hermetic Seal MIL-STD-202, Method 112; Cond. 1x10-5
Moisture Resistance MIL-STD-202, Method 106
Housing Material Steel housing hermetically sealed with glass-to-metal seal at terminal
junction
Contact Material Silver
Agency Approvals and
Standards UL
Mounting No bracket
Series Name 3100U
