(1 PC) 2N887 Unitrode, Silicon Controlled Rectifier, 0.35A, 350mA, 100V, TO-18
Tax included.

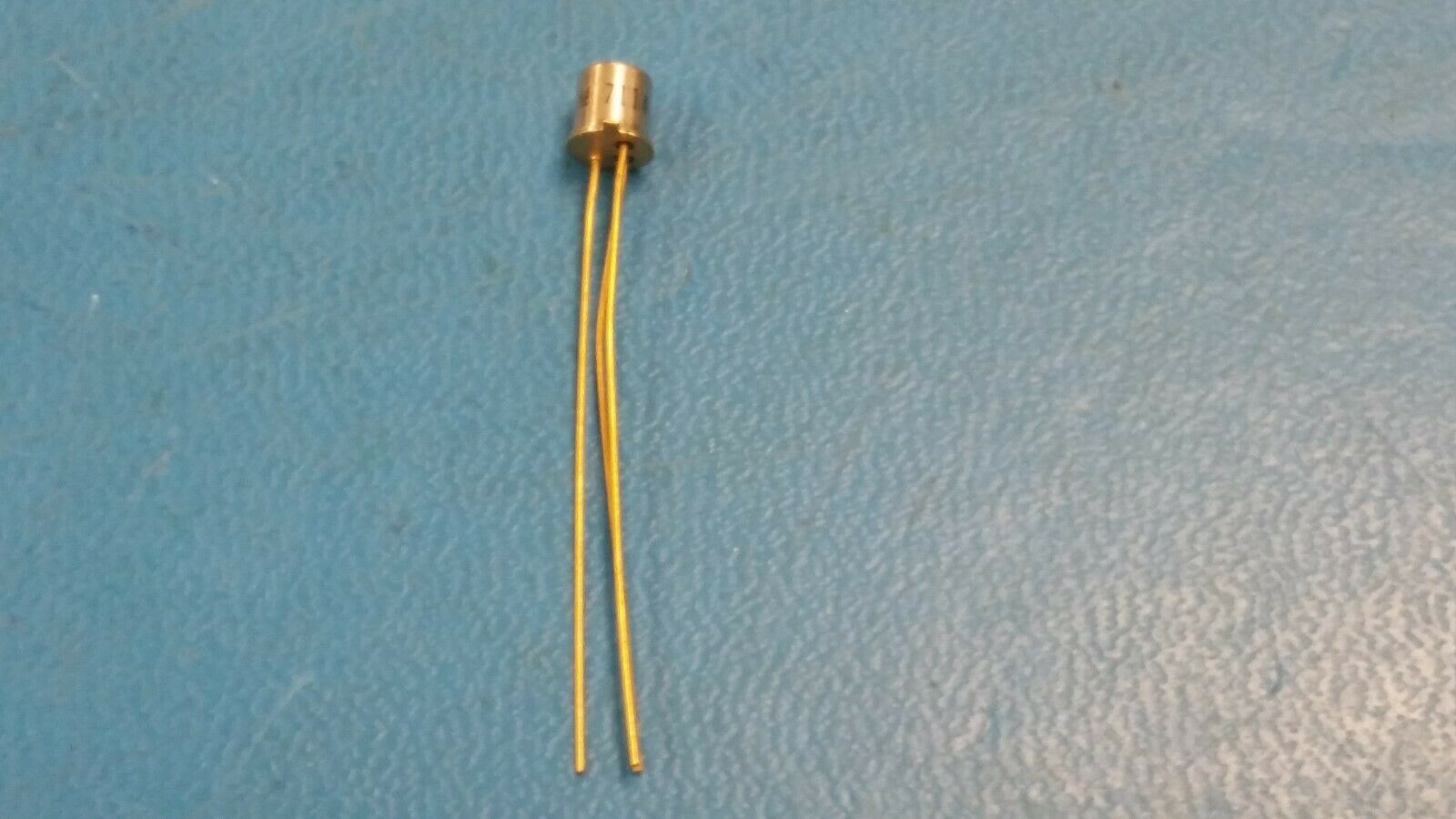

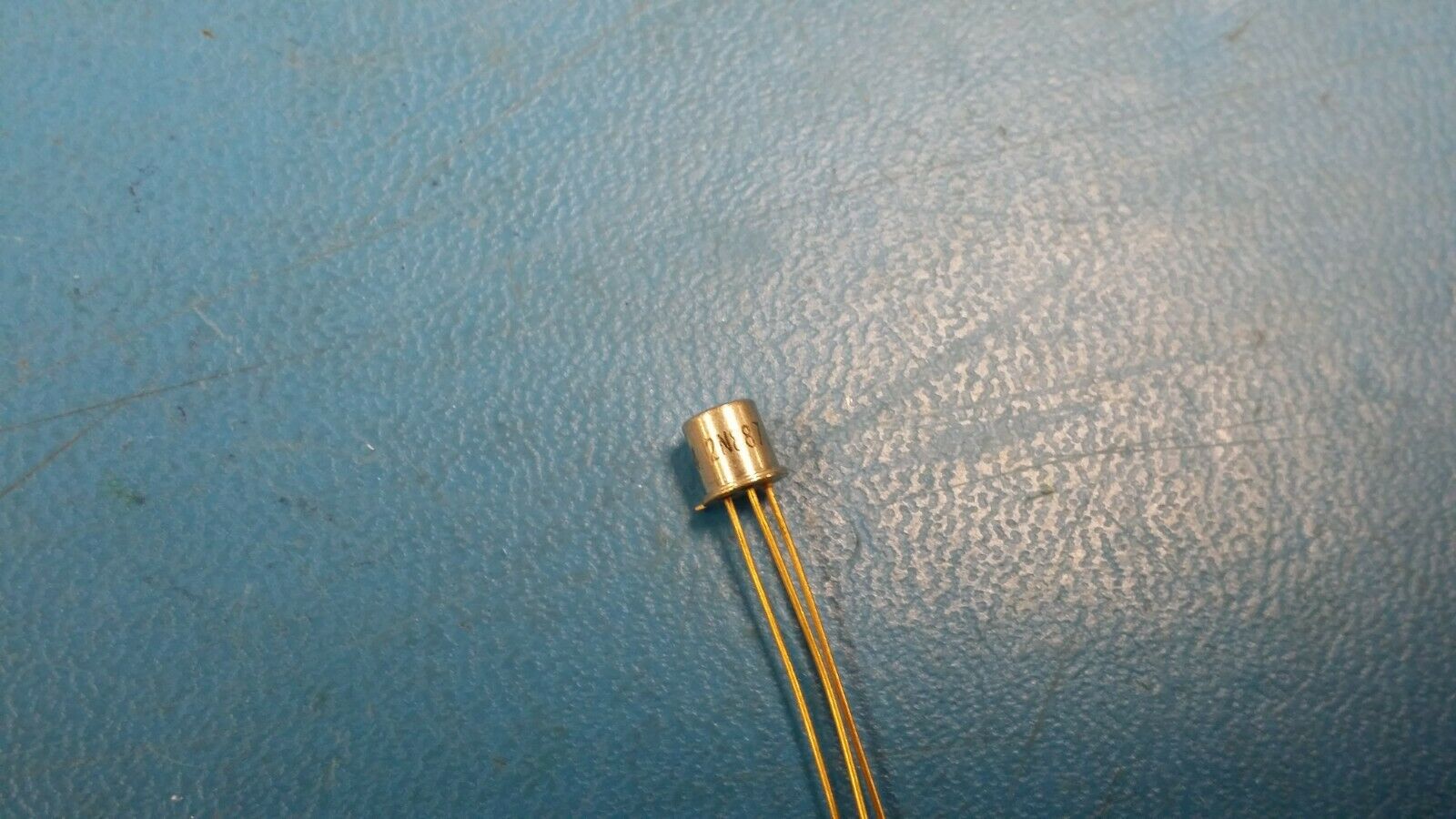

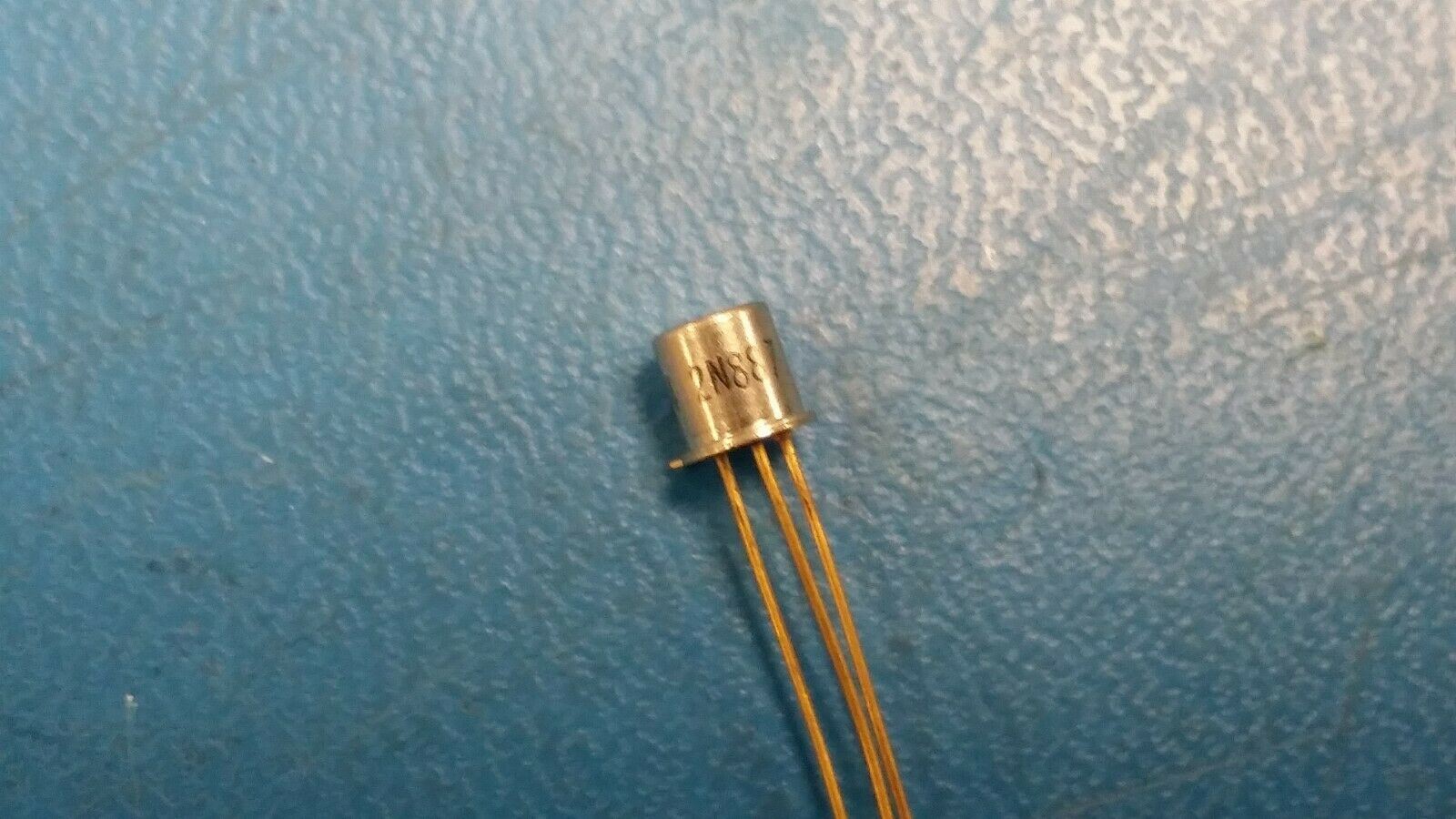

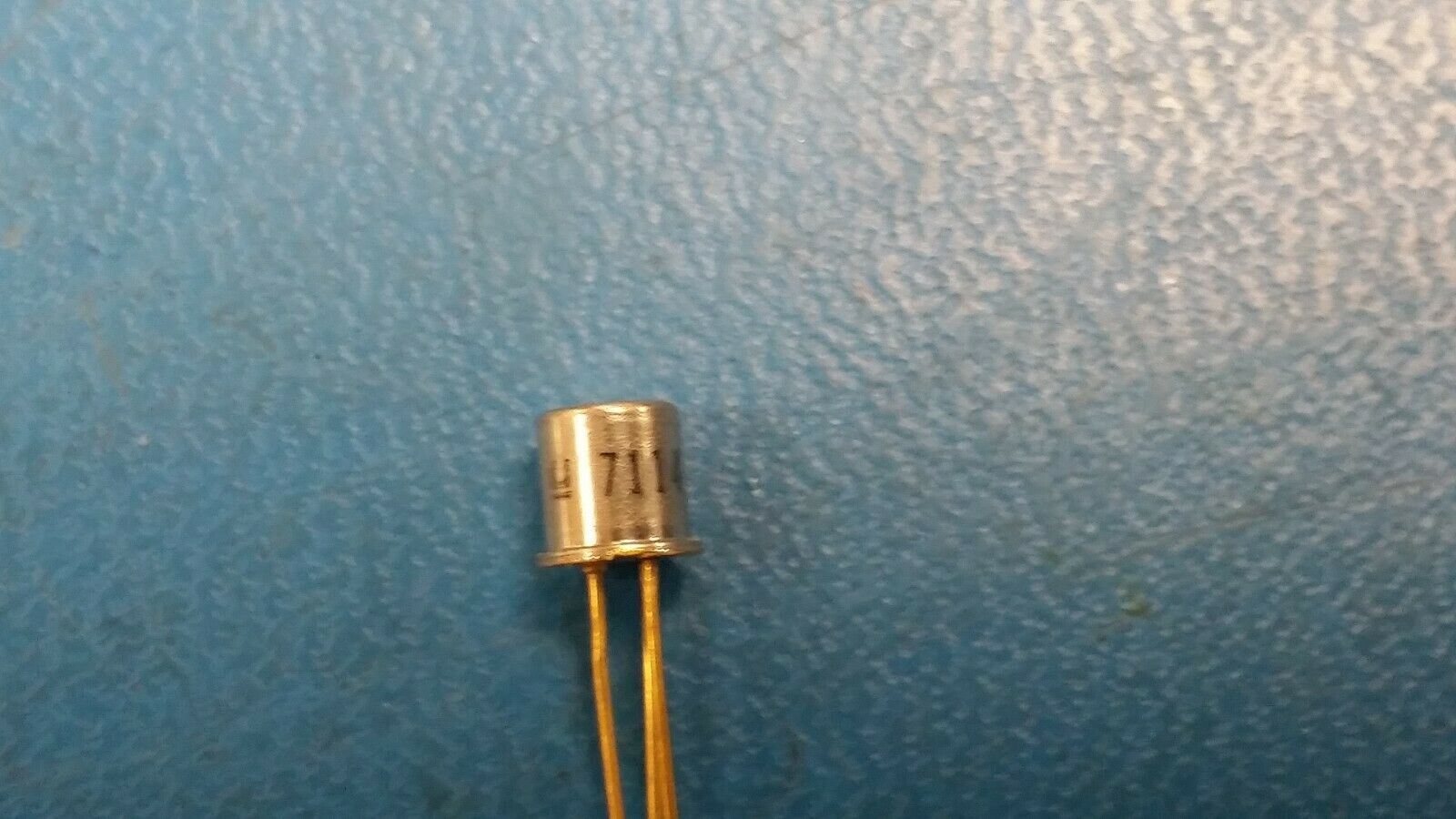

THIS LISTING IS FOR (1 PC) OF 2N887 BY Unitrode
Silicon Controlled Rectifier, 0.35A, 350mA, 100V, TO-18
Status Discontinued
Trigger Device Type SCR
Configuration SINGLE
DC Gate Trigger Current-Max 0.02 mA
DC Gate Trigger Voltage-Max 0.6 V
Holding Current-Max 1.0 mA
JEDEC-95 Code TO-18
JESD-30 Code O-MBCY-W3
Leakage Current-Max 0.02 mA
Non-Repetitive Pk On-state Cur 20.0 A
Number of Elements 1.0
Number of Terminals 3
Operating Temperature-Min -60.0 Cel
Operating Temperature-Max 150.0 Cel
Package Body Material METAL
Package Shape ROUND
Package Style CYLINDRICAL
Qualification Status Not Qualified
Repetitive Peak Off-state Voltage 100.0 V
Repetitive Peak Reverse Voltage 100.0 V
RMS On-state Current-Max 0.35 A
Sub Category Silicon Controlled Rectifiers
Surface Mount NO
Terminal Form WIRE
Terminal Position BOTTOM
