(1 PC) 2N700A Germanium Transistor NSN 5961-00-938-7597
Tax included.

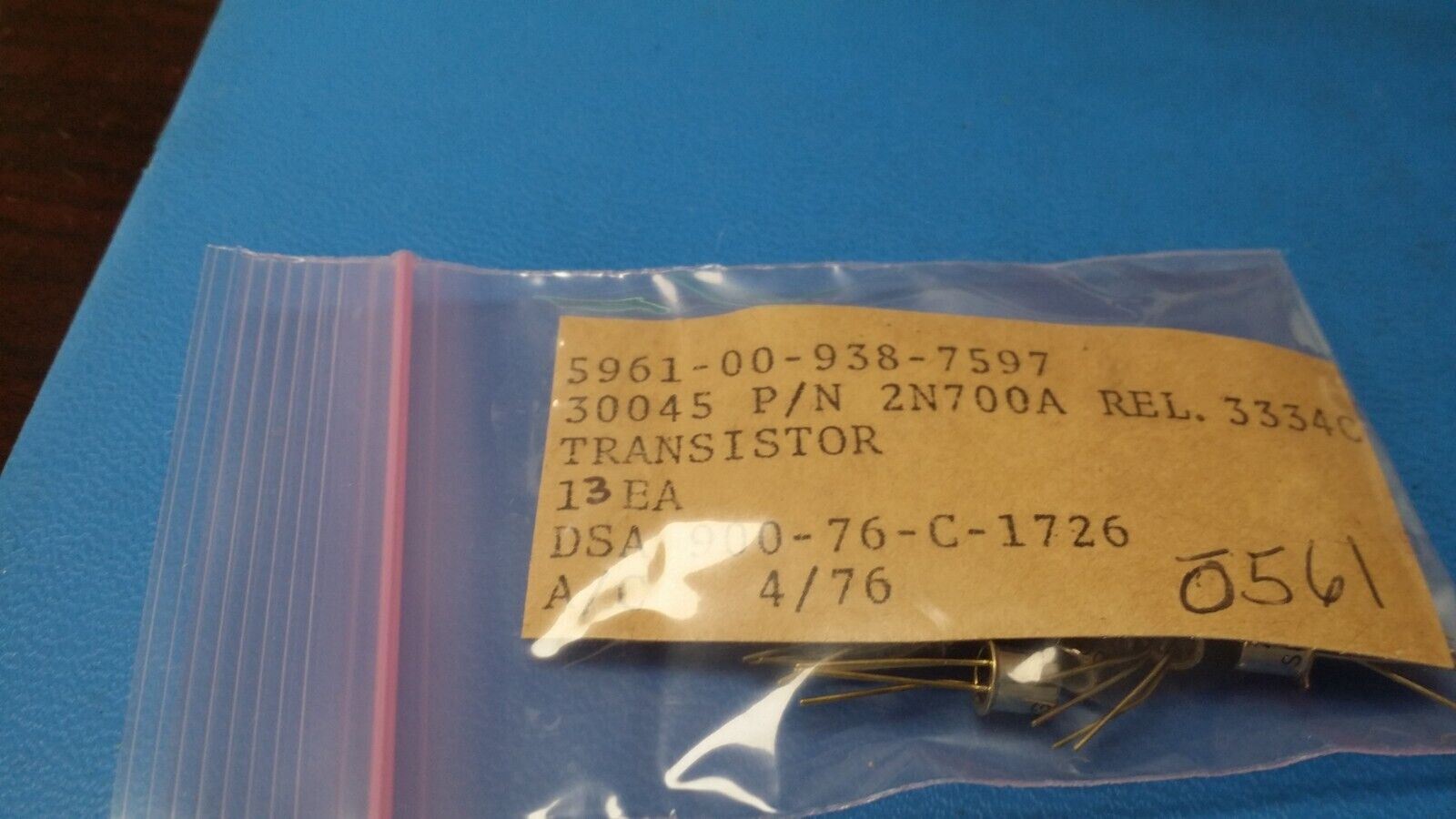

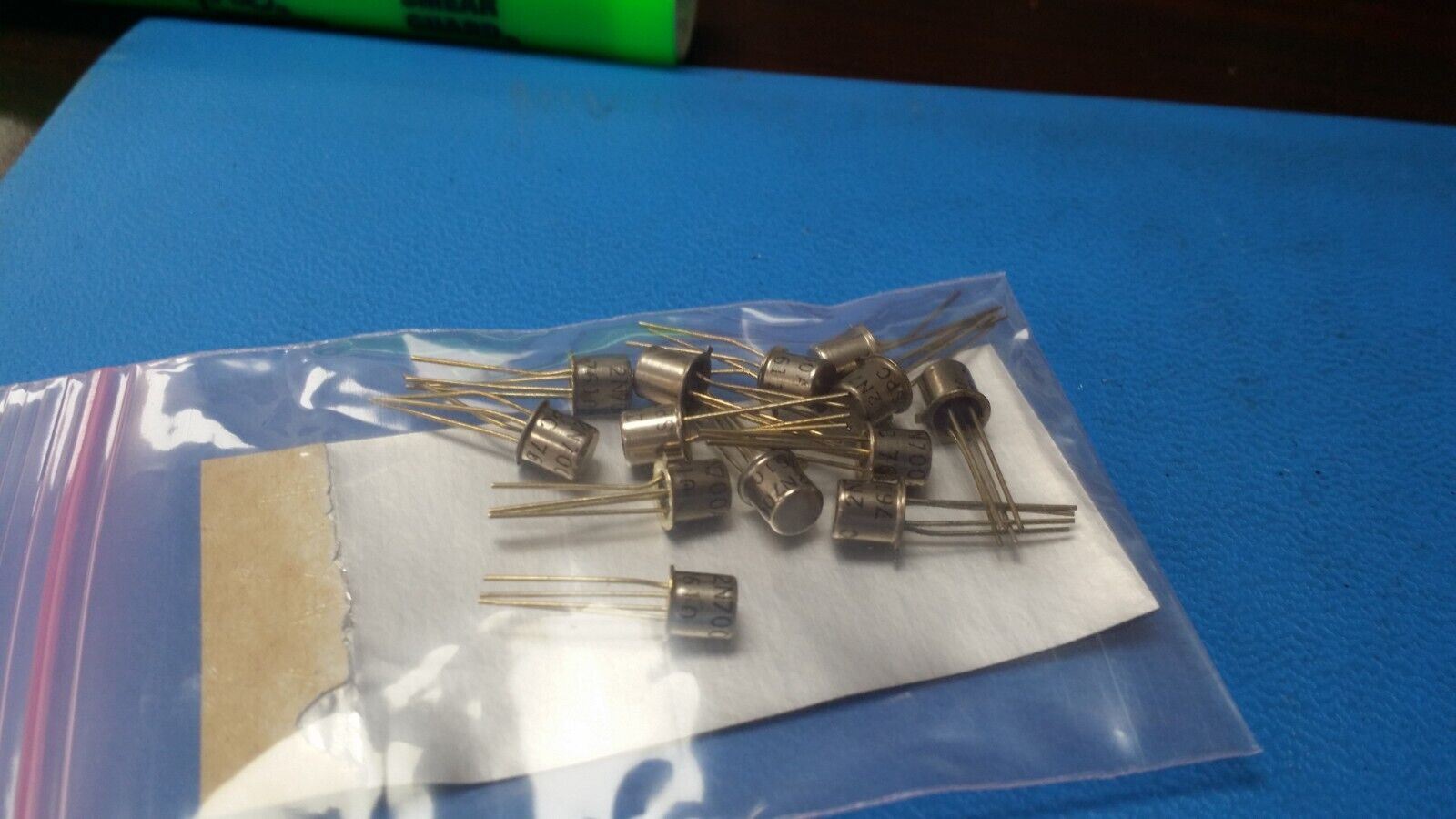

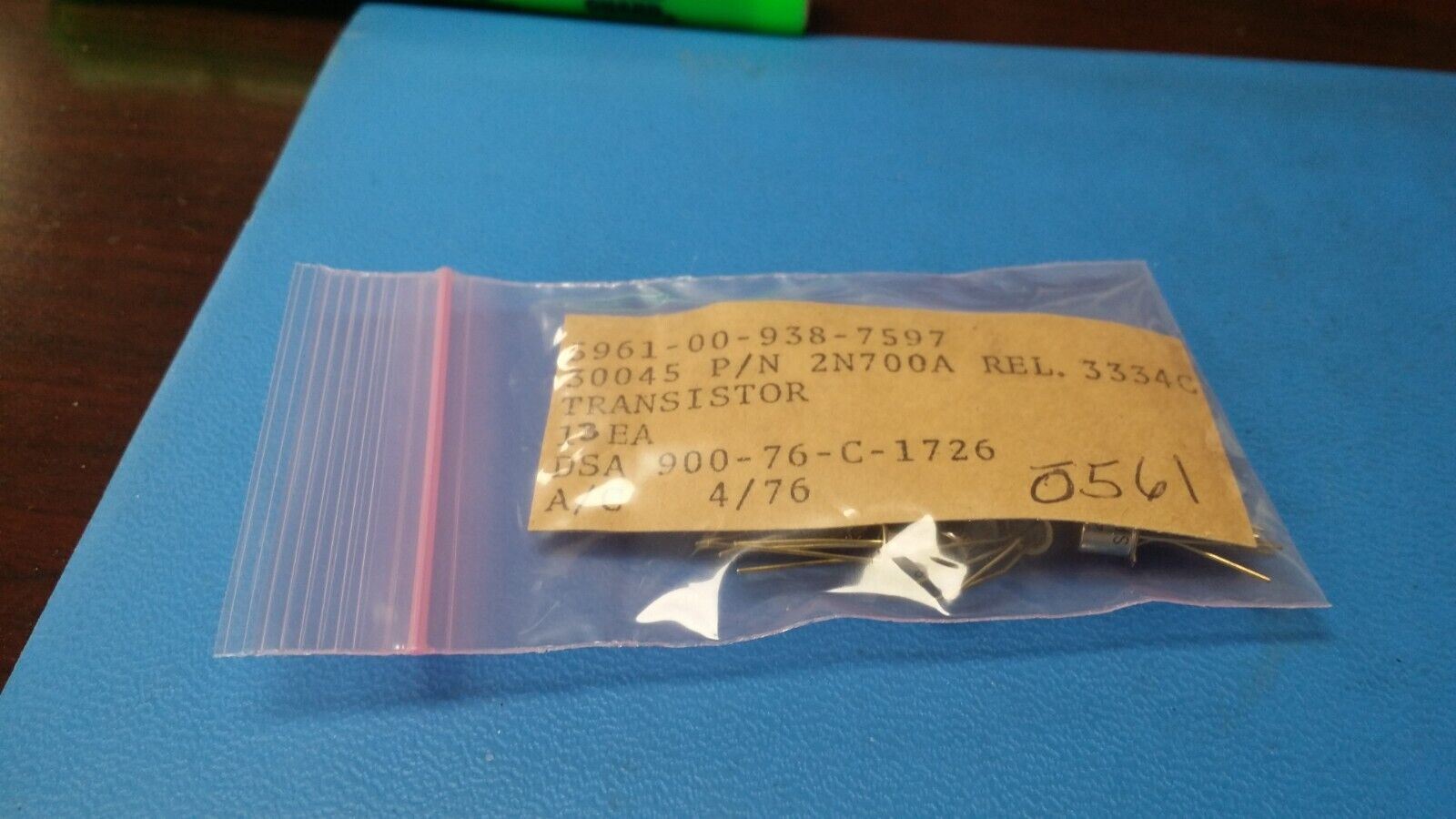

THIS IS FOR (1 PC) OF 2N700A Germanium Transistor NSN 5961-00-938-7597
Features and Characteristics
Inclosure MaterialMetal
Overall Length 0.188 inches
Terminal Length 0.500 inches
Overall Diameter 0.219 inches
Internal Configuration Junction contact
Electrode Internally-electrically Connected To Case Gate
Mounting Method Terminal
Terminal Circle Diameter 0.100 inches
Features Provided Hermetically sealed case
Semiconductor Material Germanium
Voltage Rating In Volts Per Characteristic 25.0 breakdown voltage, collector-to-base, emitter open and 25.0 breakdown voltage, collector-to-emitter, base open and 0.2 breakdown voltage, emitter-to-base, collector open
Current Rating Per Characteristic 50.00 milliamperes source cutoff current
Power Rating Per Characteristic75.0 milliwatts small-signal input power, common-collector
Maximum Operating Tempurature Per Measurement Point 100.0 degrees celsius junction
Special Features Junction pattern arrangement: pnp
Terminal Type And Quantity 4 uninsulated wire lead
Specification Data 80131-release3334 professional/industrial association specification
FSC 5961 Semiconductor Devices And Associated Hardware
NIIN 009387597
NSN 5961009387597
