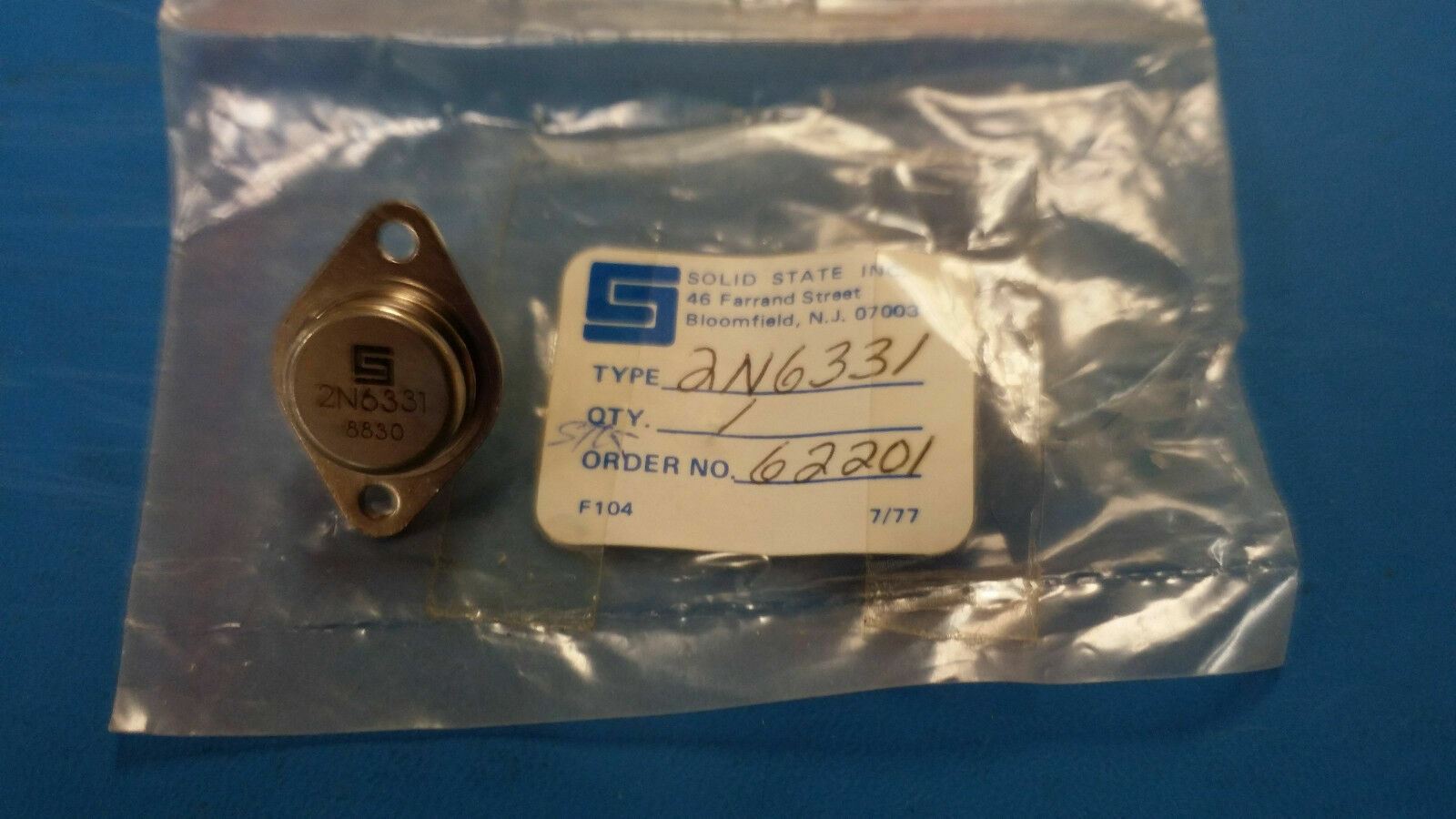

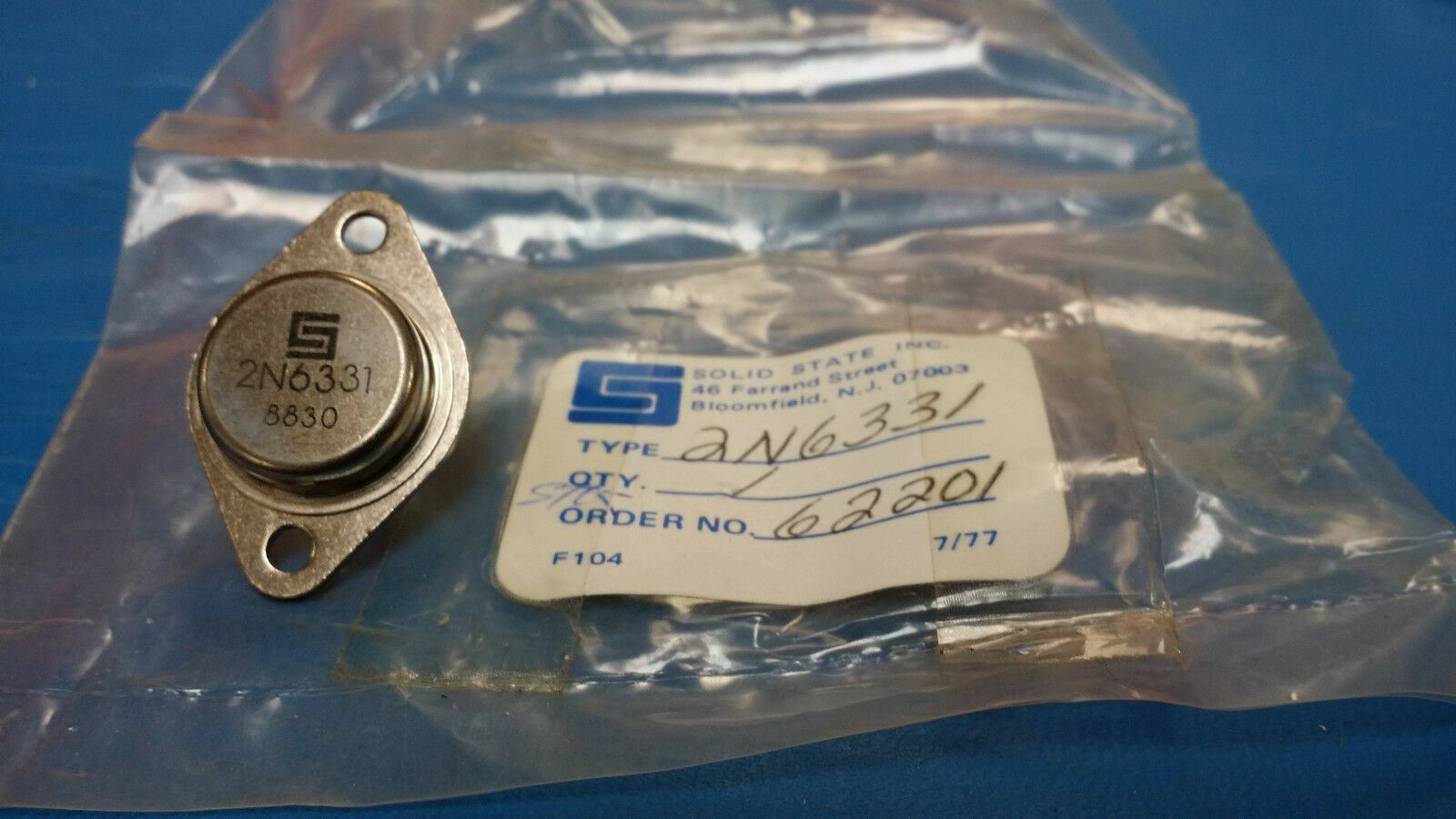

(1 PC) 2N6331 SOLID STATE 30 A, 100 V, PNP, Si, POWER TRANSISTOR, TO-3
Tax included.
THIS LISTING IS FOR (1 PC) OF 2N6331 BY SOLID STATE
30 A, 100 V, PNP, Si, POWER TRANSISTOR, TO-3
30 A, 100 V, PNP, Si, POWER TRANSISTOR, TO-3
SPECIFICATIONS
| REACH Compliant | Yes |
| Status | Discontinued |
| Case Connection | COLLECTOR |
| Collector Current-Max (IC) | 30 A |
| Collector-emitter Voltage-Max | 100 V |
| Configuration | SINGLE |
| DC Current Gain-Min (hFE) | 6 |
| JEDEC-95 Code | TO-3 |
| JESD-30 Code | O-MBFM-P2 |
| JESD-609 Code | e0 |
| Moisture Sensitivity Level | NOT SPECIFIED |
| Number of Elements | 1 |
| Number of Terminals | 2 |
| Operating Temperature-Max | 200 Cel |
| Package Body Material | METAL |
| Package Shape | ROUND |
| Package Style | FLANGE MOUNT |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED |
| Polarity/Channel Type | PNP |
| Power Dissipation-Max (Abs) | 114 W |
| Qualification Status | COMMERCIAL |
| Sub Category | Other Transistors |
| Surface Mount | NO |
| Terminal Finish | TIN LEAD |
| Terminal Form | PIN/PEG |
| Terminal Position | BOTTOM |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |
| Transistor Application | SWITCHING |
| Transistor Element Material | SILICON |
| Transition Frequency-Nom (fT) | 3 MHz |
